Product Description

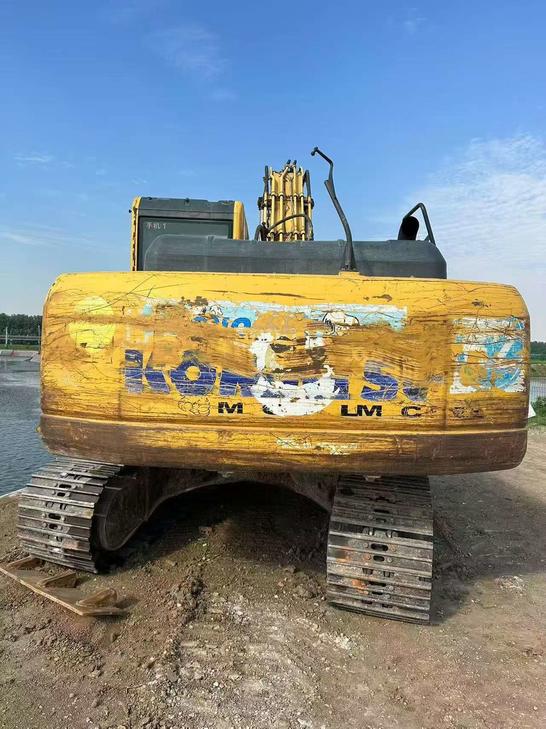

Discover the reliability and efficiency of the 2013 Komatsu PC210-8M0, available for immediate acquisition in Jiangsu, China. This versatile excavator, known for its robust performance and durability, is an excellent addition to any construction or excavation project. Designed with advanced technology and a powerful engine, it ensures high productivity and reduced operating costs. Ideal for a variety of applications, this model continues to meet the demanding needs of the industry, providing a solid return on investment.
- Year: 2013
- Brand: Komatsu
- Model: PC210-8M0
- Location: Jiangsu, China
| Specifications | Value |
|---|---|
| No. | 1076270 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20100-20550 |
| Bucket capacity (m³) | 0.94 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2925 |
| Country of origin | Changzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 103/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Water-cooled, 4-stroke, direct injection; Turbocharged, post-cooled |
| Ground specific pressure (Kpa) | 35.7/46.5 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Maximum tractive force (kN) | 178 |
| Travel speed (km/h) | 5.5/4.1/3.0 |
| Rotary hydraulic motor type | Axial piston motor ×1 (turn-back holding brake) |
| Type of walking hydraulic motor | Axial piston motor ×2 (with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-115 x 1120 x 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1490 x 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1334 x 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9425 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 (to top of boom) |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3040 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4070 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3275 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9700 |
| Boom turning Angle (left/right °) | There is no |
| Boom offset (left/right °) | There is no |
| Maximum effective digging depth (mm) | 6370 |
