Product Description

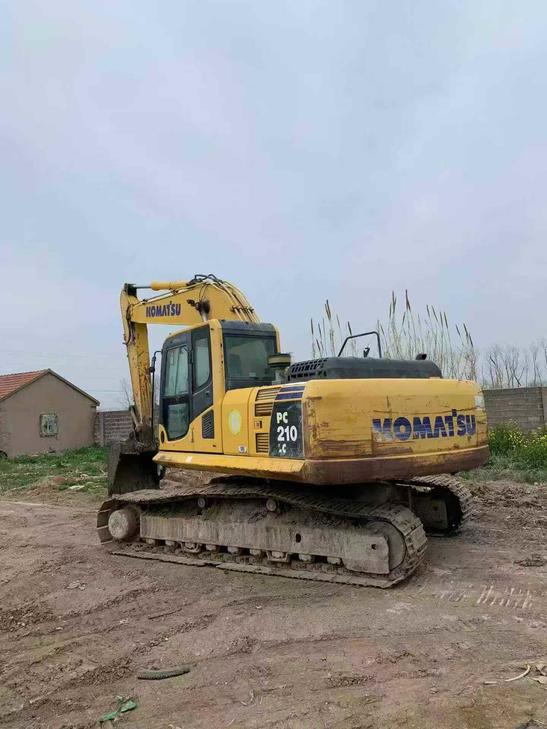

Built for heavy-duty excavation and demolition work, this 2014 Komatsu PC210LC-8 delivers immediate performance on any job site. Powered by a robust Komatsu SAA6D107E-1 engine generating 110kW at 2000 rpm, this 21-ton machine combines proven reliability with impressive digging capabilities. The 1.0 m³ backhoe bucket produces 152 kN of digging force, while the arm delivers 130 kN for challenging material extraction and trenching operations.
Currently located in Lianyungang, Jiangsu, this excavator offers exceptional reach and depth specifications ready for deployment:
- Maximum digging radius: 9,380 mm for extended work zones
- Maximum digging depth: 6,095 mm for deep foundation work
- Maximum excavation height: 9,800 mm for elevated loading operations
- Bucket digging force: 152 kN for breaking through compacted soil and rock
- Travel speed: 5.5 km/h for efficient site mobility
With transport dimensions of 9,495 × 2,980 × 3,190 mm and a working weight of 20,900 kg, this PC210LC-8 is ready to tackle grading, trenching, and material handling tasks from day one.
| Specifications | Value |
|---|---|
| No. | 1040695 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20900 |
| Bucket capacity (m³) | 1 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 150(110)2000 |
| Displacement (L) | 6.69 |
| Bucket digging force (kN) | 15200 |
| Rod digging force (kN) | 13000 |
| Travel speed (km/h) | 5.5 |
| Total transport length (mm) | 9495 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3190 |
| Maximum digging radius (mm) | 9380 |
| Maximum digging depth (mm) | 6095 |
| Maximum excavation height (mm) | 9800 |
| Maximum unloading height (mm) | 6890 |
| Maximum vertical digging depth (mm) | 5430 |
| Maximum excavation radius of stop surface (mm) | 9190 |
