Product Description

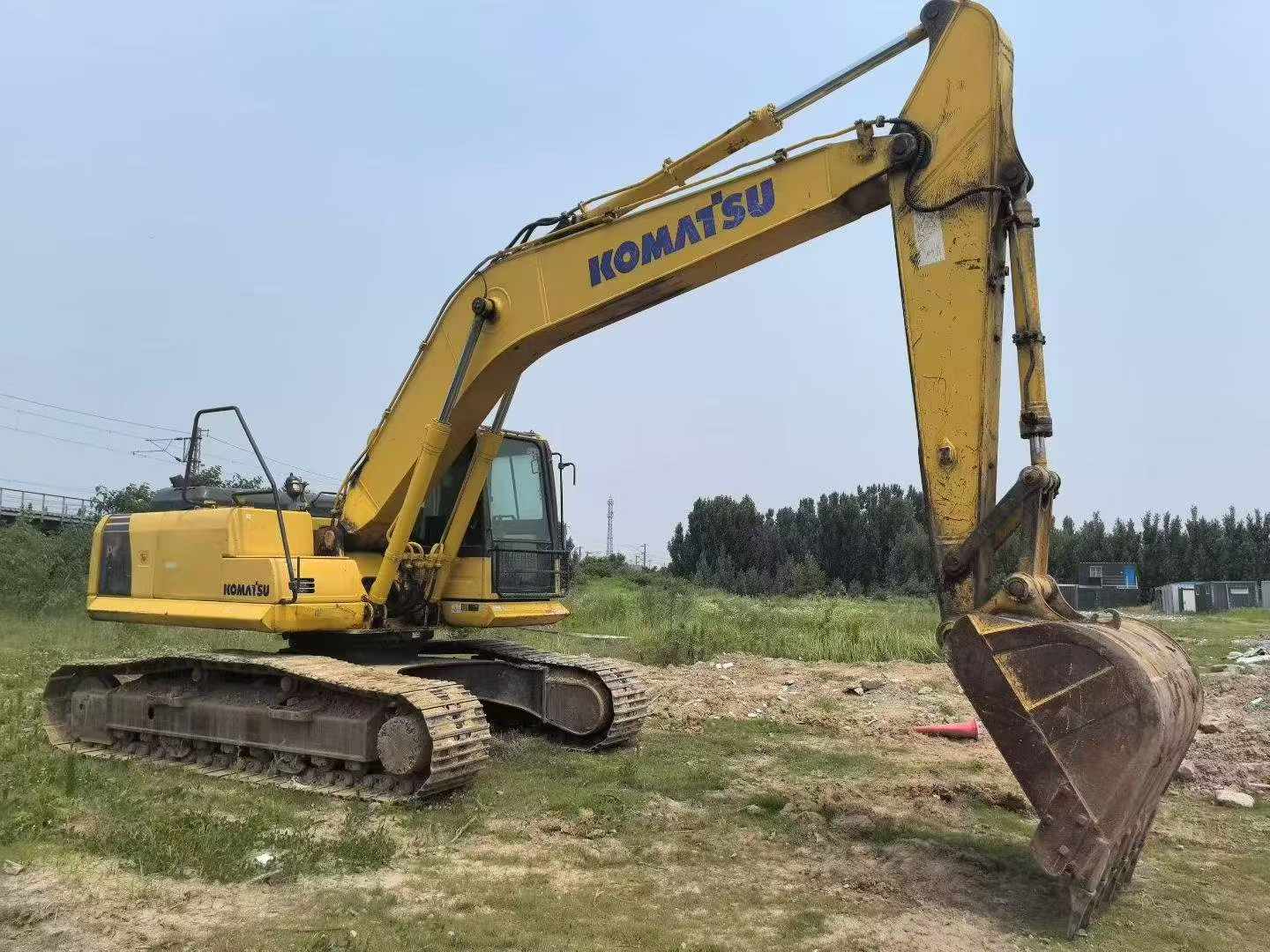

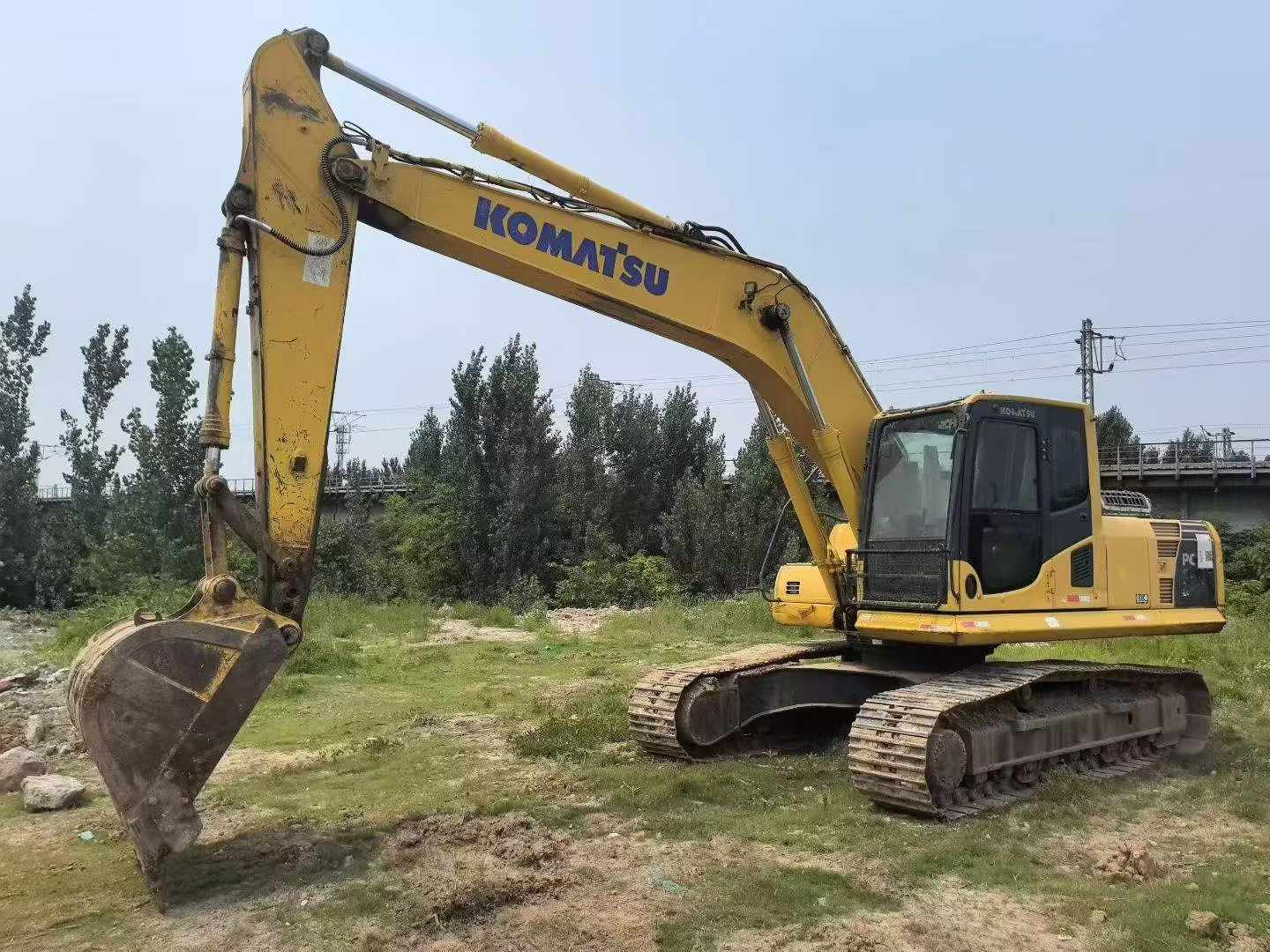

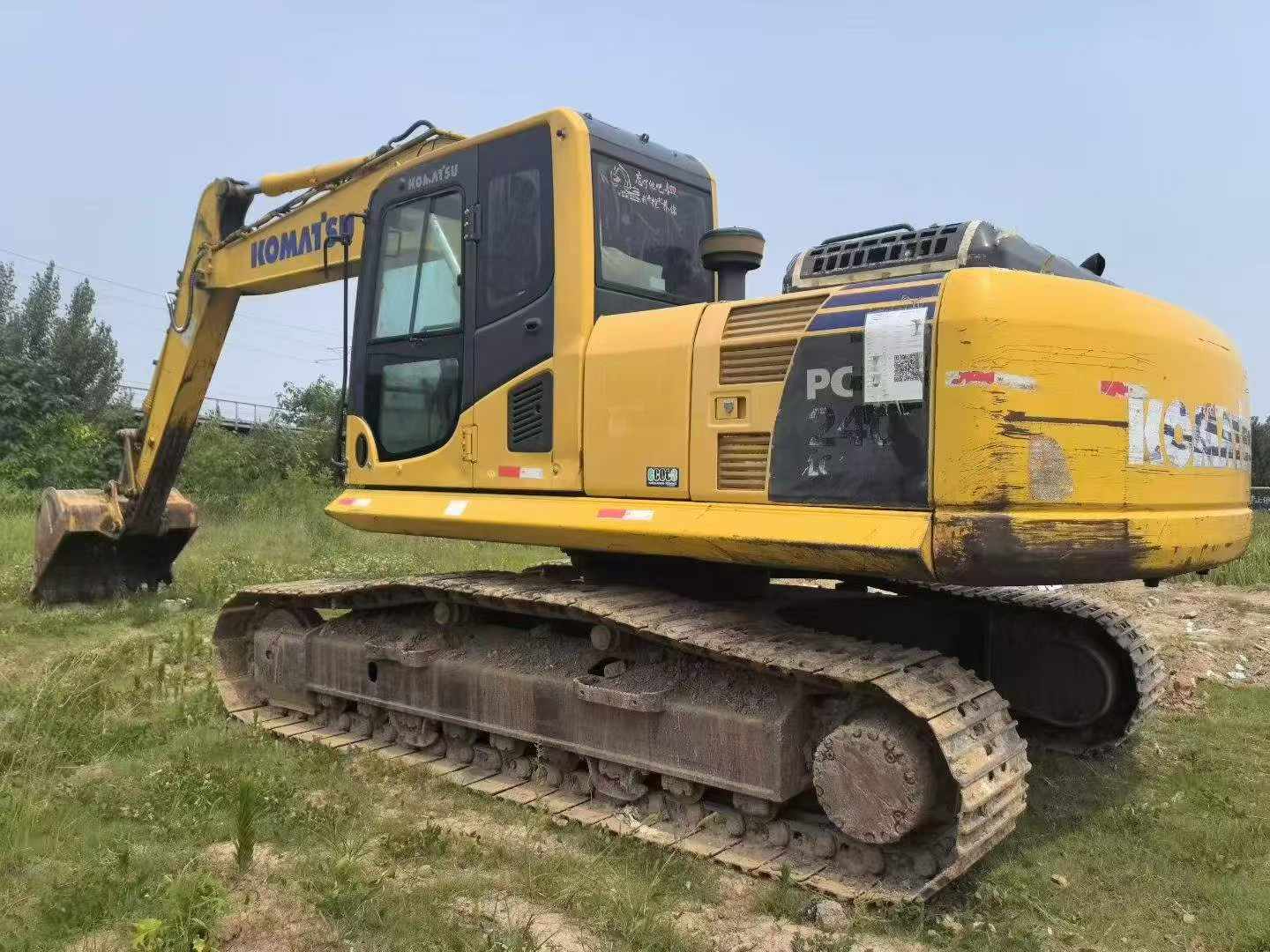

This 2018 Komatsu PC210LC-8M0 hydraulic excavator is a robust mid-size crawler unit built for demanding earthmoving and excavation applications. Sourced from Shandong, China, this machine features the reliable Komatsu SAA6D107E-1 engine and advanced hydraulic systems characteristic of the Dash-8M0 series. The unit is equipped with a 9-wheel undercarriage configuration, providing enhanced stability and load distribution across varied terrain conditions.
Key operational highlights:
- Operating weight approximately 21,800 kg
- Bucket capacity range: 0.8-1.0 m³
- 9-roller track system for extended undercarriage life
- Performance-verified and field-ready condition
- Suitable for general construction, trenching, and material handling
This excavator has been maintained in working condition and is available for immediate deployment. Ideal for contractors seeking proven Komatsu reliability in the 21-ton class.
| Specifications | Value |
|---|---|
| No. | 1106644 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 21200 |
| Bucket capacity (m³) | 1.20 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2925 |
| Country of origin | Changzhou, Jiangsu |
| Bucket width (mm) | 1300 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

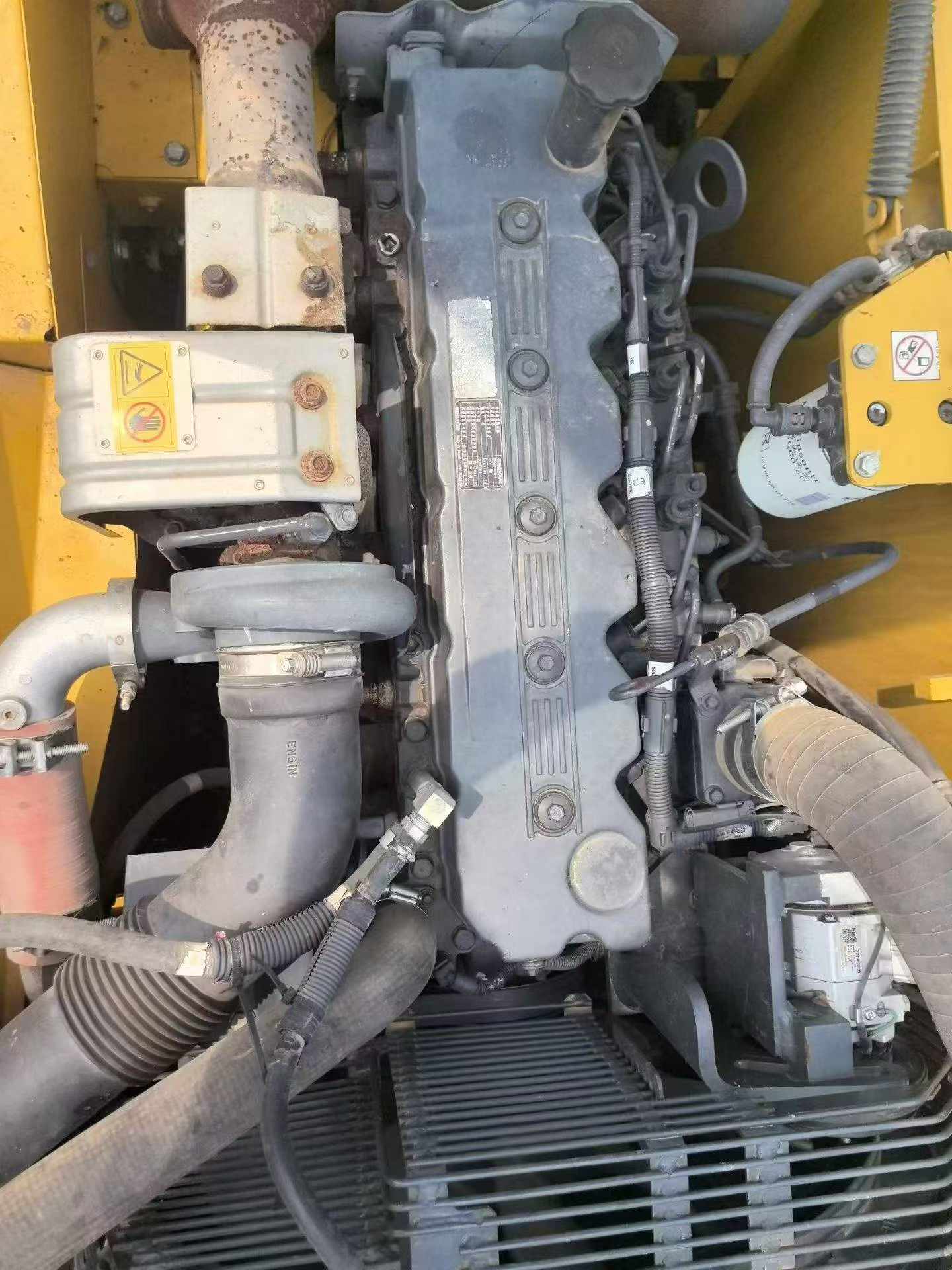

| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 103/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Water-cooled, 4-stroke, direct injection; Turbocharged, post-cooled |
| Ground specific pressure (Kpa) | 44.2 |
| Rotation speed (rpm) | 12.4 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 149 |
| Rod digging force (kN) | 108 |
| Maximum tractive force (kN) | 178 |
| Travel speed (km/h) | 5.5/4.1/3.0 |
| Rotary hydraulic motor type | Axial piston motor ×1 (turn-back holding brake) |
| Type of walking hydraulic motor | Axial piston motor ×2 (with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-115 x 1120 x 80 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-135 x 1490 x 95 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-120 x 1334 x 85 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 20.4 |
| Total transport length (mm) | 9425 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 2970 (to top of boom) |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1085 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3040 |
| Back end turning radius (mm) | 2750 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4450 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3655 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 9875 |
| Maximum digging depth (mm) | 6620 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 5980 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 9700 |
| Boom turning Angle (left/right °) | There is no |
| Boom offset (left/right °) | There is no |
| Maximum effective digging depth (mm) | 6370 |
see more
Overview
No.1106644
Brand Name：
KomatsuModel Number：
PC210LC-8M0Year：
2018
Location：
Shandong China
