Product Description

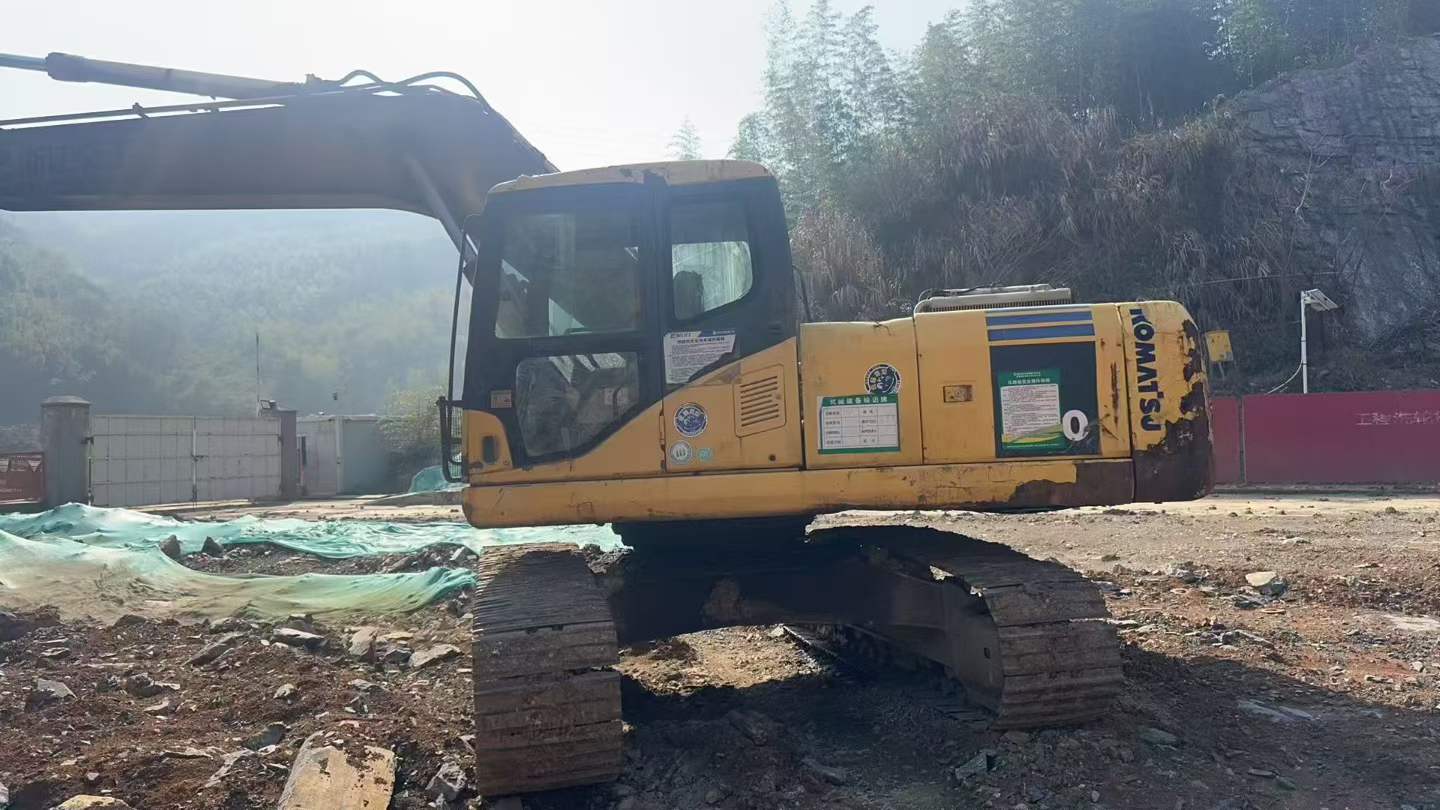

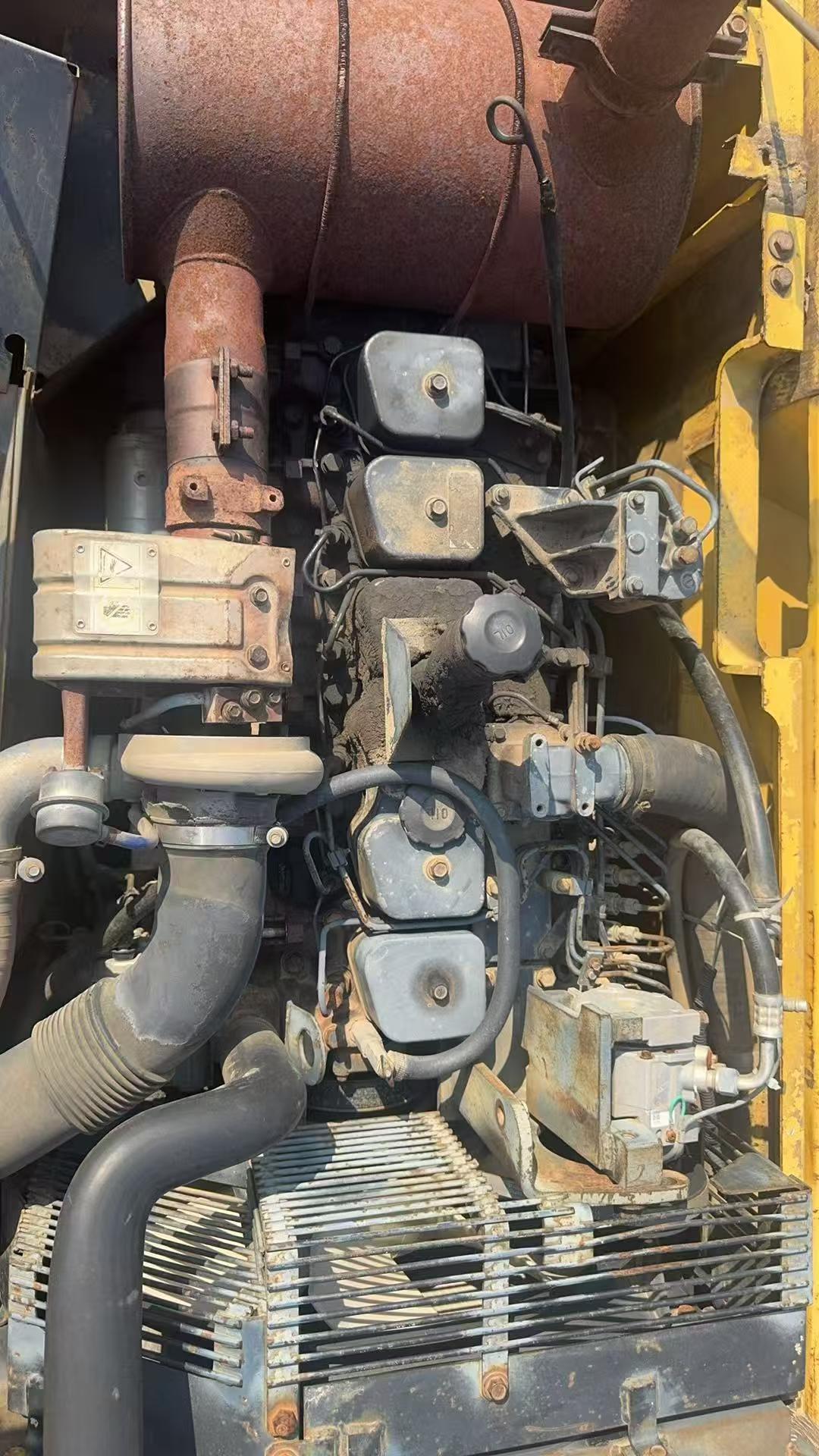

Built for demanding excavation work, this 2016 Komatsu PC220-7 delivers 22 tons of proven performance with operator-first engineering. Powered by the Komatsu SAA6D102E-2 engine producing 125 kW at 2100 rpm, this machine combines reliable power with precise hydraulic control across all operating conditions.

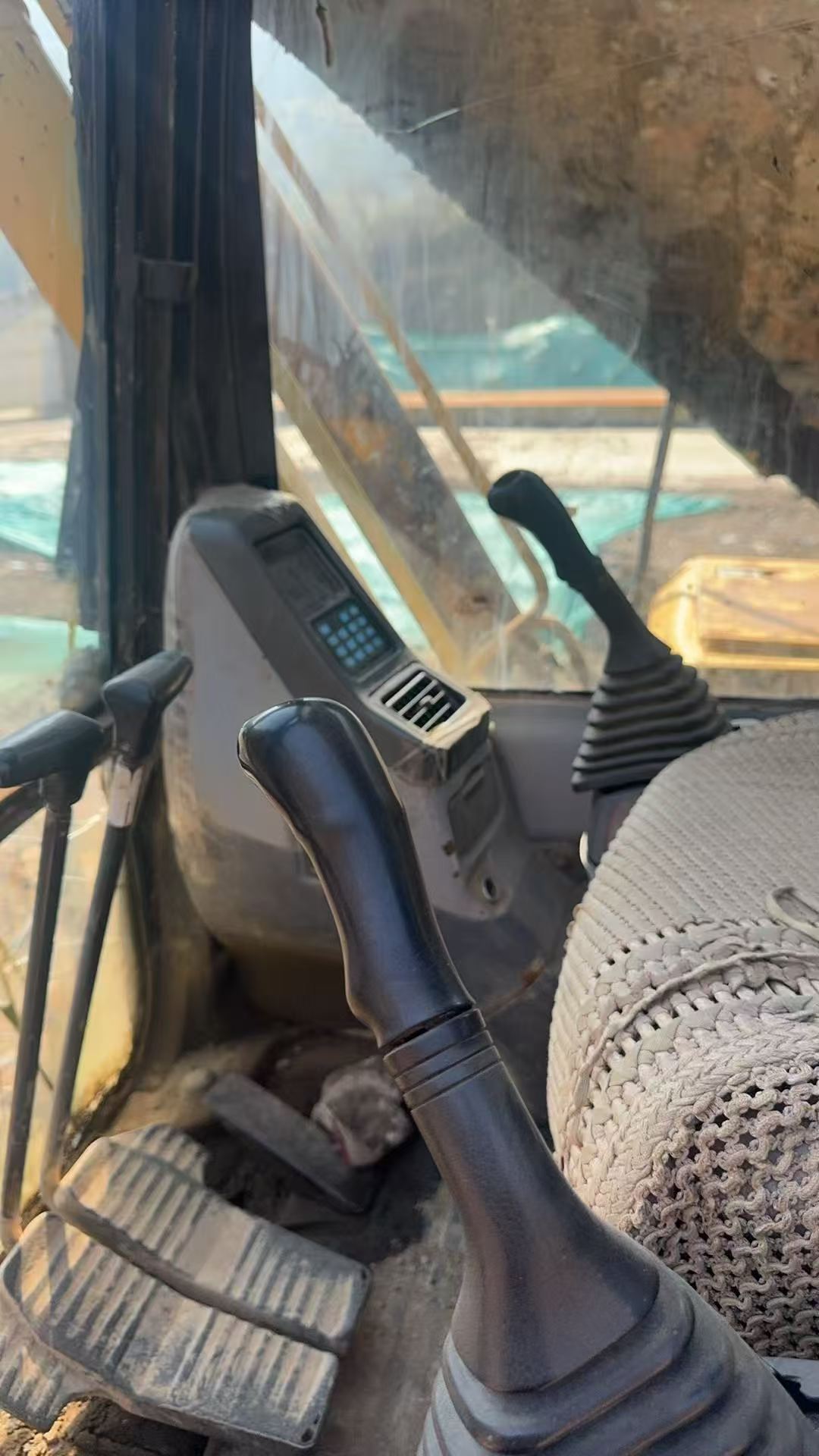

Operators benefit from exceptional visibility and stability during extended shifts. The spacious cabin sits at 2110 mm height, providing clear sightlines to the 9270 mm maximum digging radius. Robust hydraulic systems deliver 172 kN bucket digging force and 129 kN rod digging force, while the axial piston motors ensure smooth rotation and travel control. With a 600 mm track plate width and 2380 mm track gauge, stability remains constant on uneven terrain.
- 22-ton working weight with 1 m³ bucket capacity
- Maximum digging depth: 5825 mm
- Three-speed travel: 3.1/4.2/5.5 km/h for precise positioning
- 70% climbing ability (35°) for versatile site access

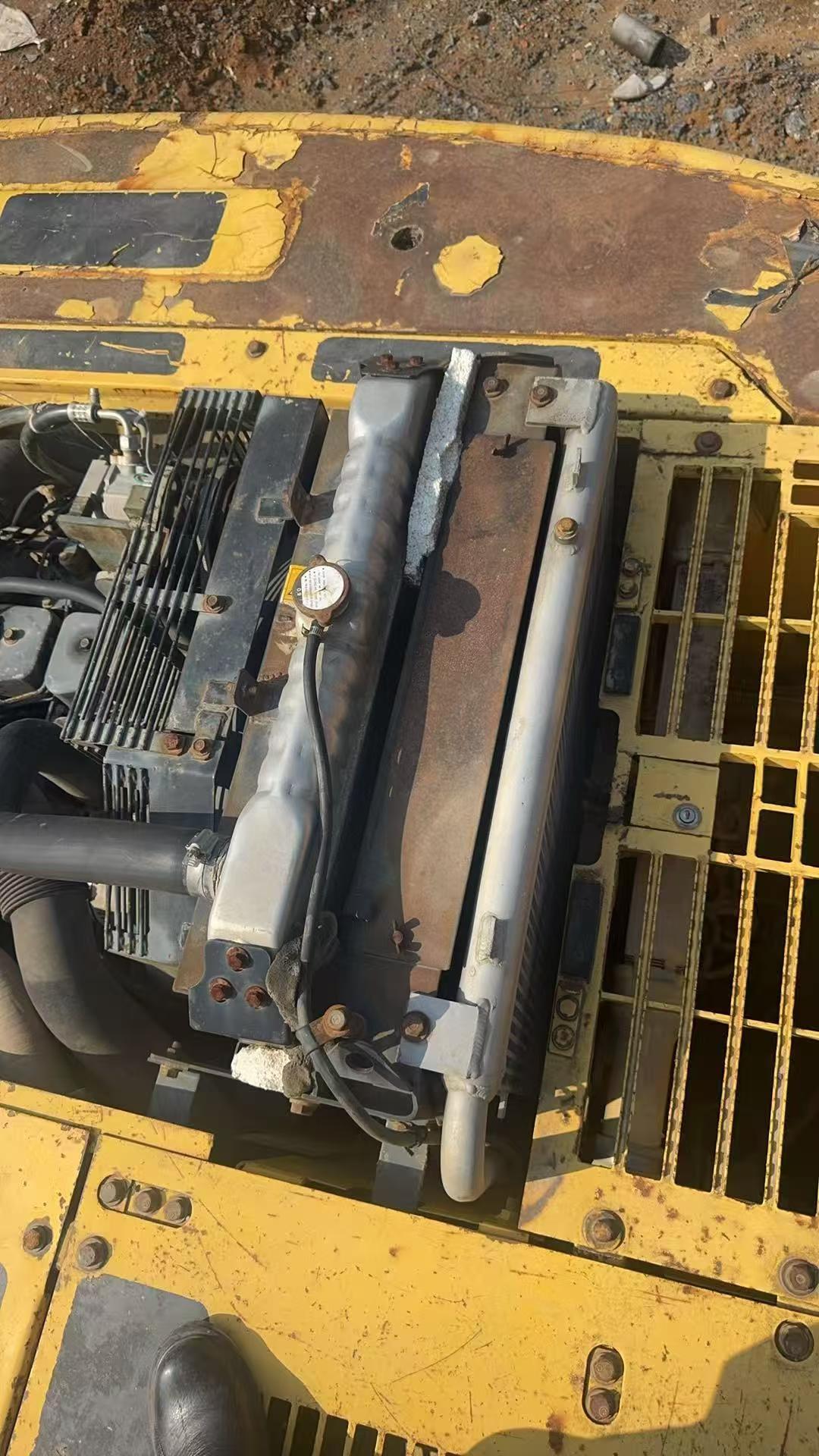

- Water-cooled 6-cylinder engine for consistent performance
- Currently located in Huzhou, Zhejiang
| Specifications | Value |
|---|---|
| No. | 1031639 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22840 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3045 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D102E-2 |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.883 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 172 |
| Rod digging force (kN) | 129 |
| Travel speed (km/h) | 3.1/4.2/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 * 1020 * 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 1635 * 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 130 * 1335 * 90 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 27.8 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9865 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3015 |
| Full cab height (mm) | 2110 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2905 |
| Total track length (mm) | 4265 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 6470 |
| Maximum digging radius (mm) | 9270 |
| Maximum digging depth (mm) | 5825 |
| Maximum excavation height (mm) | 9665 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 4750 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9070 |
| Maximum effective digging depth (mm) | 5825 |
