2020 Komatsu PC220-7

1/9

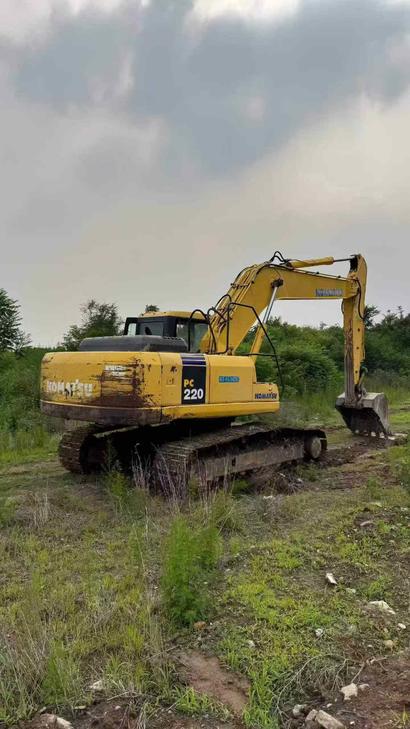

Buy Komatsu PC220-7 Used Excavator / 1
Buy Komatsu PC220-7 Used Excavator / 2
Buy Komatsu PC220-7 Used Excavator / 3
Buy Komatsu PC220-7 Used Excavator / 4
Buy Komatsu PC220-7 Used Excavator / 5
Buy Komatsu PC220-7 Used Excavator / 6
Buy Komatsu PC220-7 Used Excavator / 7
Buy Komatsu PC220-7 Used Excavator / 8
Buy Komatsu PC220-7 Used Excavator / 9

Product Description

Discover the reliability and efficiency of the 2020 Komatsu PC220-7, a robust excavator designed for demanding construction and excavation tasks. Located in Jiangsu, China, this machine is equipped with an electric throttle, enhancing its operational precision and fuel efficiency. With a solid track record, the PC220-7 model is known for its durability and performance, making it a valuable addition to any fleet. Priced at 75,000 RMB, this used excavator offers a cost-effective solution without compromising on quality or functionality.

  • Year: 2020
  • Brand: Komatsu
  • Model: PC220-7
  • Key Feature: Electric Throttle
  • Price: 75,000 RMB
  • Location: Jiangsu, China
SpecificationsValue
No.1091128
Tonnage (tons)22
Working weight (kg)22840
Bucket capacity (m³)1
Boom length (mm)5850
Rod length (mm)3045
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu SAA6D102E-2
Rated power (kw/rpm)125/2100
Cooling modewater-cooling
Cylinder diameter × stroke (mm)102 x 120
Number of cylinders (PCS)6
Displacement (L)5.883
Rotation speed (rpm)11.7
Climbing ability (%)70/35 °
Bucket digging force (kN)172
Rod digging force (kN)129
Travel speed (km/h)3.1/4.2/5.5
Rotary hydraulic motor typeAxial piston motor ×1(rotary holding valve)
Type of walking hydraulic motorAxial piston motor ×2(with parking brake)
Maximum flow of main pump (l/min)439
Traveling Hydraulic Circuit (Mpa)37.3
Rotary Hydraulic Circuit (Mpa)28.4
Control Hydraulic Circuit (Mpa)3.2 Pilot oil circuit
Hydraulic crushing pipeline is standardno
Bucket cylinders - Number × diameter × stroke (mm)130 * 1020 * 90
Bucket rod cylinders - Number × diameter × stroke (mm)140 * 1635 * 100
Boom cylinders - Number × diameter × stroke (mm)130 * 1335 * 90
Fuel Tank (L)400
Hydraulic Tank (L)27.8
Engine Oil changes (L)24
Coolant (L)30.9
Total transport length (mm)9865
Total transport width (mm)2980
Total transport height (mm)3015
Full cab height (mm)2110
Minimum ground clearance (mm)440
Back end turning radius (mm)2905
Total track length (mm)4265
Track gauge (mm)2380
Track plate width (mm)600
Total track width (mm)2980
Track ground length (mm)6470
Maximum digging radius (mm)9270
Maximum digging depth (mm)5825
Maximum excavation height (mm)9665
Maximum unloading height (mm)6715
Maximum vertical digging depth (mm)4750
Bulldozer lift or depth (mm)No bulldozer
Maximum excavation radius of stop surface (mm)9070
Maximum effective digging depth (mm)5825
see more

Overview

No.1091128

Brand Name:

Komatsu

Model Number:

PC220-7

Year:

2020

Location:

Jiangsu China

Pub Date
