Product Description

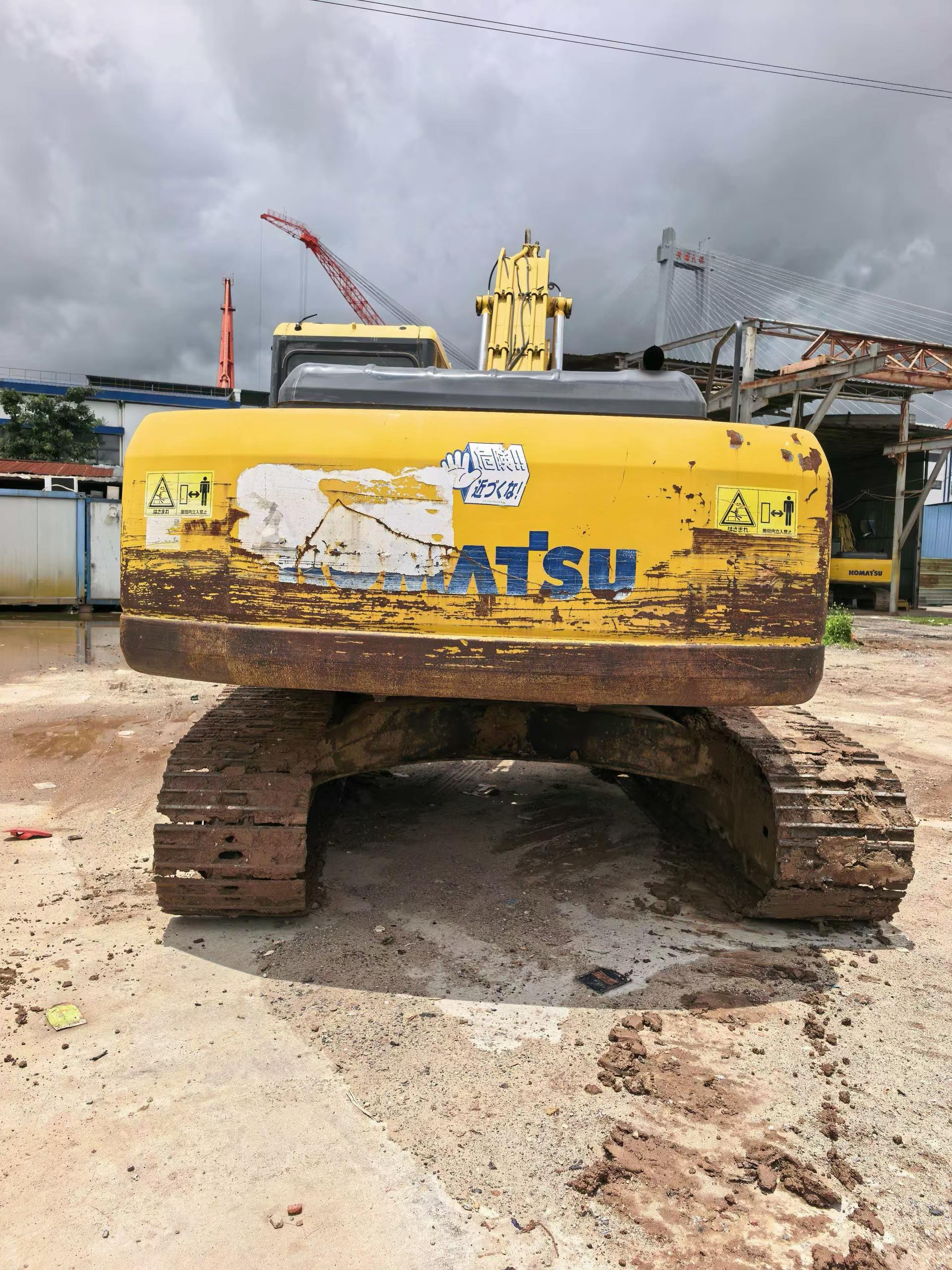

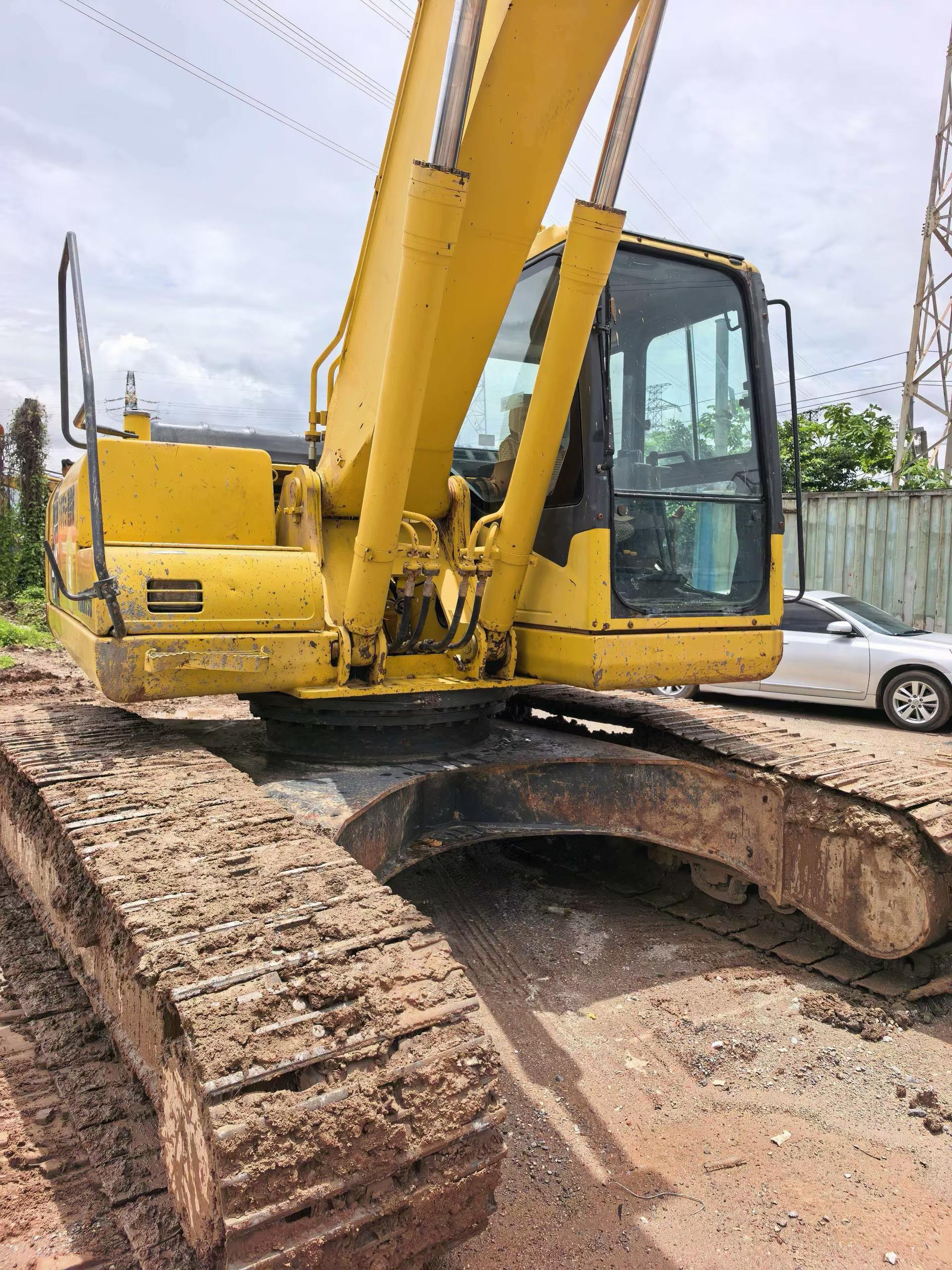

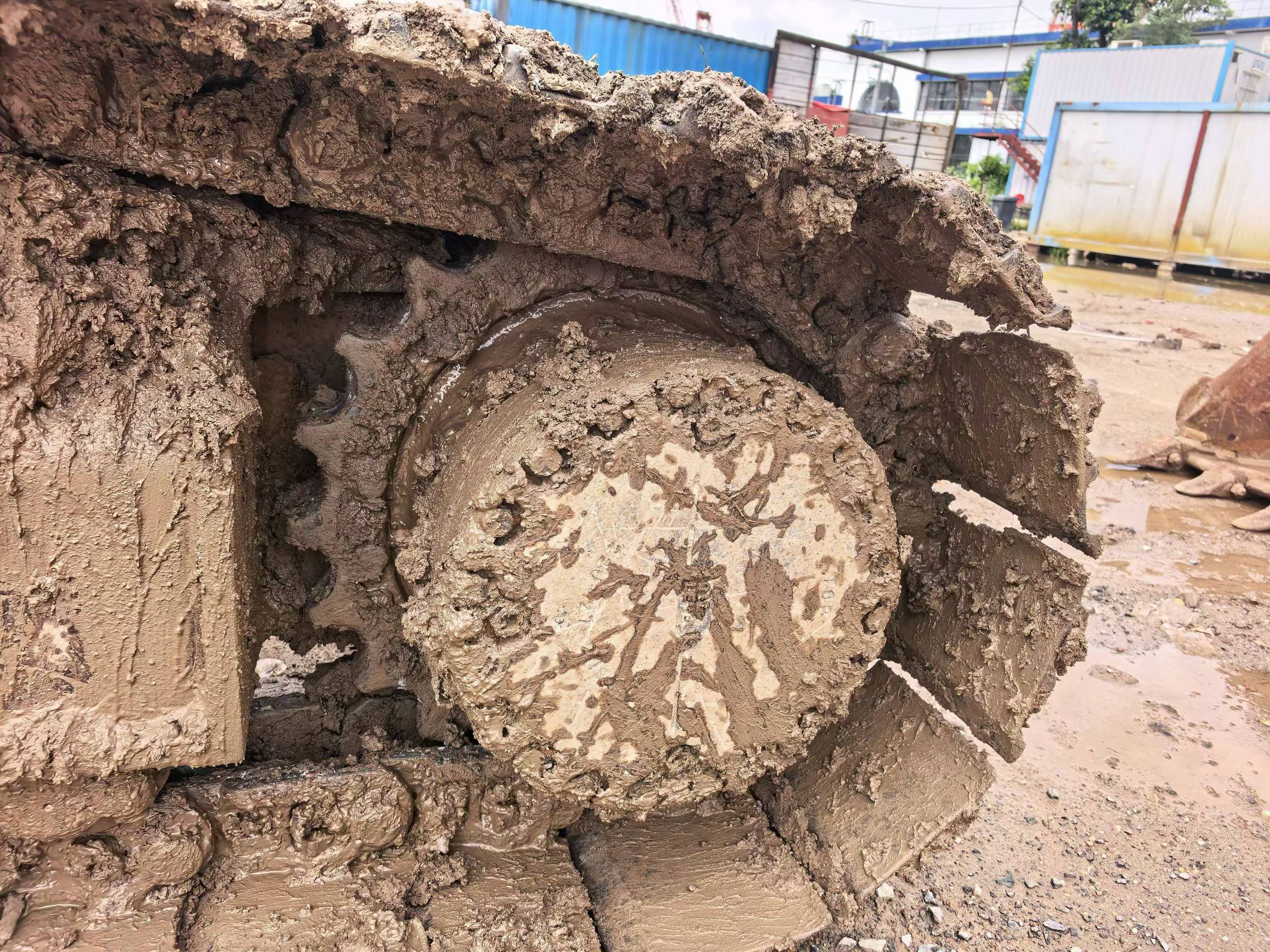

This 2020 Komatsu PC220-7 hydraulic excavator represents a solid mid-size solution for construction, mining, and earthmoving applications. Currently located in Guangdong, China, this used machine offers the proven reliability that Komatsu equipment is known for in demanding industrial environments.
The PC220-7 features a robust design with excellent digging force and cycle times, making it suitable for trenching, loading, and general excavation work. Its operator-friendly cab and efficient hydraulic system contribute to productive workdays while maintaining reasonable fuel consumption.
- Operating weight class: 22 tons
- Proven Komatsu hydraulic technology
- Suitable for various earthmoving tasks
- Low operational hours for a 2020 unit
- Available for inspection in Guangdong
Contact FairTradeMachinery today to discuss specifications, current condition reports, and international shipping options for this excavator.
| Specifications | Value |
|---|---|
| No. | 1094852 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22840 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3045 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

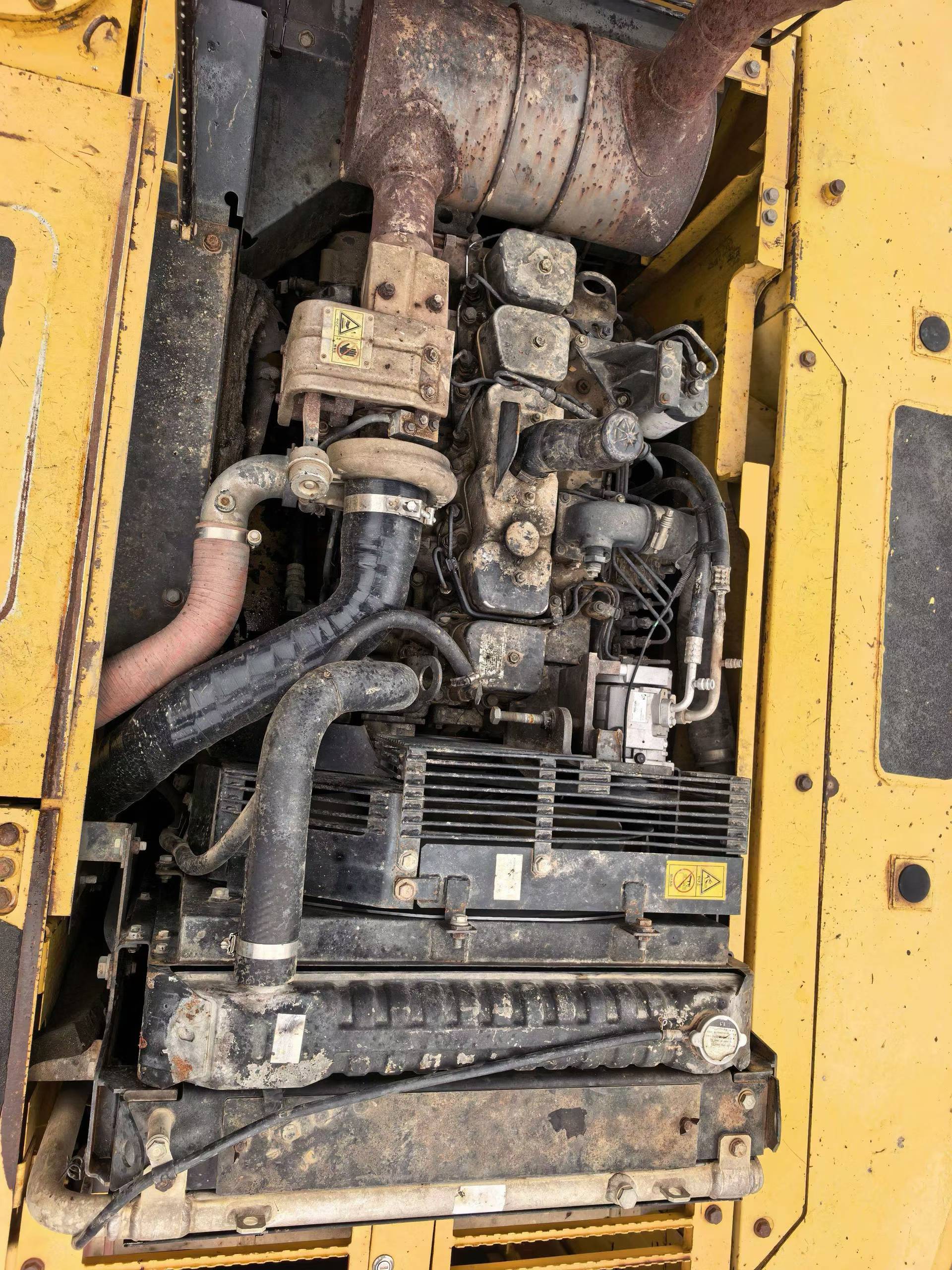

| Engine type | Komatsu SAA6D102E-2 |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.883 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 172 |
| Rod digging force (kN) | 129 |
| Travel speed (km/h) | 3.1/4.2/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 * 1020 * 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 1635 * 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 130 * 1335 * 90 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 27.8 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9865 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3015 |
| Full cab height (mm) | 2110 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2905 |
| Total track length (mm) | 4265 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 6470 |
| Maximum digging radius (mm) | 9270 |
| Maximum digging depth (mm) | 5825 |
| Maximum excavation height (mm) | 9665 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 4750 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9070 |
| Maximum effective digging depth (mm) | 5825 |
