Product Description
Offering a 2020 Komatsu PC220-7 excavator, equipped with an 18-meter extended arm, ideal for a wide range of construction and excavation projects. This machine, located in Heilongjiang, China, has been meticulously maintained and is in excellent condition, having seen minimal use since its purchase. Originally acquired for over 50,000, this unit presents a cost-effective solution for businesses looking to enhance their fleet without compromising on quality or performance. The extended arm feature makes it particularly suitable for deep digging and long-reach operations, providing versatility and efficiency on the job site.
- Year: 2020
- Brand: Komatsu
- Model: PC220-7
- Location: Heilongjiang, China
- Condition: Excellent, minimally used

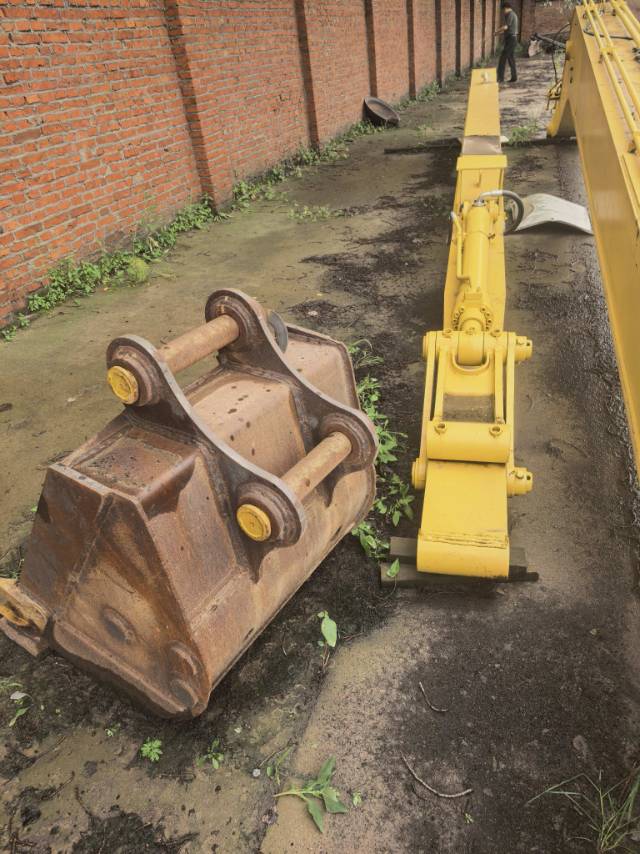

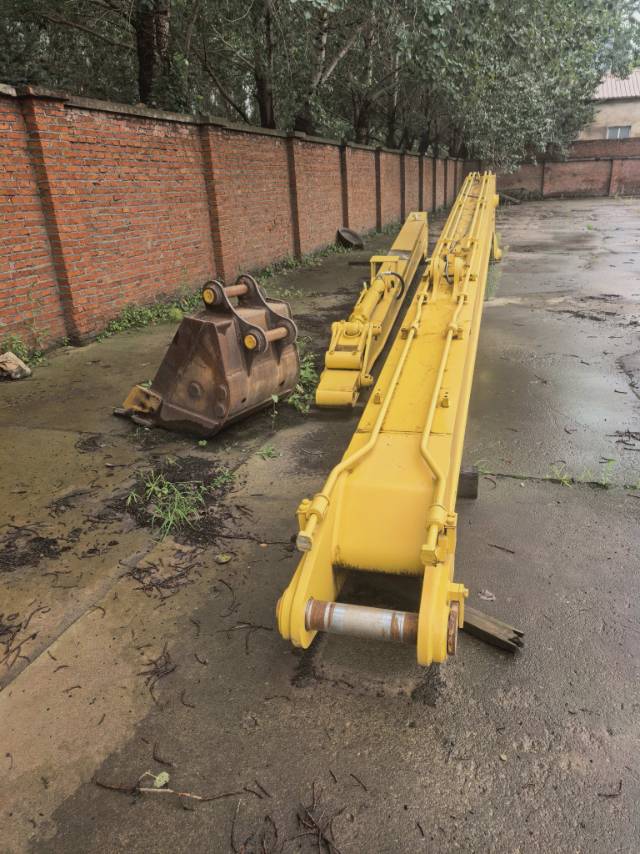

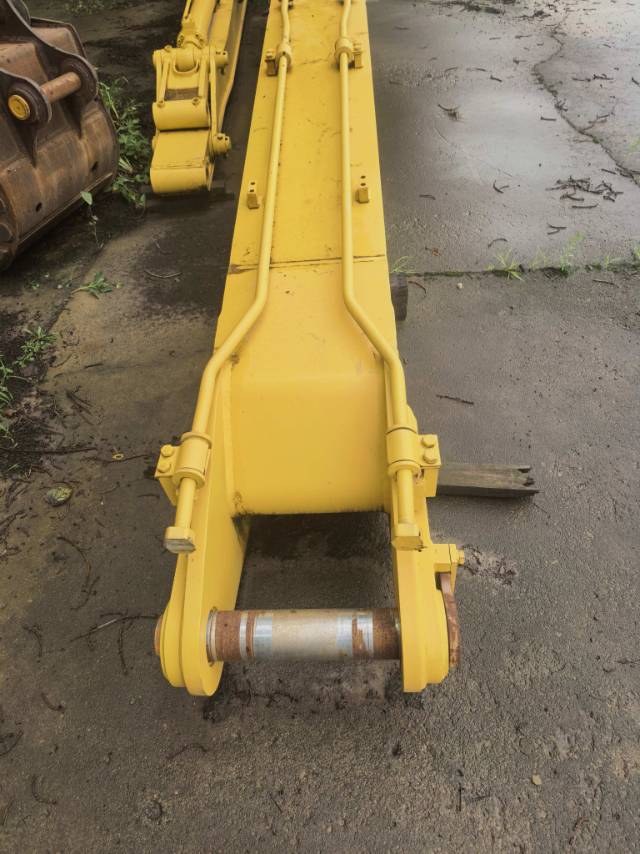

- Key Feature: 18-meter extended arm
| Specifications | Value |
|---|---|
| No. | 1129938 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 22840 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3045 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D102E-2 |
| Rated power (kw/rpm) | 125/2100 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 102 x 120 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 5.883 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 172 |
| Rod digging force (kN) | 129 |
| Travel speed (km/h) | 3.1/4.2/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 * 1020 * 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 1635 * 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 130 * 1335 * 90 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 27.8 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9865 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3015 |
| Full cab height (mm) | 2110 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2905 |
| Total track length (mm) | 4265 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 6470 |
| Maximum digging radius (mm) | 9270 |
| Maximum digging depth (mm) | 5825 |
| Maximum excavation height (mm) | 9665 |
| Maximum unloading height (mm) | 6715 |
| Maximum vertical digging depth (mm) | 4750 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9070 |
| Maximum effective digging depth (mm) | 5825 |
