Product Description

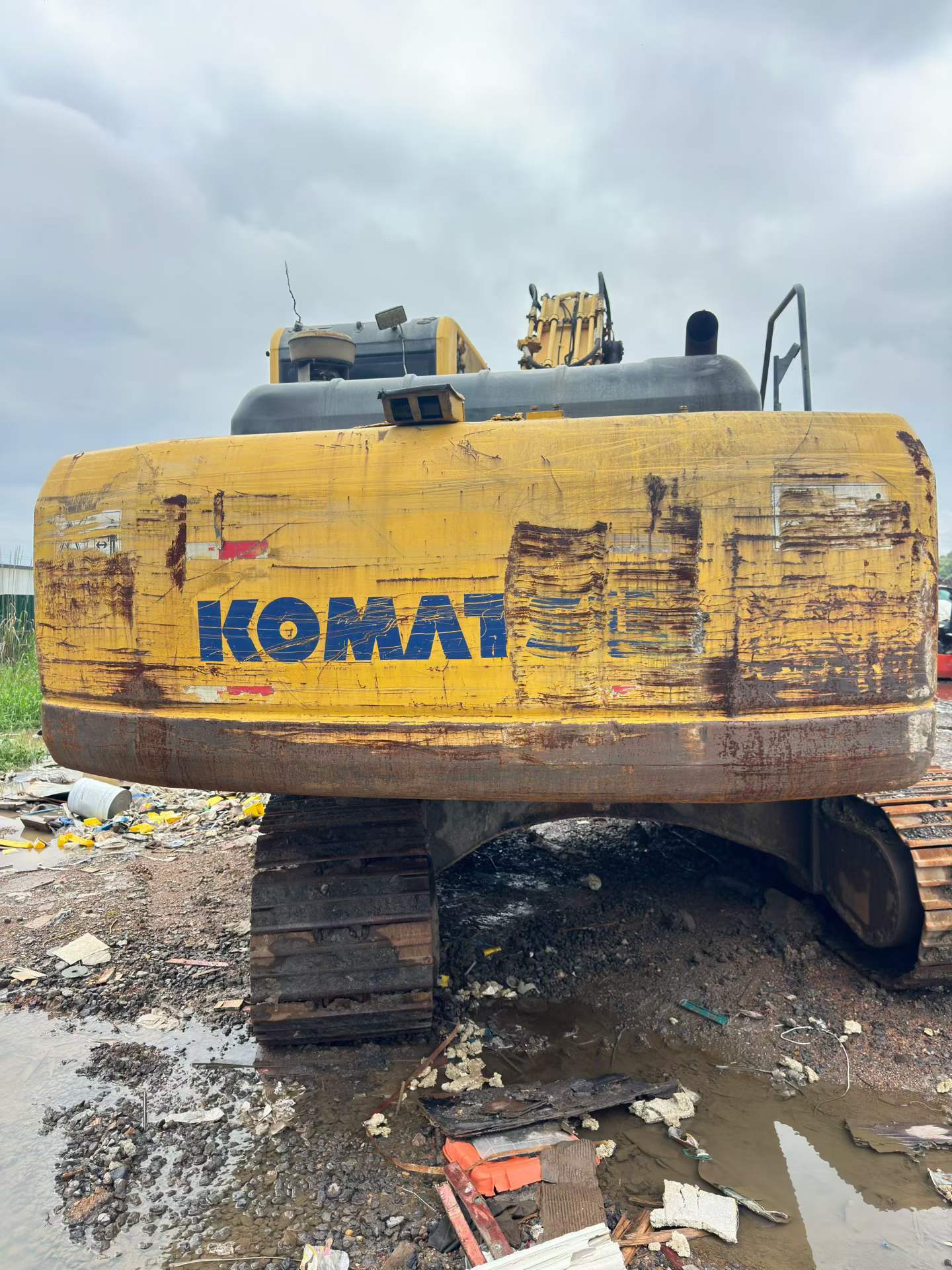

Designed for demanding excavation work, this 2016 Komatsu PC220-8 delivers 22-ton performance with exceptional operator-centered engineering. Powered by a Komatsu SAA6D107E-1 engine producing 110 kW at 2000 rpm, this machine combines reliable power with refined hydraulic control. The spacious cab provides commanding visibility across a 10,180 mm maximum digging radius and 6,920 mm digging depth, while intuitive pilot controls ensure precise bucket and boom movements during extended shifts.
- Operator comfort: Ergonomic cabin with enhanced sightlines and reduced vibration for all-day productivity
- Stable platform: 23,100 kg working weight with optimized 2,380 mm track gauge ensures solid footing on uneven terrain
- Responsive handling: 3.2 MPa pilot hydraulic system delivers smooth, fatigue-reducing control across all functions
- Proven reliability: 6-cylinder water-cooled engine meets Tier 3/EUIIIA emissions standards
- Versatile reach: 5,850 mm boom and 3,045 mm arm configuration balances digging force with working envelope
Currently located in Jiangxi, this PC220-8 represents Komatsu's commitment to operator efficiency and machine durability in the mid-size excavato
| Specifications | Value |
|---|---|
| No. | 1050841 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 23100 |
| Bucket capacity (m³) | 1 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3045 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

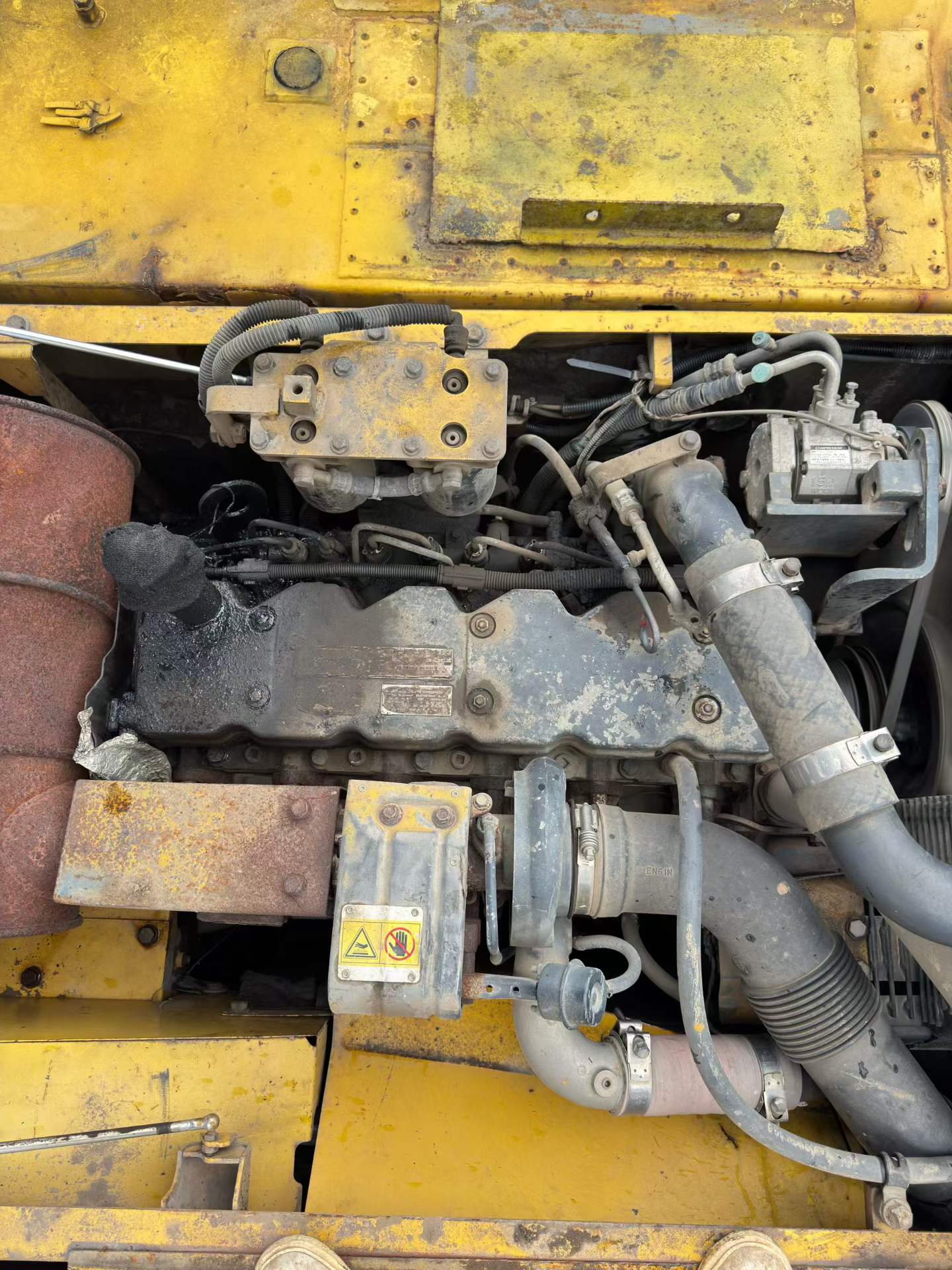

| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 110/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 50.4 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 172 |
| Rod digging force (kN) | 129 |
| Travel speed (km/h) | 3.1/4.2/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 * 1020 * 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 1635 * 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 130 * 1335 * 90 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 19.8 |
| Total transport length (mm) | 9885 |
| Total transport width (mm) | 5190 |
| Total transport height (mm) | 3185 |
| Full cab height (mm) | 3055 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2905 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3460 |
| Maximum digging radius (mm) | 10180 |
| Maximum digging depth (mm) | 6920 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7035 |
| Maximum vertical digging depth (mm) | 6010 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10020 |
| Maximum effective digging depth (mm) | 6700 |
