Product Description

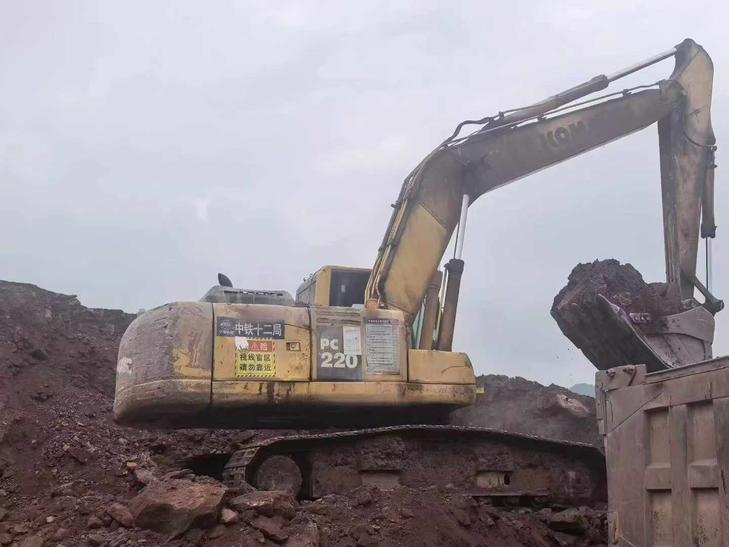

2018 Komatsu PC220-8M0 hydraulic excavator available from Fujian, China. This 22-ton class machine has been actively deployed in working conditions and shows honest operational history. The PC220-8M0 represents Komatsu's reliable mid-size excavator platform, featuring proven hydraulic systems and fuel-efficient performance suitable for general earthmoving, trenching, and construction applications.
Key attributes:
- Model year: 2018
- Manufacturer: Komatsu
- Model designation: PC220-8M0
- Operating weight class: approximately 22 tonnes
- Current location: Fujian Province, China
- Status: field-ready working unit
This excavator is competitively priced for prompt acquisition. Suitable for contractors seeking dependable mid-range excavation capacity with established OEM support networks. Inspection and export documentation assistance available upon request.
| Specifications | Value |
|---|---|
| No. | 1082490 |
| Tonnage (tons) | 22 |
| Working weight (kg) | 23600-24200 |
| Bucket capacity (m³) | 1.03-1.45 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3045 |
| Country of origin | Changzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 123/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Water-cooled, 4-stroke, direct injection; Turbocharged, post-cooled |
| Ground specific pressure (Kpa) | 51.2 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 172 |
| Rod digging force (kN) | 129 |
| Maximum tractive force (kN) | 202 |
| Travel speed (km/h) | 5.5/4.2/3.1 |
| Rotary hydraulic motor type | Axial piston motor ×1 (turn-back holding brake) |
| Type of walking hydraulic motor | Axial piston motor ×2 (with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-130 x 1020 x 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-140 x 1635 x 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-130 x 1335 x 90 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 19.9 |
| Total transport length (mm) | 9885 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3185 |
| Full cab height (mm) | 3040 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 3450 |
| Back end turning radius (mm) | 2940 |
| Onboard width (mm) | 2710 |
| Total track length (mm) | 4260 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2980 |
| Track ground length (mm) | 3460 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 47 |
| Maximum digging radius (mm) | 10180 |
| Maximum digging depth (mm) | 6920 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7035 |
| Maximum vertical digging depth (mm) | 6010 |
| Bulldozer lift or depth (mm) | There is no |
| Dodging plate width × height (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10020 |
| Boom turning Angle (left/right °) | There is no |
| Boom offset (left/right °) | There is no |
| Maximum effective digging depth (mm) | 6700 |
