Product Description

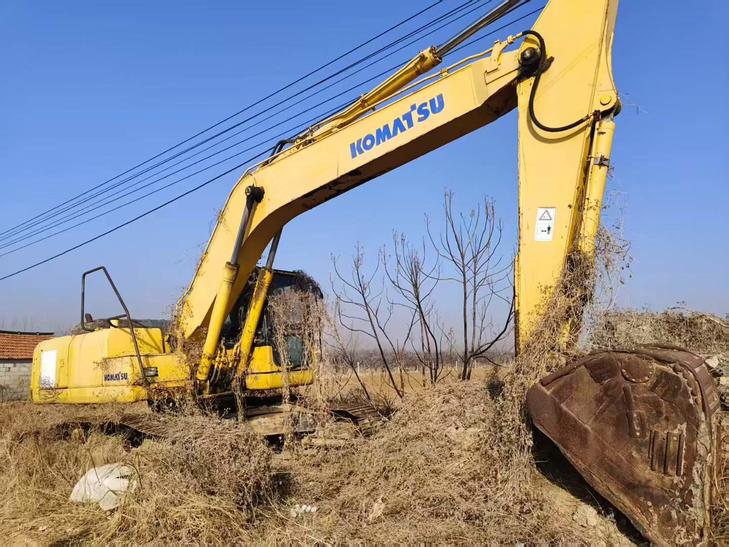

Built for high-output excavation work, this 2016 Komatsu PC240-6 delivers 118kW of proven Komatsu SA6D102 power across demanding job sites. With a 23,500kg operating weight and 1.1m³ bucket capacity, it handles deep foundation work, mass excavation, and precision grading without hesitation. Maximum digging depth reaches 5,880mm while the 9,090mm excavation radius covers substantial ground per cycle.
Key performance specs include:
- 24-ton class excavator with joint venture/import build quality
- 5.9L displacement engine rated at 2,300 RPM for consistent torque delivery
- 310L fuel tank supports extended shifts without refueling downtime
- 2,860mm rear swing radius enables work in confined spaces
- 9,735mm transport length fits standard lowboy trailers
Currently located in Jinan, Shandong, this machine arrives site-ready with hydraulic systems, undercarriage, and cab fully operational. Suitable for contractors running demolition projects, utility installation, or large-scale earthmoving operations requiring reliable daily production.
| Specifications | Value |
|---|---|
| No. | 1021132 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23500 |
| Bucket capacity (m³) | 1.1/0.49/1.3 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu SA6D102 |
| Rated power (kw/rpm) | 118/2300 |
| Displacement (L) | 5.9 |
| Ground specific pressure (Kpa) | 50.3 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 310 |
| Hydraulic System (L) | 166 |
| Total transport length (mm) | 9735 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3005 |
| Full cab height (mm) | 2905 |
| Counterweight ground clearance (mm) | 1070 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2860 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum digging depth (mm) | 5880 |
| Maximum excavation height (mm) | 9070 |
| Maximum unloading height (mm) | 6120 |
| Maximum vertical digging depth (mm) | 4800 |
| Maximum excavation radius of stop surface (mm) | 9090 |
