Product Description

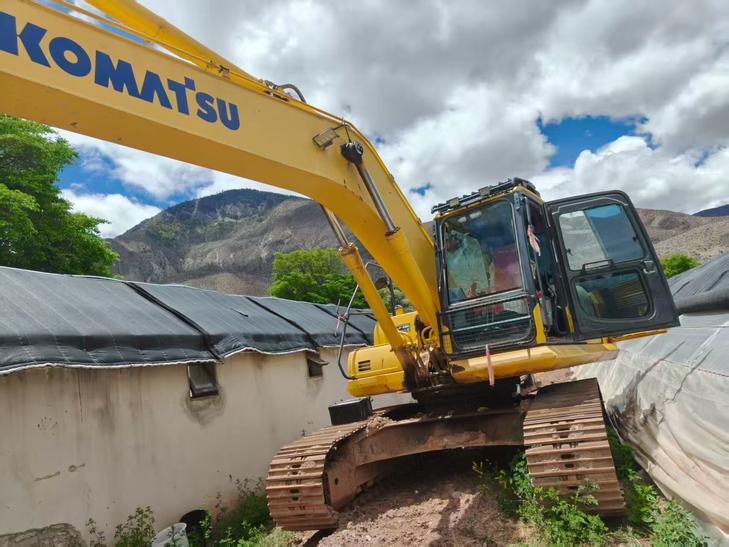

2020 Komatsu PC240-6 hydraulic excavator available from Sichuan, China. This 24-ton class machine features Komatsu's proven SAA6D107E engine delivering reliable performance for medium to heavy-duty applications. The PC240-6 offers a balanced combination of digging force, reach, and fuel efficiency suited for earthmoving, infrastructure development, and site preparation work.
Key specifications:
- Operating weight: approximately 24,000 kg
- Engine output: 123 kW (165 HP)
- Bucket capacity: 0.8-1.2 m³ standard range
- Maximum digging reach: approximately 9.9 m
- Maximum digging depth: approximately 6.5 m
This unit represents well-maintained condition from its model year. The PC240-6 series is recognized for operator comfort, hydraulic responsiveness, and serviceability. Suitable for contractors seeking proven Komatsu engineering and parts availability across international markets.
| Specifications | Value |
|---|---|
| No. | 1083389 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 23500 |
| Bucket capacity (m³) | 1.1/0.49/1.3 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu Komatsu SA6D102 |
| Rated power (kw/rpm) | 118/2300 |
| Displacement (L) | 5.9 |
| Ground specific pressure (Kpa) | 50.3 |
| Travel speed (km/h) | 5.5 |
| Fuel Tank (L) | 310 |
| Hydraulic System (L) | 166 |
| Total transport length (mm) | 9735 |
| Total transport width (mm) | 2980 |
| Total transport height (mm) | 3005 |
| Full cab height (mm) | 2905 |
| Counterweight ground clearance (mm) | 1070 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2860 |
| Track gauge (mm) | 2380 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3445 |
| Maximum digging depth (mm) | 5880 |
| Maximum excavation height (mm) | 9070 |
| Maximum unloading height (mm) | 6120 |
| Maximum vertical digging depth (mm) | 4800 |
| Maximum excavation radius of stop surface (mm) | 9090 |
