Product Description

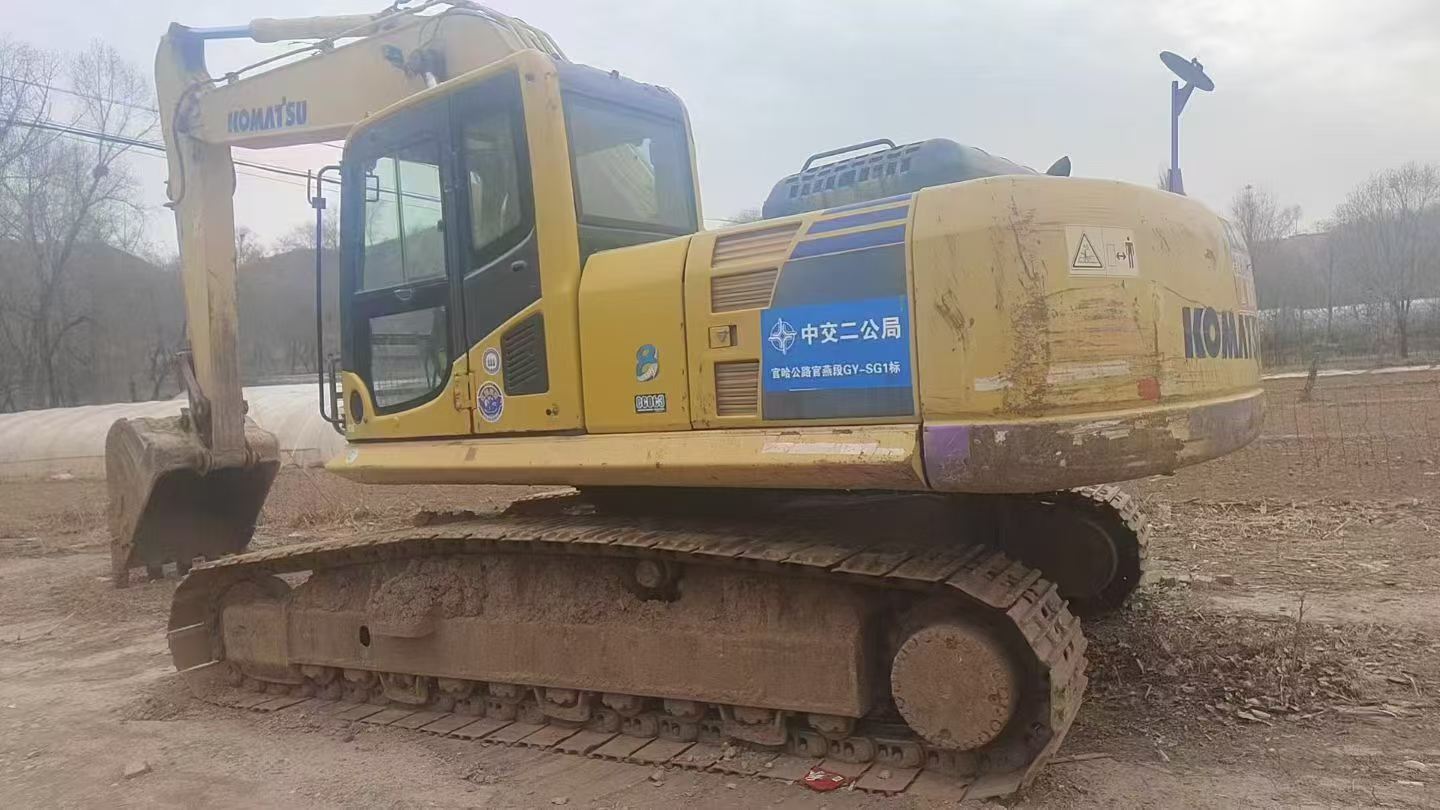

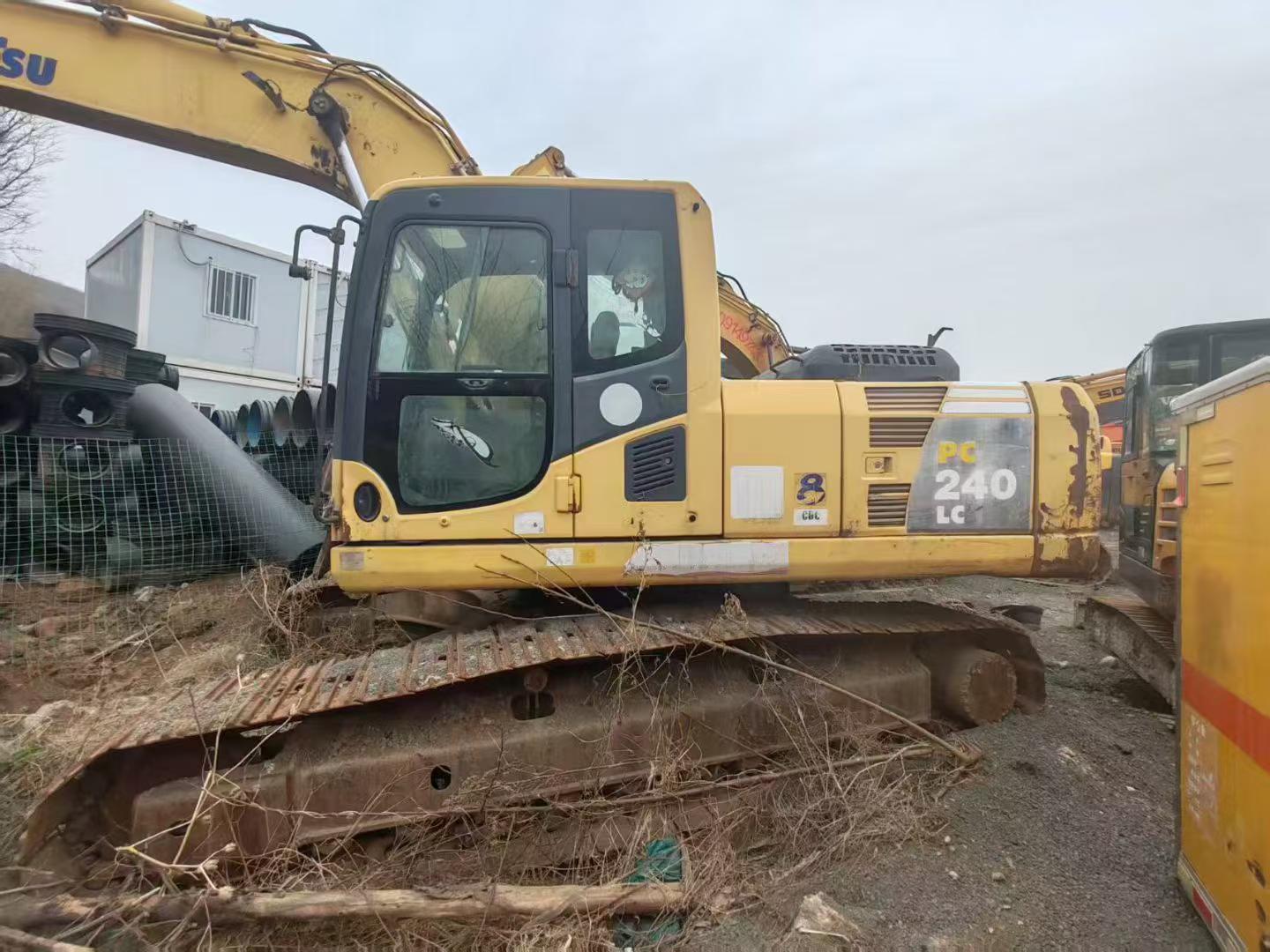

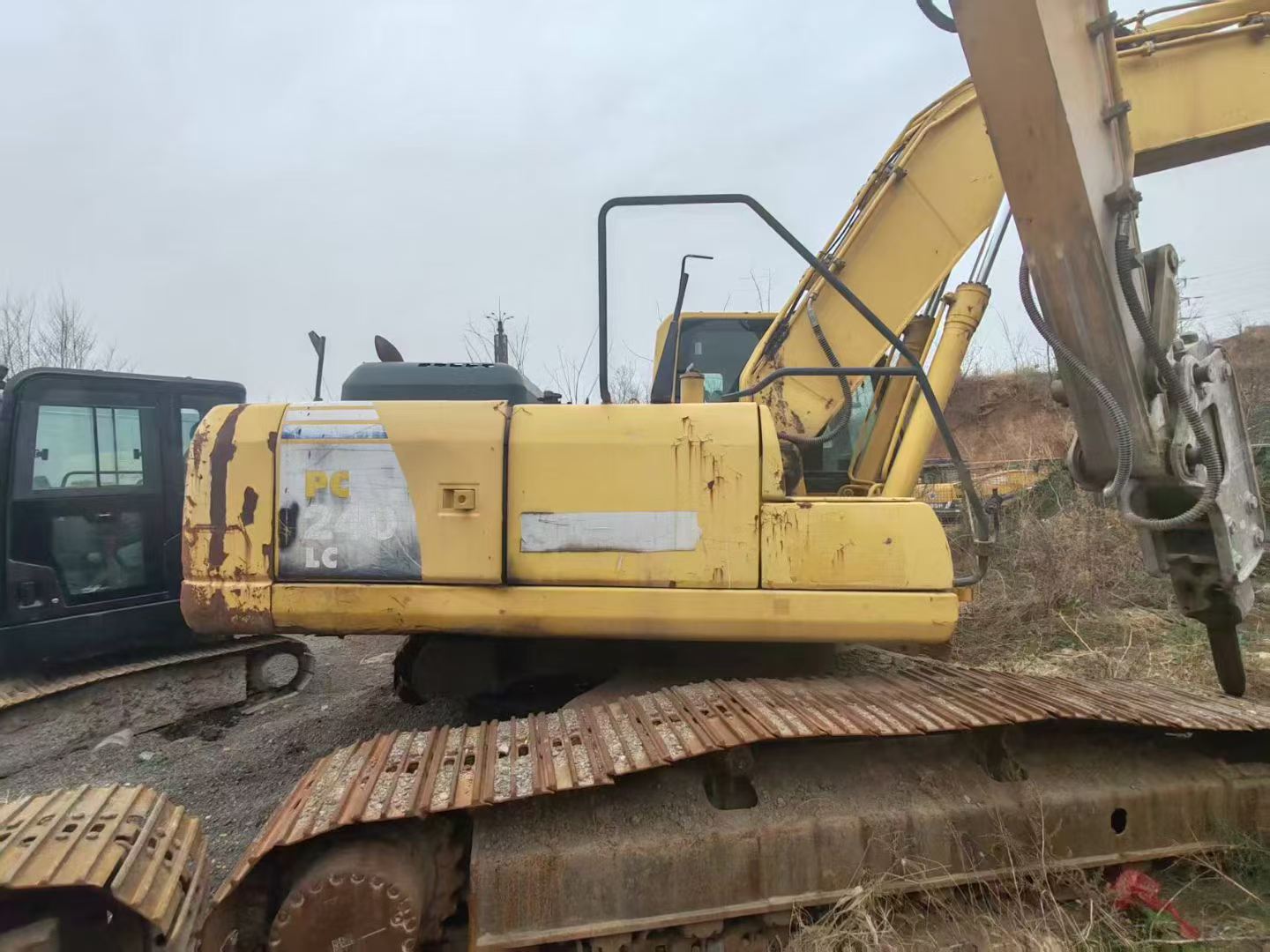

Proven reliability meets operational efficiency in this 2010 Komatsu PC240LC-8 excavator, currently located in Hunan. Powered by the robust SAA6D107E-1 engine delivering 125kW at 2000rpm, this 24-ton machine combines Komatsu's legendary durability with impressive performance metrics. With a maximum digging reach of 10,180mm and bucket digging force of 172kN, this excavator handles demanding earthmoving tasks with consistent precision.
Komatsu's reputation in the used equipment market remains unmatched for critical reasons. Parts availability through extensive global networks ensures minimal downtime, while strong resale values protect your investment long-term. This PC240LC-8 features the water-cooled turbocharged engine meeting EPA Tier 3 standards, backed by Komatsu's engineering excellence that translates to lower maintenance costs and extended service life.
- Working weight: 25,130kg with 1.2m³ bucket capacity
- Maximum digging depth: 6,920mm
- Dual axial piston travel motors with parking brake
- 439 L/min hydraulic flow for responsive operation
- 700mm track plates for superior stability
Contact Fair Trade Machinery today for detailed inspection reports and competit
| Specifications | Value |
|---|---|
| No. | 1037489 |
| Tonnage (tons) | 24 |
| Working weight (kg) | 25130 |
| Bucket capacity (m³) | 1.2 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3045 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 125/2000 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 107 x 124 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.69 |
| Working form | Direct injection, turbocharged, post-cooling; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 41.7 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 172 |
| Rod digging force (kN) | 129 |
| Travel speed (km/h) | 3.1/4.2/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 * 1020 * 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 1635 * 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 130 * 1335 * 90 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 19.8 |
| Total transport length (mm) | 9885 |
| Total transport width (mm) | 3280 |
| Total transport height (mm) | 3185 |
| Full cab height (mm) | 3055 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2905 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2580 |
| Track plate width (mm) | 700 |
| Total track width (mm) | 3280 |
| Track ground length (mm) | 3845 |
| Maximum digging radius (mm) | 10180 |
| Maximum digging depth (mm) | 6920 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7035 |
| Maximum vertical digging depth (mm) | 6010 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 10020 |
| Maximum effective digging depth (mm) | 6700 |
