Product Description

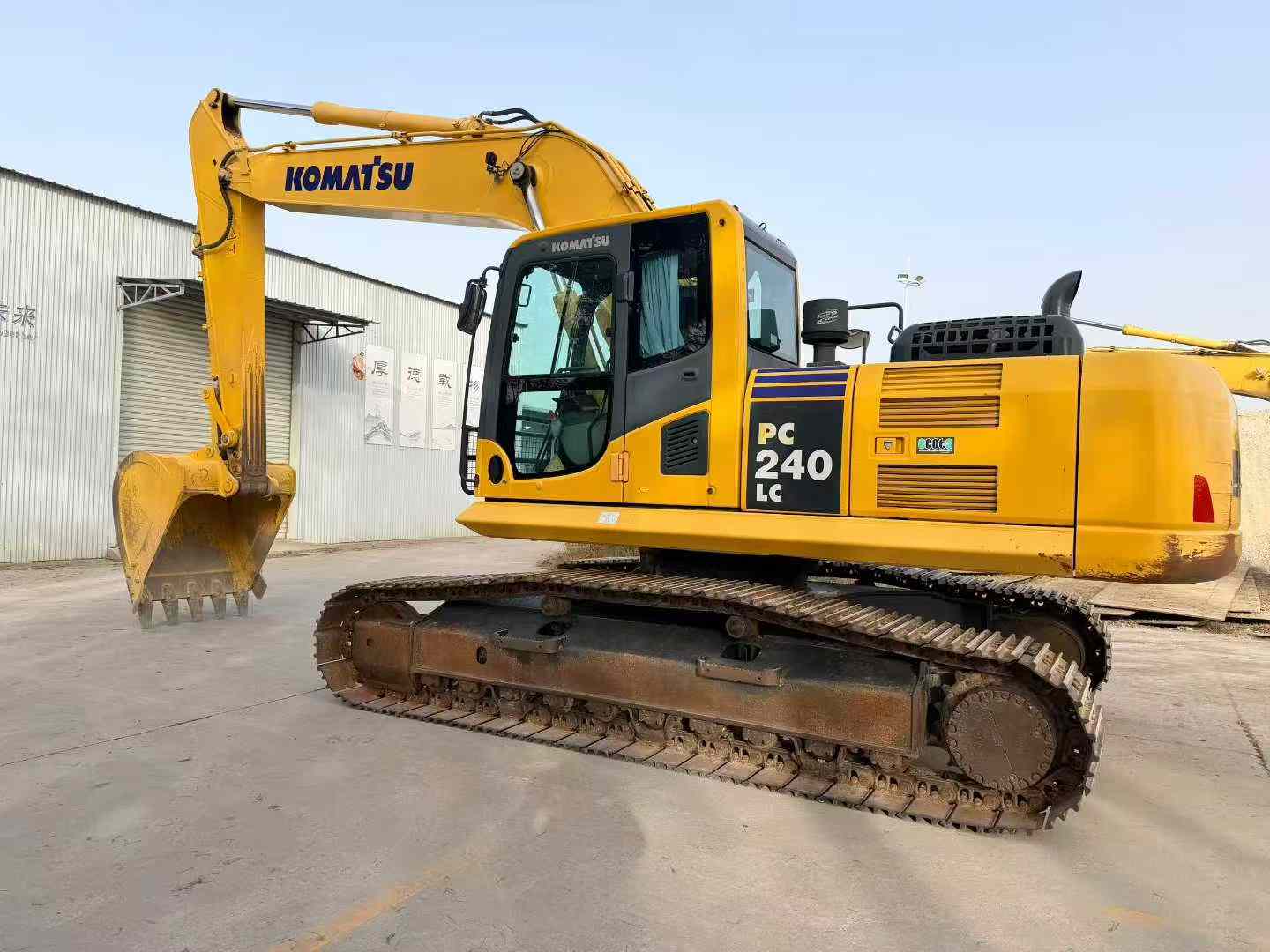

Equipped with advanced hydraulics and a robust engine, the 2021 Komatsu PC240NLC-8 stands out in its class. Featuring an ultra-long boom (18 meters), this excavator is designed for precision and efficiency in demanding construction environments. Built to handle tough jobs, it boasts superior engineering that ensures reliability and performance.

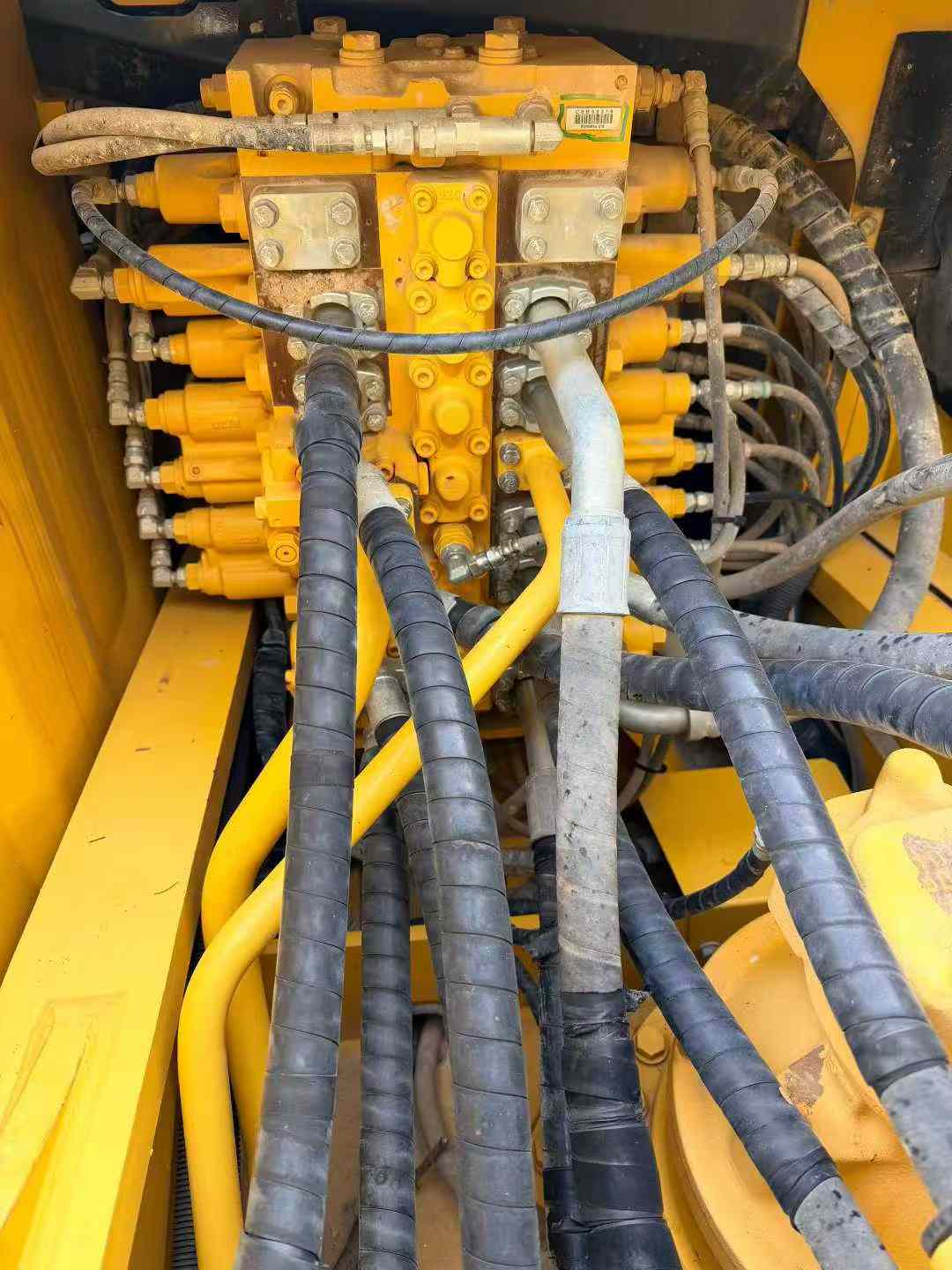

- Advanced hydraulic system for smooth and precise operation
- High-performance engine delivering powerful and efficient work cycles
- Ultra-long boom (18 meters) for extended reach and versatility
- Located in Zhejiang Hangzhou, ready for immediate deployment
| Specifications | Value |
|---|---|
| No. | 1000606 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 27550 |
| Bucket capacity (m³) | 0.45 |
| Boom length (mm) | The length of the boom rod is 18 meters |
| Rod length (mm) | The length of the boom rod is 18 meters |
| Country of origin | Changzhou, Jiangsu |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

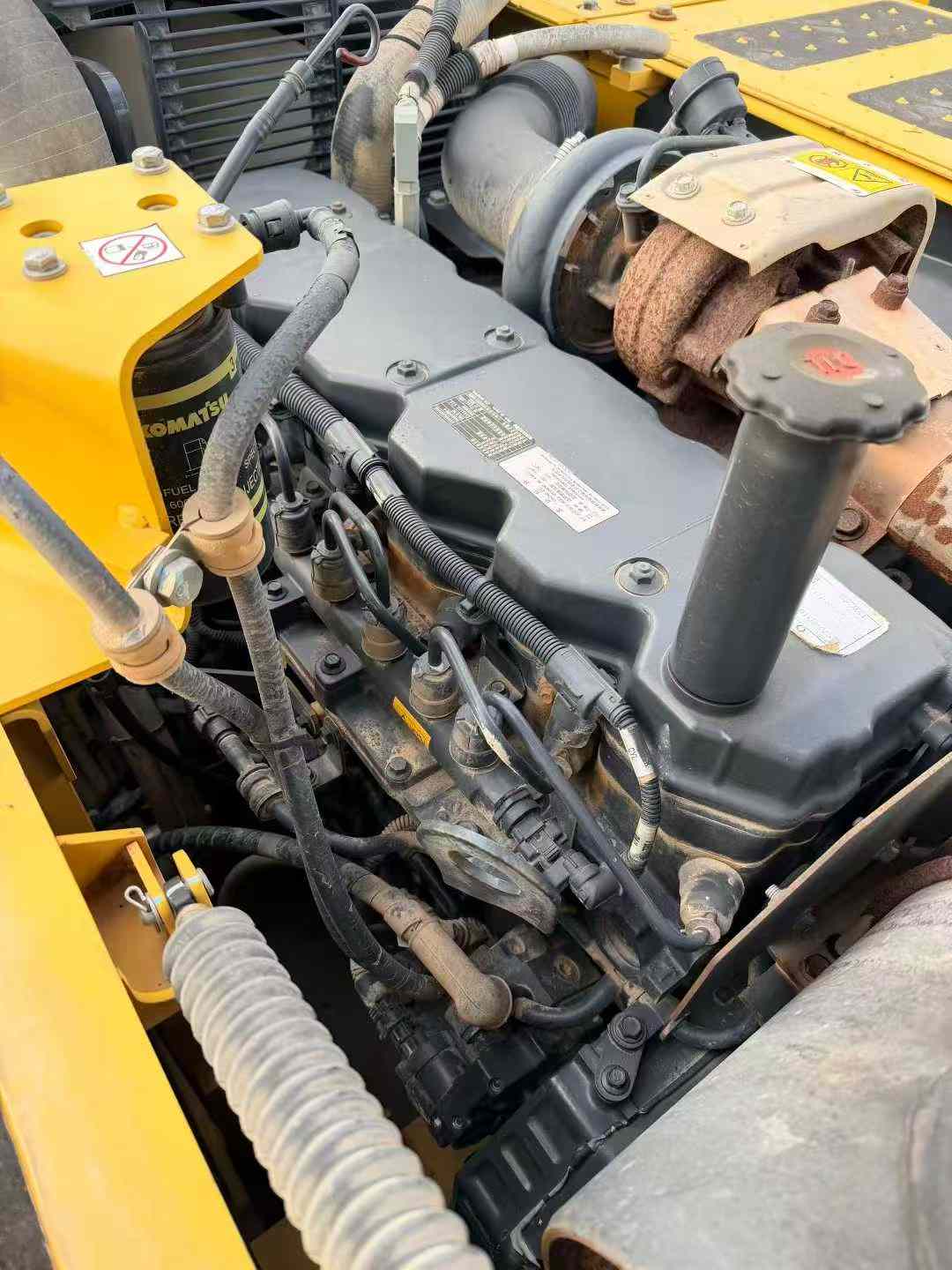

| Engine type | Komatsu SAA6D107E-1 |
| Rated power (kw/rpm) | 125/2000 |
| Displacement (L) | 6.69 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Cylinder diameter × stroke: 107mm×124mm; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 54.2 |
| Rotation speed (rpm) | 11.7 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 172 |
| Rod digging force (kN) | 129 |
| Travel speed (km/h) | 3.1/4.2/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 439 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 130 * 1020 * 90 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 * 1635 * 100 |
| Boom cylinders - Number × diameter × stroke (mm) | 130 * 1335 * 90 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 135 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 19.8 |
| Total transport length (mm) | 14555 |
| Total transport width (mm) | 3280 |
| Total transport height (mm) | 3231 |
| Full cab height (mm) | 3055 |
| Counterweight ground clearance (mm) | 1100 |
| Minimum ground clearance (mm) | 440 |
| Back end turning radius (mm) | 2905 |
| Total track length (mm) | 4640 |
| Track gauge (mm) | 2580 |
| Track plate width (mm) | 700 |
| Total track width (mm) | 3280 |
| Track ground length (mm) | 3845 |
| Maximum digging radius (mm) | 18340 |
| Maximum digging depth (mm) | 14610 |
| Maximum excavation height (mm) | 15380 |
| Maximum unloading height (mm) | 13225 |
| Bulldozer lift or depth (mm) | No bulldozer |
see more
Overview
No.1000606
Brand Name：
KomatsuModel Number：
PC240NLC-8(18)Year：
2021
Location：
Zhejiang China
Pub Date：
