Product Description

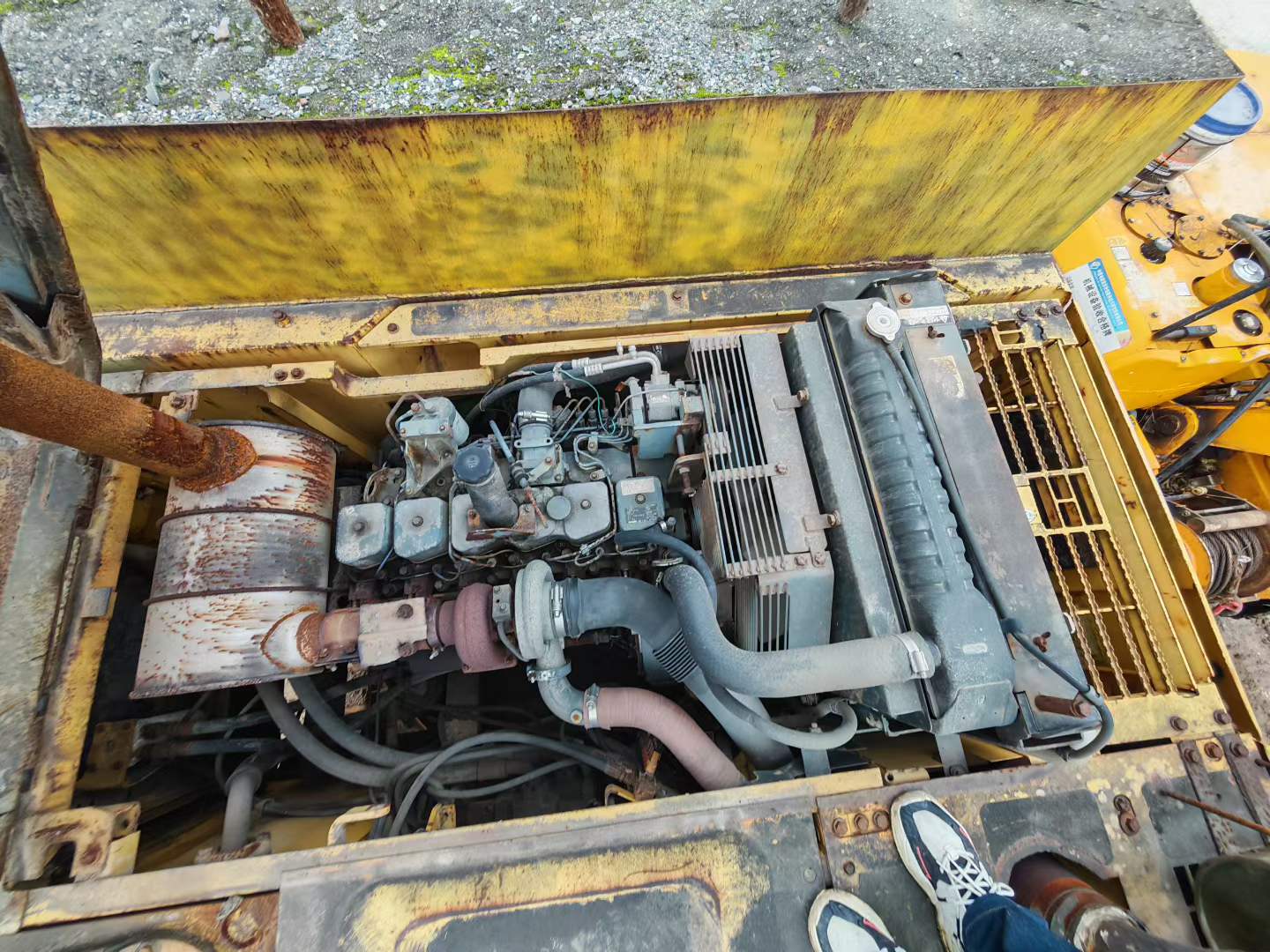

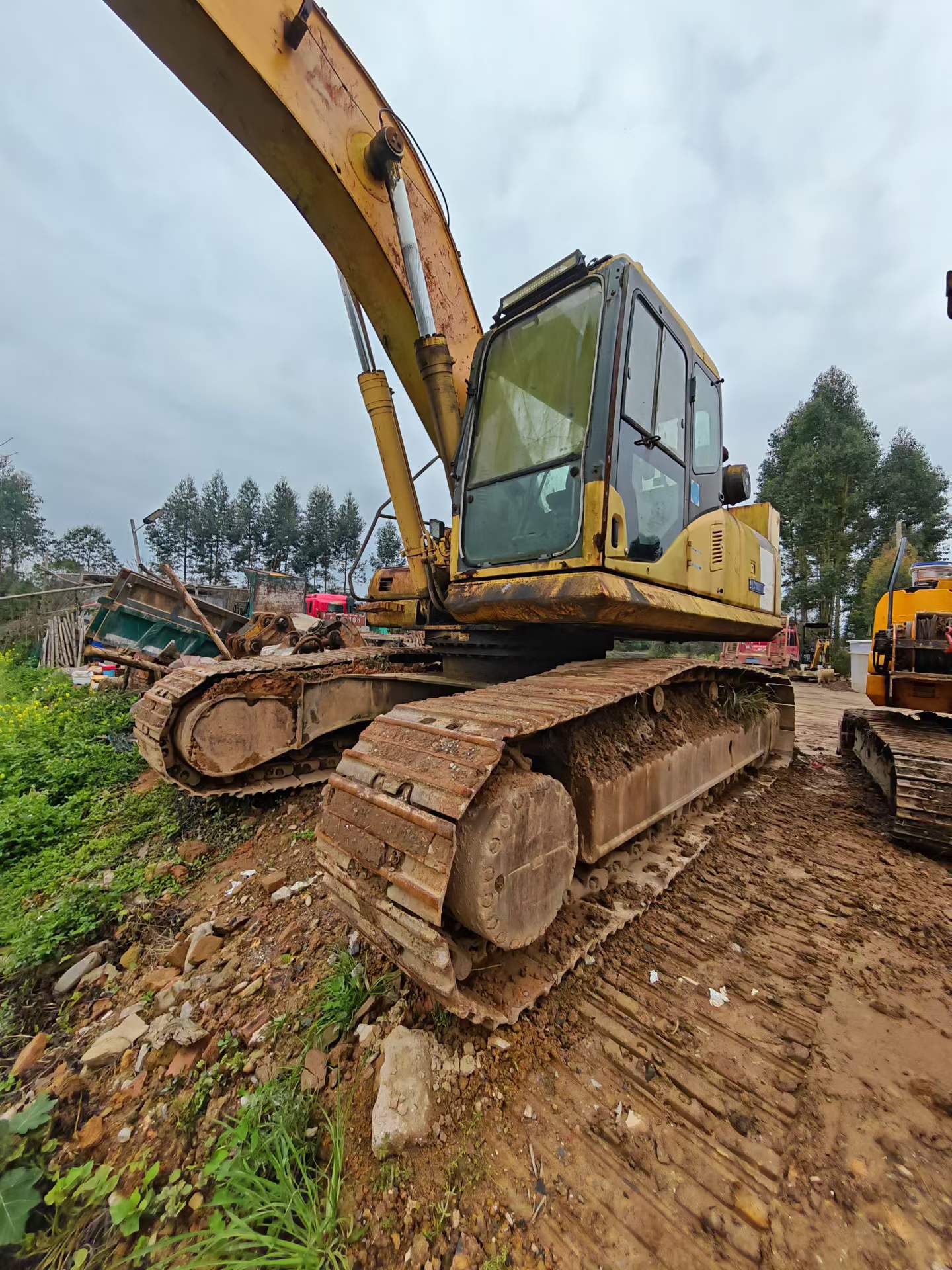

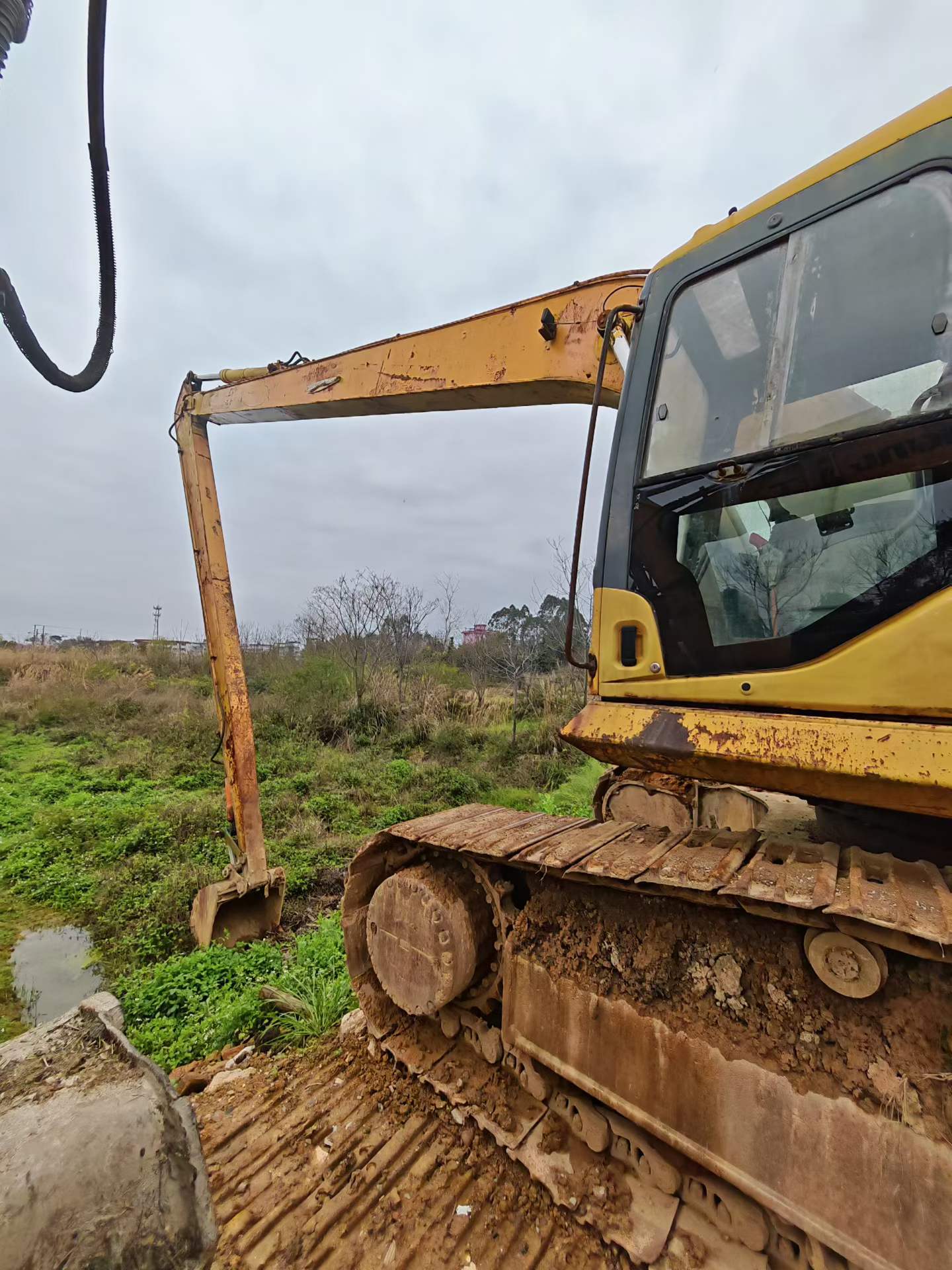

Built for demanding job sites, this 2016 Komatsu PC270-7 arrives from Anhui ready to work from day one. Weighing in at 27,460 kg with a 1.3 m³ backhoe bucket and a bucket digging force of 198 kN, this machine delivers serious production capacity for deep excavation, mass earthmoving, grading operations, and structural demolition. Power comes from a Komatsu SAA6D102E-2 six-cylinder, water-cooled, turbocharged engine producing 134 kW at 2,050 RPM — fully compliant with EPA Tier 3 and EU IIIA emissions standards.
- Maximum Digging Depth: 6,460 mm — ideal for utility trenching and foundation work
- Maximum Digging Radius: 10,100 mm — extended reach for slope work and canal clearing
- Maximum Unloading Height: 7,035 mm — loads trucks efficiently without repositioning
- Travel Speed: Up to 5.5 km/h — moves confidently across active job sites
- Climbing Ability: 70% / 35° — handles steep grades with stability
- Main Pump Flow: 450 L/min — sustains high hydraulic output during continuous operation
- Track Plate Width: 800 mm — distributes ground pressure at
| Specifications | Value |
|---|---|
| No. | 1035563 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 27460 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3045 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D102E-2 |
| Rated power (kw/rpm) | 134/2050 |
| Cooling mode | water-cooling |
| Displacement (L) | 5.88 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Cylinder diameter × stroke: 102mm×120mm; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 48 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 198 |
| Rod digging force (kN) | 148 |
| Travel speed (km/h) | 3.0/4.1/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 450 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 140 * 1009 * 100 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 * 1635 * 110 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 1300 * 100 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 143 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9790 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3210 |
| Full cab height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1186 |
| Minimum ground clearance (mm) | 498 |
| Back end turning radius (mm) | 2905 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3390 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 10100 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7035 |
| Maximum vertical digging depth (mm) | 5650 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9990 |
| Maximum effective digging depth (mm) | 6320 |
