Product Description
With a robust 27-ton working weight and a powerful Komatsu SAA6D102E-2 engine, this 2020 Komatsu PC270-7 excavator is primed for immediate deployment. Equipped with a 1.3 m³ bucket capacity and a 5850 mm boom, it excels in digging, grading, and demolition tasks. Delivering 198 kN of bucket digging force and 148 kN of rod digging force, the machine ensures efficient and precise performance.
- Travel speed: 3.0/4.1/5.5 km/h
- Ground specific pressure: 48 Kpa
- Maximum digging depth: 6460 mm
- Maximum excavation height: 10000 mm
- Fuel tank capacity: 400 L

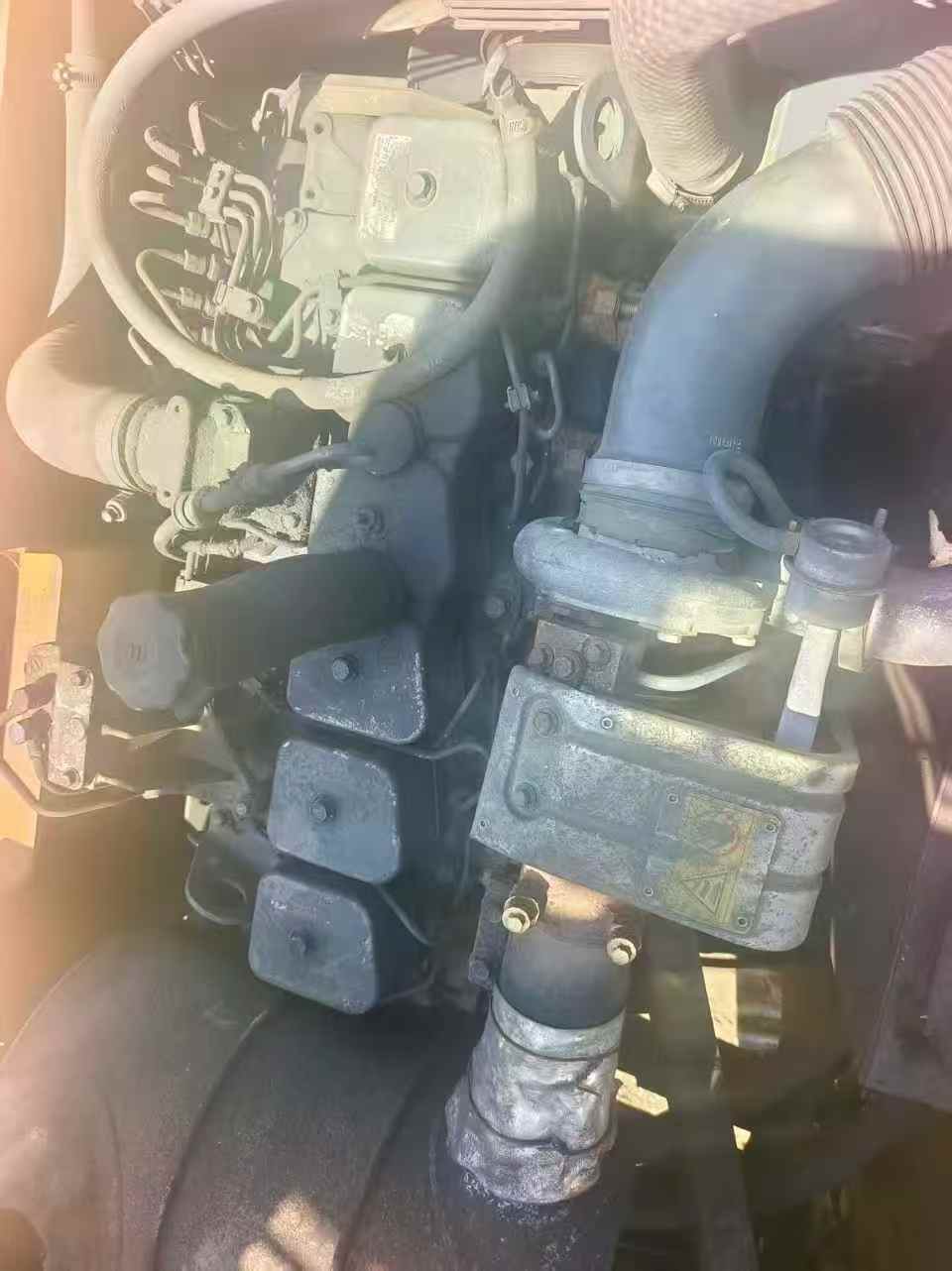

Located in Guizhou, China, and manufactured through a joint venture, this excavator features a 6-cylinder, direct injection, turbocharged, and post-cooled engine. Meeting 2006 EPA/Tier3 and EUIIIA standards, it is designed for reliability and durability. The hydraulic system, with a maximum flow of 450 l/min from the main pump, supports smooth and powerful operation, making it an ideal choice for demanding job sites.
| Specifications | Value |
|---|---|
| No. | 1057671 |
| Tonnage (tons) | 27 |
| Working weight (kg) | 27460 |
| Bucket capacity (m³) | 1.3 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 3045 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D102E-2 |
| Rated power (kw/rpm) | 134/2050 |
| Cooling mode | water-cooling |
| Displacement (L) | 5.88 |
| Working form | 6-cylinder, direct injection, turbocharged, post-cooled engine; Cylinder diameter × stroke: 102mm×120mm; Meet 2006EPA/Tier3 and EUIIIA standards. |
| Ground specific pressure (Kpa) | 48 |
| Rotation speed (rpm) | 10.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 198 |
| Rod digging force (kN) | 148 |
| Travel speed (km/h) | 3.0/4.1/5.5 |
| Rotary hydraulic motor type | Axial piston motor ×1(rotary holding valve) |
| Type of walking hydraulic motor | Axial piston motor ×2(with parking brake) |
| Maximum flow of main pump (l/min) | 450 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 140 * 1009 * 100 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 150 * 1635 * 110 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 1300 * 100 |
| Fuel Tank (L) | 400 |
| Hydraulic Tank (L) | 143 |
| Engine Oil changes (L) | 24 |
| Coolant (L) | 30.9 |
| Total transport length (mm) | 9790 |
| Total transport width (mm) | 3390 |
| Total transport height (mm) | 3210 |
| Full cab height (mm) | 3100 |
| Counterweight ground clearance (mm) | 1186 |
| Minimum ground clearance (mm) | 498 |
| Back end turning radius (mm) | 2905 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 800 |
| Total track width (mm) | 3390 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 10100 |
| Maximum digging depth (mm) | 6460 |
| Maximum excavation height (mm) | 10000 |
| Maximum unloading height (mm) | 7035 |
| Maximum vertical digging depth (mm) | 5650 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Maximum excavation radius of stop surface (mm) | 9990 |
| Maximum effective digging depth (mm) | 6320 |
