Product Description

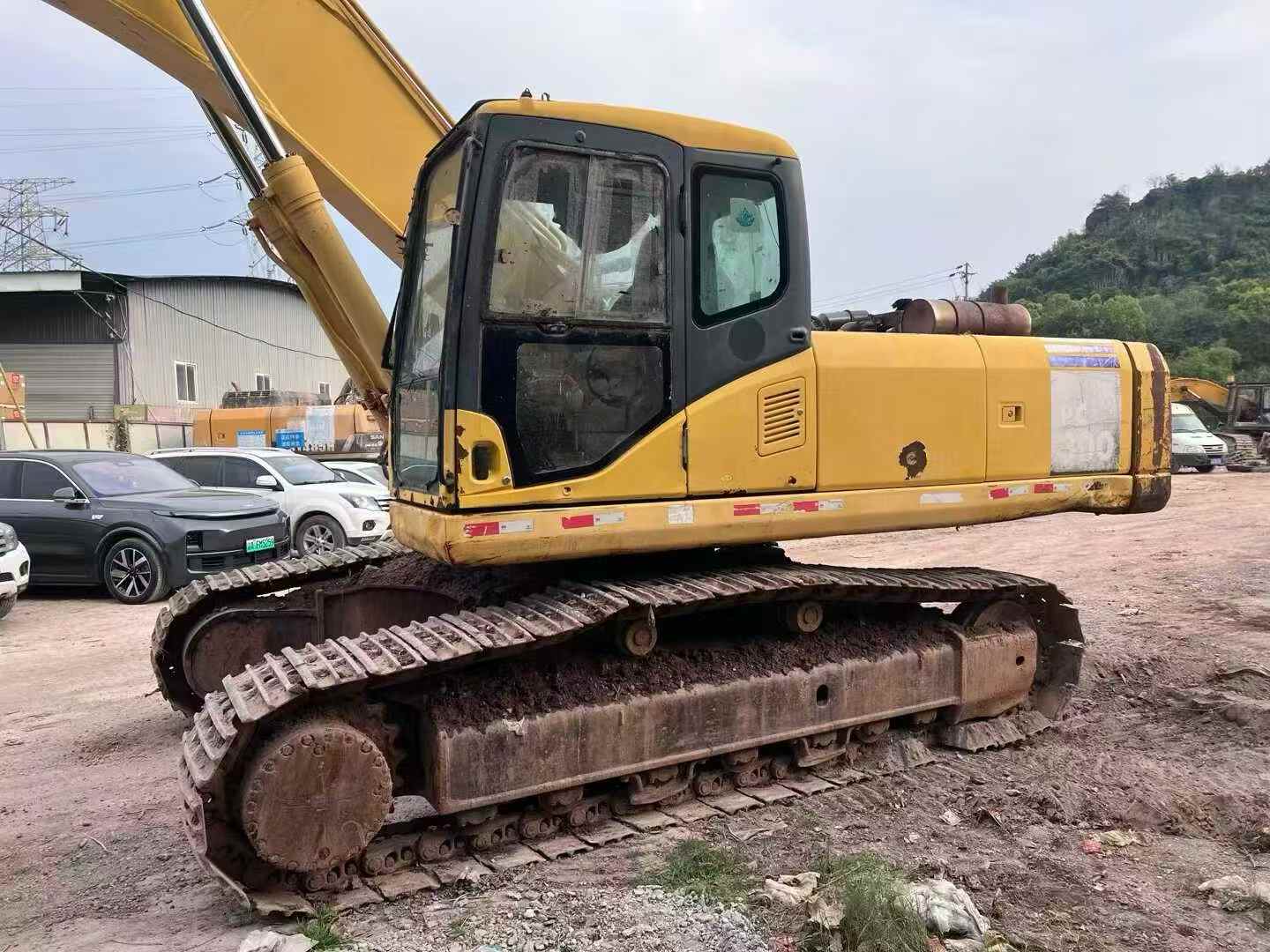

Built for demanding excavation work, this 2016 Komatsu PC300-7 delivers 30-ton class performance with proven reliability. Powered by a Komatsu SAA6D114E engine producing 180kW at 1900rpm, this hydraulic excavator handles deep foundation work, large-scale grading, and heavy material loading with consistent efficiency. Maximum digging depth reaches 7,380mm while the 11,100mm digging radius covers extensive work zones without repositioning.
- 1.4m³ bucket capacity moves substantial material per cycle
- 227kN bucket digging force cuts through compacted soil and clay
- 535L/min hydraulic flow ensures responsive control during precision work
- 31,200kg operating weight provides stability on sloped terrain
- Water-cooled 6-cylinder engine delivers dependable power in extended shifts
- Currently located in Guilin, Guangxi—available for immediate deployment
Equipped with dual axial plunger travel motors and a robust undercarriage featuring 3,700mm track ground contact, this machine maintains traction in challenging site conditions. Ready to perform demolition, trenching, or mass excavation projects from day one.
| Specifications | Value |
|---|---|
| No. | 1031067 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 31200 |
| Bucket capacity (m³) | 1.4 |
| Boom length (mm) | 3185 |
| Rod length (mm) | 6470 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

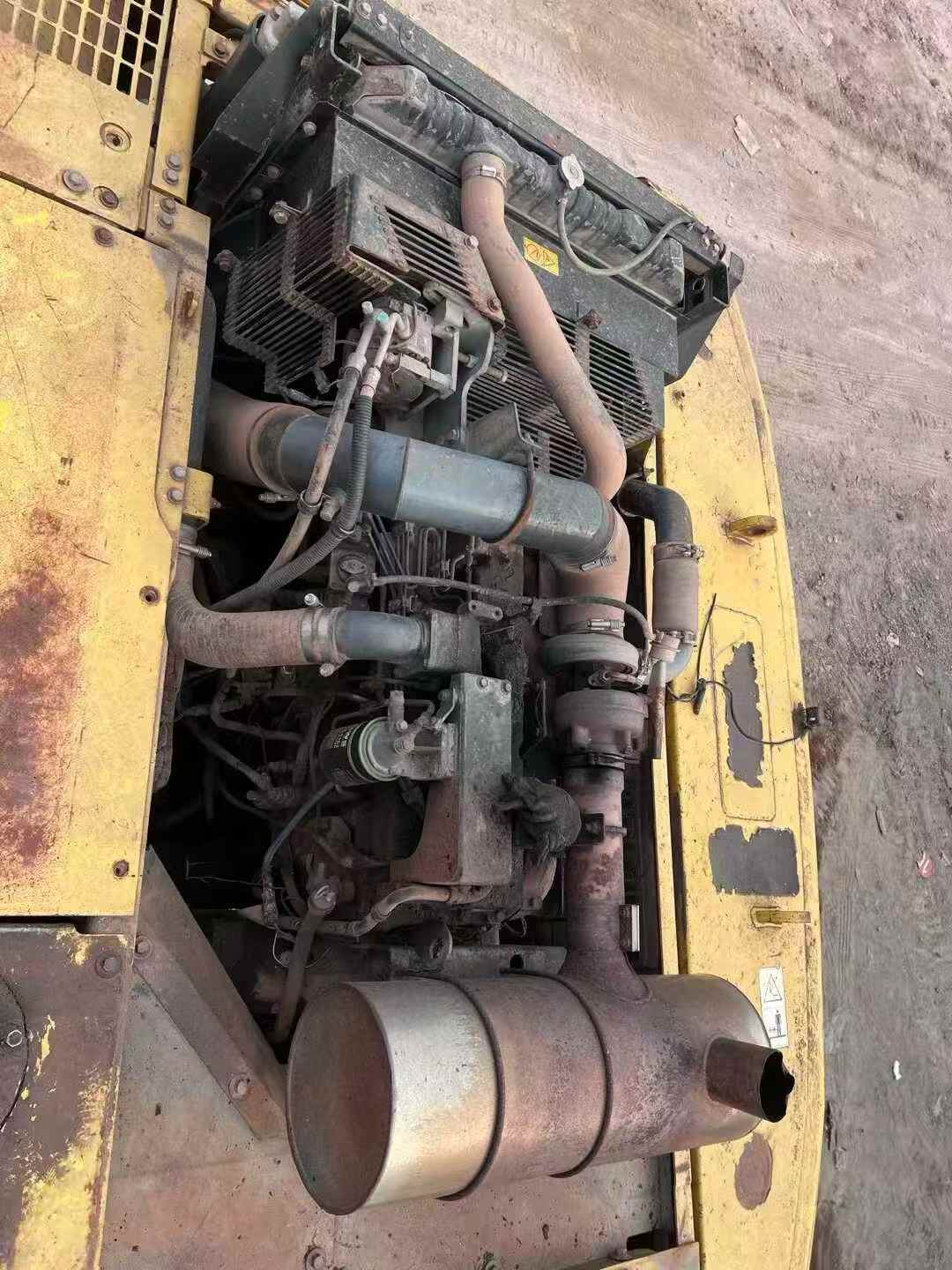

| Engine type | Komatsu SAA6D114E |
| Rated power (kw/rpm) | 180/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114mm×135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Working form | 6 cylinder, water cooled, direct injection, turbocharged, mechanical speed regulation |
| Ground specific pressure (Kpa) | 63.7 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 227 |
| Rod digging force (kN) | 171 |
| Travel speed (km/h) | 3.2/4.5/5.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 535L/min |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 * 1285 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 160 * 1825 * 110 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 1480 * 100 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 35 |
| Coolant (L) | 32 |
| Total transport length (mm) | 11140 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10210 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6480 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7180 |
