Product Description

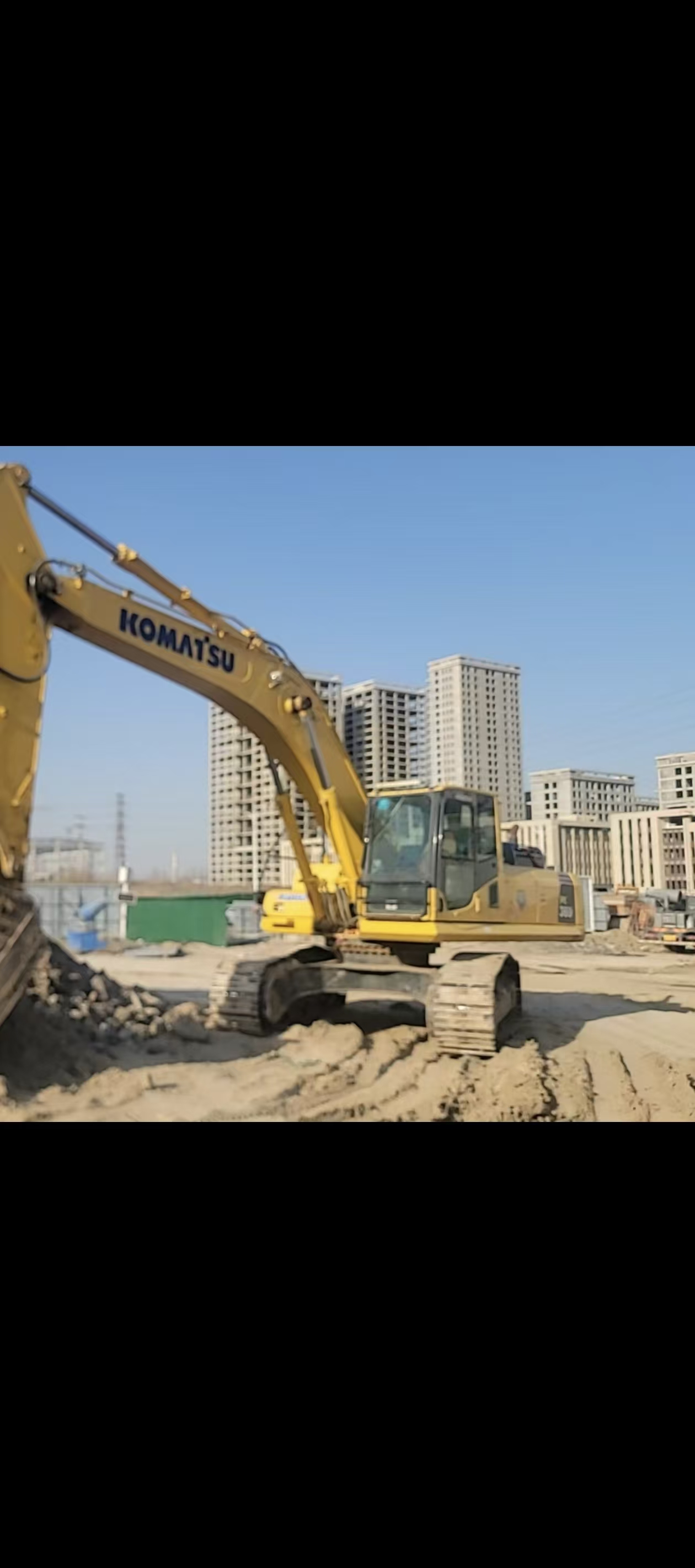

Discover the reliability and efficiency of the 2018 Komatsu PC300-7, available for purchase in Hebei, China. This used excavator is a pure earthmoving machine, ideal for construction and excavation projects. As a one-owner vehicle, it has been well-maintained and is ready to take on your next big job. The PC300-7 is known for its robust design, making it a durable choice for demanding work environments. Invest in a machine that offers both performance and value, ensuring your operations run smoothly and efficiently.
- Year: 2018
- Brand: Komatsu
- Model: PC300-7
- Location: Hebei, China
- Condition: Used, one-owner, well-maintained
| Specifications | Value |
|---|---|
| No. | 1100210 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32000 |
| Bucket capacity (m³) | 1.4-1.6 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 3185 |
| Country of origin | Changzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

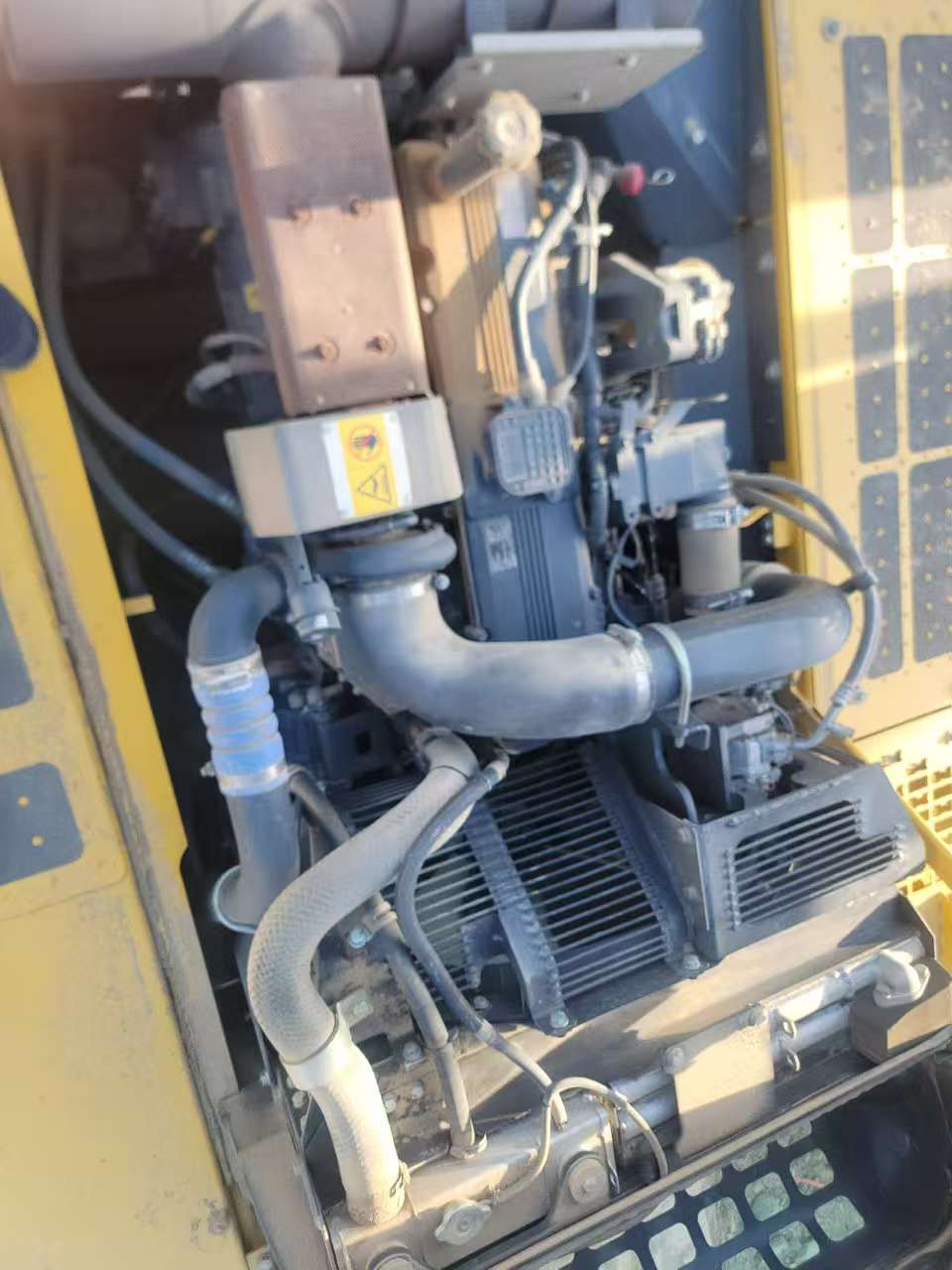

| Engine type | Komatsu SAA6D114E-3 |
| Rated power (kw/rpm) | 187/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Working form | Six-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 65.3 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 212 |
| Rod digging force (kN) | 160 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 3.2-5.5 |
| Main overflow set pressure (Mpa) | 37.3 |
| Rotary hydraulic motor type | 27.9 |
| Type of walking hydraulic motor | 37.3 |
| Maximum flow of main pump (l/min) | 535 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1825 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1480 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 31 |
| Total transport length (mm) | 11150 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3145 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4450 |
| Back end turning radius (mm) | 3450 |
| Onboard width (mm) | 3090 |

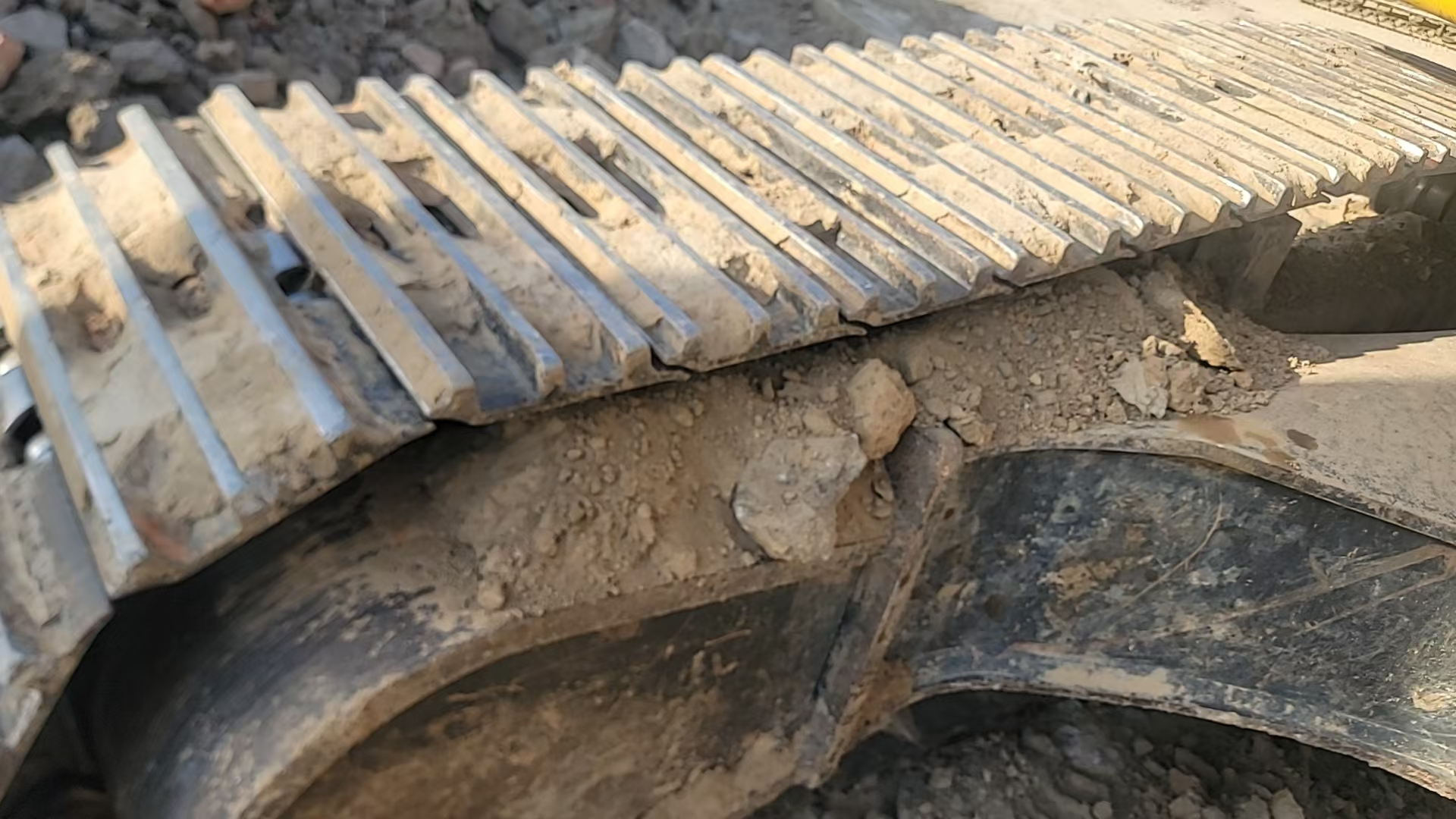

| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3700 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10100 |
| Maximum unloading height (mm) | 7050 |
| Maximum vertical digging depth (mm) | 6400 |
| Maximum excavation radius of stop surface (mm) | 10920 |
