Product Description

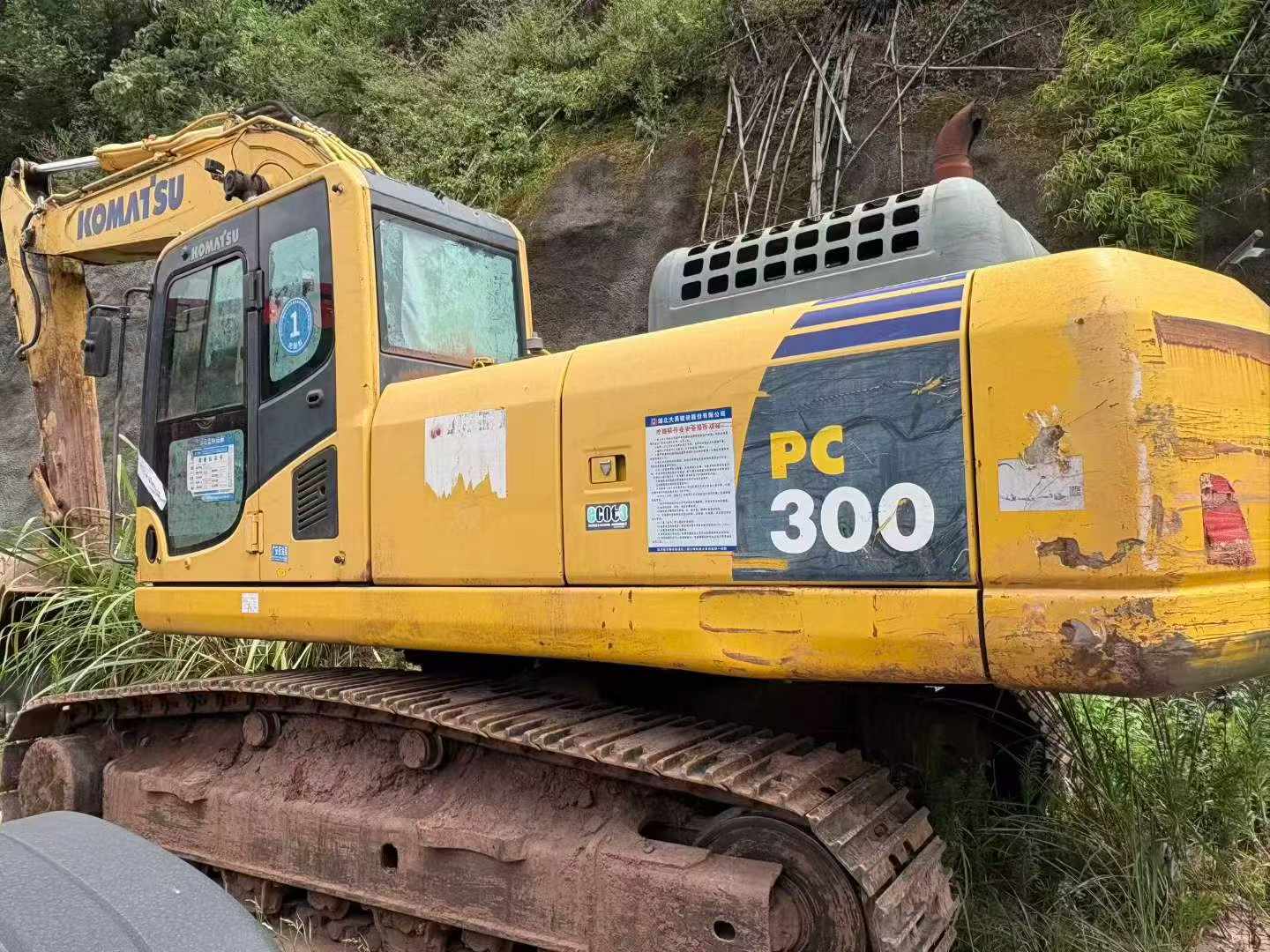

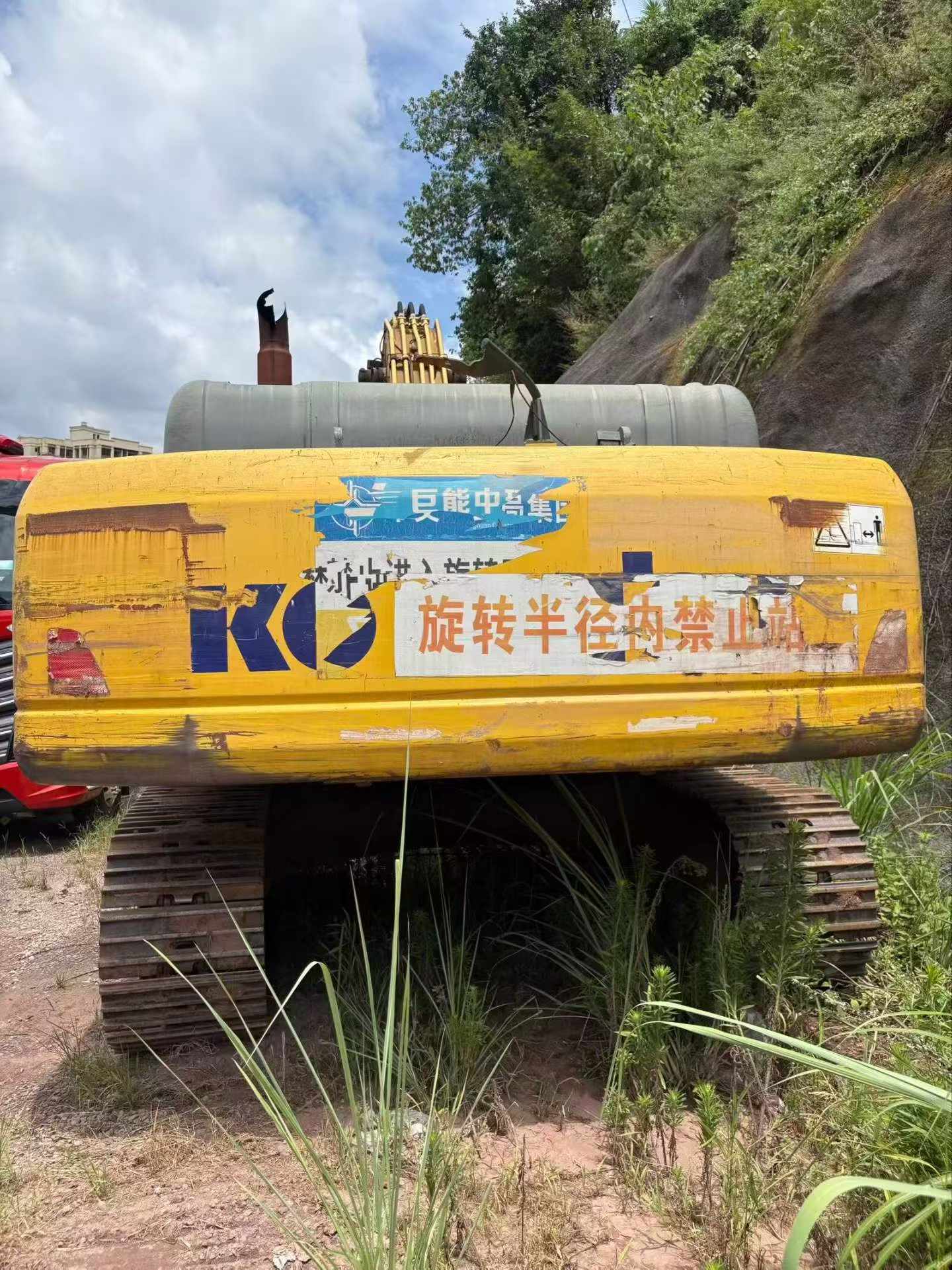

Discover the reliability and performance of the 2017 Komatsu PC300-8M0, a premium choice for demanding construction and excavation projects. Located in Fujian, China, this used excavator is available for immediate purchase at an attractive price point around 200,000 RMB. Renowned for its robust design and efficient operation, the PC300-8M0 model continues to be a trusted asset in the industry. Ideal for businesses looking to enhance their fleet with a high-quality, cost-effective solution.
- Year: 2017
- Brand: Komatsu
- Model: PC300-8M0
- Location: Fujian, China
- Price: Approximately 200,000 RMB
| Specifications | Value |
|---|---|
| No. | 1130146 |
| Tonnage (tons) | 30 |
| Working weight (kg) | 32000 |
| Bucket capacity (m³) | 1.4-1.6 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 3185 |
| Country of origin | Changzhou |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D114E-3 |
| Rated power (kw/rpm) | 187/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Working form | Six-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 65.3 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 212 |
| Rod digging force (kN) | 160 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 3.2-5.5 |
| Main overflow set pressure (Mpa) | 37.3 |
| Rotary hydraulic motor type | 27.9 |
| Type of walking hydraulic motor | 37.3 |
| Maximum flow of main pump (l/min) | 535 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.3 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1825 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1480 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 31 |
| Total transport length (mm) | 11150 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3145 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4450 |
| Back end turning radius (mm) | 3450 |
| Onboard width (mm) | 3090 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3700 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10100 |
| Maximum unloading height (mm) | 7050 |
| Maximum vertical digging depth (mm) | 6400 |
| Maximum excavation radius of stop surface (mm) | 10920 |
