HOME>>Komatsu>>Komatsu PC300-8M0

2020 Komatsu PC300-8M0

1/4

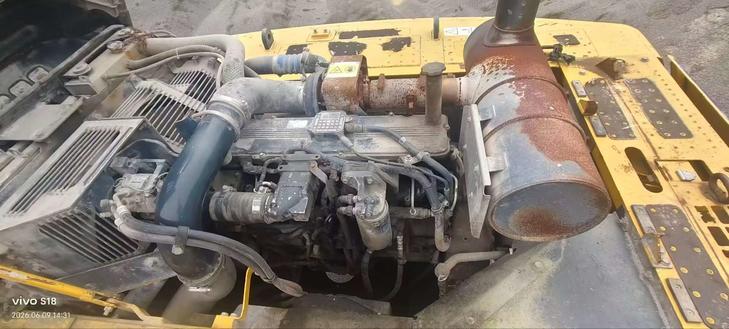

Buy Komatsu PC300-8M0 Used Excavator / 1
Buy Komatsu PC300-8M0 Used Excavator / 2
Buy Komatsu PC300-8M0 Used Excavator / 3
Buy Komatsu PC300-8M0 Used Excavator / 4

Product Description

Discover the reliability and efficiency of the 2020 Komatsu PC300-8M0, a high-quality used excavator available in Fujian, China. This machine is renowned for its robust performance and durability, making it an ideal choice for demanding construction and excavation projects. The PC300-8M0 is designed to deliver exceptional productivity with minimal downtime, ensuring that your operations run smoothly and efficiently.

  • Year: 2020
  • Brand: Komatsu
  • Model: PC300-8M0
  • Location: Fujian, China
SpecificationsValue
No.1082172
Tonnage (tons)30
Working weight (kg)32000
Bucket capacity (m³)1.4-1.6
Boom length (mm)6470
Rod length (mm)3185
Country of originChangzhou
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu SAA6D114E-3
Rated power (kw/rpm)187/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114 x 135
Number of cylinders (PCS)6
Displacement (L)8.27
Working formSix-cylinder four-stroke turbocharged intercooled direct injection engine
Ground specific pressure (Kpa)65.3
Rotation speed (rpm)9.5
Climbing ability (%)70
Bucket digging force (kN)212
Rod digging force (kN)160
Maximum tractive force (kN)264
Travel speed (km/h)3.2-5.5
Main overflow set pressure (Mpa)37.3
Rotary hydraulic motor type27.9
Type of walking hydraulic motor37.3
Maximum flow of main pump (l/min)535
Traveling Hydraulic Circuit (Mpa)37.3
Rotary Hydraulic Circuit (Mpa)27.9
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)37.3
Pilot Oil Circuit (MPa)3.2
Bucket cylinders - Number × diameter × stroke (mm)1-140 x 1285
Bucket rod cylinders - Number × diameter × stroke (mm)1-160 x 1825
Boom cylinders - Number × diameter × stroke (mm)2-140 x 1480
Fuel Tank (L)605
Hydraulic Tank (L)188
Engine Oil changes (L)37
Coolant (L)31
Total transport length (mm)11150
Total transport width (mm)3190
Total transport height (mm)3145
Counterweight ground clearance (mm)1185
Minimum ground clearance (mm)500
Minimum turning radius of front working device (mm)4450
Back end turning radius (mm)3450
Onboard width (mm)3090
Total track length (mm)4625
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3190
Track ground length (mm)3700
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)45
Maximum digging radius (mm)11100
Maximum digging depth (mm)7380
Maximum excavation height (mm)10100
Maximum unloading height (mm)7050
Maximum vertical digging depth (mm)6400
Maximum excavation radius of stop surface (mm)10920
see more

Overview

No.1082172

Brand Name:

Komatsu

Model Number:

PC300-8M0

Year:

2020

Location:

Fujian China

Pub Date
