Product Description

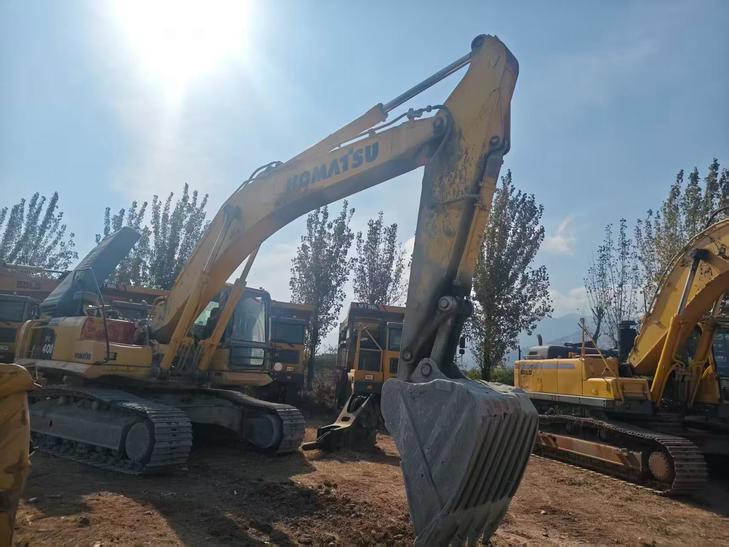

Available now in Sichuan, this 2019 Komatsu PC360-7 excavator eliminates factory wait times and delivers immediate productivity to your jobsite. Powered by a robust Komatsu SAA6D114E engine producing 180 kW at 1900 rpm, this 36-ton workhorse combines proven reliability with impressive performance metrics. Fast deployment means your projects start moving dirt today, not months from now.
- Operating Weight: 33,000 kg with 1.6 m³ bucket capacity
- Digging Performance: 11,100 mm maximum reach, 7,380 mm depth, 227 kN bucket force
- Hydraulic System: 535 L/min main pump flow for responsive control
- Engine: Water-cooled SAA6D114E, 6-cylinder turbocharged diesel (8.27 L displacement)
- Mobility: 9.5 rpm rotation speed, 5.5 km/h maximum travel speed
- Dimensions: 11,140 mm transport length, 3,190 mm width
Skip the lead times associated with new equipment orders. This ready-to-ship PC360-7 from Sichuan offers immediate availability for contractors demanding reliable performance without delay. Contact Fair Trade Machinery today for rapid logistics coordination.
| Specifications | Value |
|---|---|
| No. | 1046610 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33000 |
| Bucket capacity (m³) | 1.6 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 3185 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D114E |
| Rated power (kw/rpm) | 180/1900 |
| Cooling mode | water-cooling |
| Displacement (L) | 8.27 |
| Working form | 6-cylinder, water-cooled, direct injection, turbocharged, mechanical full speed regulation; Cylinder diameter × stroke :114mm×135mm |
| Ground specific pressure (Kpa) | 67.7 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 227 |
| Rod digging force (kN) | 171 |
| Travel speed (km/h) | 3.2/4.5/5.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 535L/min |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 * 1285 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 160 * 1825 * 110 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 1480 * 100 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 35 |
| Coolant (L) | 32 |
| Total transport length (mm) | 11140 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10210 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6480 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7180 |
