Product Description

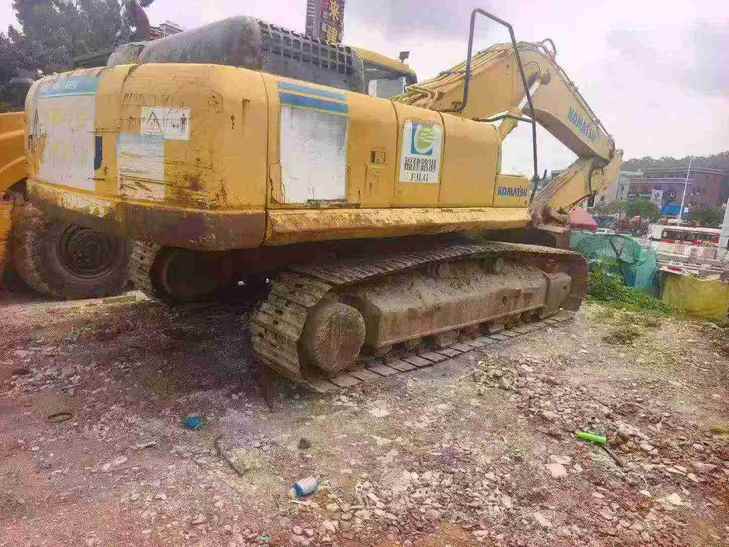

Discover the reliability and performance of the 2020 Komatsu PC360-7, now available for immediate processing in Fujian, China. This robust excavator is designed to handle a wide range of construction and excavation tasks, offering exceptional efficiency and durability. Built with the high standards that Komatsu is known for, this machine is equipped to meet the demands of your project, ensuring productivity and cost-effectiveness.
- Year: 2020
- Brand: Komatsu
- Model: PC360-7
- Location: Fujian, China
- Condition: Used, ready for immediate processing
| Specifications | Value |
|---|---|
| No. | 1084788 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33000 |
| Bucket capacity (m³) | 1.6 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 3185 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D114E |
| Rated power (kw/rpm) | 180/1900 |
| Cooling mode | water-cooling |
| Displacement (L) | 8.27 |
| Working form | 6-cylinder, water-cooled, direct injection, turbocharged, mechanical full speed regulation; Cylinder diameter × stroke :114mm×135mm |
| Ground specific pressure (Kpa) | 67.7 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 227 |
| Rod digging force (kN) | 171 |
| Travel speed (km/h) | 3.2/4.5/5.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 535L/min |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 * 1285 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 160 * 1825 * 110 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 1480 * 100 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 35 |
| Coolant (L) | 32 |
| Total transport length (mm) | 11140 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10210 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6480 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7180 |
