Product Description

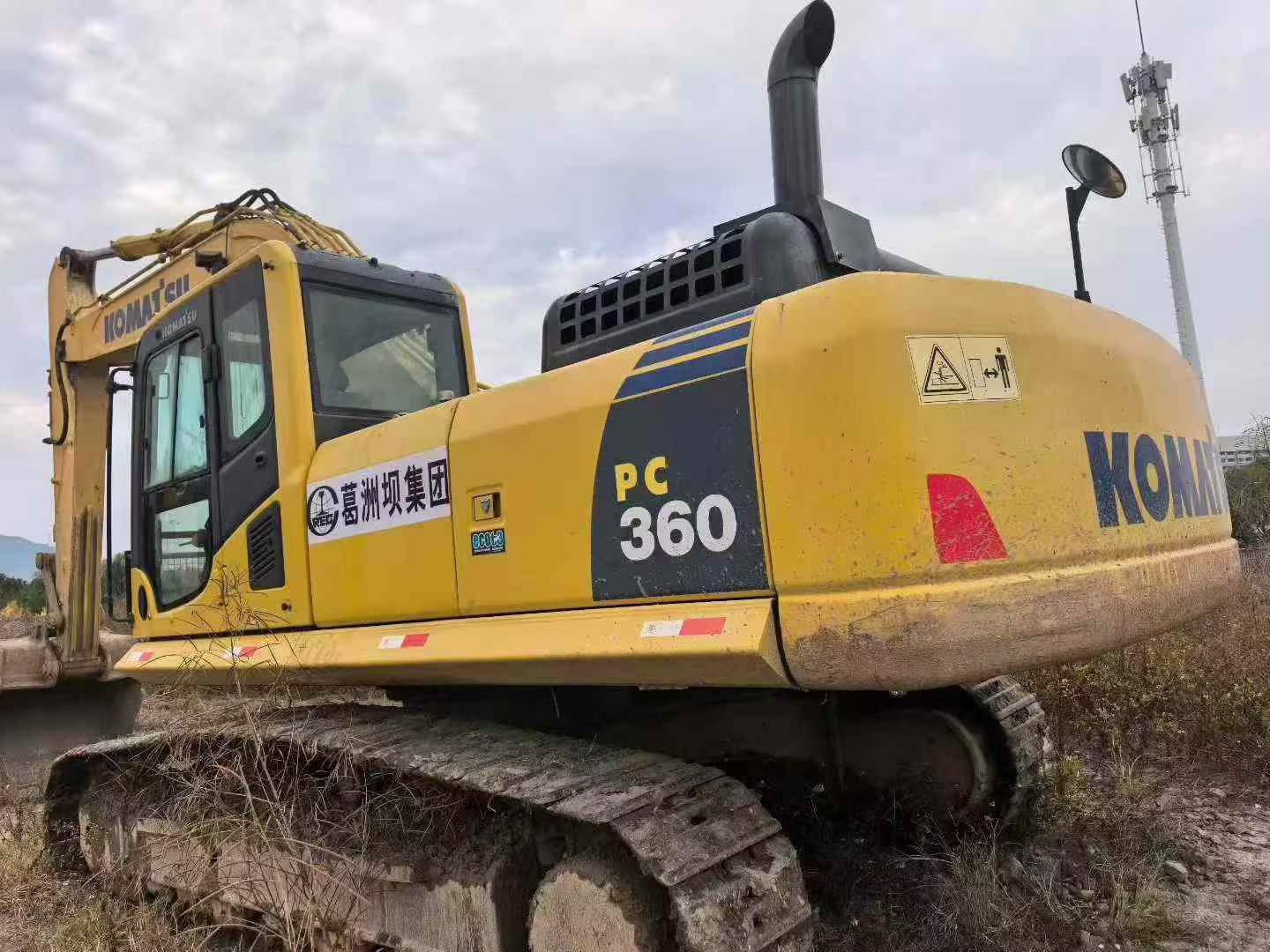

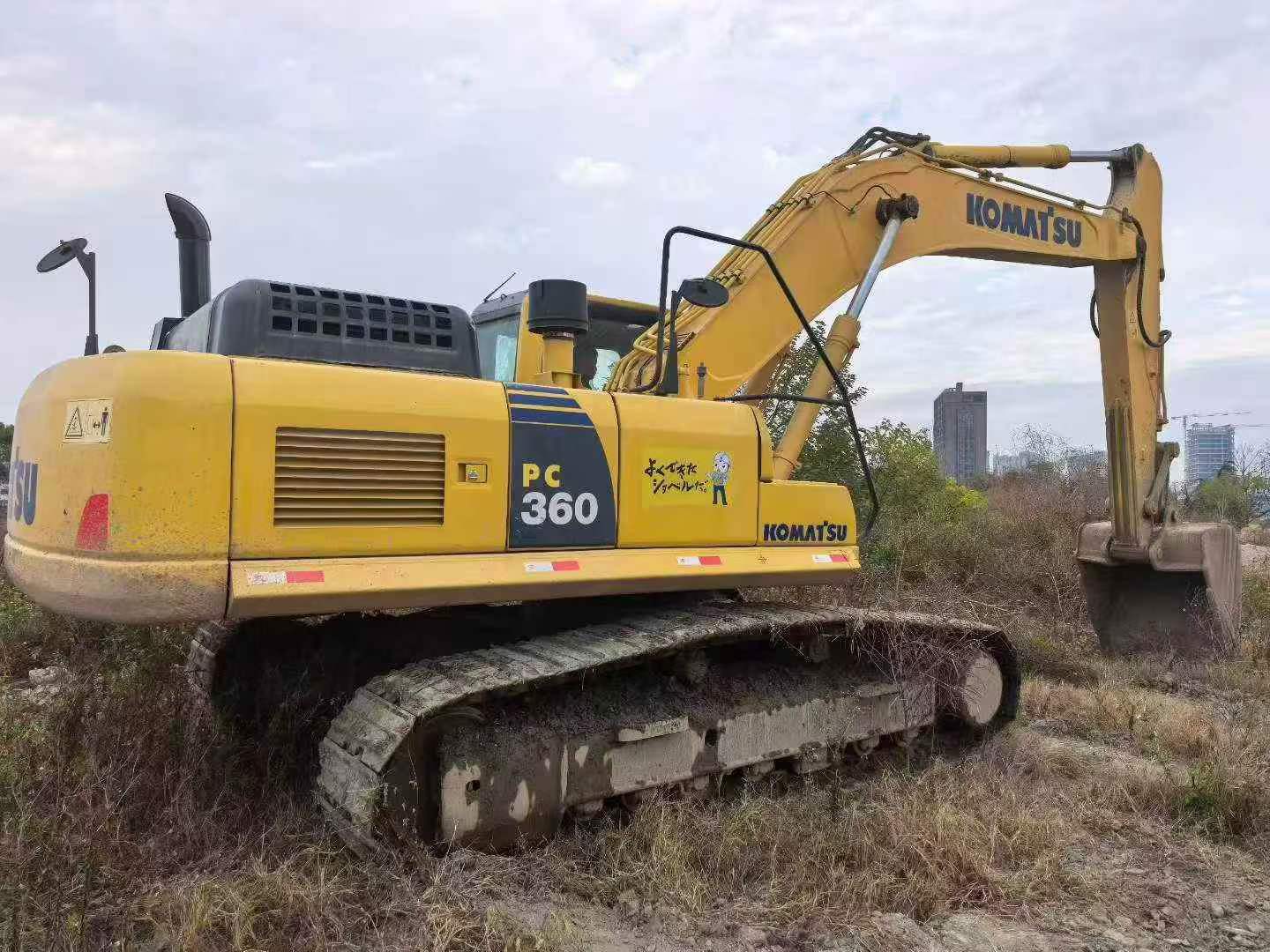

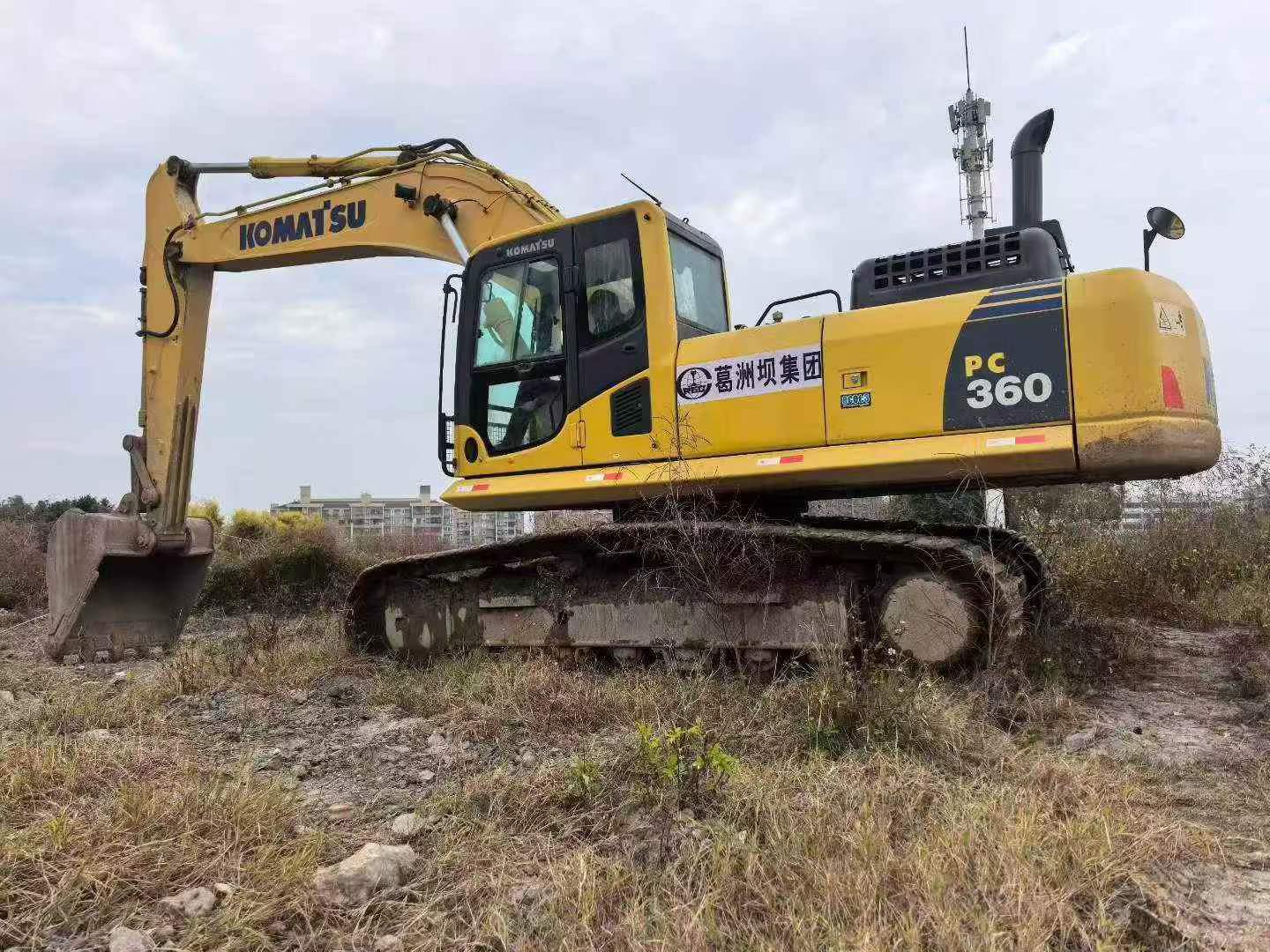

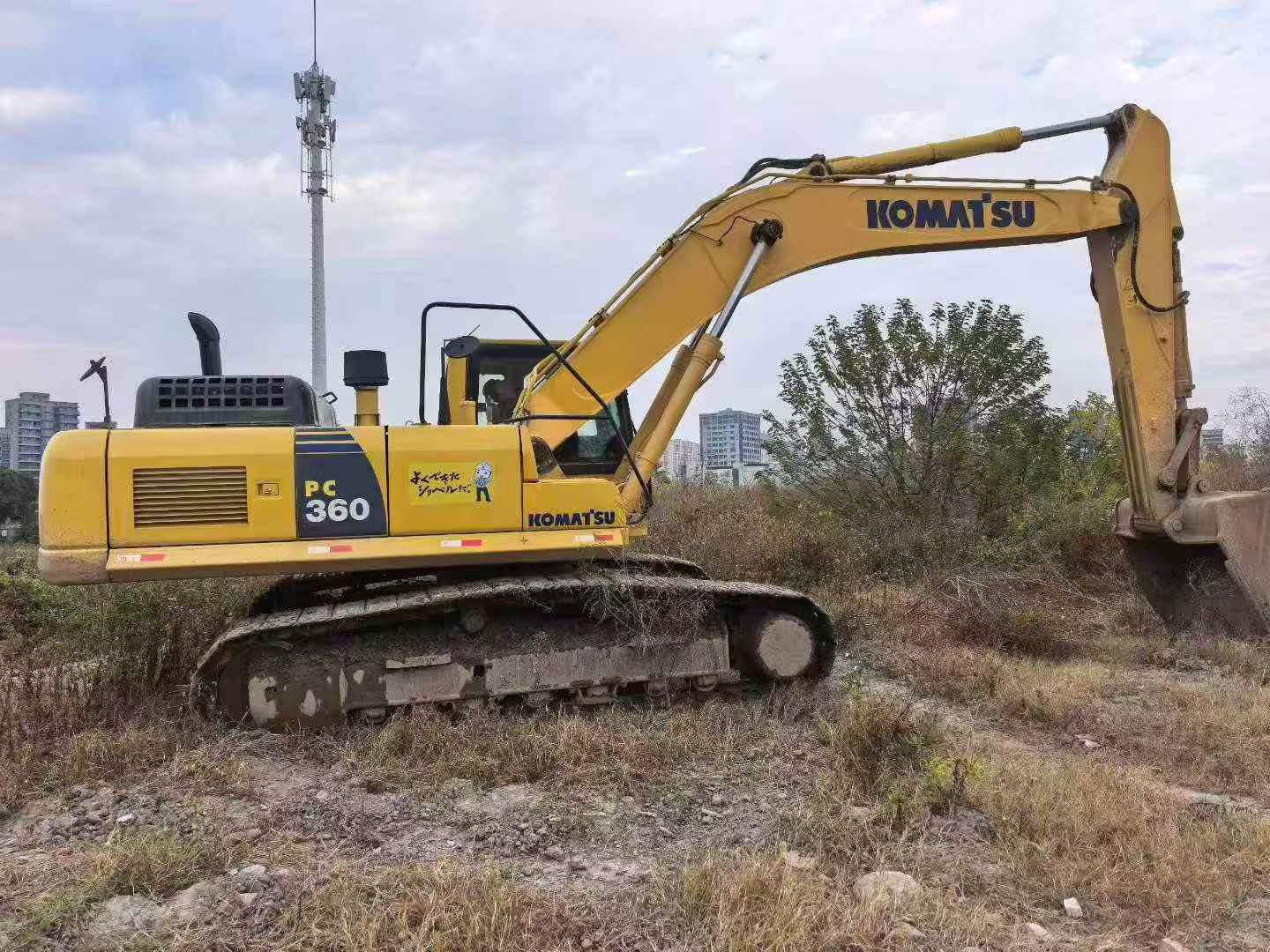

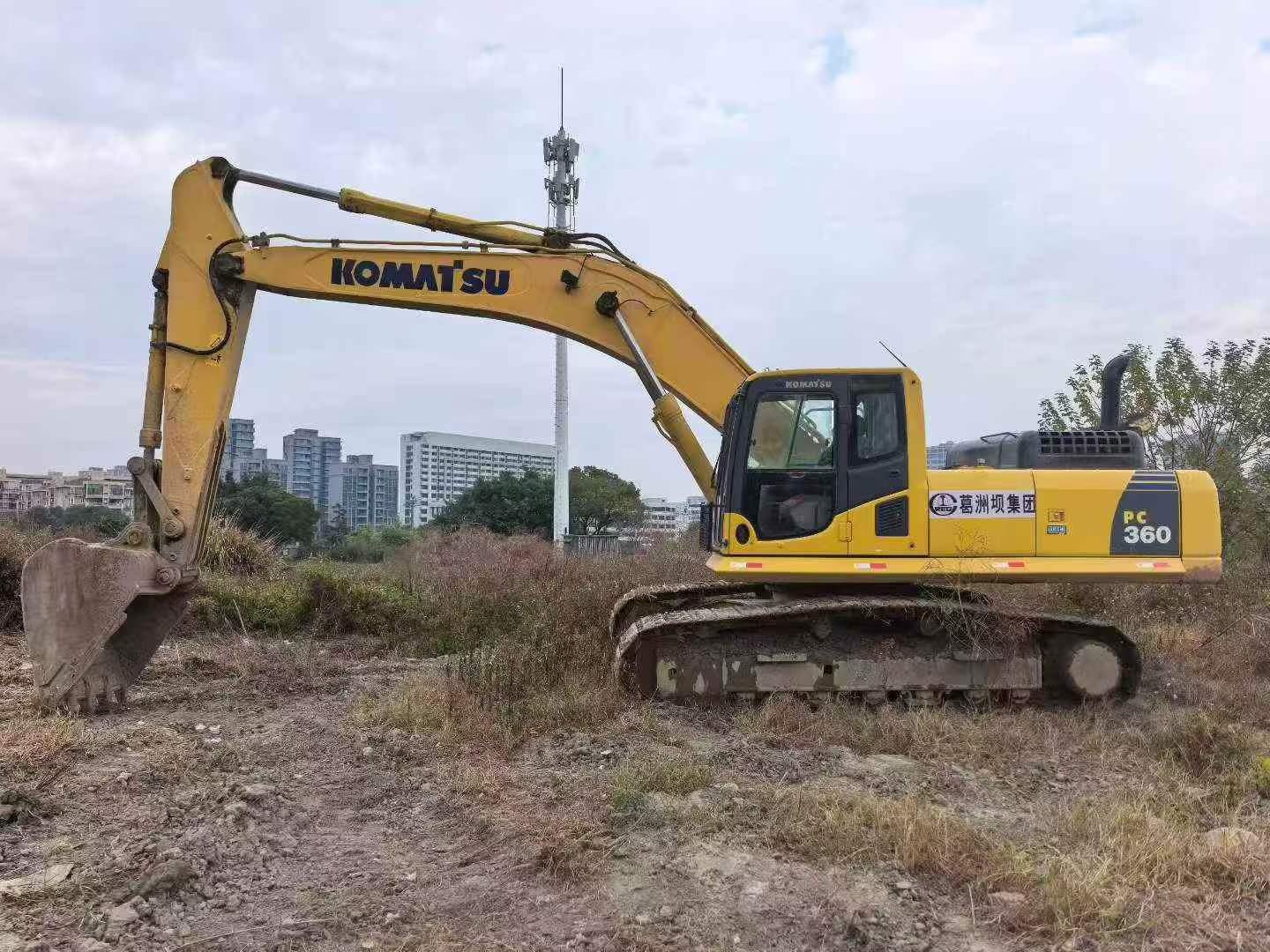

Powered by a proven Komatsu SAA6D114E engine delivering 180kW at 1900rpm, this 2021 PC360-7 excavator combines robust performance with the brand reliability that defines Komatsu's legacy in heavy equipment. Operating at 36 tons with a 1.6m³ bucket capacity, this machine tackles demanding excavation tasks with a maximum digging depth of 7,380mm and a reach extending to 11,100mm. Factory-equipped with dual axial plunger travel motors and a high-capacity 535L/min main pump, it maintains consistent hydraulic power across all functions.
Choosing Komatsu in the used market means investing in long-term value. Parts availability remains exceptional worldwide, minimizing downtime and repair costs. Resale values consistently outperform competitors due to Komatsu's reputation for durability and dealer network support. This Wenzhou-based unit features water-cooled turbocharged technology and a 605L fuel tank for extended operation cycles.
- Engine: Komatsu SAA6D114E, 6-cylinder turbocharged, 8.27L displacement
- Digging Force: 227kN bucket, 171kN arm
- Hydraulics: 535L/min flow, triple axial piston motor configuration
- Dimensions: 11,140mm transport length, 3,190mm width
- Location: Wenzhou, Zhej
| Specifications | Value |
|---|---|
| No. | 1039829 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33000 |
| Bucket capacity (m³) | 1.6 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 3185 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

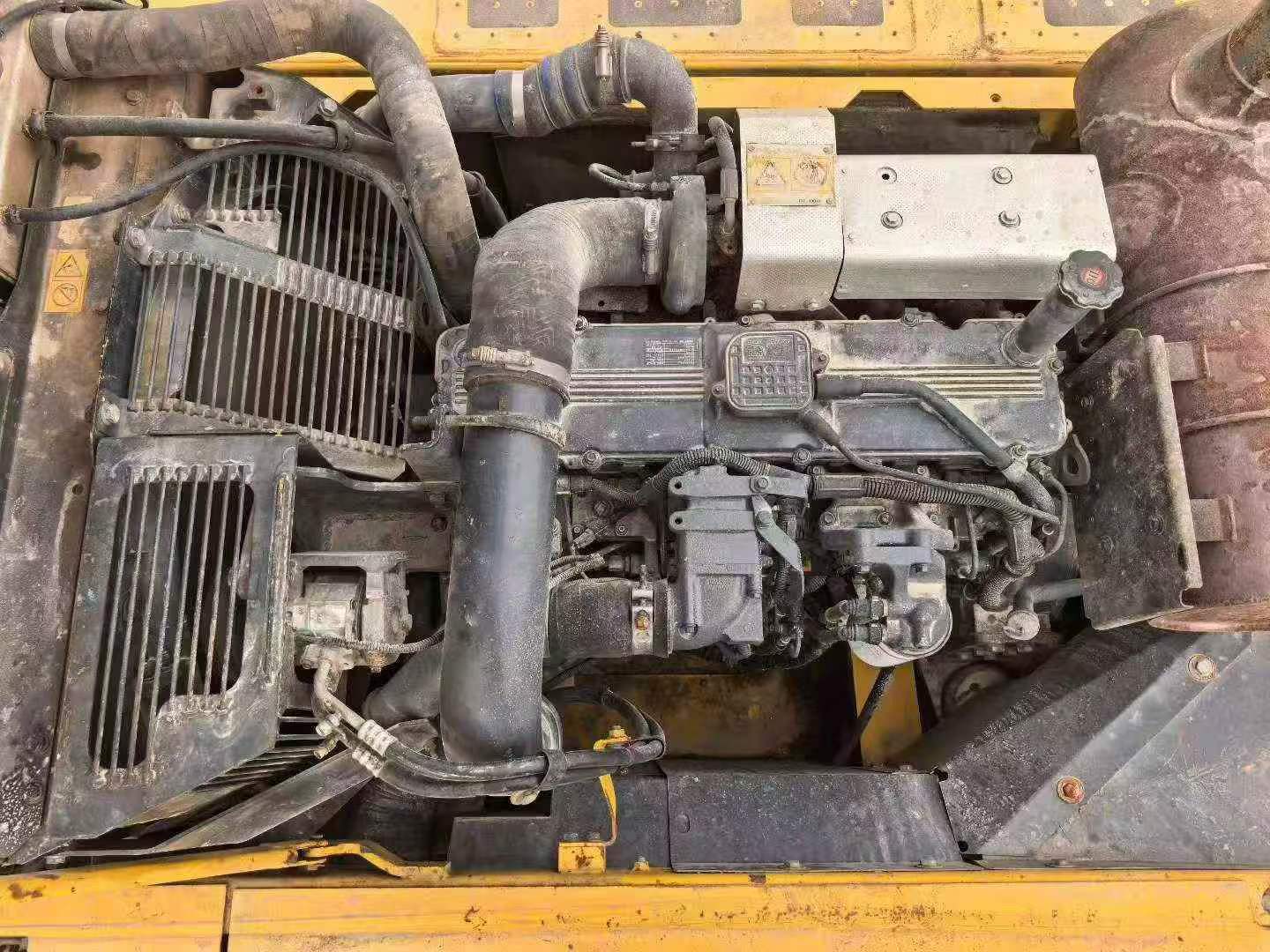

| Engine type | Komatsu SAA6D114E |
| Rated power (kw/rpm) | 180/1900 |
| Cooling mode | water-cooling |
| Displacement (L) | 8.27 |
| Working form | 6-cylinder, water-cooled, direct injection, turbocharged, mechanical full speed regulation; Cylinder diameter × stroke :114mm×135mm |
| Ground specific pressure (Kpa) | 67.7 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 227 |
| Rod digging force (kN) | 171 |
| Travel speed (km/h) | 3.2/4.5/5.5 |

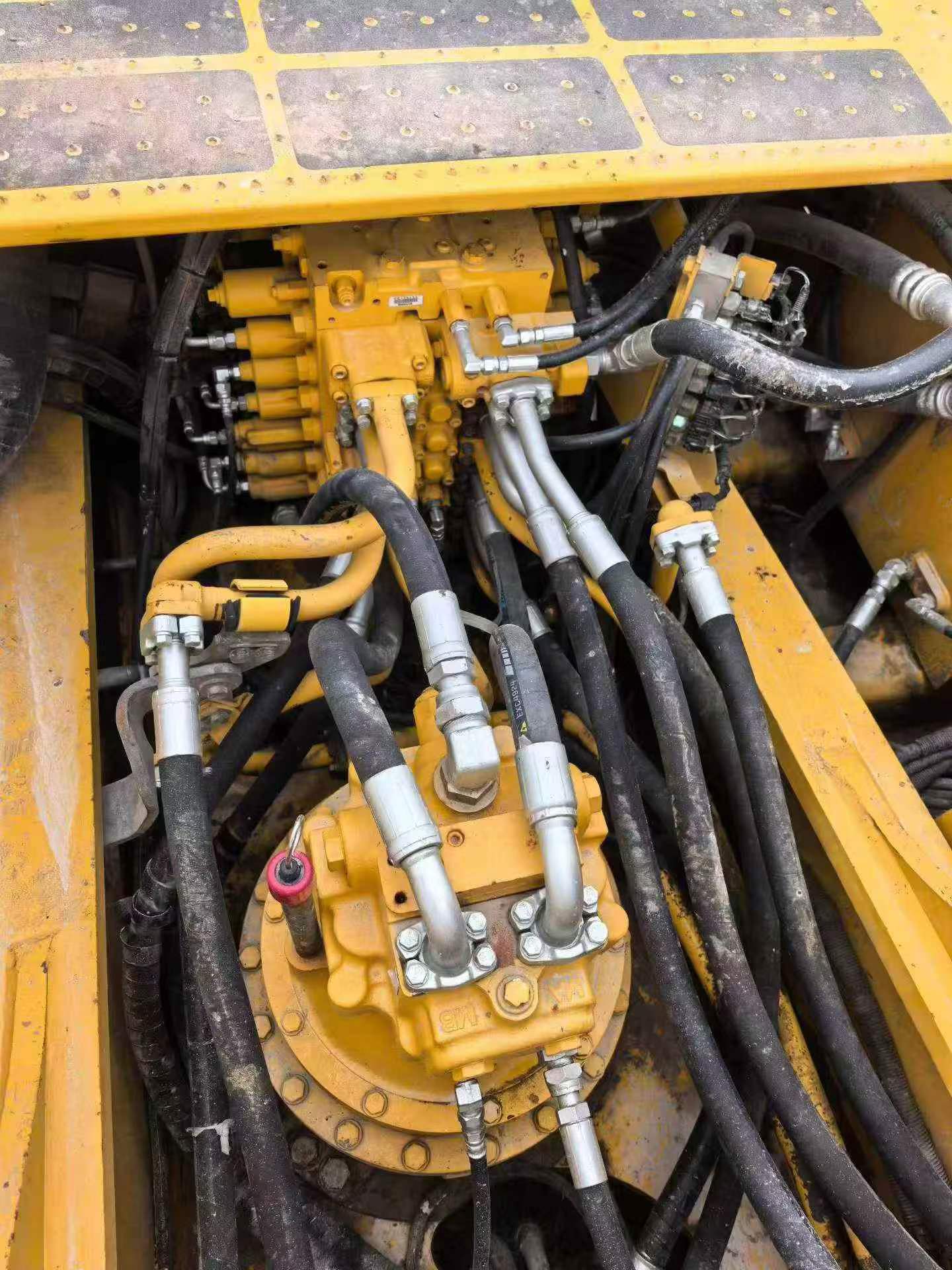

| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |

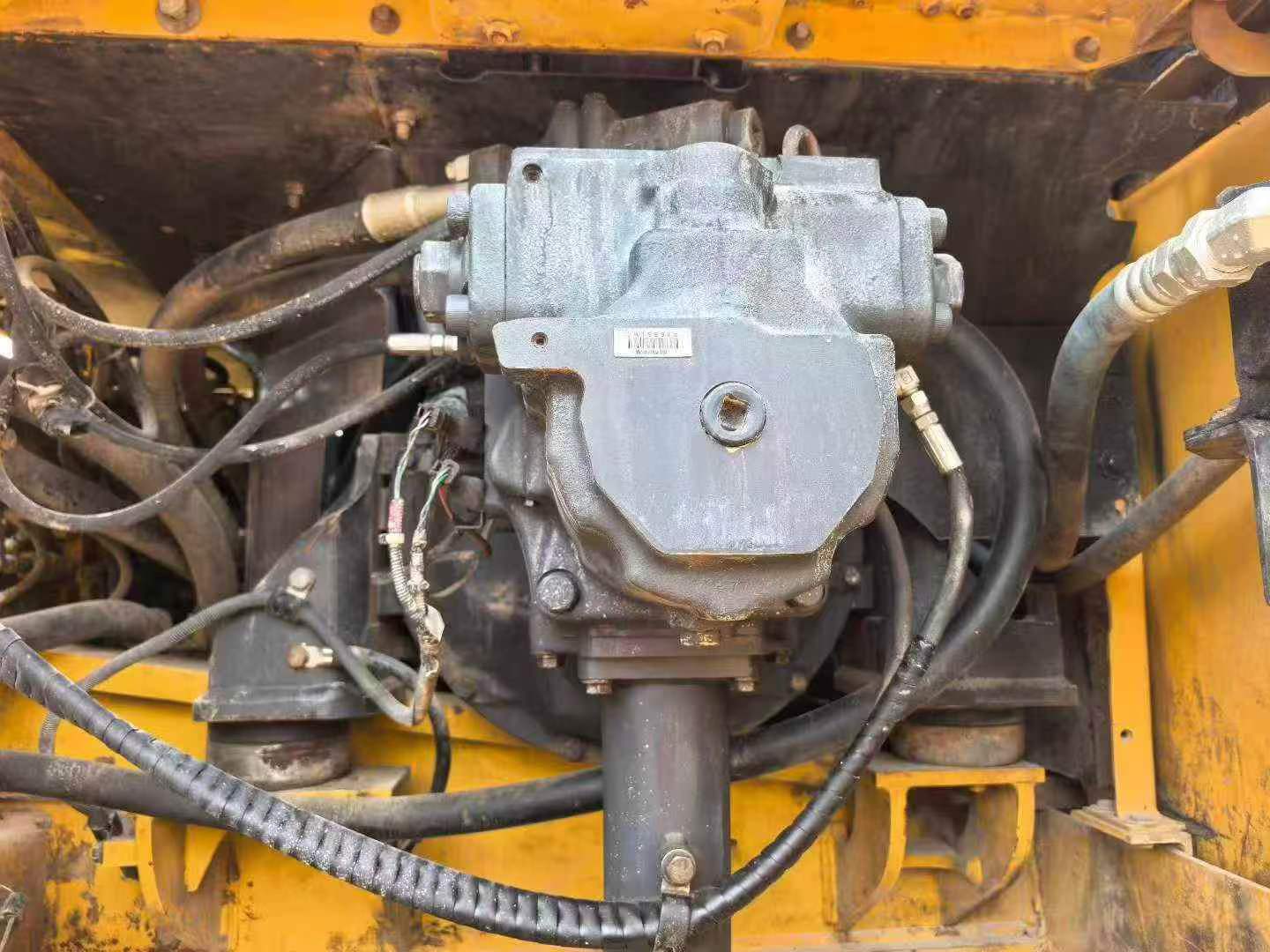

| Maximum flow of main pump (l/min) | 535L/min |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 * 1285 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 160 * 1825 * 110 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 1480 * 100 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 35 |
| Coolant (L) | 32 |
| Total transport length (mm) | 11140 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10210 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6480 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7180 |
