Product Description

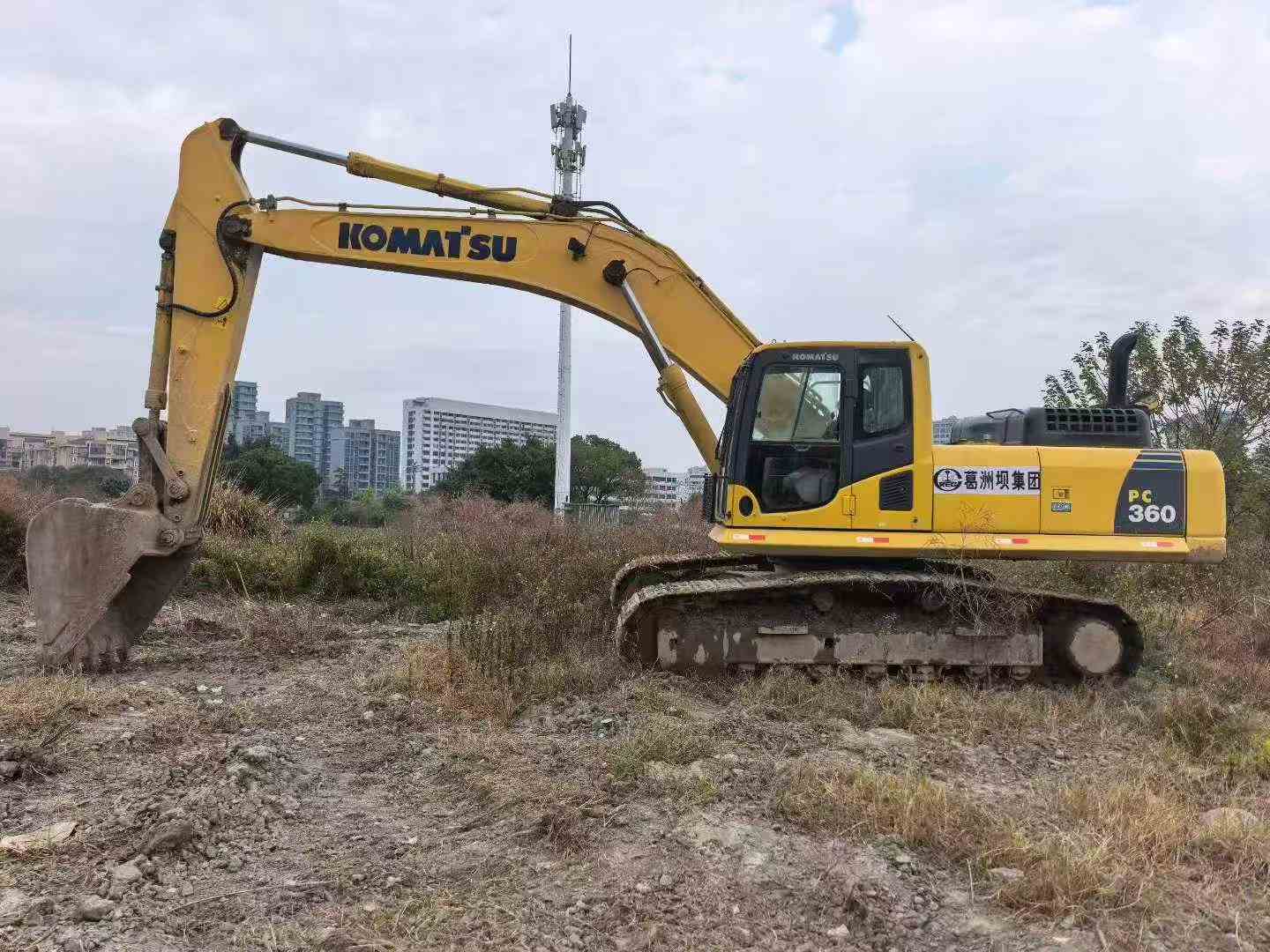

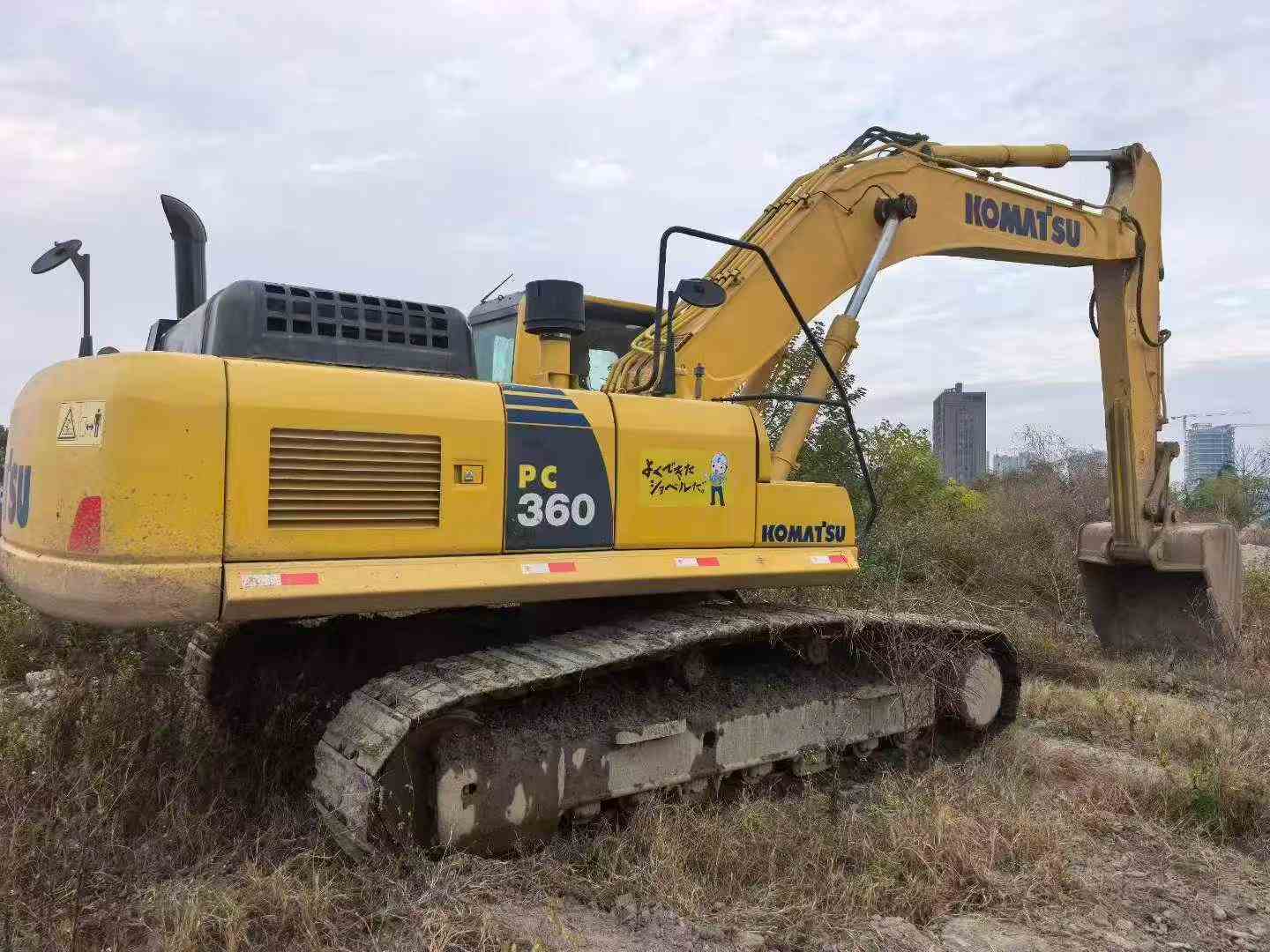

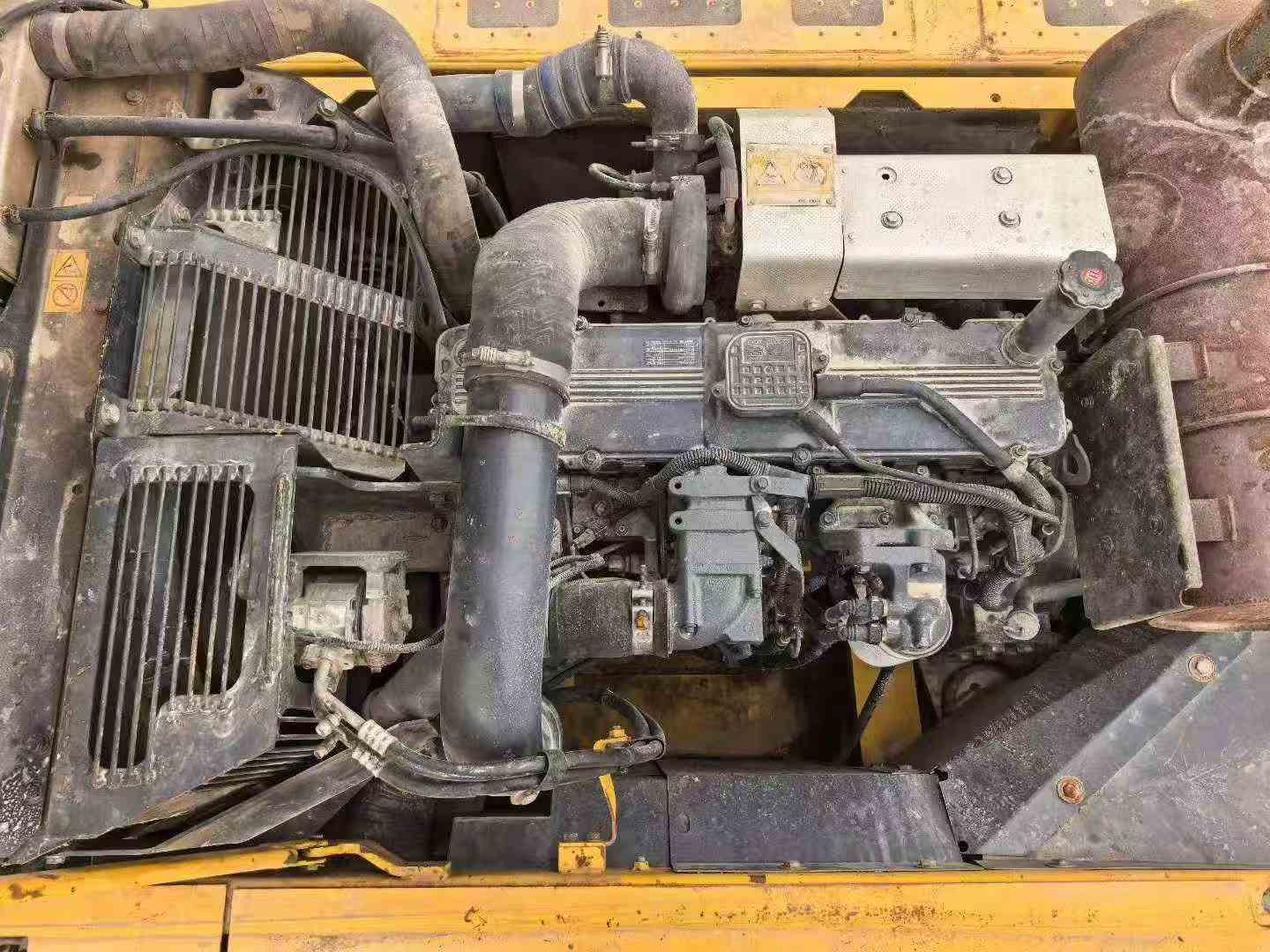

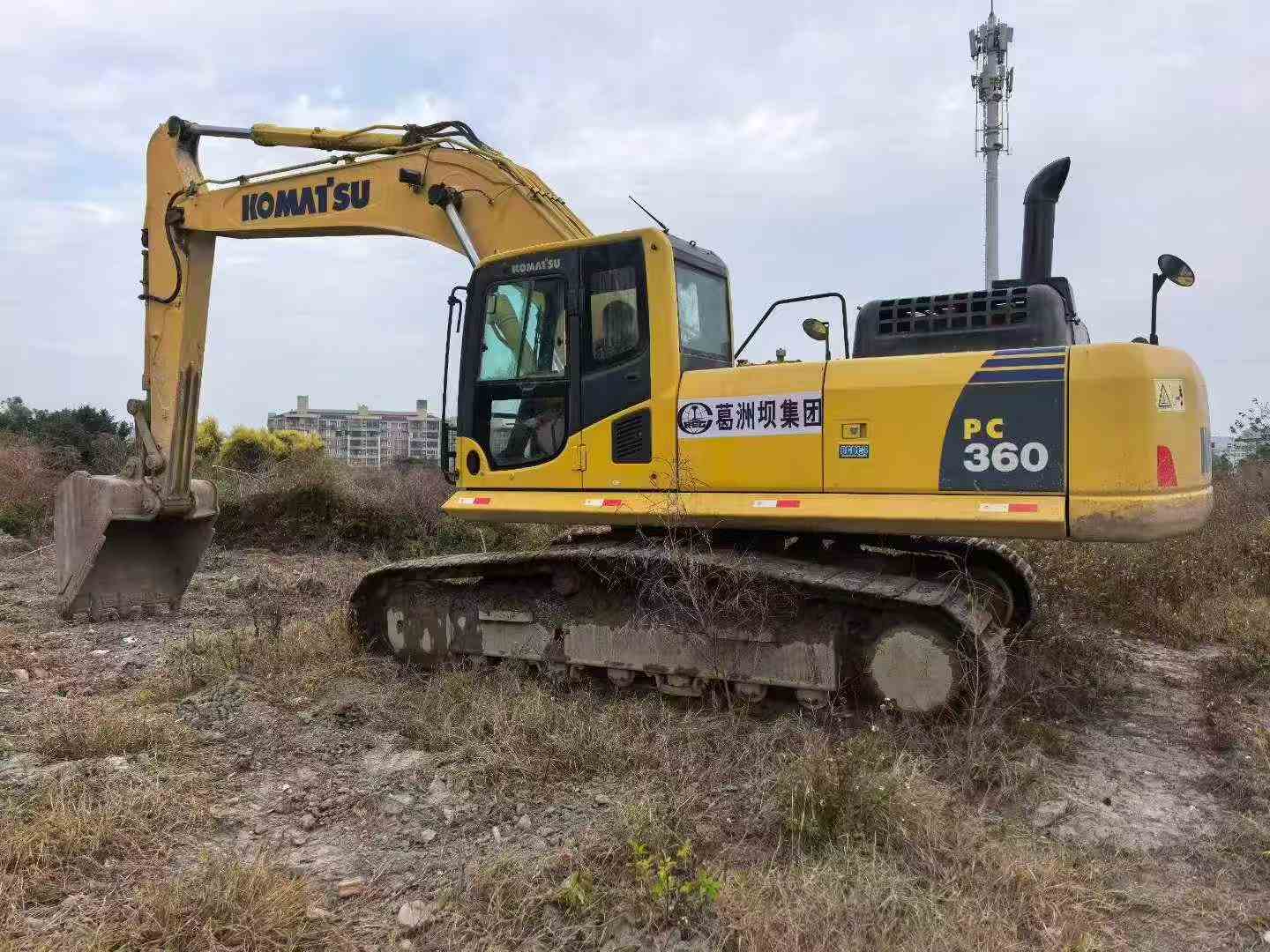

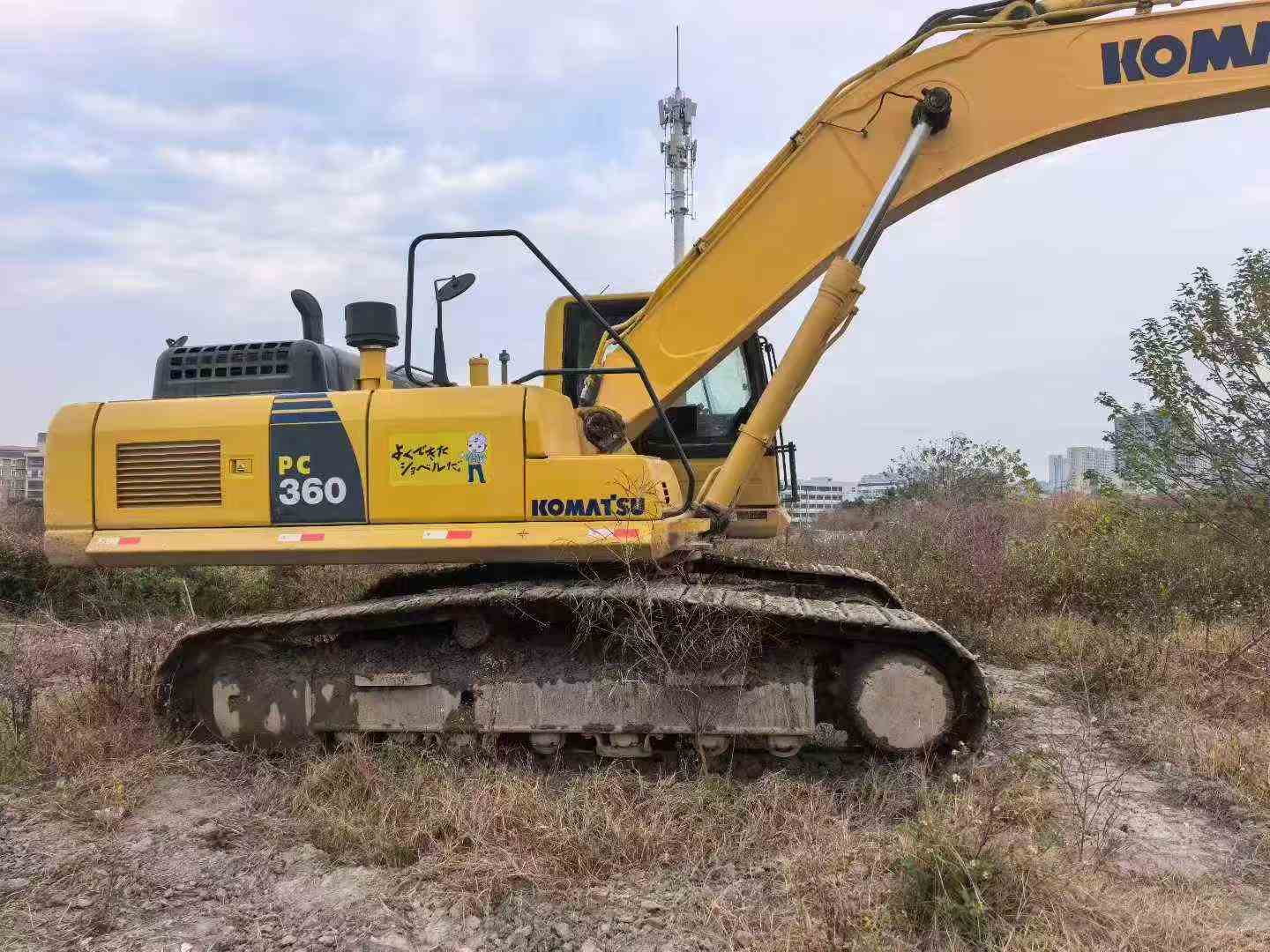

Proven in demanding jobsites worldwide, this 2021 Komatsu PC360-7 delivers 36-ton performance backed by the industry's most trusted nameplate. Powered by the reliable SAA6D114E engine generating 180 kW at 1900 rpm, this excavator combines exceptional digging force (227 kN bucket, 171 kN arm) with a productive 1.6 m³ bucket capacity. With 11,100 mm maximum reach and 7,380 mm digging depth, it tackles large-scale earthmoving with precision.
Komatsu ownership means long-term value. Parts remain readily available through established global networks, minimizing downtime and protecting your investment. Strong resale values reflect the brand's reputation for durability—critical factors when purchasing used equipment. Located in Wenzhou, Zhejiang, this PC360-7 features water-cooled efficiency, advanced hydraulic systems (535 L/min main pump flow), and robust undercarriage components designed for extended service life.
Key Specifications:
- Operating weight: 33,000 kg with 6,470 mm boom, 3,185 mm arm
- Hydraulic power: 37.3 Mpa travel circuit, 27.9 Mpa swing circuit
- Transport dimensions: 11,140 mm × 3,190 mm × 3,280 mm
- Fuel capacity: 605 L for extended operation
| Specifications | Value |
|---|---|
| No. | 1043162 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33000 |
| Bucket capacity (m³) | 1.6 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 3185 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D114E |
| Rated power (kw/rpm) | 180/1900 |
| Cooling mode | water-cooling |
| Displacement (L) | 8.27 |
| Working form | 6-cylinder, water-cooled, direct injection, turbocharged, mechanical full speed regulation; Cylinder diameter × stroke :114mm×135mm |
| Ground specific pressure (Kpa) | 67.7 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 227 |
| Rod digging force (kN) | 171 |
| Travel speed (km/h) | 3.2/4.5/5.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 535L/min |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 150 * 1285 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 160 * 1825 * 110 |
| Boom cylinders - Number × diameter × stroke (mm) | 140 * 1480 * 100 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 35 |
| Coolant (L) | 32 |
| Total transport length (mm) | 11140 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3280 |
| Full cab height (mm) | 3130 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 11100 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 10210 |
| Maximum unloading height (mm) | 7110 |
| Maximum vertical digging depth (mm) | 6480 |
| Bulldozer lift or depth (mm) | There is no |
| Maximum excavation radius of stop surface (mm) | 10920 |
| Maximum effective digging depth (mm) | 7180 |
