Product Description

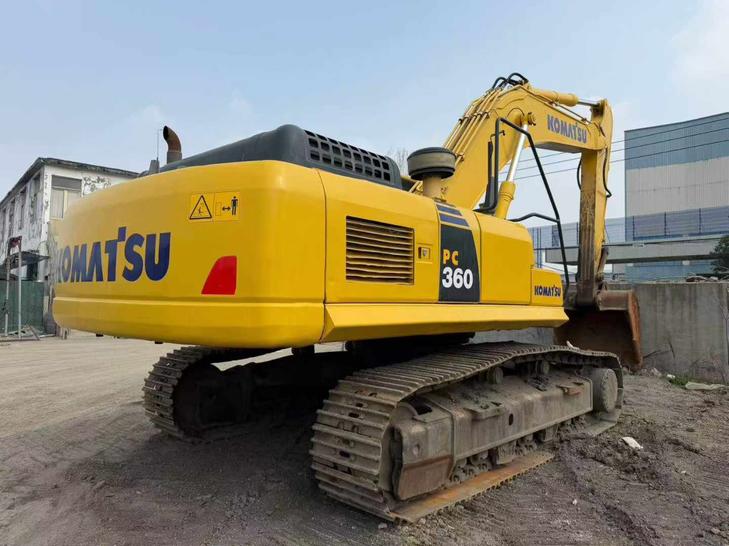

Designed for serious operators, this 2017 Komatsu PC360-8M0 hydraulic excavator combines 36-ton capacity with exceptional control precision. Powered by a Komatsu SAA6D114E-3 engine delivering 187 kW at 1950 rpm, this machine offers consistent performance across demanding job sites. The spacious cabin provides commanding visibility across the 11,080 mm maximum digging radius, while intuitive pilot controls reduce operator fatigue during extended shifts.
- Working weight: 33,550 kg with optimal 68.5 kPa ground pressure for stability
- Bucket capacity: 1.6-1.9 m³ with 232 kN digging force
- Hydraulic system: 535 L/min variable piston pump ensuring responsive control
- Maximum digging depth: 7,380 mm with 3,185 mm arm reach
- 9.5 rpm rotation speed for smooth, predictable swing operations
- Water-cooled 6-cylinder turbocharged engine with 8.27 L displacement
Currently located in Lishui, Zhejiang, this joint-venture manufactured excavator features robust undercarriage with dual sprockets and seven track rollers per side, delivering reliable traction on variable terrain. Factory-standard cabin ergonomics and hydraulic responsiveness make this PC360-8M0 a proven workhorse for ex
| Specifications | Value |
|---|---|
| No. | 1035870 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33550 |
| Bucket capacity (m³) | 1.6-1.9 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 3185 |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D114E-3 |
| Rated power (kw/rpm) | 187/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Working form | Six-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 68.5 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 232 |
| Rod digging force (kN) | 174 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/4.5/3.2 |
| Maximum flow of main pump (l/min) | 535 |
| Traveling Hydraulic Circuit (Mpa) | 38.2 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 38.2 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1825 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1480 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 31 |
| Total transport length (mm) | 11150 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3145 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4450 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 5755 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 11080 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 9925 |
| Maximum unloading height (mm) | 7040 |
| Maximum vertical digging depth (mm) | 6040 |
| Maximum excavation radius of stop surface (mm) | 10890 |
