Product Description

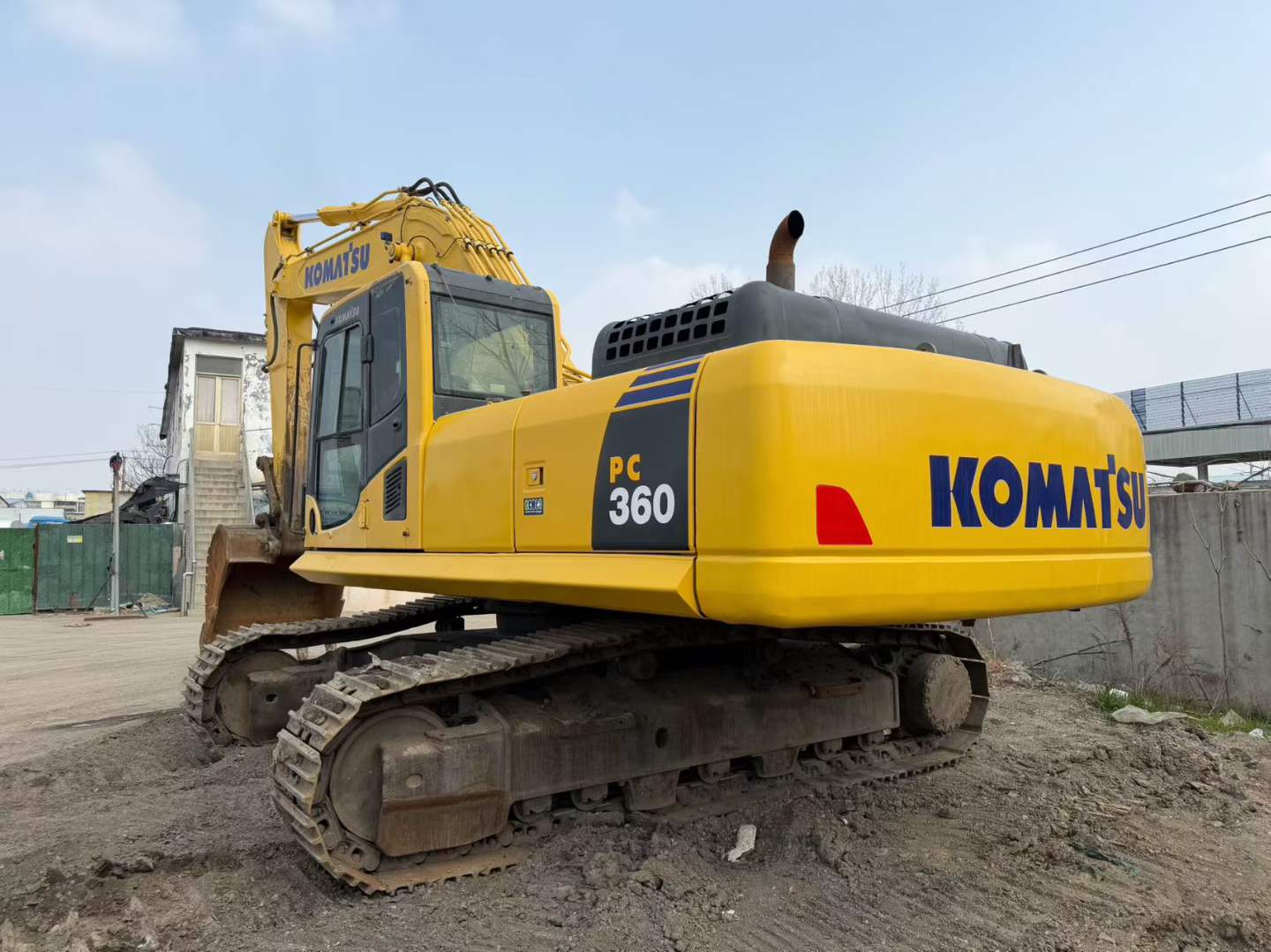

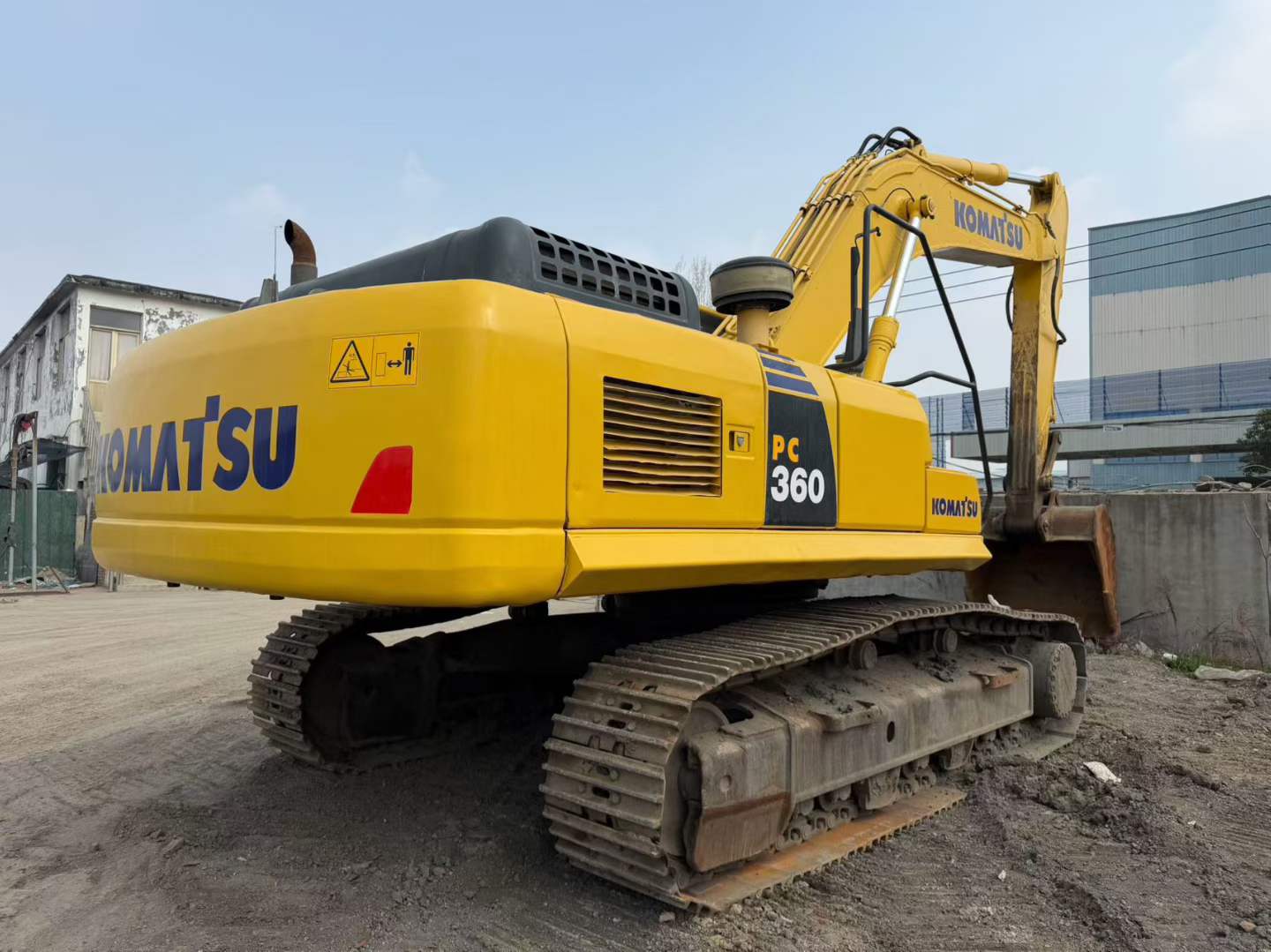

Backed by Komatsu's legendary engineering, this 2017 PC360-8M0 excavator delivers proven performance with 36-ton capacity and a robust 187kW SAA6D114E-3 engine. Operating weight of 33,550kg combines with 1.6-1.9m³ bucket capacity to tackle demanding excavation projects across construction and mining sites. Maximum digging depth reaches 7,380mm while the 11,080mm working radius ensures comprehensive coverage on every jobsite.
Komatsu's global parts network guarantees component availability for this joint-venture manufactured machine, minimizing downtime throughout its service life. Key specifications include:
- 232kN bucket digging force with 174kN arm force

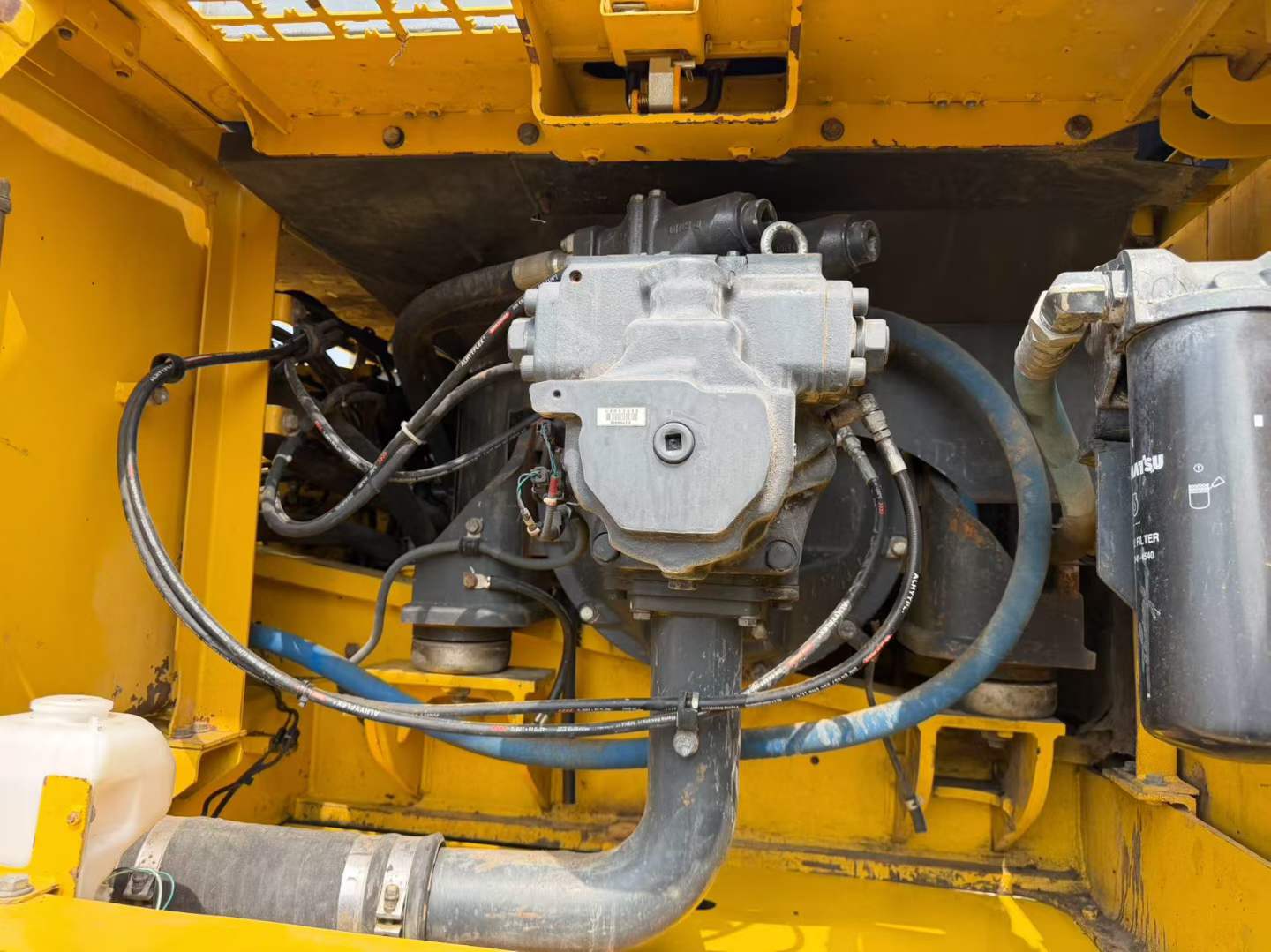

- 535 L/min hydraulic flow from variable piston pumps

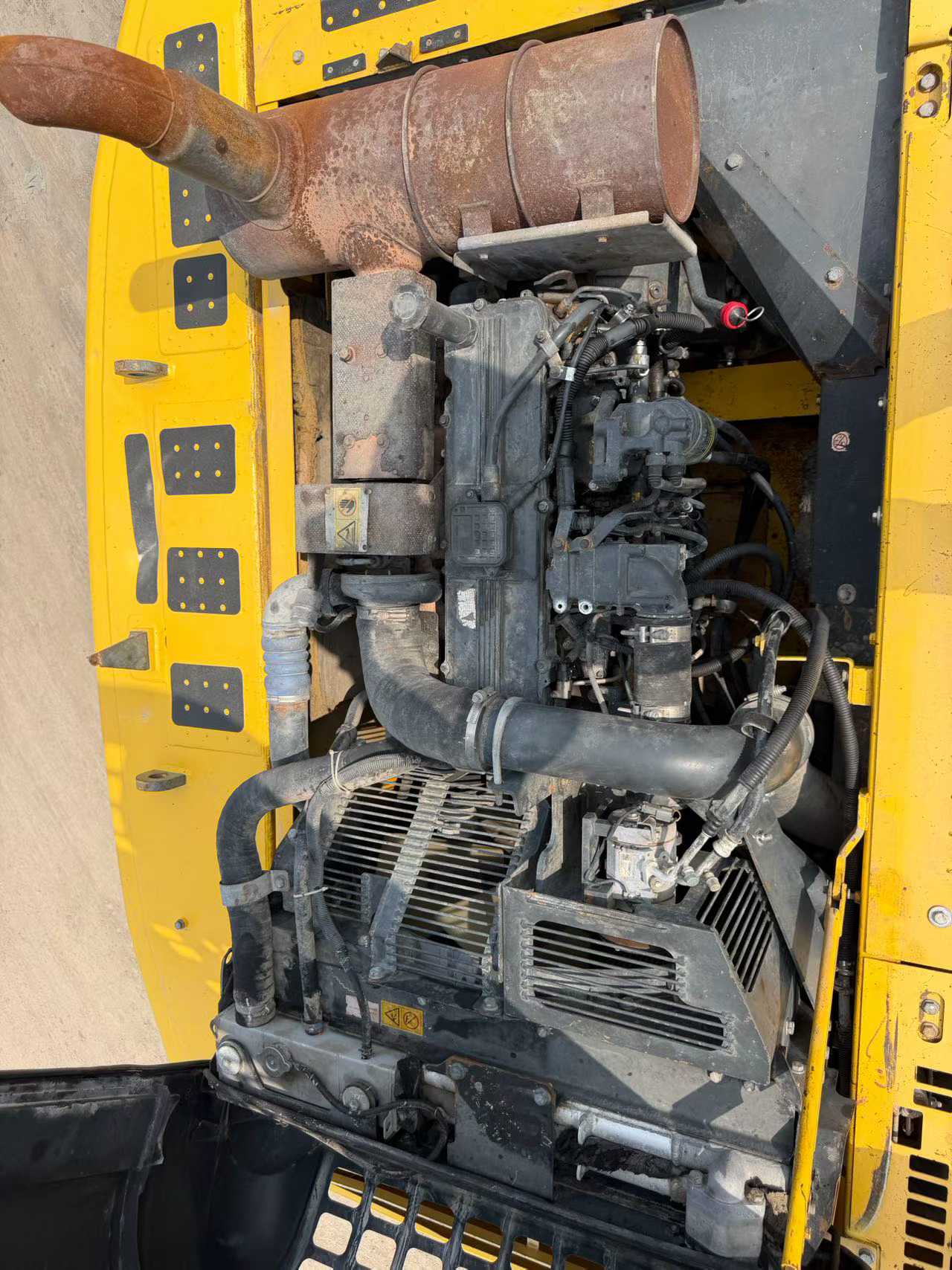

- Water-cooled 6-cylinder turbocharged engine with 8.27L displacement
- 9.5 RPM rotation speed for efficient positioning
- 605L fuel capacity for extended operation
Currently located in Maoming, Guangdong, this PC360-8M0 represents smart investment value. Komatsu's strong resale retention and widespread dealer support across Asia-Pacific make this model a financially sound choice for operators prioritizing long-term reliability and parts accessibility.
| Specifications | Value |
|---|---|
| No. | 1035958 |
| Tonnage (tons) | 36 |
| Working weight (kg) | 33550 |
| Bucket capacity (m³) | 1.6-1.9 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 3185 |
| Country of origin | China |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D114E-3 |
| Rated power (kw/rpm) | 187/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114 x 135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Working form | Six-cylinder four-stroke turbocharged intercooled direct injection engine |
| Ground specific pressure (Kpa) | 68.5 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 232 |
| Rod digging force (kN) | 174 |
| Maximum tractive force (kN) | 264 |
| Travel speed (km/h) | 5.5/4.5/3.2 |
| Maximum flow of main pump (l/min) | 535 |
| Traveling Hydraulic Circuit (Mpa) | 38.2 |
| Rotary Hydraulic Circuit (Mpa) | 28 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 38.2 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-140 x 1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160 x 1825 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140 x 1480 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 31 |
| Total transport length (mm) | 11150 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3145 |
| Counterweight ground clearance (mm) | 1185 |
| Minimum ground clearance (mm) | 500 |
| Minimum turning radius of front working device (mm) | 4450 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 4625 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3190 |
| Track ground length (mm) | 5755 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 45 |
| Maximum digging radius (mm) | 11080 |
| Maximum digging depth (mm) | 7380 |
| Maximum excavation height (mm) | 9925 |
| Maximum unloading height (mm) | 7040 |
| Maximum vertical digging depth (mm) | 6040 |
| Maximum excavation radius of stop surface (mm) | 10890 |
