2022 Komatsu PC360-8M0

1/9

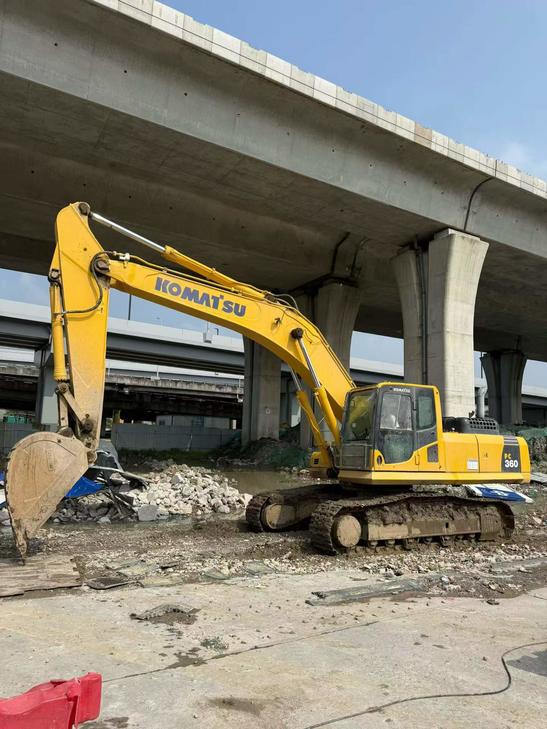

Buy Komatsu PC360-8M0 Used Excavator / 1
Buy Komatsu PC360-8M0 Used Excavator / 2
Buy Komatsu PC360-8M0 Used Excavator / 3
Buy Komatsu PC360-8M0 Used Excavator / 4
Buy Komatsu PC360-8M0 Used Excavator / 5
Buy Komatsu PC360-8M0 Used Excavator / 6
Buy Komatsu PC360-8M0 Used Excavator / 7
Buy Komatsu PC360-8M0 Used Excavator / 8
Buy Komatsu PC360-8M0 Used Excavator / 9

Product Description

This 2022 Komatsu PC360-8M0 hydraulic excavator is available from Zhejiang, China. Purchased new in 2022 for earthmoving operations, the machine features well-maintained core components with no leaks reported. The undercarriage shows approximately 90% remaining life, indicating limited wear. Factory air conditioning system is fully operational.

  • Year: 2022
  • Make: Komatsu
  • Model: PC360-8M0
  • Primary Use: Earthmoving
  • Undercarriage Condition: ~90% remaining
  • Core Components: No reported leaks
  • Cab: Original AC system functional
  • Location: Zhejiang Province, China
  • Status: Recently completed project work

Machine is available for on-site inspection and test operation. Seller reports unit has been properly serviced throughout its operational period. Suitable for general excavation, earthmoving, and construction applications.

SpecificationsValue
No.1075408
Tonnage (tons)36
Working weight (kg)33550
Bucket capacity (m³)1.6-1.9
Boom length (mm)6470
Rod length (mm)3185
Country of originChina
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu SAA6D114E-3
Rated power (kw/rpm)187/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114 x 135
Number of cylinders (PCS)6
Displacement (L)8.27
Working formSix-cylinder four-stroke turbocharged intercooled direct injection engine
Ground specific pressure (Kpa)68.5
Rotation speed (rpm)9.5
Climbing ability (%)70
Bucket digging force (kN)232
Rod digging force (kN)174
Maximum tractive force (kN)264
Travel speed (km/h)5.5/4.5/3.2
Maximum flow of main pump (l/min)535
Traveling Hydraulic Circuit (Mpa)38.2
Rotary Hydraulic Circuit (Mpa)28
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)38.2
Pilot Oil Circuit (MPa)3.2
Bucket cylinders - Number × diameter × stroke (mm)1-140 x 1285
Bucket rod cylinders - Number × diameter × stroke (mm)1-160 x 1825
Boom cylinders - Number × diameter × stroke (mm)2-140 x 1480
Fuel Tank (L)605
Hydraulic Tank (L)188
Engine Oil changes (L)37
Coolant (L)31
Total transport length (mm)11150
Total transport width (mm)3190
Total transport height (mm)3145
Counterweight ground clearance (mm)1185
Minimum ground clearance (mm)500
Minimum turning radius of front working device (mm)4450
Back end turning radius (mm)3450
Total track length (mm)4625
Track gauge (mm)2590
Track plate width (mm)600
Total track width (mm)3190
Track ground length (mm)5755
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)45
Maximum digging radius (mm)11080
Maximum digging depth (mm)7380
Maximum excavation height (mm)9925
Maximum unloading height (mm)7040
Maximum vertical digging depth (mm)6040
Maximum excavation radius of stop surface (mm)10890
see more

Overview

No.1075408

Brand Name:

Komatsu

Model Number:

PC360-8M0

Year:

2022

Location:

Zhejiang China

Pub Date
