2011 Komatsu PC390LC-8M0

1/9

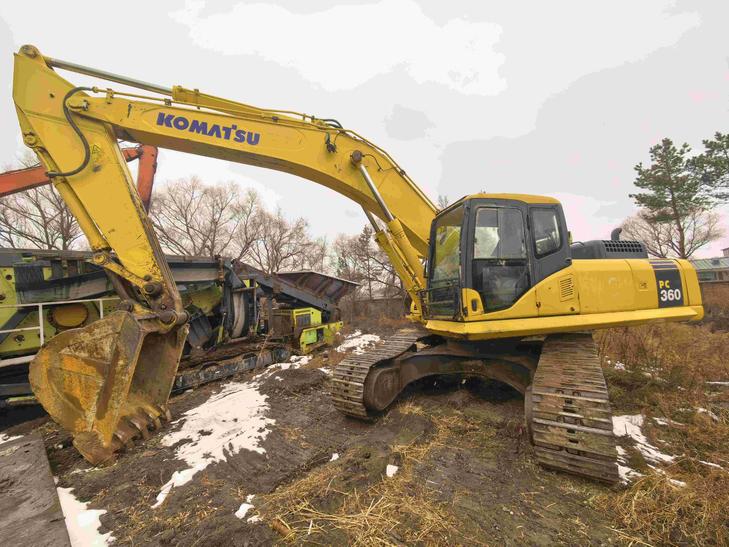

Buy Komatsu PC390LC-8M0 Used Excavator / 1

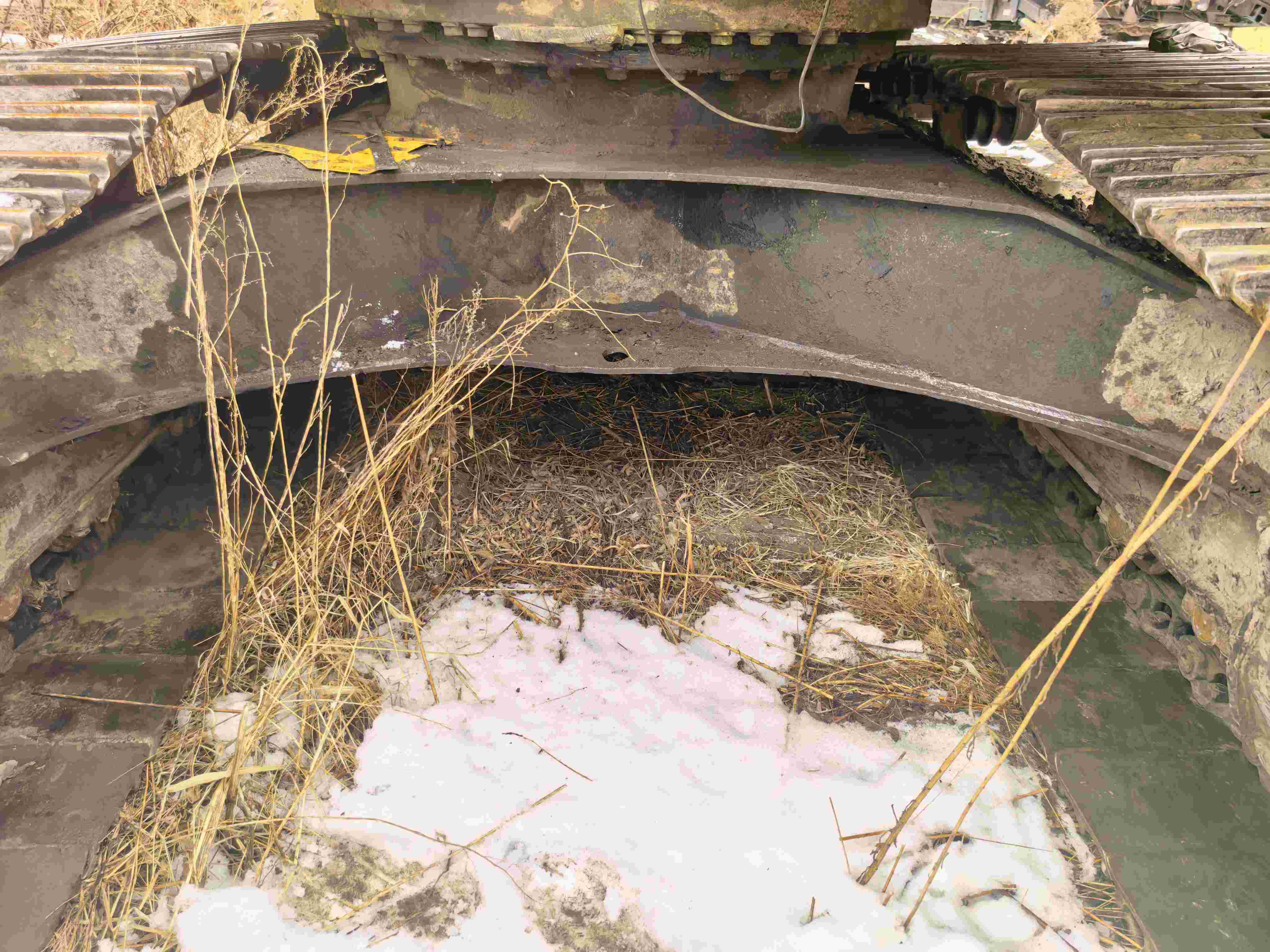

Buy Komatsu PC390LC-8M0 Used Excavator / 2
Buy Komatsu PC390LC-8M0 Used Excavator / 3
Buy Komatsu PC390LC-8M0 Used Excavator / 4
Buy Komatsu PC390LC-8M0 Used Excavator / 5
Buy Komatsu PC390LC-8M0 Used Excavator / 6
Buy Komatsu PC390LC-8M0 Used Excavator / 7
Buy Komatsu PC390LC-8M0 Used Excavator / 8
Buy Komatsu PC390LC-8M0 Used Excavator / 9

Product Description

Discover the reliability and performance of the 2011 Komatsu PC390LC-8M0, now available in Heilongjiang, China. This excavator is fully serviced and ready for immediate deployment, ensuring you can start your projects without delay. Ideal for a range of heavy-duty applications, this machine has been meticulously maintained and is in excellent working condition.

  • Year: 2011
  • Brand: Komatsu
  • Model: PC390LC-8M0
  • Location: Heilongjiang, China
  • Fully serviced and operational
SpecificationsValue
No.1080723
Tonnage (tons)39
Working weight (kg)38000
Bucket capacity (m³)1.9
Boom length (mm)6470
Rod length (mm)2810
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu SAA6D114E-3
Rated power (kw/rpm)187/1950
Cooling modewater-cooling
Cylinder diameter × stroke (mm)114*135
Number of cylinders (PCS)6
Displacement (L)8.27
Ground specific pressure (Kpa)71.4
Rotation speed (rpm)9.5
Climbing ability (%)70
Bucket digging force (kN)272
Rod digging force (kN)194
Maximum tractive force (kN)330
Travel speed (km/h)2.5~4.3
Maximum flow of main pump (l/min)535
Traveling Hydraulic Circuit (Mpa)38.2
Rotary Hydraulic Circuit (Mpa)28
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)38.2
Pilot Oil Circuit (MPa)3.2
Bucket cylinders - Number × diameter × stroke (mm)1-150*1285
Bucket rod cylinders - Number × diameter × stroke (mm)1-160*1825
Boom cylinders - Number × diameter × stroke (mm)2-140*1480
Fuel Tank (L)605
Hydraulic Tank (L)188
Engine Oil changes (L)37
Total transport length (mm)11170
Total transport width (mm)3340
Total transport height (mm)3400
Minimum ground clearance (mm)567
Minimum turning radius of front working device (mm)4440
Back end turning radius (mm)3450
Total track length (mm)5055
Track gauge (mm)2740
Track plate width (mm)600
Total track width (mm)3340
Track ground length (mm)4020
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)10765
Maximum digging depth (mm)6900
Maximum excavation height (mm)9970
Maximum unloading height (mm)7065
Maximum vertical digging depth (mm)4730
Maximum excavation radius of stop surface (mm)10550
see more

Overview

No.1080723

Brand Name:

Komatsu

Model Number:

PC390LC-8M0

Year:

2011

Location:

Heilongjiang China

Pub Date
