Product Description

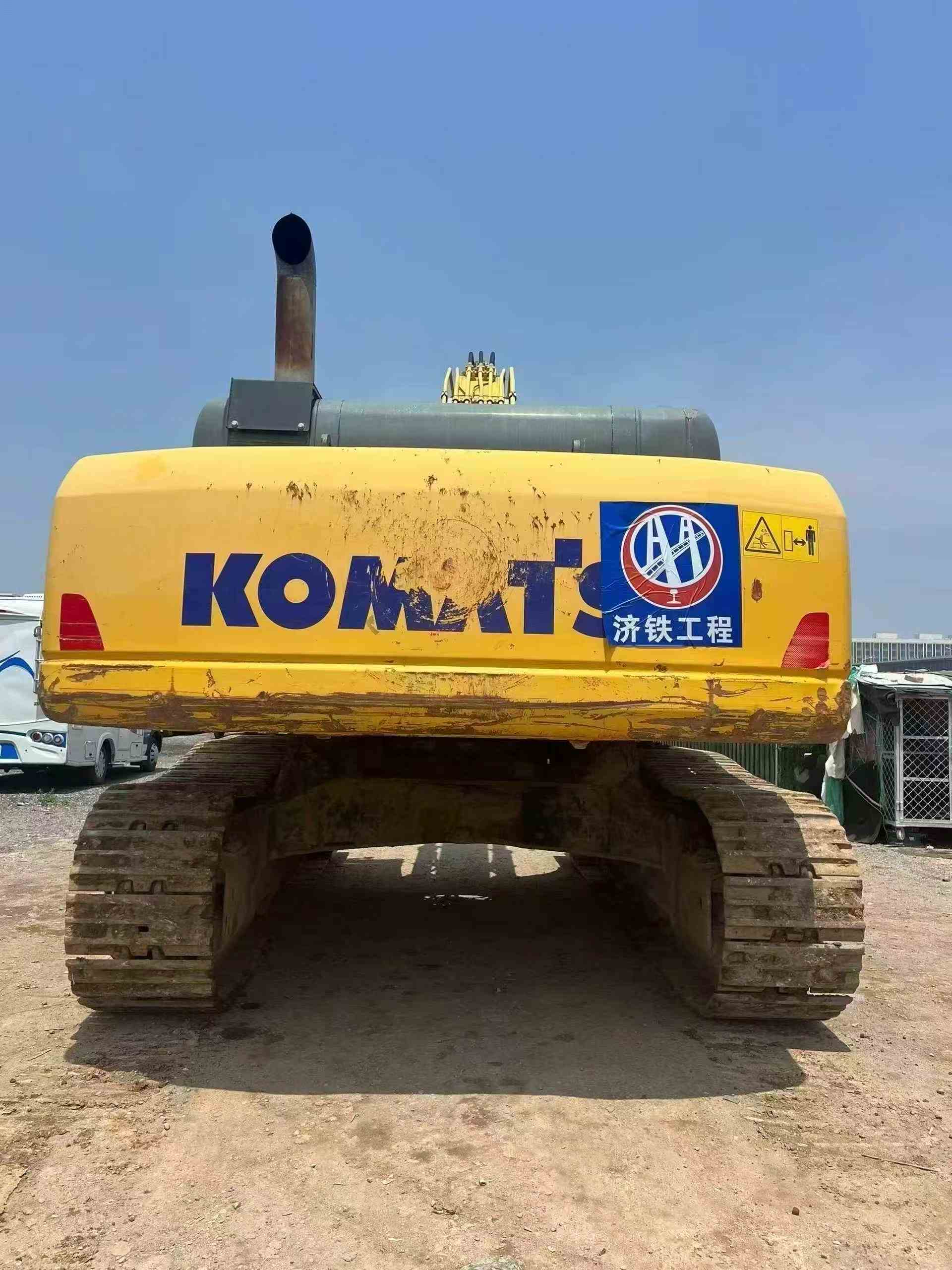

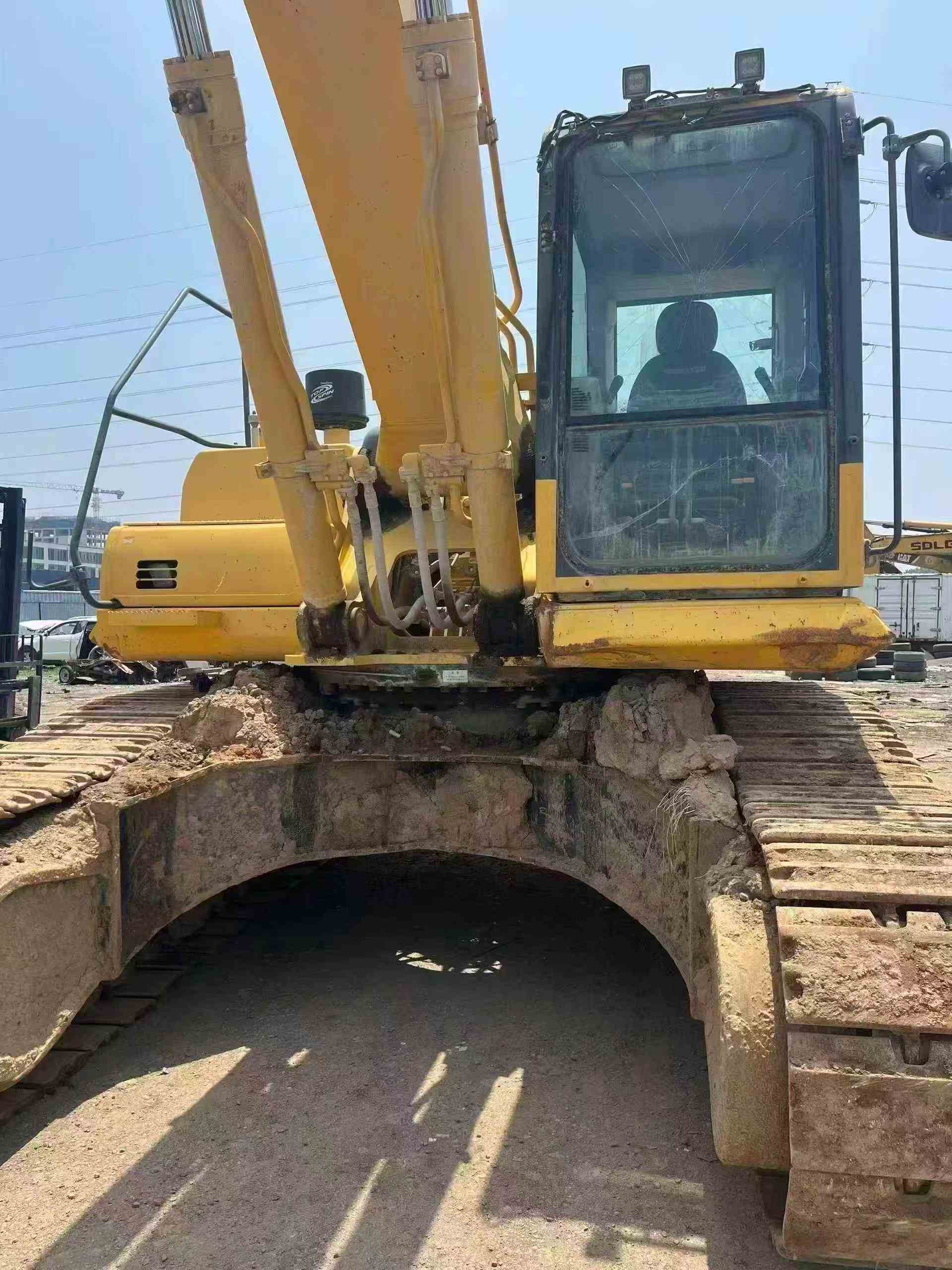

This 2020 Komatsu PC390LC-8M0 hydraulic excavator offers exceptional value for earthmoving operations. With only 2,500 verified operating hours, this machine remains in excellent condition with substantial service life remaining. The PC390LC-8M0 features Komatsu's proven design for reliable performance in demanding excavation and loading applications.
- Year: 2020
- Operating Hours: 2,500 (actual meter reading)
- Primary Use: Earthmoving operations
- Location: Shandong Province, China
- Condition: Well-maintained, low hours
This unit is priced competitively at approximately one-third of new machine cost, making it an attractive option for contractors seeking quality used equipment. The PC390LC-8M0's robust construction and fuel-efficient engine deliver productivity for large-scale excavation, site development, and material handling projects. Inspection welcome.
| Specifications | Value |
|---|---|
| No. | 1138272 |
| Tonnage (tons) | 39 |
| Working weight (kg) | 38000 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 6470 |
| Rod length (mm) | 2810 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

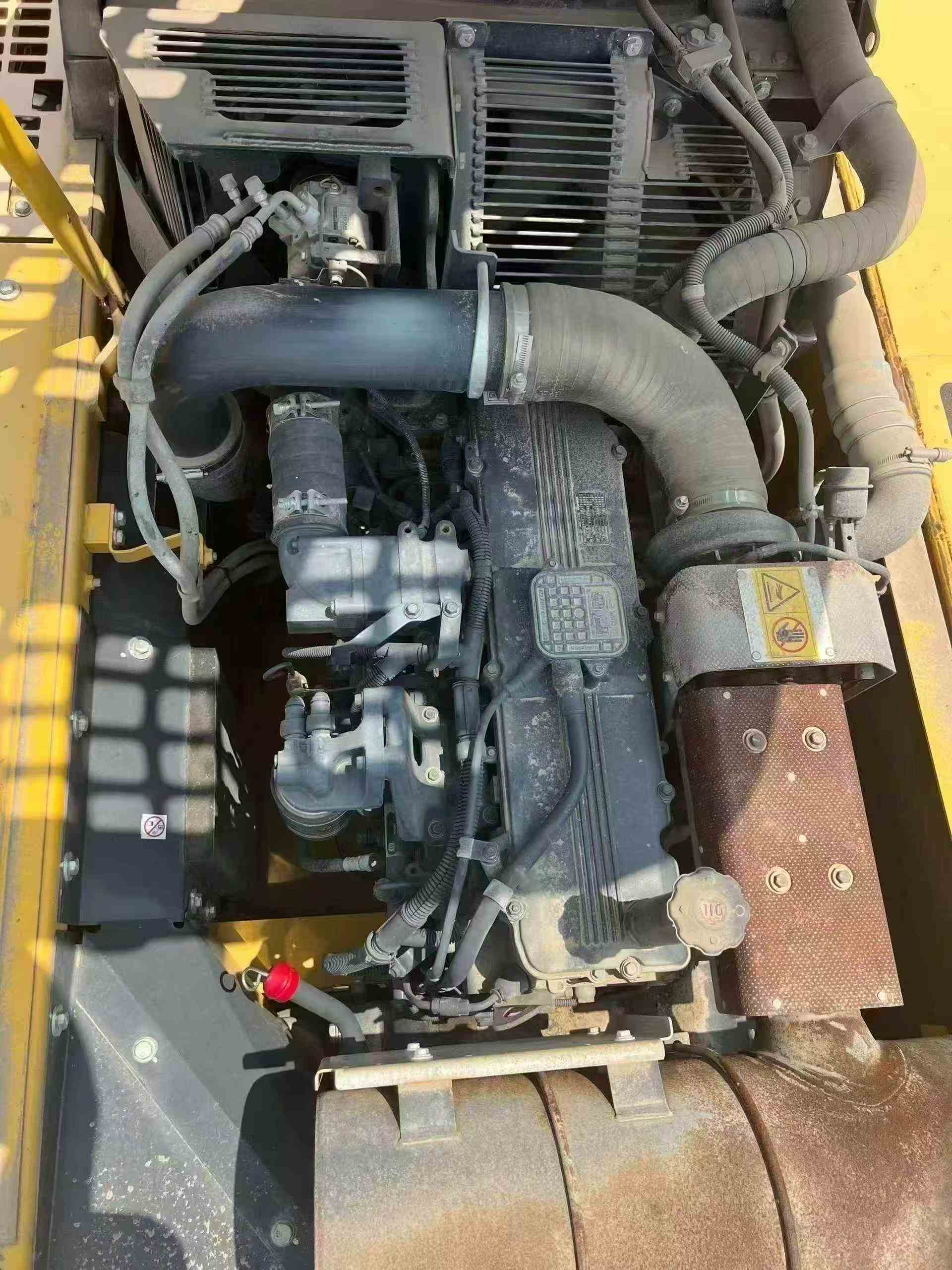

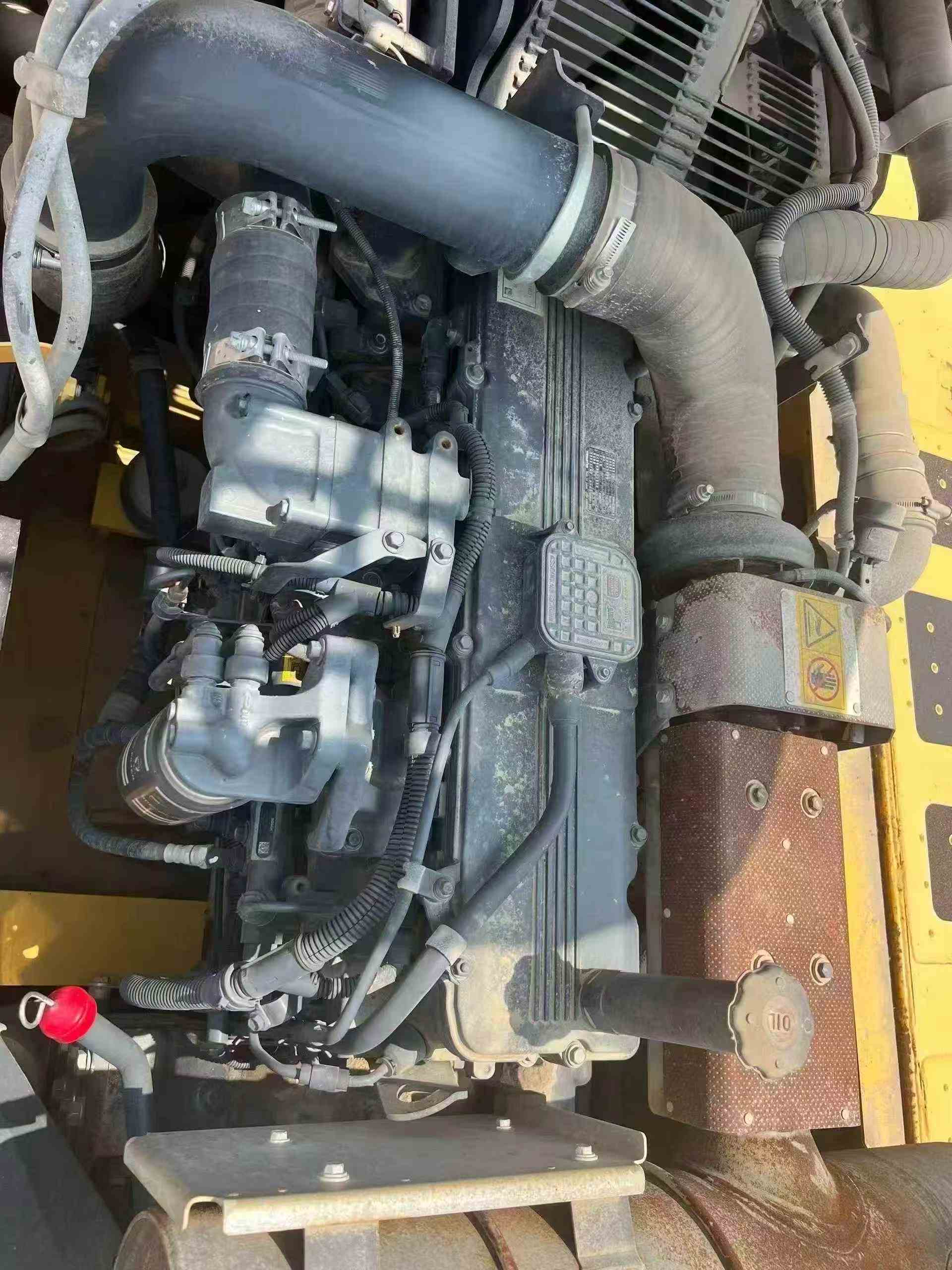

| Engine type | Komatsu SAA6D114E-3 |
| Rated power (kw/rpm) | 187/1950 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 114*135 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.27 |
| Ground specific pressure (Kpa) | 71.4 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 272 |
| Rod digging force (kN) | 194 |
| Maximum tractive force (kN) | 330 |
| Travel speed (km/h) | 2.5~4.3 |
| Maximum flow of main pump (l/min) | 535 |
| Traveling Hydraulic Circuit (Mpa) | 38.2 |
| Rotary Hydraulic Circuit (Mpa) | 28 |

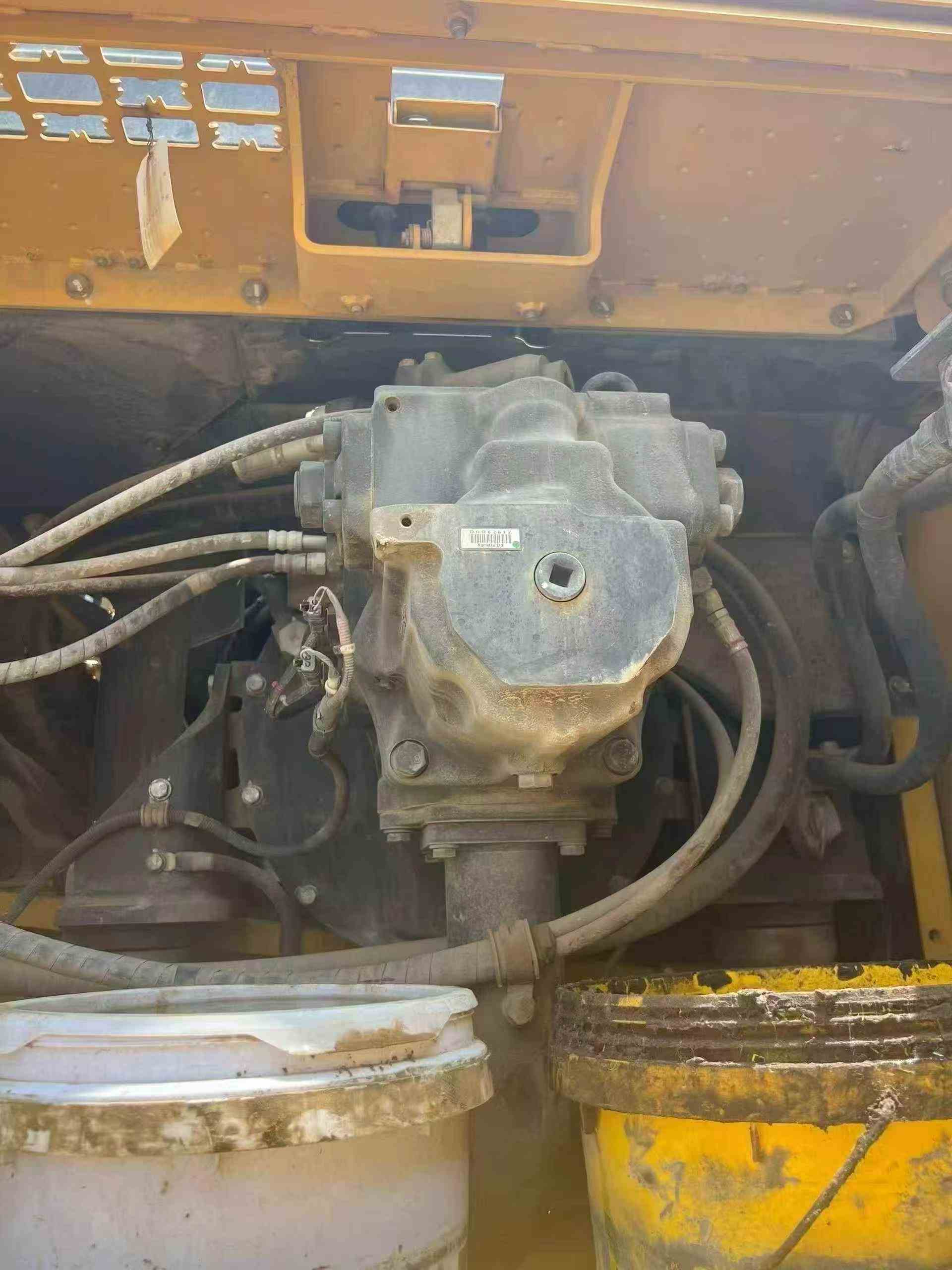

| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 38.2 |
| Pilot Oil Circuit (MPa) | 3.2 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-150*1285 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-160*1825 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-140*1480 |
| Fuel Tank (L) | 605 |
| Hydraulic Tank (L) | 188 |
| Engine Oil changes (L) | 37 |
| Total transport length (mm) | 11170 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3400 |
| Minimum ground clearance (mm) | 567 |
| Minimum turning radius of front working device (mm) | 4440 |
| Back end turning radius (mm) | 3450 |
| Total track length (mm) | 5055 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4020 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 10765 |
| Maximum digging depth (mm) | 6900 |
| Maximum excavation height (mm) | 9970 |
| Maximum unloading height (mm) | 7065 |
| Maximum vertical digging depth (mm) | 4730 |
| Maximum excavation radius of stop surface (mm) | 10550 |
