Product Description

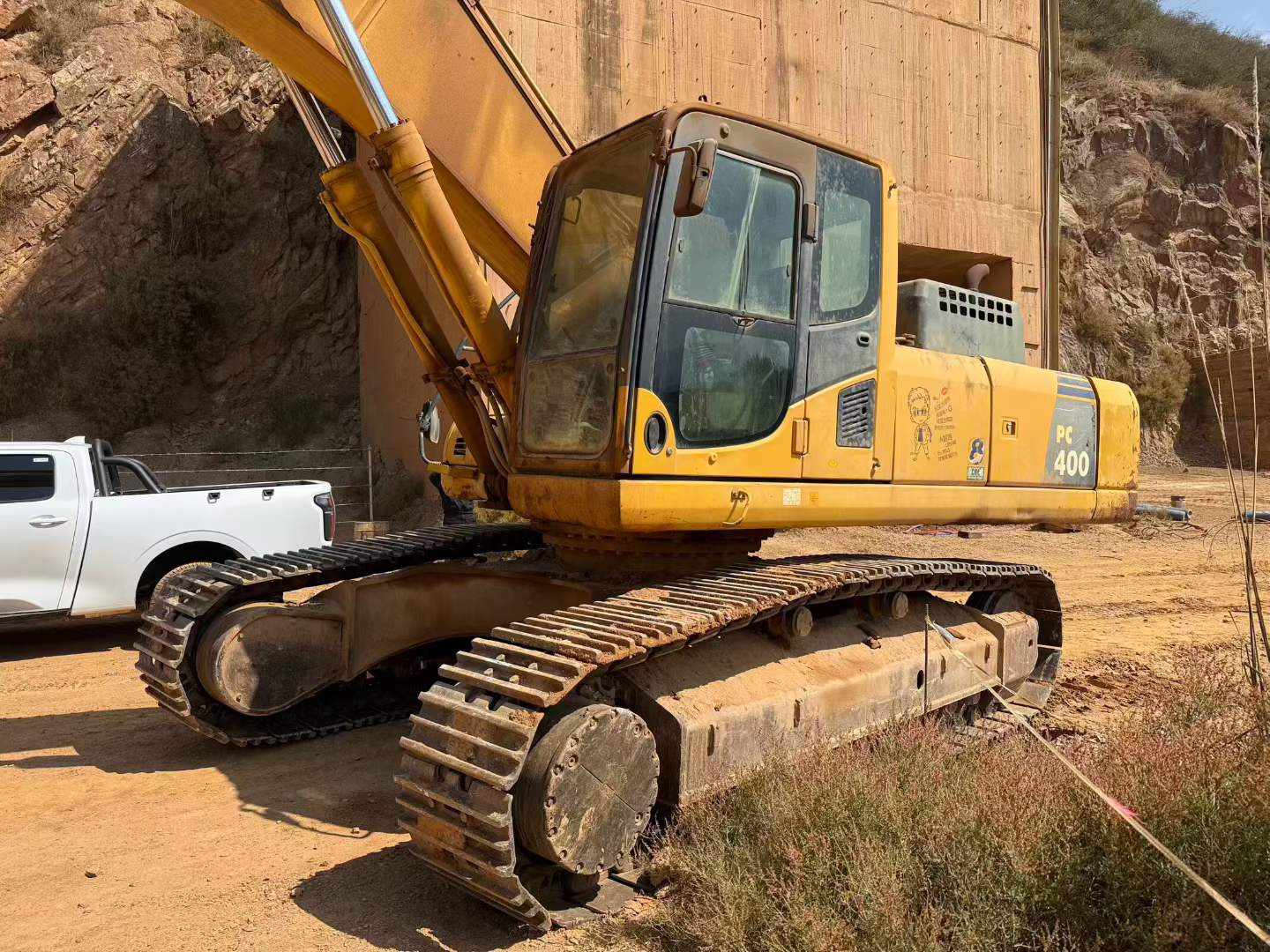

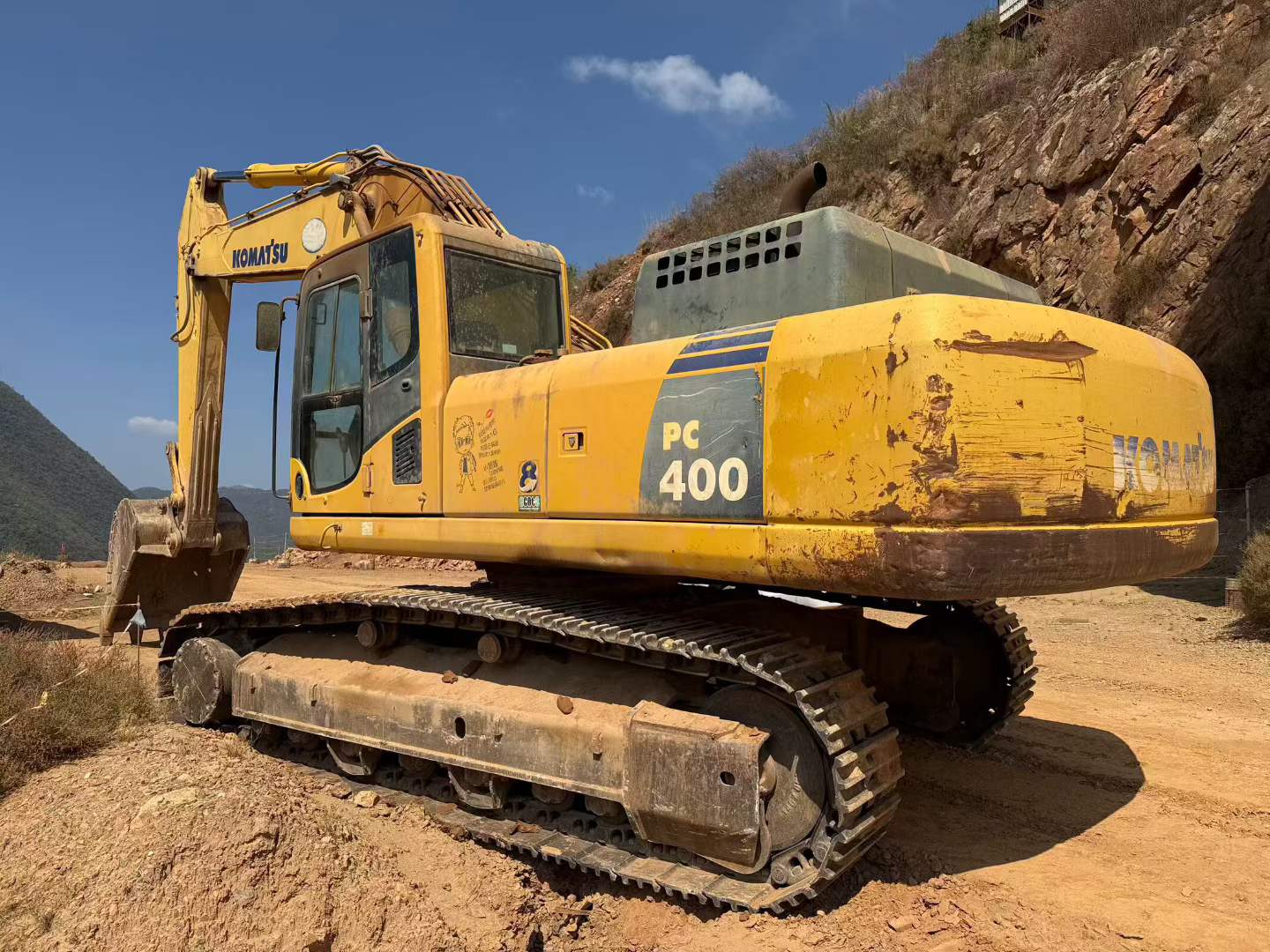

Acquiring a proven 40-ton excavator doesn't require a new-machine budget. This 2014 Komatsu PC400-8, currently located in Kunming, Yunnan, delivers professional-grade performance at a fraction of replacement cost. Powered by the Komatsu SAA6D1125E-5 engine generating 257kW at 1900rpm, this water-cooled workhorse combines reliability with fuel efficiency across demanding jobsites.
Performance specifications justify the investment:

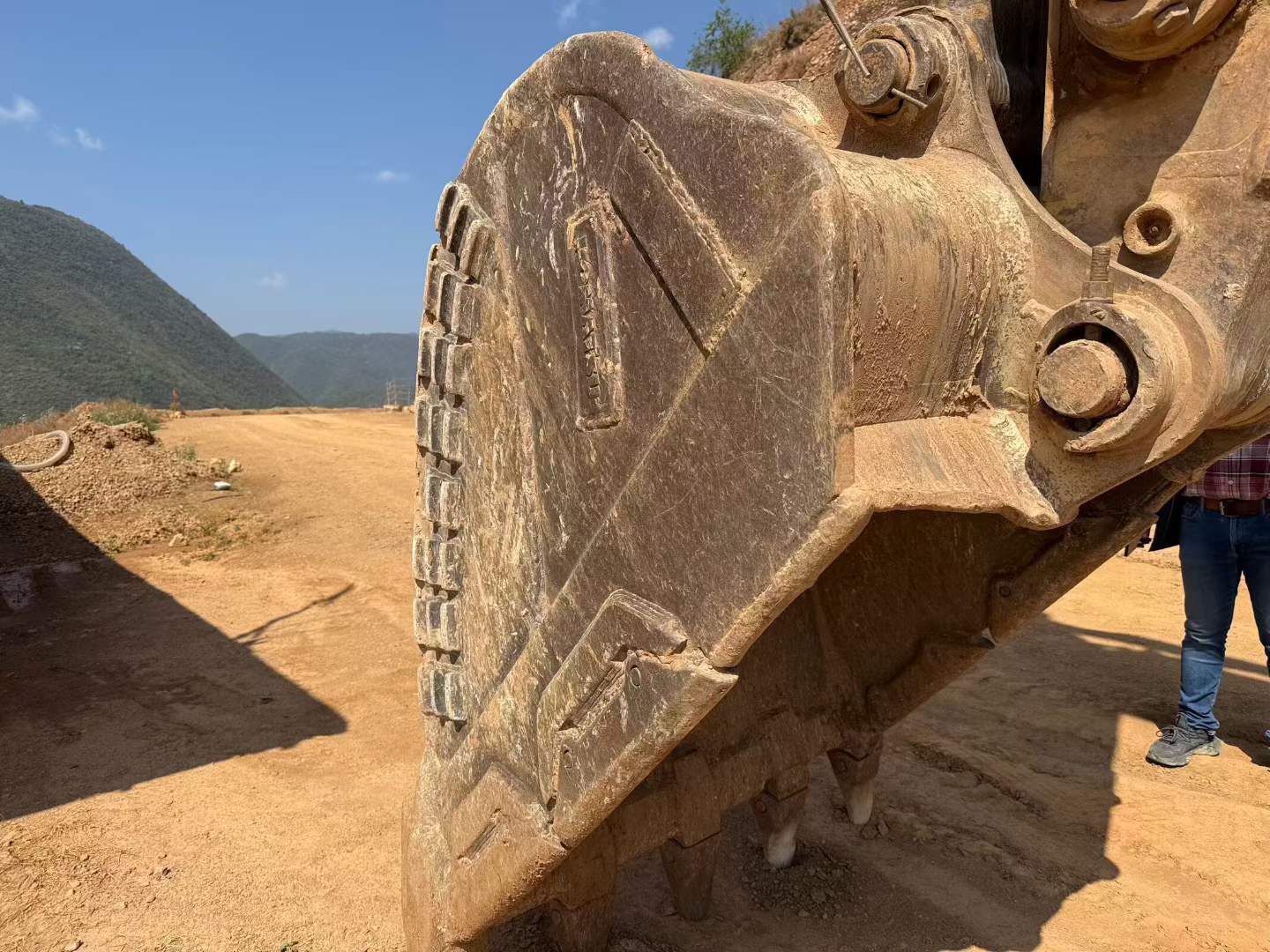

- 42,100kg working weight with 1.9m³ bucket capacity for high-volume material handling
- 12,005mm maximum digging radius and 7,790mm depth for versatile reach
- 278kN bucket digging force and 233kN rod force tackle compacted materials efficiently
- 690L/min maximum pump flow supports responsive hydraulic operation
- 70% gradeability and 78.2kPa ground pressure enable operation on challenging terrain
With a 7,060mm boom and 3,380mm arm configuration, this backhoe-equipped excavator handles infrastructure, mining, and earthmoving applications with the durability Komatsu's joint-venture manufacturing ensures. Smart buyers recognize that established machinery with documented specifications offers predictable ROI without new-equipment depreciation.
| Specifications | Value |
|---|---|
| No. | 1046825 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 42100 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

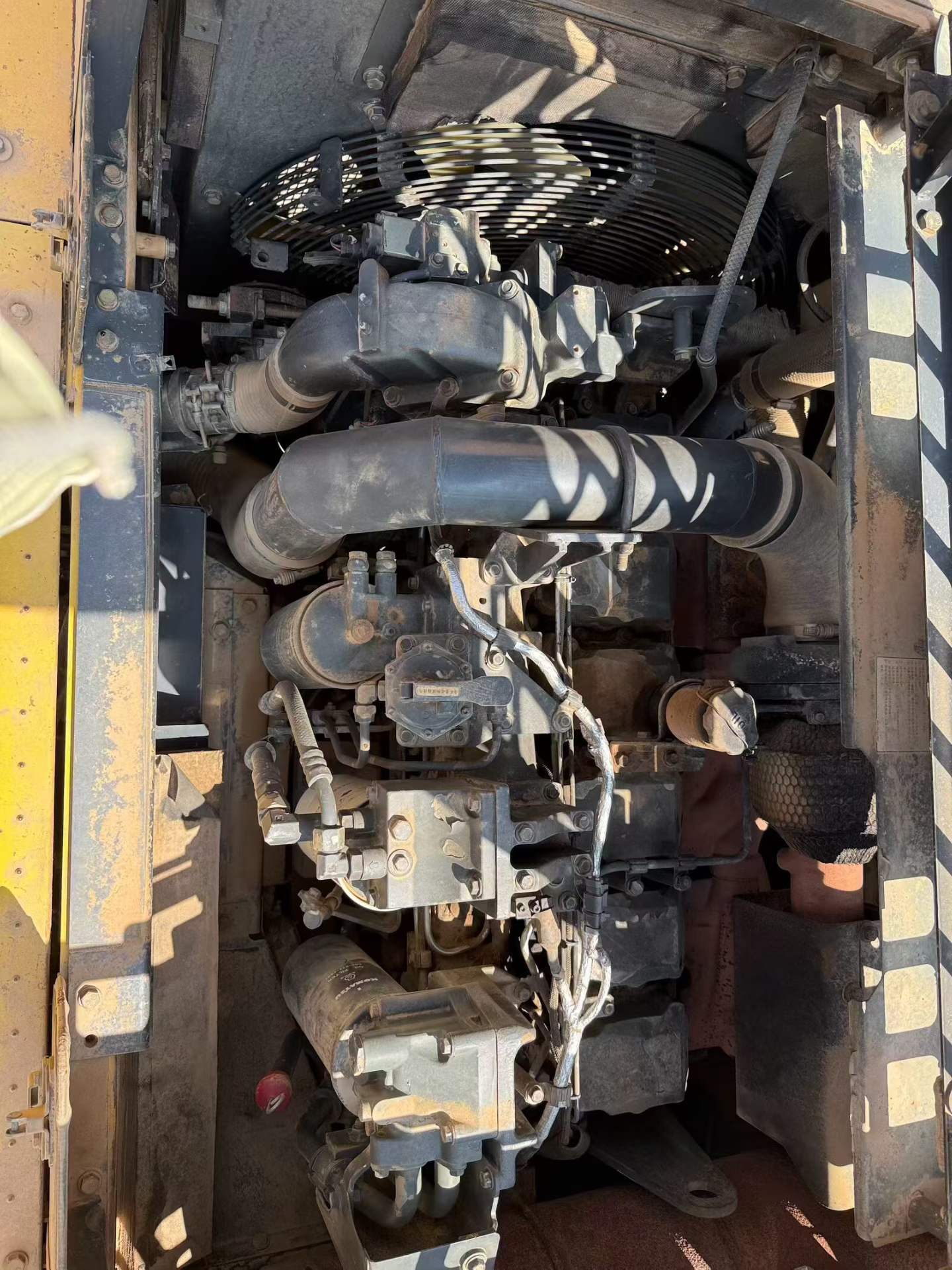

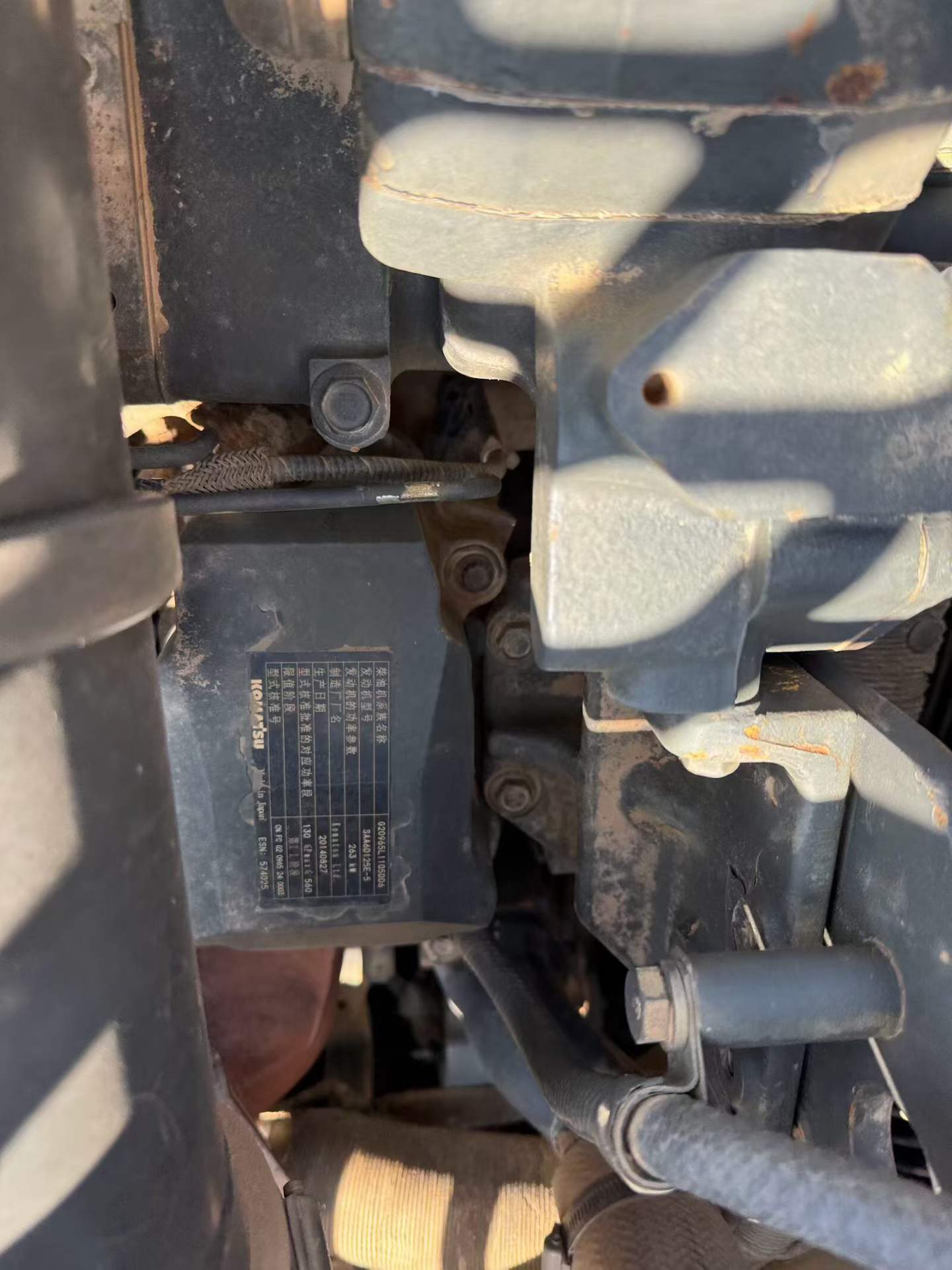

| Engine type | Komatsu SAA6D1125E-5 |
| Rated power (kw/rpm) | 257/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125 x 150 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11.04 |
| Working form | Direct injection, turbocharged, electronic full speed regulation |
| Ground specific pressure (Kpa) | 78.2 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 278 |
| Rod digging force (kN) | 233 |
| Travel speed (km/h) | 3.0/4.0/5.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 690 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 160 * 1270 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 185 * 1985 * 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 160 * 1570 * 110 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 248 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 36 |
| Total transport length (mm) | 11940 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3660 |
| Full cab height (mm) | 3285 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 567 |
| Back end turning radius (mm) | 3605 |

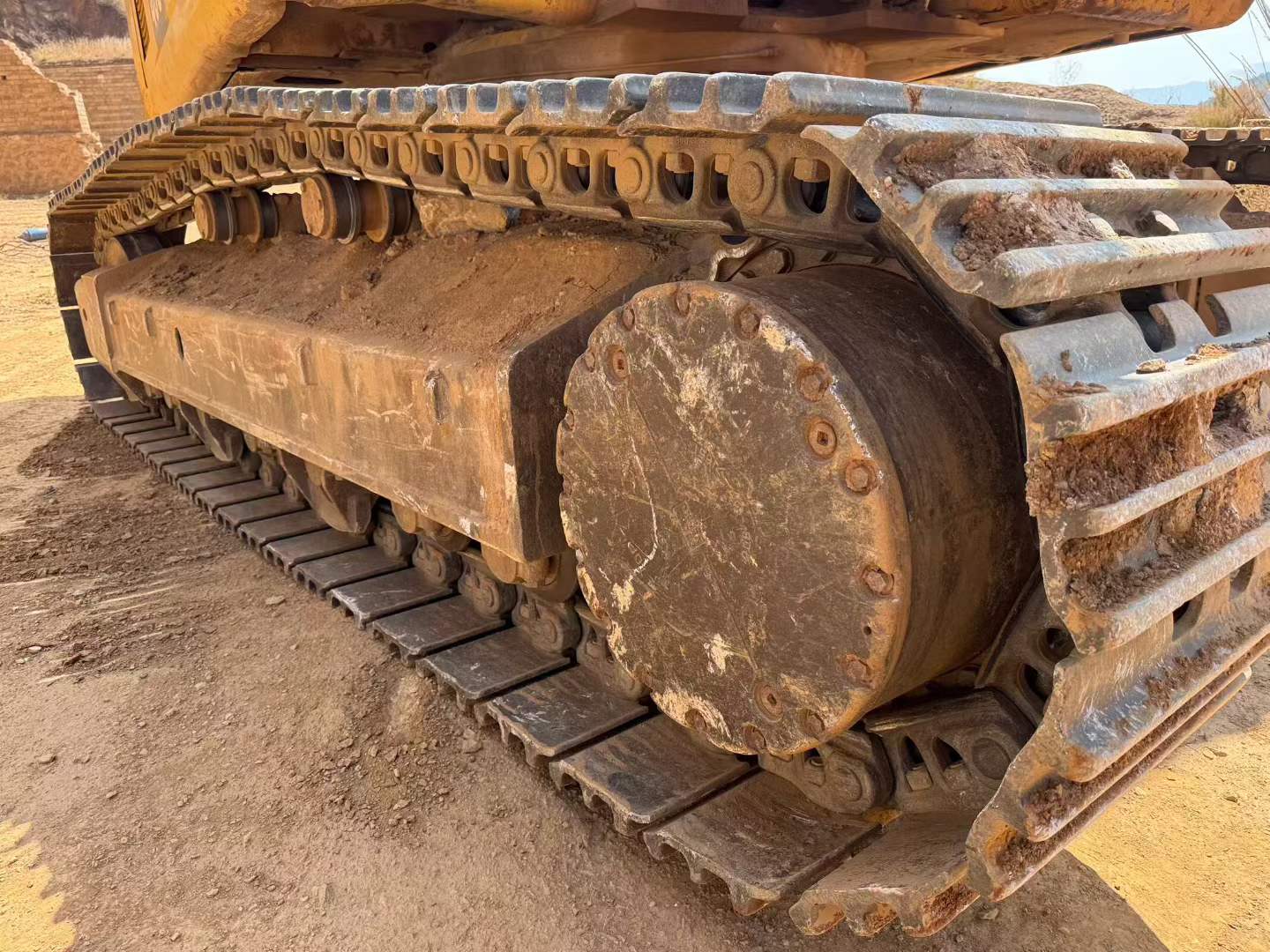

| Total track length (mm) | 5055 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4020 |
| Maximum digging radius (mm) | 12005 |
| Maximum digging depth (mm) | 7790 |
| Maximum excavation height (mm) | 10925 |
| Maximum unloading height (mm) | 7625 |
| Maximum vertical digging depth (mm) | 6600 |
| Bulldozer lift or depth (mm) | No dodging plate |
| Maximum excavation radius of stop surface (mm) | 11800 |
