Product Description

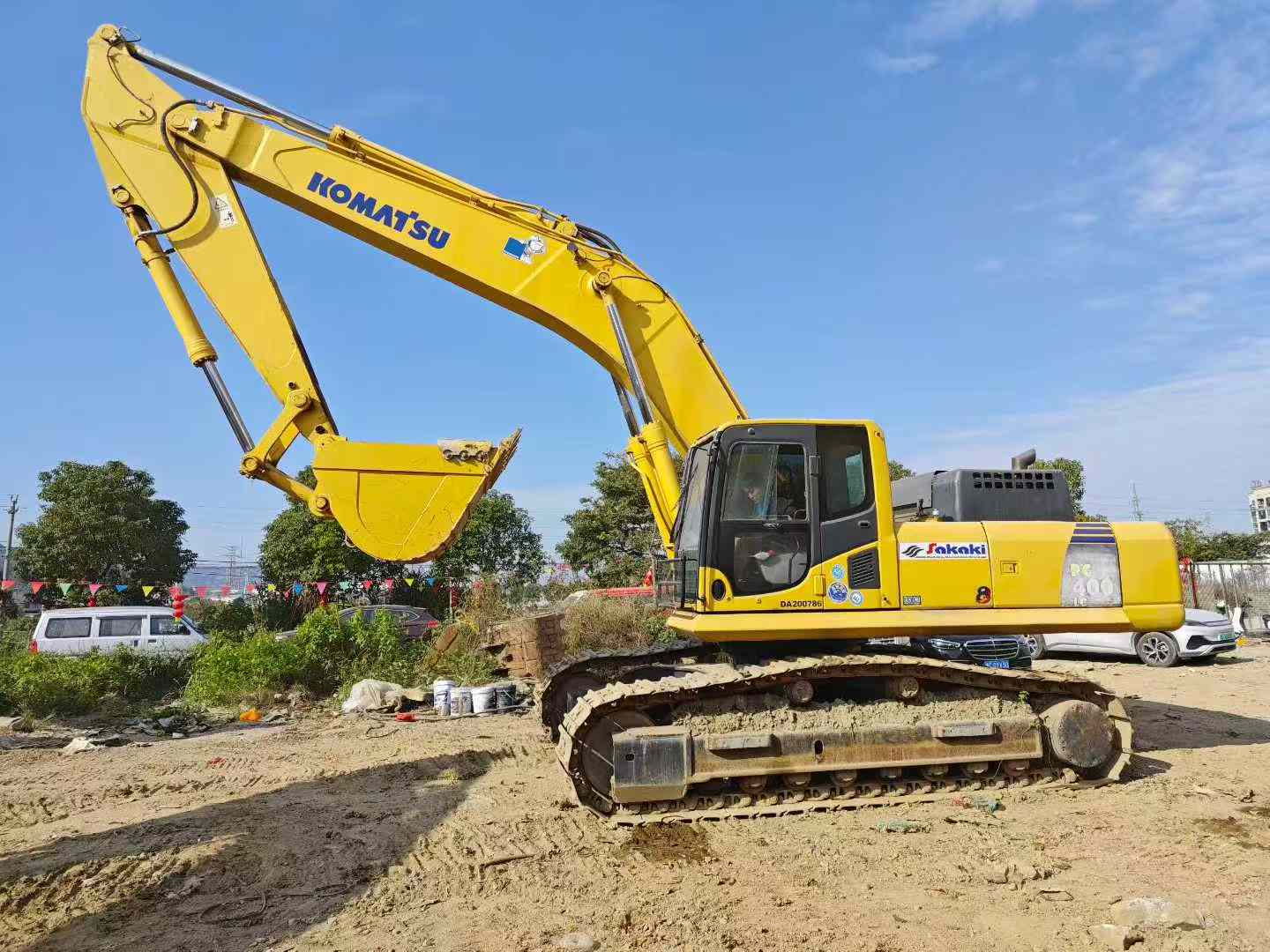

Maximize your excavation budget with this 2016 Komatsu PC400-8, delivering flagship performance at a fraction of new equipment cost. Powered by a robust Komatsu SAA6D1125E-5 engine producing 257kW, this 40-ton workhorse combines proven reliability with exceptional digging force—278kN bucket force and 233kN arm force tackle demanding applications with ease.
Currently located in Wenzhou, Zhejiang, this machine offers:
- Impressive 12-meter maximum digging reach and 7.79-meter depth capability
- High-capacity 1.9m³ bucket for superior productivity
- Advanced hydraulic system with 690 L/min flow for smooth, responsive operation
- Fuel-efficient turbocharged direct injection engine reducing operating costs
- 42,100kg operating weight providing excellent stability on challenging terrain
Backed by Komatsu's engineering excellence and joint-venture manufacturing standards, this PC400-8 represents smart capital allocation for contractors seeking reliable heavy excavation capacity without new equipment premiums. Comprehensive hydraulic controls and proven component durability ensure consistent performance across construction, mining, and infrastructure projects.
| Specifications | Value |
|---|---|
| No. | 1043998 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 42100 |
| Bucket capacity (m³) | 1.9 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

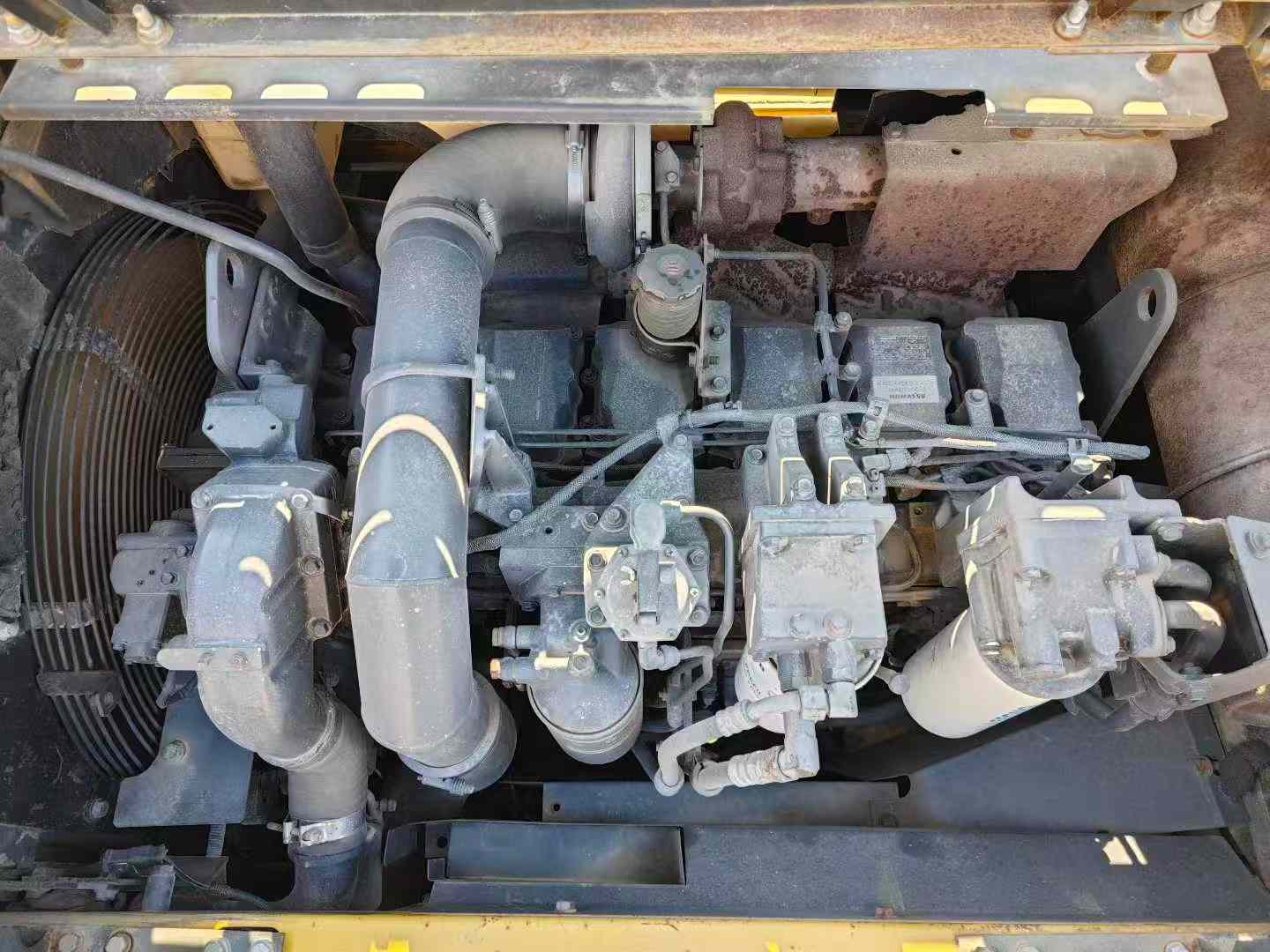

| Engine type | Komatsu SAA6D1125E-5 |
| Rated power (kw/rpm) | 257/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125 x 150 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11.04 |
| Working form | Direct injection, turbocharged, electronic full speed regulation |
| Ground specific pressure (Kpa) | 78.2 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 278 |
| Rod digging force (kN) | 233 |
| Travel speed (km/h) | 3.0/4.0/5.5 |

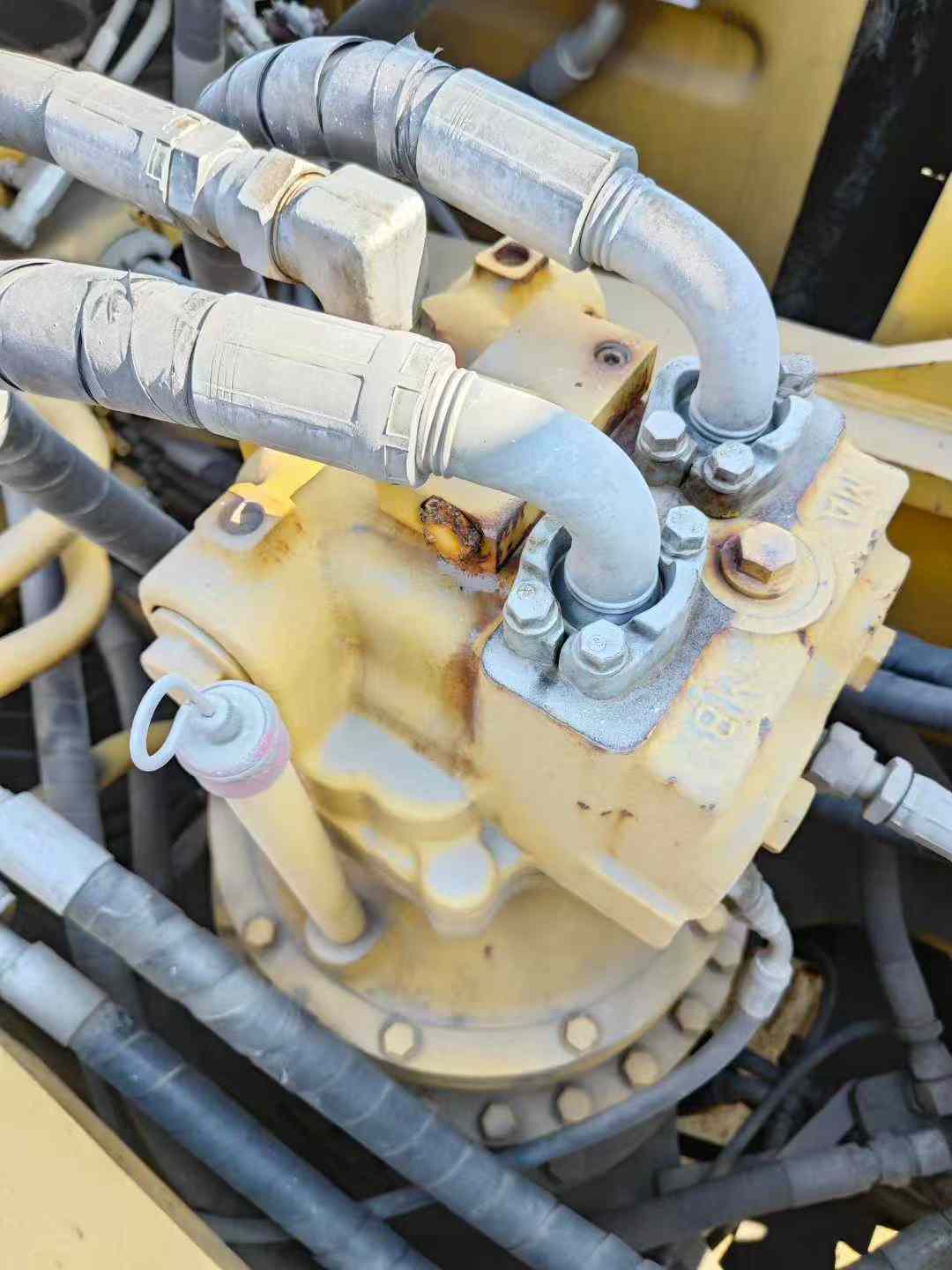

| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |

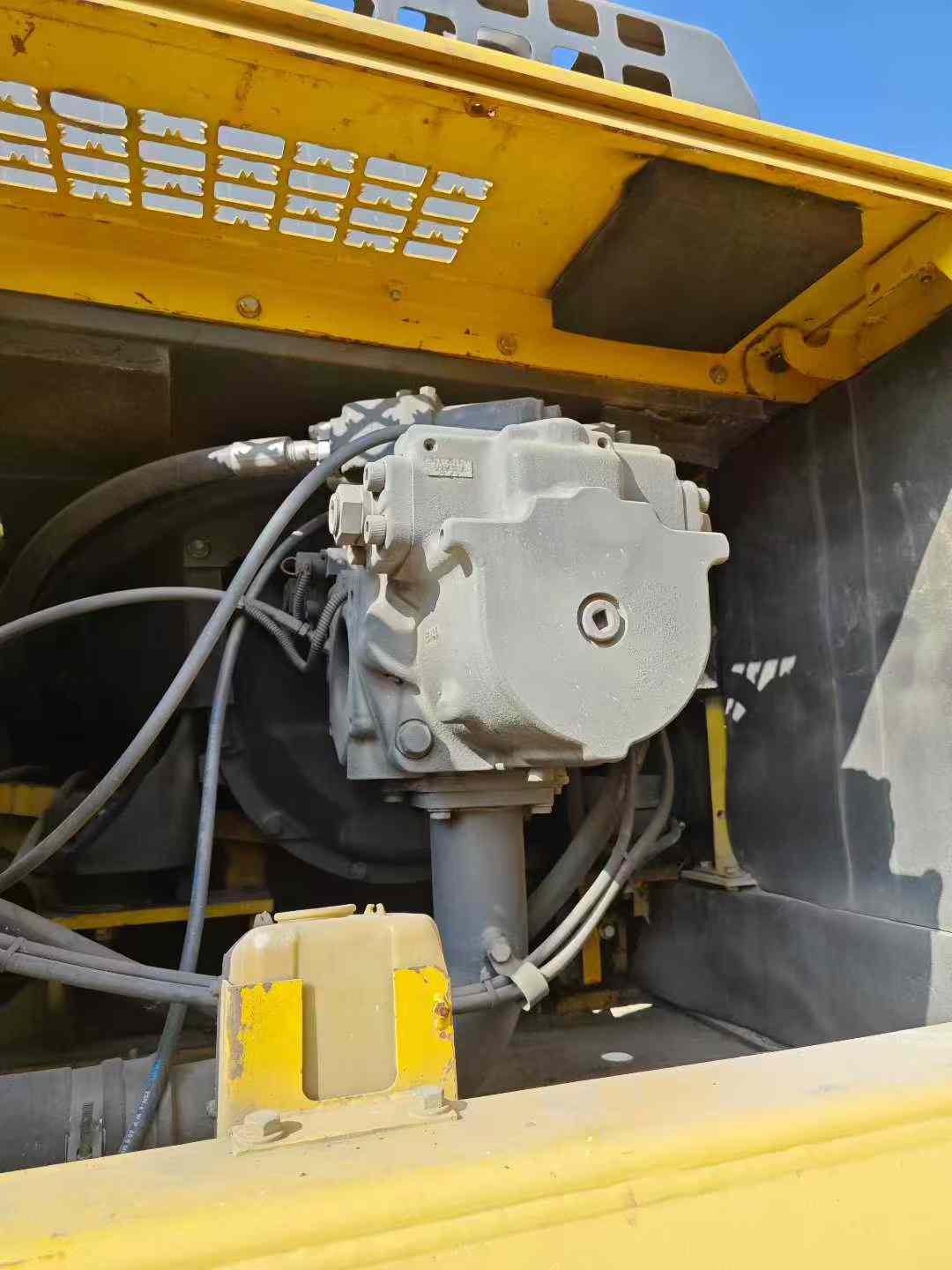

| Maximum flow of main pump (l/min) | 690 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 160 * 1270 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 185 * 1985 * 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 160 * 1570 * 110 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 248 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 36 |
| Total transport length (mm) | 11940 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3660 |
| Full cab height (mm) | 3285 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 567 |
| Back end turning radius (mm) | 3605 |
| Total track length (mm) | 5055 |
| Track gauge (mm) | 2740 |

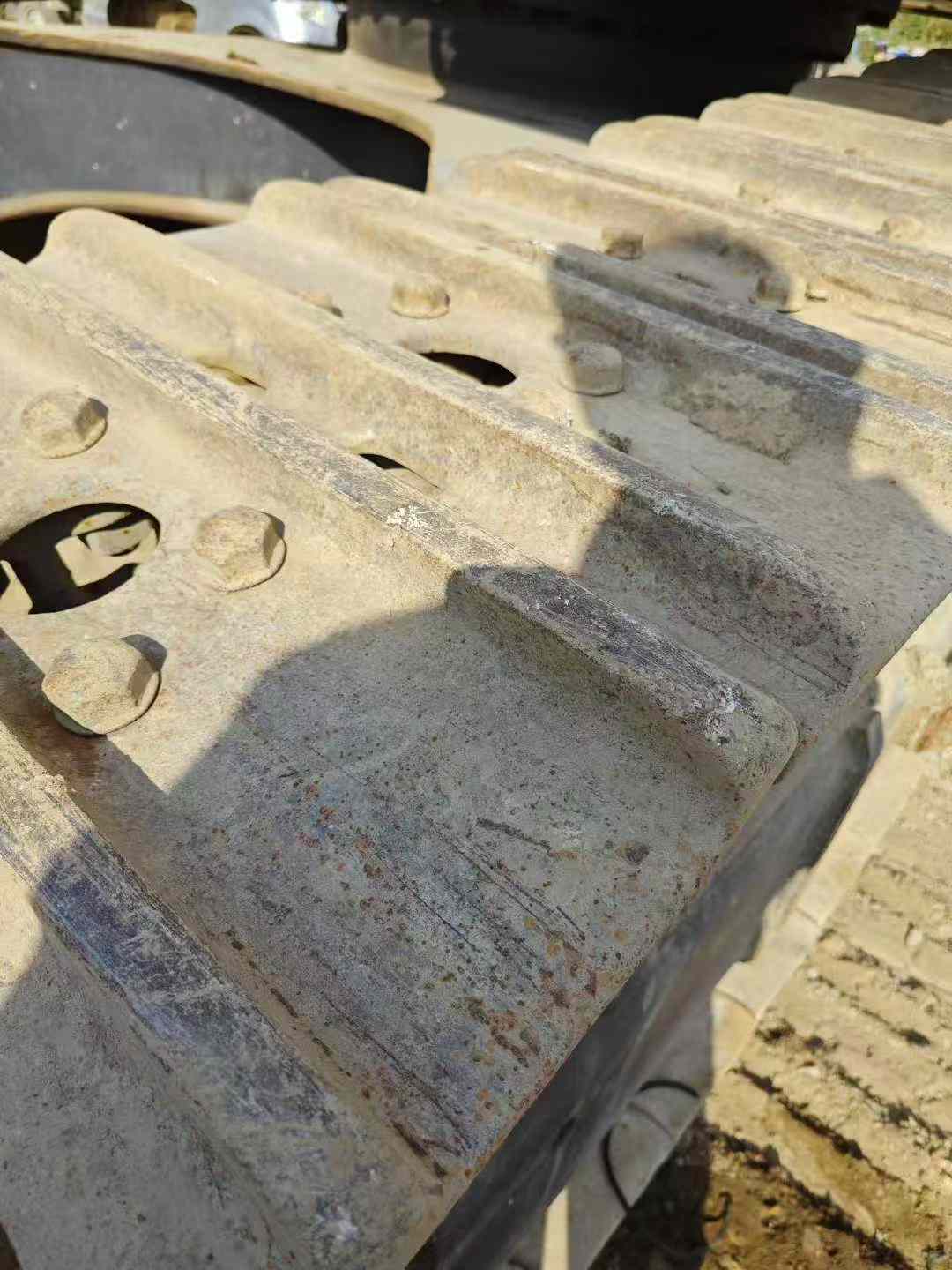

| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4020 |
| Maximum digging radius (mm) | 12005 |
| Maximum digging depth (mm) | 7790 |
| Maximum excavation height (mm) | 10925 |
| Maximum unloading height (mm) | 7625 |
| Maximum vertical digging depth (mm) | 6600 |
| Bulldozer lift or depth (mm) | No dodging plate |
| Maximum excavation radius of stop surface (mm) | 11800 |
