2018 Komatsu PC430-8

1/6
Buy Komatsu PC430-8 Used Excavator / 1

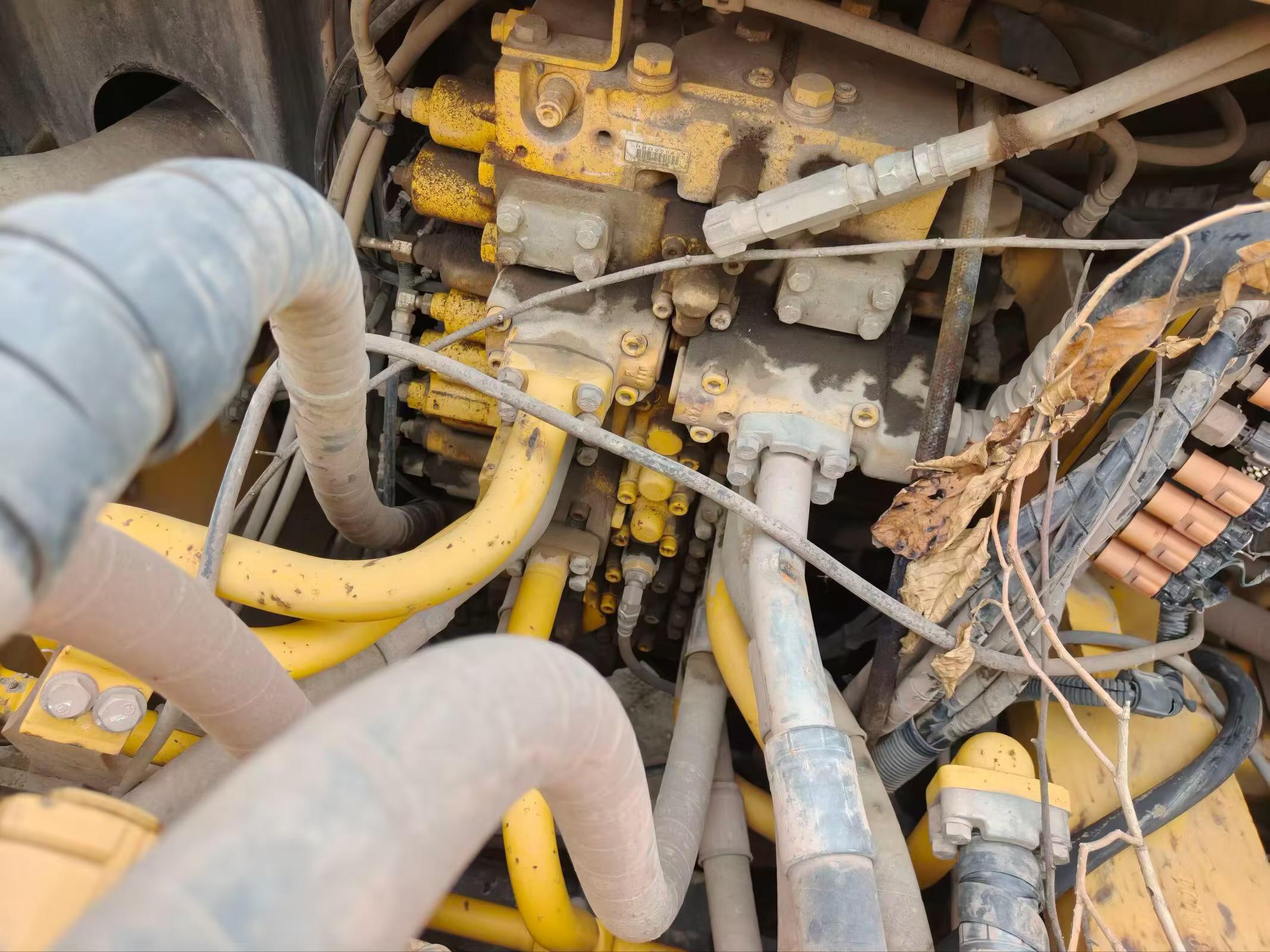

Buy Komatsu PC430-8 Used Excavator / 2

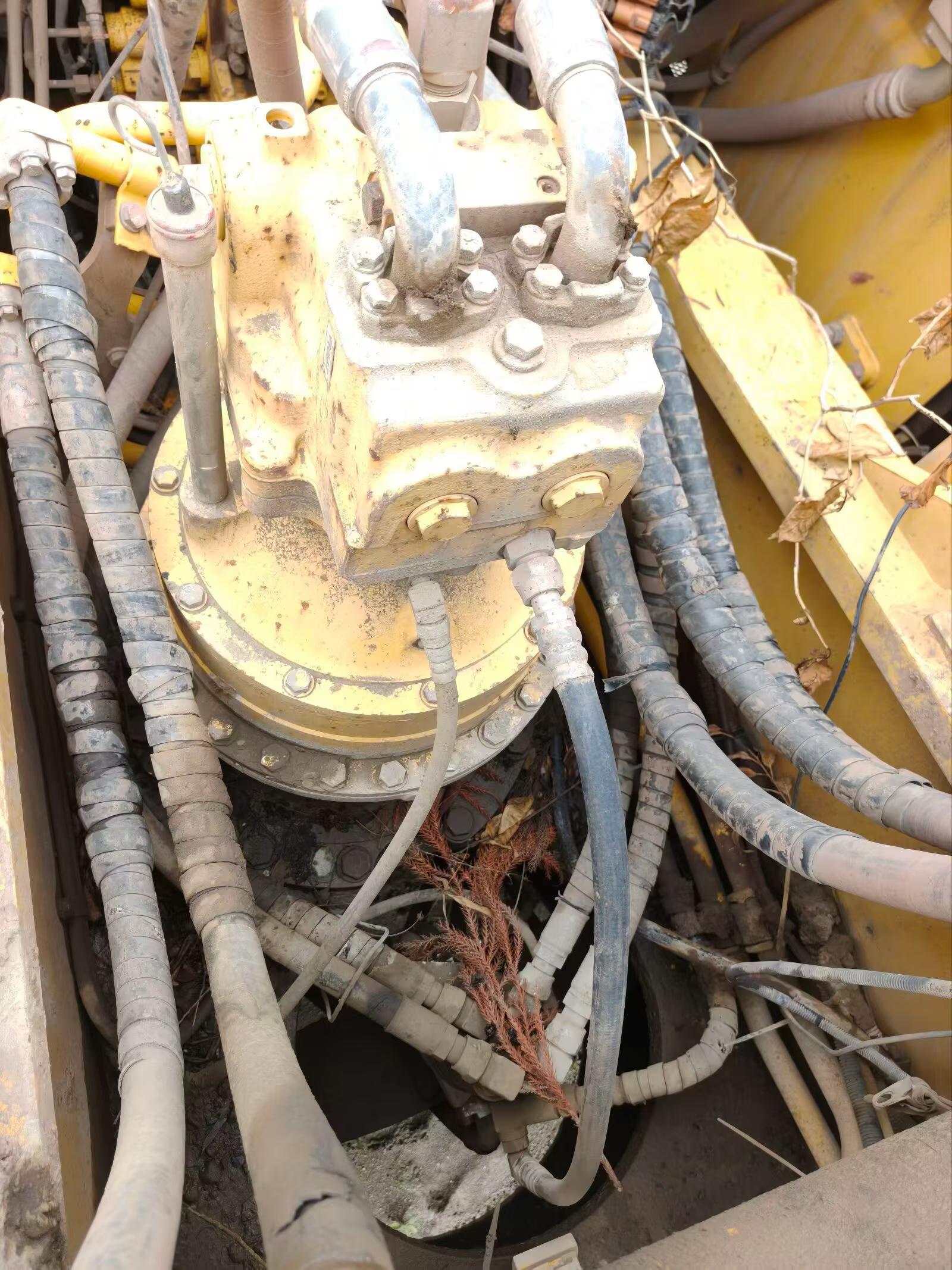

Buy Komatsu PC430-8 Used Excavator / 3

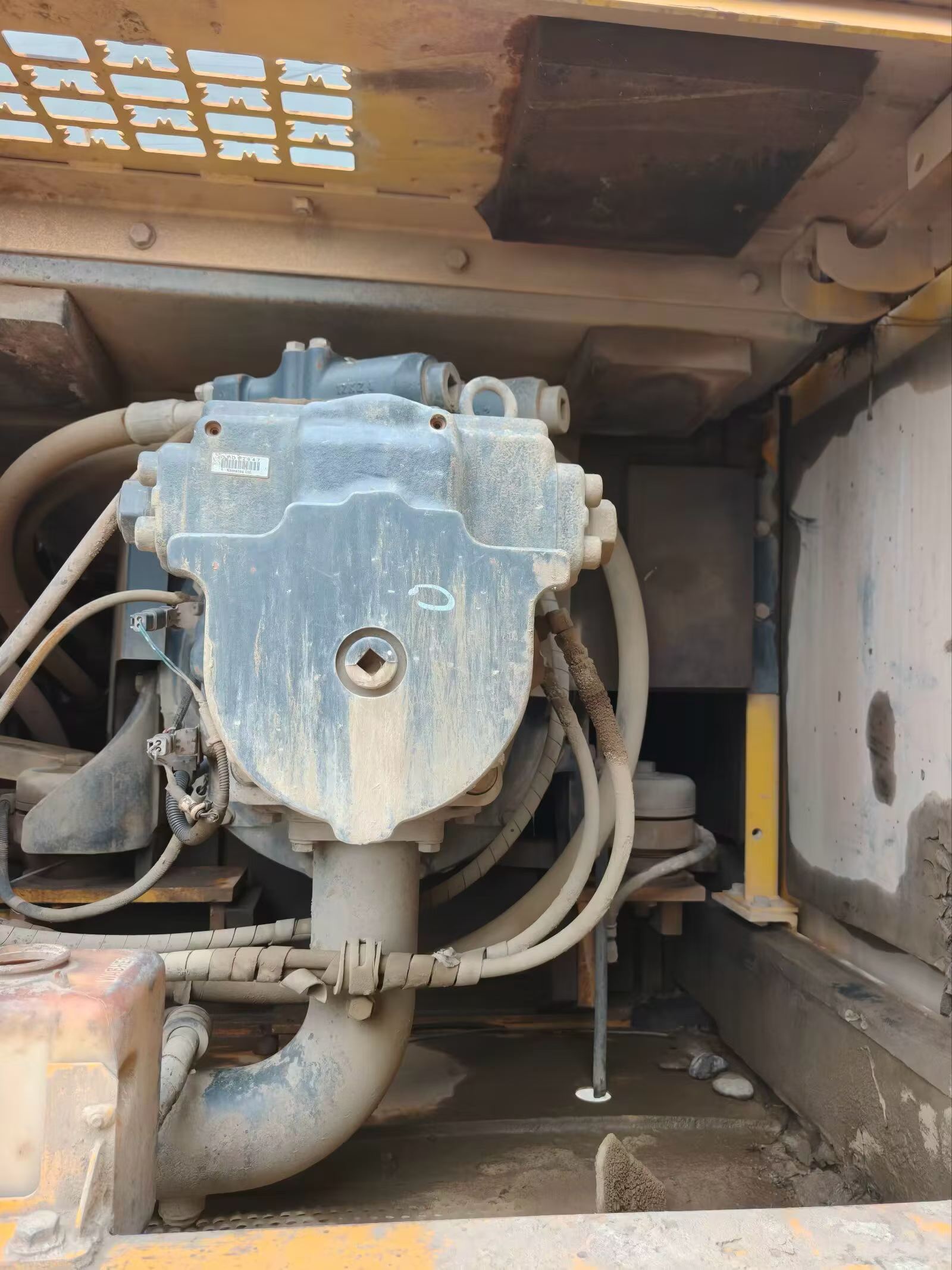

Buy Komatsu PC430-8 Used Excavator / 4

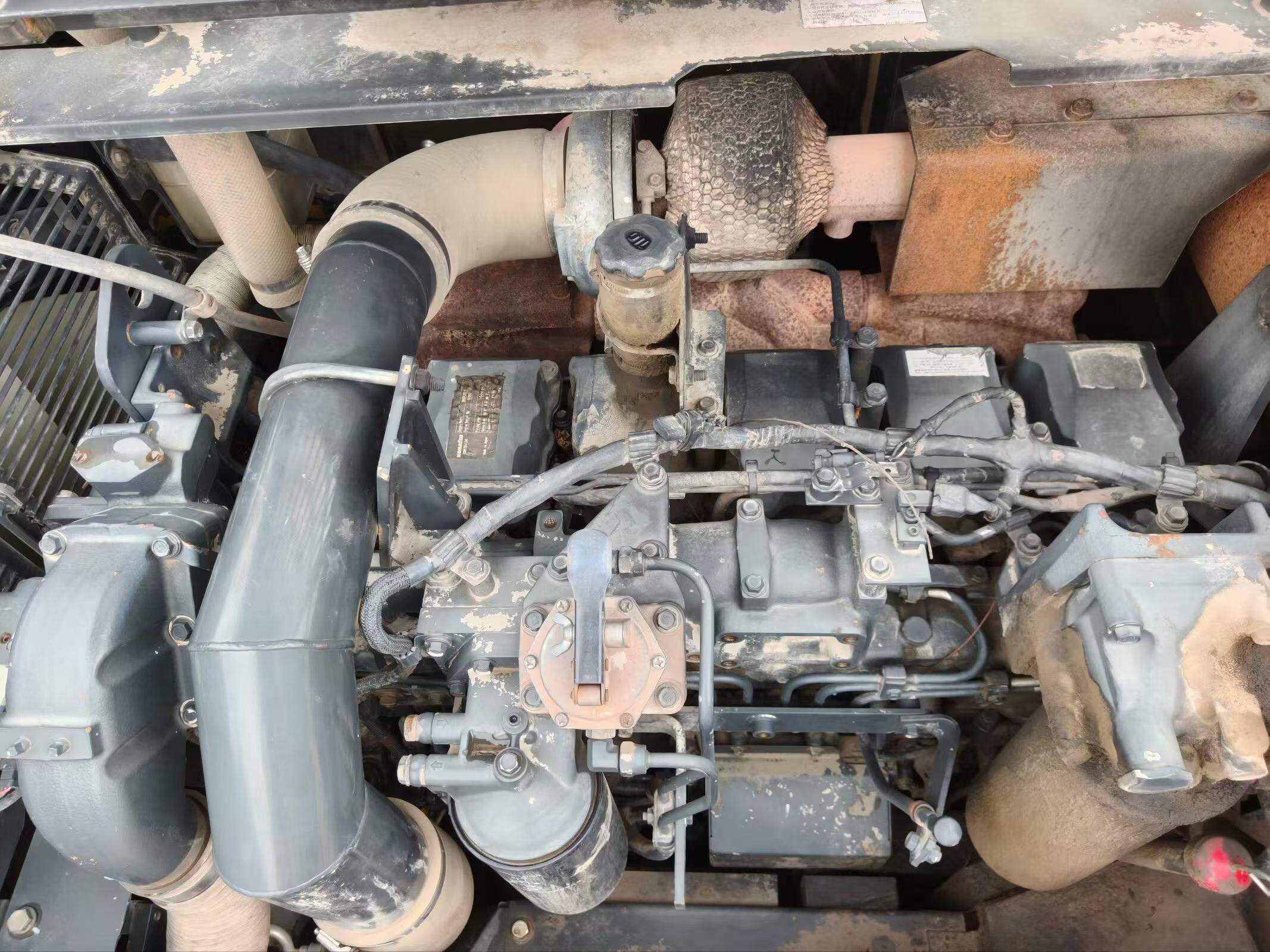

Buy Komatsu PC430-8 Used Excavator / 5

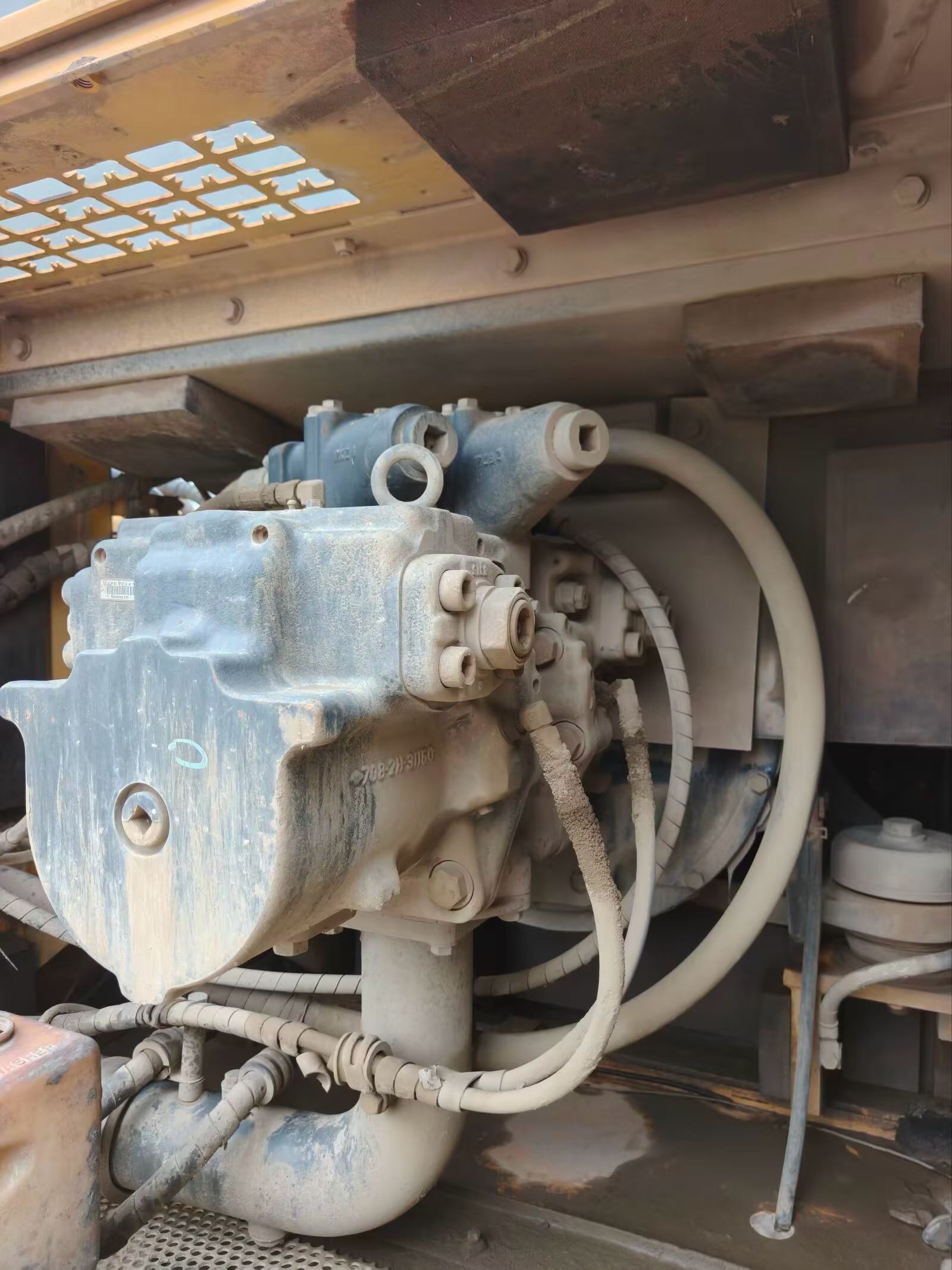

Buy Komatsu PC430-8 Used Excavator / 6

Product Description

Discover the reliability and efficiency of the 2018 Komatsu PC430-8, now available in Sichuan, China. This robust excavator is designed to handle a wide range of construction and excavation tasks with ease. Known for its durability and performance, the PC430-8 is a trusted choice for professionals who demand high productivity and low operating costs.

  • Year: 2018
  • Brand: Komatsu
  • Model: PC430-8
  • Location: Sichuan, China
SpecificationsValue
No.1116594
Tonnage (tons)43
Working weight (kg)43800
Bucket capacity (m³)1.9-2.1
Boom length (mm)7060
Rod length (mm)3380
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu SAA6D125E-5
Rated power (kw/rpm)257/1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)125*150
Number of cylinders (PCS)6
Displacement (L)11.04
Ground specific pressure (Kpa)82.3
Rotation speed (rpm)9.1
Climbing ability (%)70
Bucket digging force (kN)278
Rod digging force (kN)233
Maximum tractive force (kN)330
Travel speed (km/h)3.0~5.5
Maximum flow of main pump (l/min)722
Traveling Hydraulic Circuit (Mpa)37.8
Rotary Hydraulic Circuit (Mpa)27.9
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)37.8
Pilot Oil Circuit (MPa)3.3
Bucket cylinders - Number × diameter × stroke (mm)1-160*1270
Bucket rod cylinders - Number × diameter × stroke (mm)1-185*1985
Boom cylinders - Number × diameter × stroke (mm)2-160*1570
Fuel Tank (L)650
Hydraulic Tank (L)248
Engine Oil changes (L)37
Total transport length (mm)11940
Total transport width (mm)3340
Total transport height (mm)3660
Counterweight ground clearance (mm)1320
Minimum ground clearance (mm)567
Minimum turning radius of front working device (mm)4805
Back end turning radius (mm)3645
Total track length (mm)5055
Track gauge (mm)2740
Track plate width (mm)600
Total track width (mm)3340
Track ground length (mm)4020
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)7
Number of track plates (single side) (PCS)46
Maximum digging radius (mm)12005
Maximum digging depth (mm)7790
Maximum excavation height (mm)10925
Maximum unloading height (mm)7625
Maximum vertical digging depth (mm)6600
Maximum excavation radius of stop surface (mm)11800
see more

Overview

No.1116594

Brand Name:

Komatsu

Model Number:

PC430-8

Year:

2018

Location:

Sichuan China

Pub Date
