Product Description

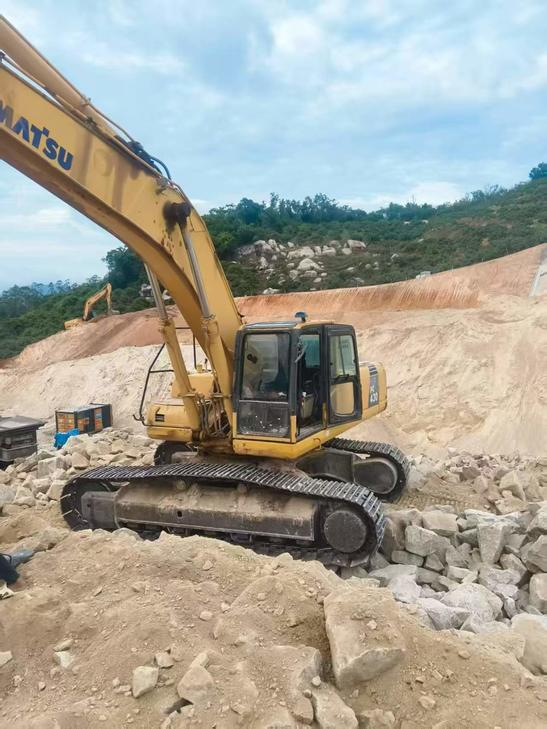

This 2019 Komatsu PC430-8 excavator represents a reliable mid-lifecycle investment for demanding earthmoving operations. As part of Komatsu's proven Dash-8 series, this hydraulic excavator combines operational efficiency with the durability expected from Japanese engineering. Currently located in Guangdong, China, this machine offers competitive access to the Asian Pacific market with established logistics infrastructure.
Key attributes include:
- Operating weight class: approximately 43 tonnes
- Komatsu SAA6D114E-3 engine platform
- Advanced hydraulic system for responsive cycle times
- KOMTRAX telematics-ready for fleet management integration
- Spacious ROPS/FOPS certified cab with ergonomic controls
Ideal for infrastructure development, quarrying, or heavy construction applications. This PC430-8 delivers the performance contractors require with approximately seven years of service history. Contact us for detailed inspection reports, service records, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1086601 |
| Tonnage (tons) | 43 |
| Working weight (kg) | 43800 |
| Bucket capacity (m³) | 1.9-2.1 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D125E-5 |
| Rated power (kw/rpm) | 257/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125*150 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11.04 |
| Ground specific pressure (Kpa) | 82.3 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 278 |
| Rod digging force (kN) | 233 |
| Maximum tractive force (kN) | 330 |
| Travel speed (km/h) | 3.0~5.5 |
| Maximum flow of main pump (l/min) | 722 |
| Traveling Hydraulic Circuit (Mpa) | 37.8 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.8 |
| Pilot Oil Circuit (MPa) | 3.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-160*1270 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-185*1985 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160*1570 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 248 |
| Engine Oil changes (L) | 37 |
| Total transport length (mm) | 11940 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3660 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 567 |
| Minimum turning radius of front working device (mm) | 4805 |
| Back end turning radius (mm) | 3645 |
| Total track length (mm) | 5055 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4020 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 12005 |
| Maximum digging depth (mm) | 7790 |
| Maximum excavation height (mm) | 10925 |
| Maximum unloading height (mm) | 7625 |
| Maximum vertical digging depth (mm) | 6600 |
| Maximum excavation radius of stop surface (mm) | 11800 |
