Product Description

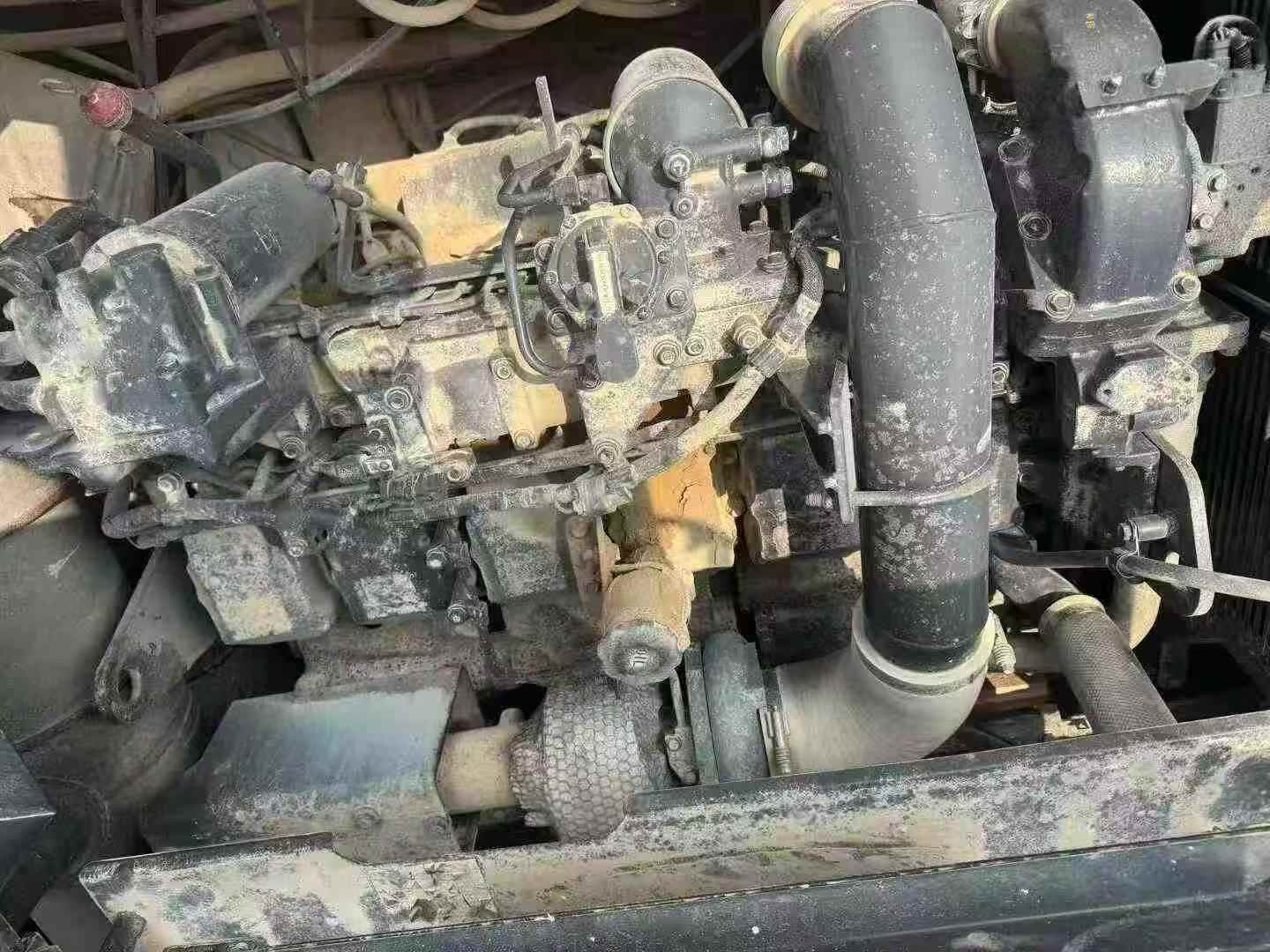

Built for relentless performance, this 2020 Komatsu PC430-8 excavator combines Japanese engineering precision with proven durability. Operating at 43 tons with a robust Komatsu SAA6D125E-5 engine delivering 257 kW, this machine has already demonstrated its reliability in demanding conditions. Equipped with a substantial 1.9-2.1 m³ bucket capacity and 278 kN bucket digging force, it handles heavy excavation tasks with consistent power. Water-cooled efficiency and a 722 l/min hydraulic flow ensure sustained productivity across extended shifts.
- Maximum digging reach: 12,005 mm with 7,790 mm depth capability

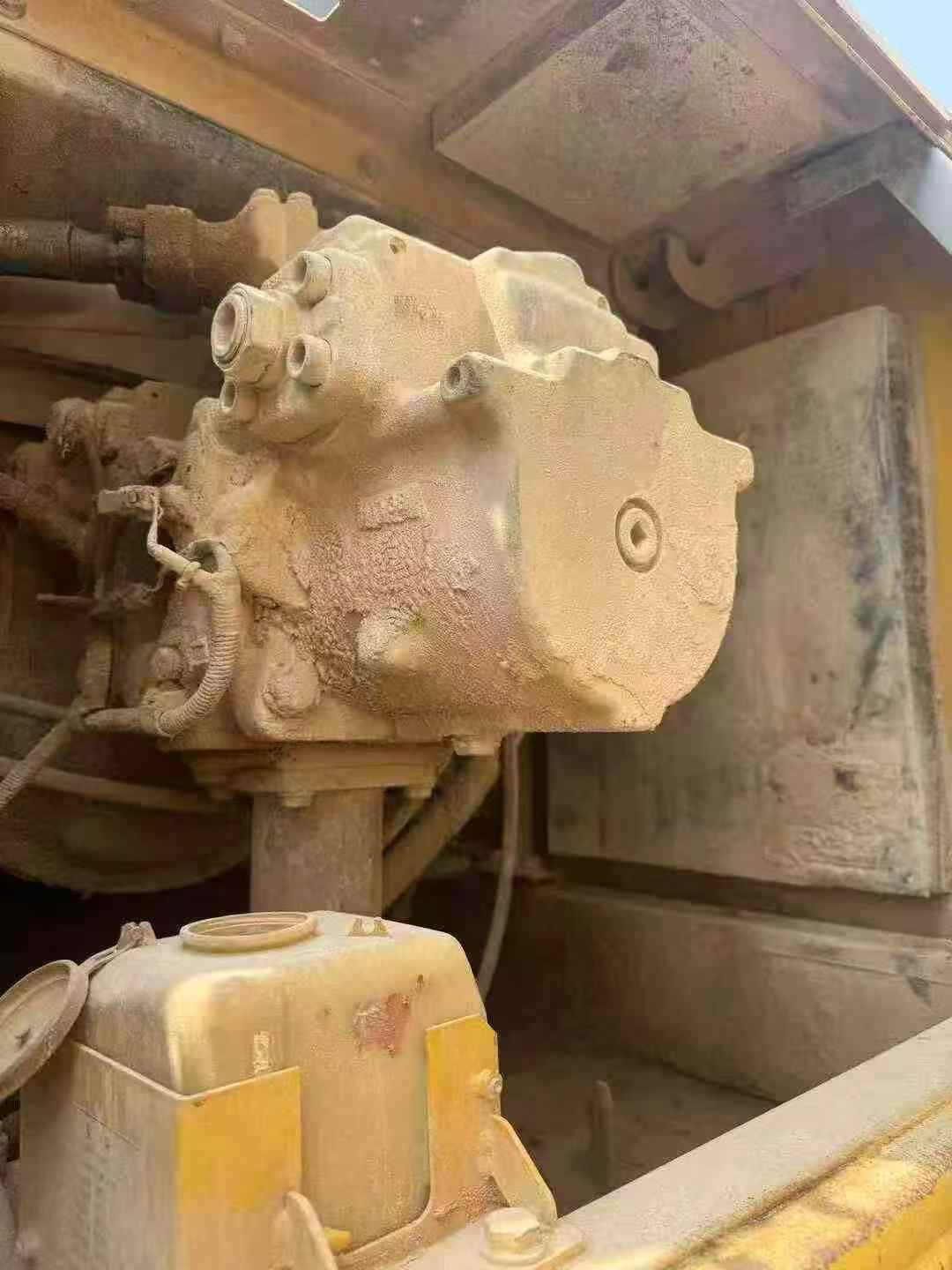

- Variable piston pump system maintaining 37.8 MPa working pressure
- 7,060 mm boom and 3,380 mm arm configuration for optimal versatility
- 70% climbing ability with 330 kN maximum tractive force
- 650 L fuel capacity minimizing downtime on large projects
- Currently located in Guilin, Guangxi, ready for global deployment
Four years of proven service confirm this PC430-8 as a workhorse investment. Joint venture manufacturing standards guarantee parts availability and long-term operational support for your fleet.
| Specifications | Value |
|---|---|
| No. | 1028542 |
| Tonnage (tons) | 43 |
| Working weight (kg) | 43800 |
| Bucket capacity (m³) | 1.9-2.1 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D125E-5 |
| Rated power (kw/rpm) | 257/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125*150 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11.04 |
| Ground specific pressure (Kpa) | 82.3 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 278 |
| Rod digging force (kN) | 233 |
| Maximum tractive force (kN) | 330 |
| Travel speed (km/h) | 3.0~5.5 |
| Maximum flow of main pump (l/min) | 722 |
| Traveling Hydraulic Circuit (Mpa) | 37.8 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.8 |
| Pilot Oil Circuit (MPa) | 3.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-160*1270 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-185*1985 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160*1570 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 248 |
| Engine Oil changes (L) | 37 |
| Total transport length (mm) | 11940 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3660 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 567 |
| Minimum turning radius of front working device (mm) | 4805 |
| Back end turning radius (mm) | 3645 |
| Total track length (mm) | 5055 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4020 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 7 |
| Number of track plates (single side) (PCS) | 46 |
| Maximum digging radius (mm) | 12005 |
| Maximum digging depth (mm) | 7790 |
| Maximum excavation height (mm) | 10925 |
| Maximum unloading height (mm) | 7625 |
| Maximum vertical digging depth (mm) | 6600 |
| Maximum excavation radius of stop surface (mm) | 11800 |
