Product Description

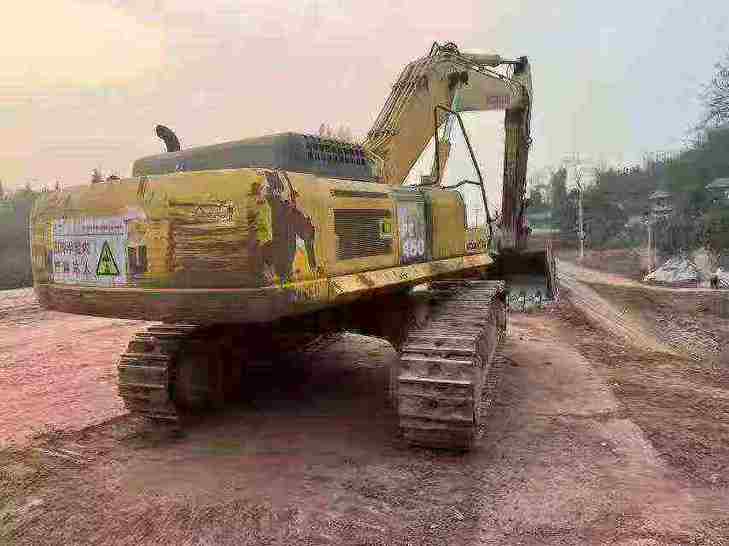

Built for high-capacity earthmoving and demolition, this 2010 Komatsu PC450-7 delivers 259 kW of proven power through its SAA6D125E-3 engine. Operating at 43 tons with a 2.1 m³ bucket, this excavator tackles deep trenching with a maximum digging depth of 7,790 mm and a reach extending to 12,005 mm. Bucket digging force peaks at 278 kN, while the 7,060 mm boom and 3,380 mm arm provide optimal geometry for loading trucks or mass excavation.
Hydraulic performance centers on a 690 l/min main pump feeding dual axial plunger travel motors and precision rotary controls. The water-cooled 6-cylinder engine meets demanding site conditions with 11.04 L displacement and electronic speed regulation. Travel speeds range from 3.0 to 5.5 km/h across varied terrain, supported by 70% grading capability and 600/700 mm track options.
Currently located in Shandong, this machine arrives site-ready with:
- 650 L fuel capacity for extended shifts
- 12-meter reach radius for utility installation and foundation work
- 3,605 mm rear turning radius for confined spaces
- Adjustable track gauge (2,392–2,890 mm) for transport flexibility
| Specifications | Value |
|---|---|
| No. | 1036200 |
| Tonnage (tons) | 45 |
| Working weight (kg) | 43000-43420 |
| Bucket capacity (m³) | 2.1 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D125E-3 |
| Rated power (kw/rpm) | 259/1850 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125 x 150 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11.04 |
| Working form | 6-cylinder, water-cooled, direct injection, turbocharged, electronic speed regulation; Cylinder diameter × stroke: |
| Ground specific pressure (Kpa) | 84.1 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 278 |
| Rod digging force (kN) | 233 |
| Travel speed (km/h) | 3.0/4.4/5.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 690 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 160 * 1270 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 185 * 1985 * 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 160 * 1570 * 110 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 248 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 36 |
| Total transport length (mm) | 12040 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3660 |
| Full cab height (mm) | 3265 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 555 |
| Back end turning radius (mm) | 3605 |
| Total track length (mm) | 5055 |
| Track gauge (mm) | 2890(2392 when contracted) |
| Track plate width (mm) | 600/700 |
| Total track width (mm) | 3490(2992 when contracted) |
| Track ground length (mm) | 4020 |
| Maximum digging radius (mm) | 12005 |
| Maximum digging depth (mm) | 7790 |
| Maximum excavation height (mm) | 10925 |
| Maximum unloading height (mm) | 7625 |
| Maximum vertical digging depth (mm) | 6600 |
| Bulldozer lift or depth (mm) | No dodging plate |
| Maximum excavation radius of stop surface (mm) | 11800 |
