Product Description

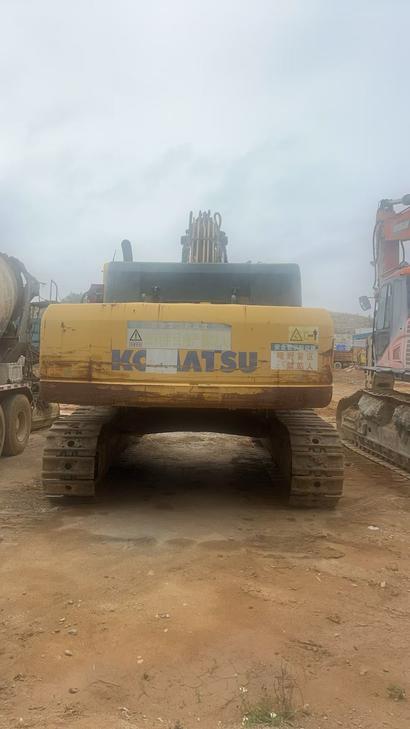

Available now in Fujian Quanzhou, this 2014 Komatsu PC450-8 hydraulic excavator eliminates factory lead times and delivers immediate deployment to your project site. Powered by a robust Komatsu SAA6D125E-5 engine producing 257 kW at 1900 rpm, this 45-ton workhorse combines Japanese engineering with proven performance across demanding applications.
Operating specifications include a 2.1 m³ bucket capacity, 12,005 mm maximum digging reach, and 7,790 mm maximum digging depth. The 7,060 mm boom and 3,380 mm arm configuration deliver 278 kN bucket digging force and 233 kN arm digging force. With a 690 l/min main pump flow and water-cooled 11.04 L displacement engine, this machine handles heavy excavation, loading, and trenching operations efficiently.
- Operating weight: 45,125 kg with superior stability
- Travel speeds: 3.0/4.2/5.5 km/h for rapid repositioning
- Axial plunger hydraulic motors ensure responsive control
- 650 L fuel capacity extends operational runtime
- Transport dimensions: 12,040 mm × 3,580 mm × 3,660 mm
Skip extended procurement cycles. This ready-to-ship excavator from Quanzhou offers immediate availability for contractors requiring proven Komatsu reliabi
| Specifications | Value |
|---|---|
| No. | 1046442 |
| Tonnage (tons) | 45 |
| Working weight (kg) | 45125 |
| Bucket capacity (m³) | 2.1 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D125E-5 |
| Rated power (kw/rpm) | 257/1900 |
| Cooling mode | water-cooling |
| Displacement (L) | 11.04 |
| Working form | 6-cylinder, water-cooled, direct injection, turbocharged, electronic speed regulation; Cylinder diameter × stroke :125mm×150mm |
| Ground specific pressure (Kpa) | 84.1 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 278 |
| Rod digging force (kN) | 233 |
| Travel speed (km/h) | 3.0/4.2/5.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 690 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 160 * 1270 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 185 * 1985 * 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 160 * 1570 * 110 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 248 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 36 |
| Total transport length (mm) | 12040 |
| Total transport width (mm) | 3580(3082 when contracted) |
| Total transport height (mm) | 3660 |
| Full cab height (mm) | 3285 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 555 |
| Back end turning radius (mm) | 3605 |
| Total track length (mm) | 5055 |
| Track gauge (mm) | 2890(2392 when contracted) |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3490(2992 when contracted) |
| Track ground length (mm) | 4020 |
| Maximum digging radius (mm) | 12005 |
| Maximum digging depth (mm) | 7790 |
| Maximum excavation height (mm) | 10925 |
| Maximum unloading height (mm) | 7625 |
| Maximum vertical digging depth (mm) | 6600 |
| Bulldozer lift or depth (mm) | No dodging plate |
| Maximum excavation radius of stop surface (mm) | 11800 |
