Product Description

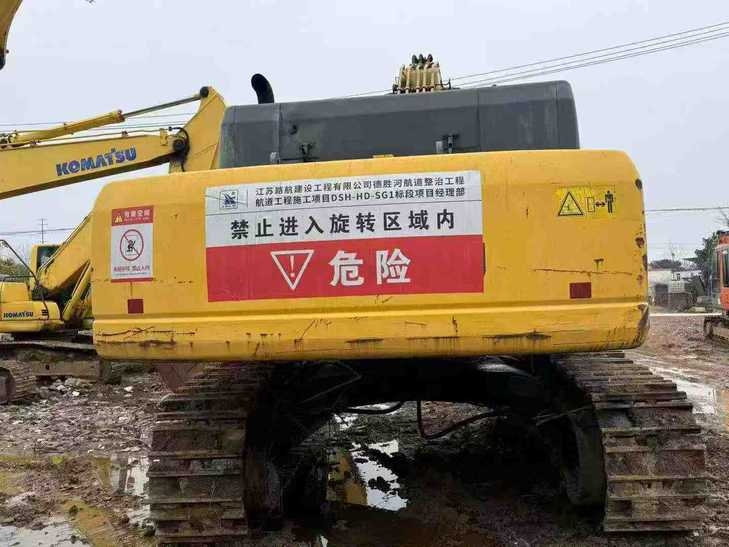

Engineered with Komatsu's SAA6D125E-5 powerplant delivering 257 kW at 1900 rpm, this PC450-8 excavator represents Japan's precision manufacturing standards adapted for demanding excavation operations. The 11.04-liter, 6-cylinder turbocharged engine pairs with a high-capacity hydraulic system featuring 690 l/min maximum flow from the main pump, providing exceptional digging force of 278 kN at the bucket and 233 kN at the rod. Operating at 45 tons with a 2.1 m³ bucket capacity, this machine combines substantial reach—12,005 mm maximum digging radius and 7,790 mm maximum depth—with efficient ground pressure distribution at just 84.1 kPa.
Built in 2015 and currently located in Anhui, this PC450-8 maintains Komatsu's reputation for hydraulic efficiency through dual axial plunger travel motors and water-cooled direct injection technology. The 7,060 mm boom and 3,380 mm arm configuration delivers versatile working ranges, while triple travel speeds (3.0/4.2/5.5 km/h) ensure productive site mobility. With 650-liter fuel capacity and robust structural components including 160 mm diameter boom cylinders, this excavator provides reliable performance for large-scale earthmoving, mining support, and infrastructure development projects re
| Specifications | Value |
|---|---|
| No. | 1022452 |
| Tonnage (tons) | 45 |
| Working weight (kg) | 45125 |
| Bucket capacity (m³) | 2.1 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D125E-5 |
| Rated power (kw/rpm) | 257/1900 |
| Cooling mode | water-cooling |
| Displacement (L) | 11.04 |
| Working form | 6-cylinder, water-cooled, direct injection, turbocharged, electronic speed regulation; Cylinder diameter × stroke :125mm×150mm |
| Ground specific pressure (Kpa) | 84.1 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 278 |
| Rod digging force (kN) | 233 |
| Travel speed (km/h) | 3.0/4.2/5.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 690 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 160 * 1270 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 185 * 1985 * 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 160 * 1570 * 110 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 248 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 36 |
| Total transport length (mm) | 12040 |
| Total transport width (mm) | 3580(3082 when contracted) |
| Total transport height (mm) | 3660 |
| Full cab height (mm) | 3285 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 555 |
| Back end turning radius (mm) | 3605 |
| Total track length (mm) | 5055 |
| Track gauge (mm) | 2890(2392 when contracted) |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3490(2992 when contracted) |
| Track ground length (mm) | 4020 |
| Maximum digging radius (mm) | 12005 |
| Maximum digging depth (mm) | 7790 |
| Maximum excavation height (mm) | 10925 |
| Maximum unloading height (mm) | 7625 |
| Maximum vertical digging depth (mm) | 6600 |
| Bulldozer lift or depth (mm) | No dodging plate |
| Maximum excavation radius of stop surface (mm) | 11800 |
