Product Description

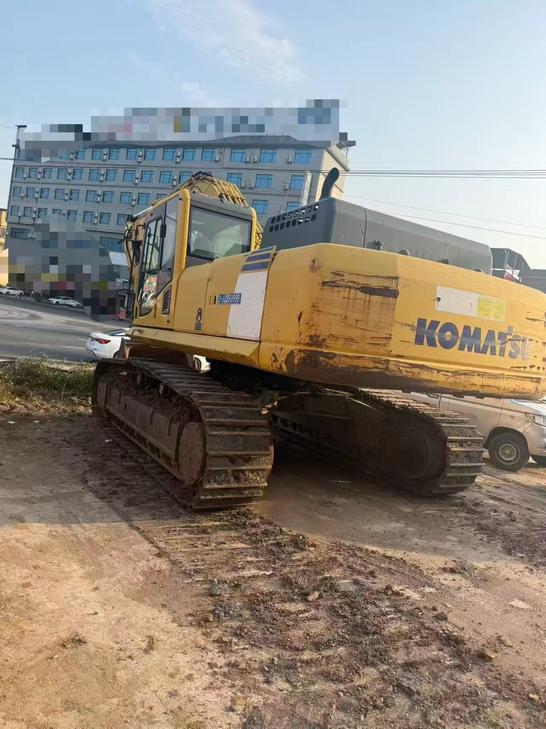

Built in 2016, this PC450-8 represents Komatsu's engineering dominance in the 45-ton excavator class. Powered by the proven SAA6D125E-5 engine delivering 257kW at 1900rpm, this machine combines robust performance with the reliability Komatsu is known for worldwide. With a 2.1m³ bucket capacity, 12-meter maximum digging reach, and 7.79-meter digging depth, it handles demanding excavation tasks with precision.
Currently located in Huizhou, Guangdong, this Japanese-manufactured excavator offers significant advantages in the used equipment market. Komatsu's global parts network ensures components remain readily available years after production, minimizing downtime and controlling operating costs. Strong resale values protect your investment, while the brand's reputation for durability means lower maintenance expenditures over the machine's service life.
Key Specifications:
- Operating weight: 45,125kg with exceptional stability
- Hydraulic system: 690 L/min main pump flow for responsive control
- Travel speeds: 3.0/4.2/5.5 km/h for efficient site mobility
- Fuel capacity: 650L for extended operation cycles
- Digging forces: 278kN bucket, 233kN arm for tough conditio
| Specifications | Value |
|---|---|
| No. | 1032116 |
| Tonnage (tons) | 45 |
| Working weight (kg) | 45125 |
| Bucket capacity (m³) | 2.1 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| Country of origin | Japan |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu SAA6D125E-5 |
| Rated power (kw/rpm) | 257/1900 |
| Cooling mode | water-cooling |
| Displacement (L) | 11.04 |
| Working form | 6-cylinder, water-cooled, direct injection, turbocharged, electronic speed regulation; Cylinder diameter × stroke :125mm×150mm |
| Ground specific pressure (Kpa) | 84.1 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 278 |
| Rod digging force (kN) | 233 |
| Travel speed (km/h) | 3.0/4.2/5.5 |
| Rotary hydraulic motor type | Axial plunger type ×1 |
| Type of walking hydraulic motor | Axial plunger type x 2 |
| Maximum flow of main pump (l/min) | 690 |
| Traveling Hydraulic Circuit (Mpa) | 37.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.2 Pilot oil circuit |
| Hydraulic crushing pipeline is standard | no |
| Bucket cylinders - Number × diameter × stroke (mm) | 160 * 1270 * 110 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 185 * 1985 * 130 |
| Boom cylinders - Number × diameter × stroke (mm) | 160 * 1570 * 110 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 248 |
| Engine Oil changes (L) | 37 |
| Coolant (L) | 36 |
| Total transport length (mm) | 12040 |
| Total transport width (mm) | 3580(3082 when contracted) |
| Total transport height (mm) | 3660 |
| Full cab height (mm) | 3285 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 555 |
| Back end turning radius (mm) | 3605 |
| Total track length (mm) | 5055 |
| Track gauge (mm) | 2890(2392 when contracted) |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3490(2992 when contracted) |
| Track ground length (mm) | 4020 |
| Maximum digging radius (mm) | 12005 |
| Maximum digging depth (mm) | 7790 |
| Maximum excavation height (mm) | 10925 |
| Maximum unloading height (mm) | 7625 |
| Maximum vertical digging depth (mm) | 6600 |
| Bulldozer lift or depth (mm) | No dodging plate |
| Maximum excavation radius of stop surface (mm) | 11800 |
