Product Description

Backed by Komatsu's legendary engineering, this 2016 PC450-8 excavator delivers proven performance with 257 kW of power and a robust 45-ton operating weight. Equipped with the reliable SAA6D125E-5 engine and advanced hydraulic systems pumping 690 L/min, this machine handles demanding excavation tasks with a maximum digging reach of 12,005 mm and bucket digging force of 278 kN. Currently located in Beijing, this model represents a smart investment in the used equipment market—Komatsu parts remain widely available globally, ensuring minimal downtime and predictable maintenance costs. The PC450-8's proven track record means strong resale value retention compared to lesser-known brands.

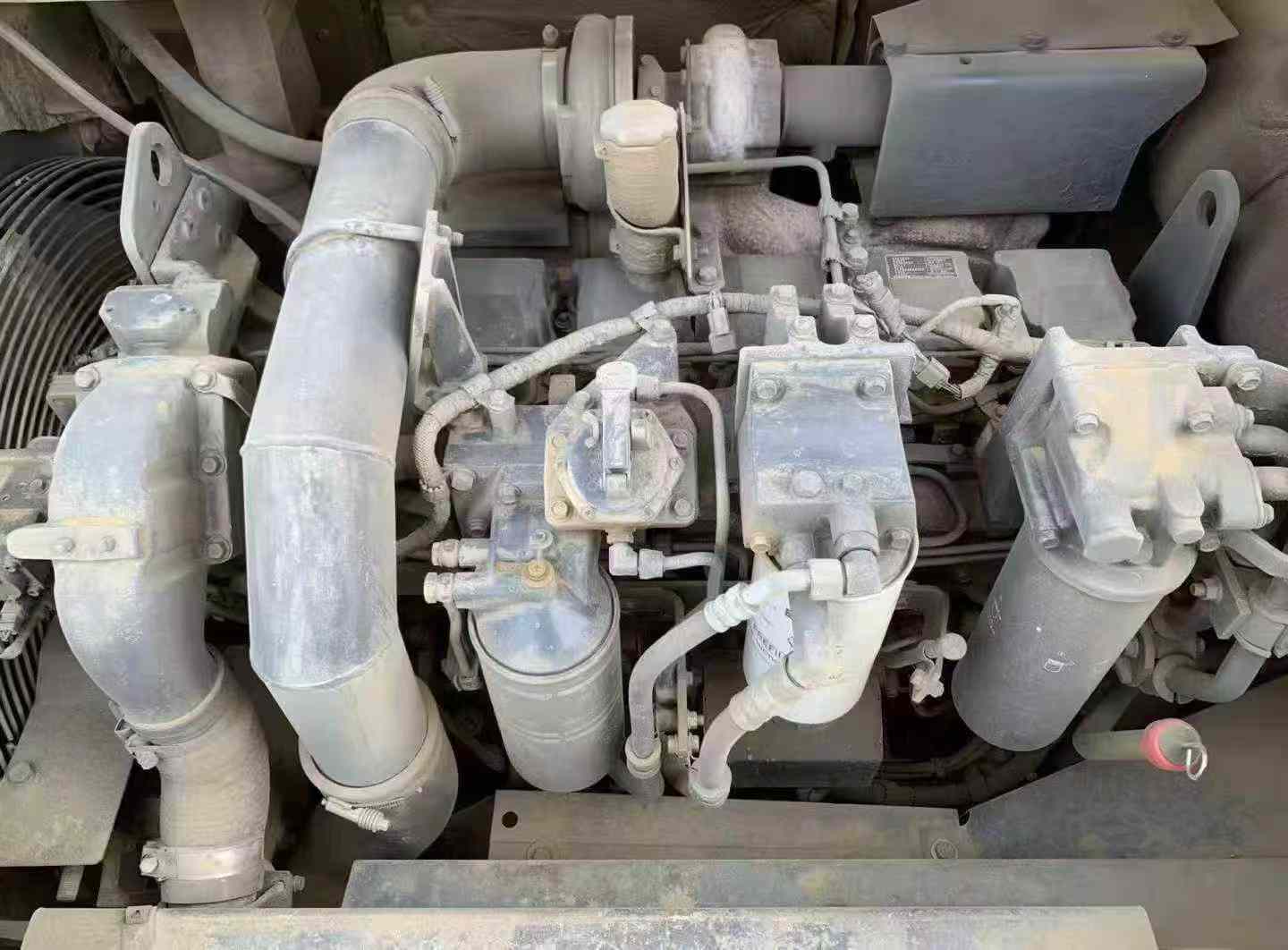

  • Engine: Komatsu SAA6D125E-5, 257 kW @ 1900 rpm, water-cooled
  • Performance: 2.1 m³ bucket capacity, 12,005 mm max digging radius
  • Hydraulics: 690 L/min main pump flow, dual axial plunger travel motors
  • Dimensions: 12,040 mm transport length, 3,580 mm width
  • Reliability: Japanese-origin design with global parts network support
SpecificationsValue
No.1046355
Tonnage (tons)45
Working weight (kg)45125
Bucket capacity (m³)2.1
Boom length (mm)7060
Rod length (mm)3380
Country of originJapan
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeKomatsu SAA6D125E-5
Rated power (kw/rpm)257/1900
Cooling modewater-cooling
Displacement (L)11.04
Working form6-cylinder, water-cooled, direct injection, turbocharged, electronic speed regulation; Cylinder diameter × stroke :125mm×150mm
Ground specific pressure (Kpa)84.1
Rotation speed (rpm)9.1
Climbing ability (%)70/35 °
Bucket digging force (kN)278
Rod digging force (kN)233
Travel speed (km/h)3.0/4.2/5.5

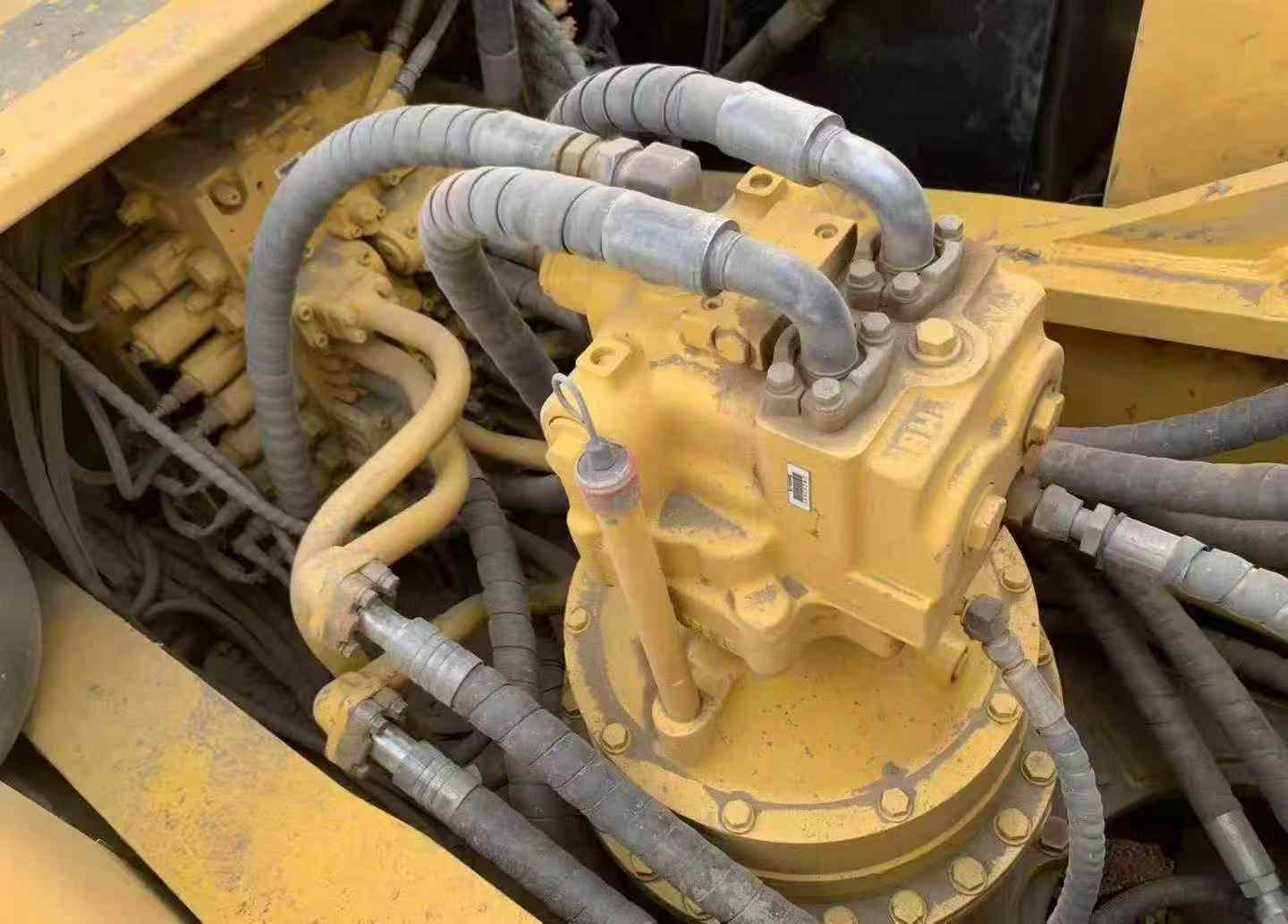

Rotary hydraulic motor typeAxial plunger type ×1
Type of walking hydraulic motorAxial plunger type x 2
Maximum flow of main pump (l/min)690
Traveling Hydraulic Circuit (Mpa)37.3
Rotary Hydraulic Circuit (Mpa)27.9
Control Hydraulic Circuit (Mpa)3.2 Pilot oil circuit
Hydraulic crushing pipeline is standardno
Bucket cylinders - Number × diameter × stroke (mm)160 * 1270 * 110
Bucket rod cylinders - Number × diameter × stroke (mm)185 * 1985 * 130
Boom cylinders - Number × diameter × stroke (mm)160 * 1570 * 110
Fuel Tank (L)650
Hydraulic Tank (L)248
Engine Oil changes (L)37
Coolant (L)36
Total transport length (mm)12040
Total transport width (mm)3580(3082 when contracted)
Total transport height (mm)3660
Full cab height (mm)3285
Counterweight ground clearance (mm)1320
Minimum ground clearance (mm)555
Back end turning radius (mm)3605
Total track length (mm)5055
Track gauge (mm)2890(2392 when contracted)
Track plate width (mm)600
Total track width (mm)3490(2992 when contracted)
Track ground length (mm)4020
Maximum digging radius (mm)12005
Maximum digging depth (mm)7790
Maximum excavation height (mm)10925
Maximum unloading height (mm)7625
Maximum vertical digging depth (mm)6600
Bulldozer lift or depth (mm)No dodging plate
Maximum excavation radius of stop surface (mm)11800
