Product Description

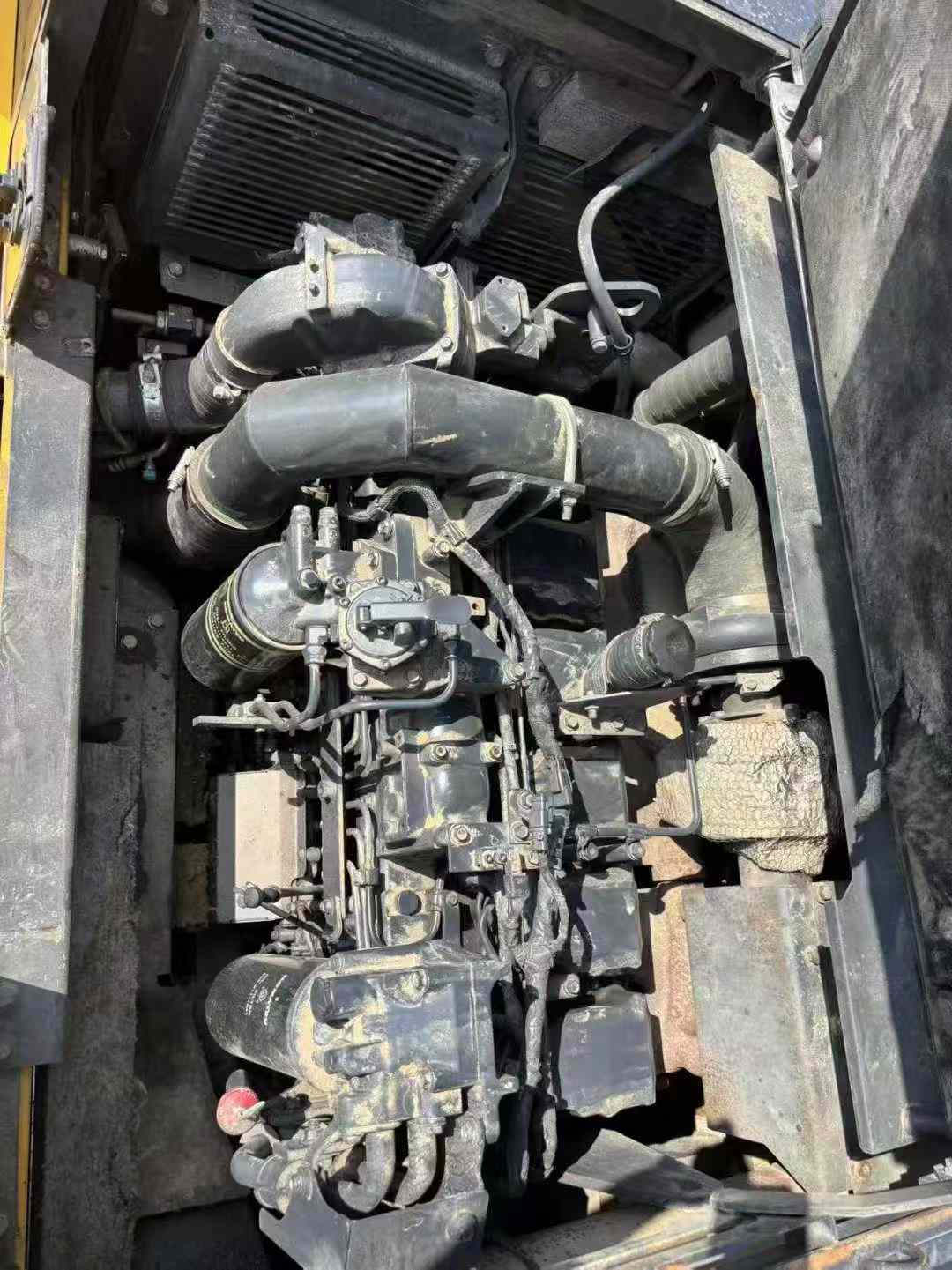

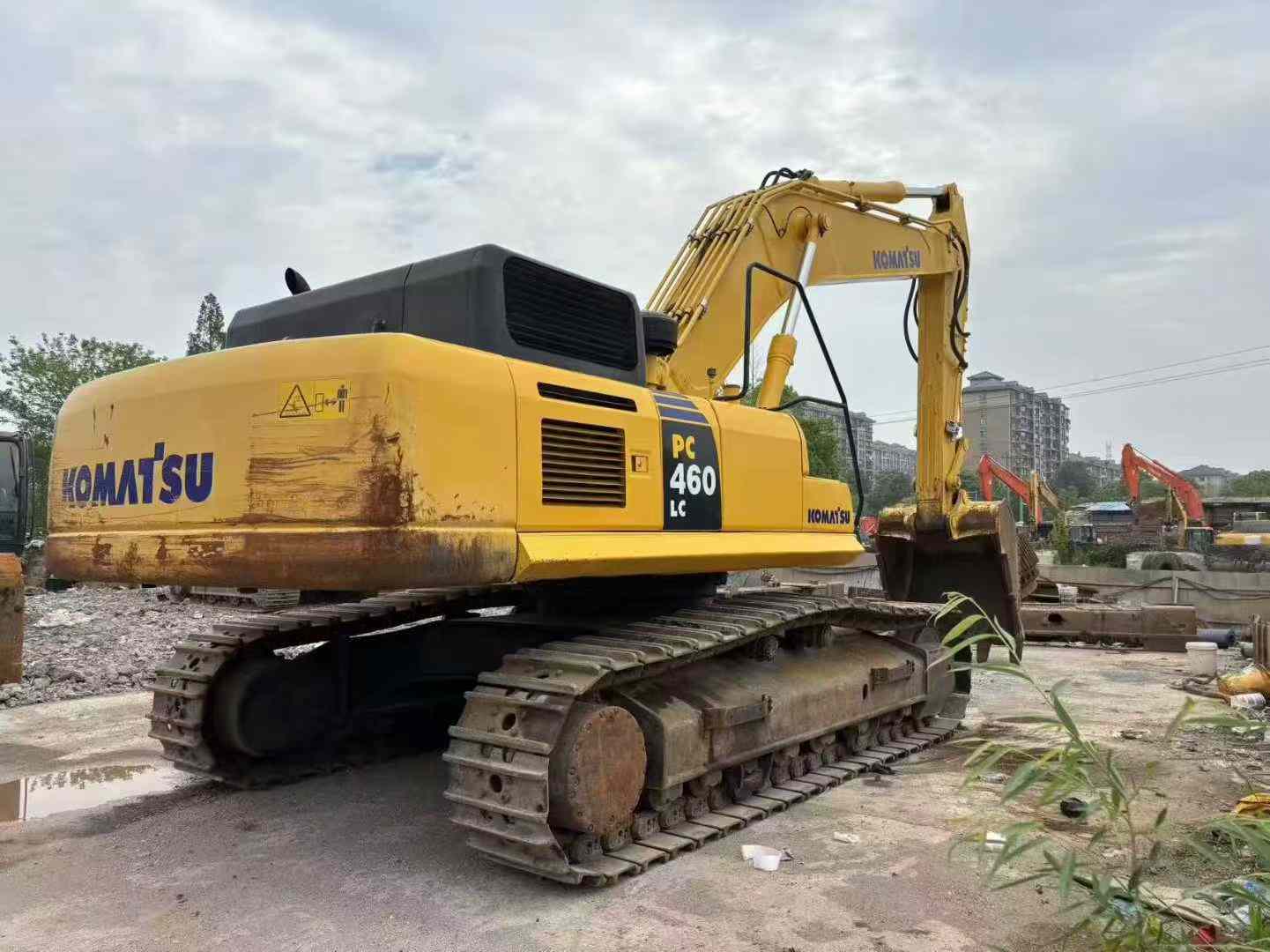

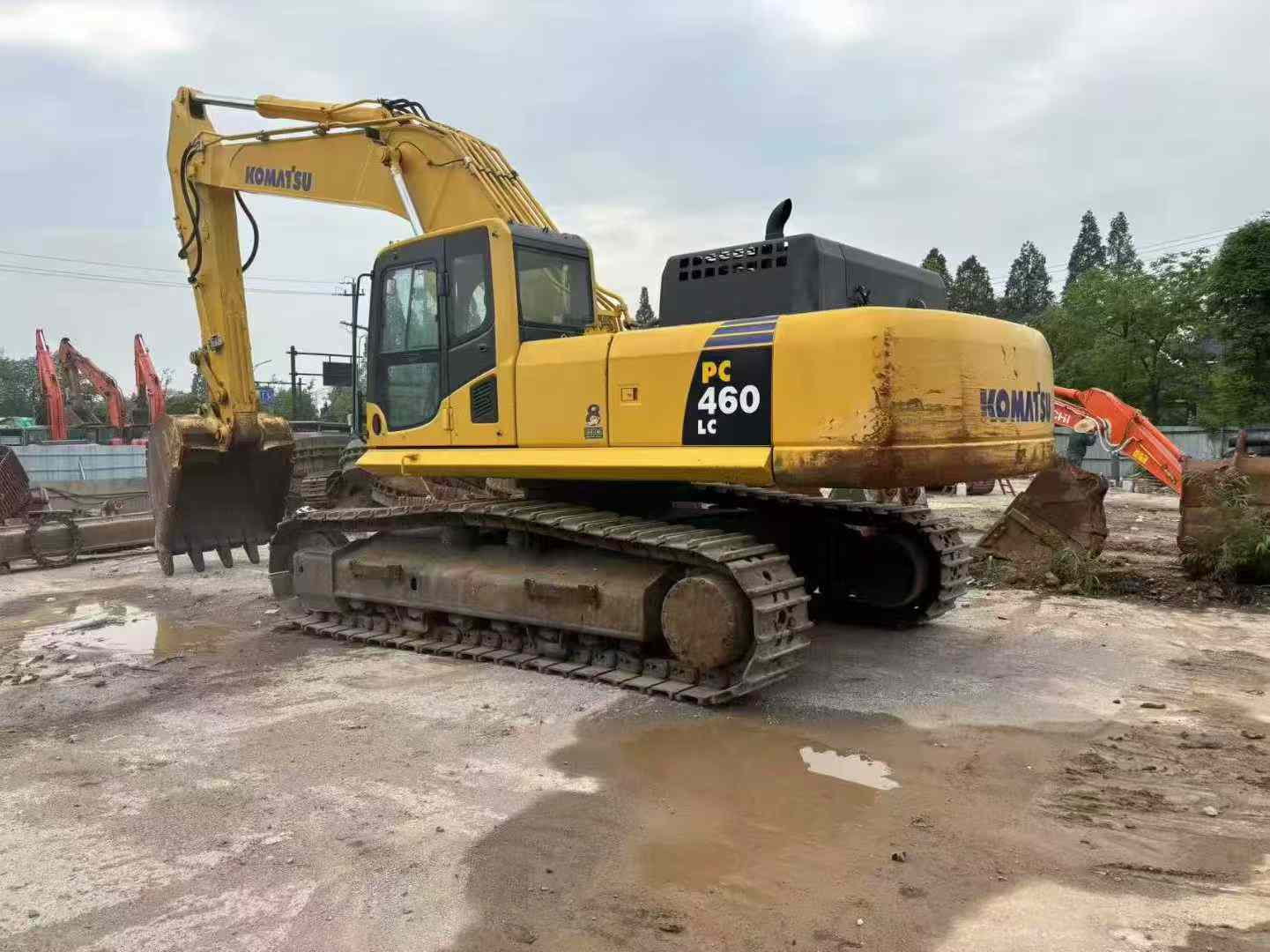

Powering through the most demanding excavation tasks, this 2016 Komatsu PC460LC-8 combines proven engineering with exceptional operational reliability. Sourced from Wenzhou, Zhejiang, this 46-ton crawler excavator delivers 257 kW of power through its robust SAA6D125E-5 engine, backed by Komatsu's reputation for durability and worldwide parts availability.
Built for heavy-duty applications, this machine features a 2.1 m³ bucket capacity, 12-meter maximum digging reach, and 7.79-meter excavation depth. The variable piston pump system ensures precise hydraulic control across all functions, while the water-cooled engine maintains optimal performance in extended operations.
Key Specifications:
- Working weight: 46,000 kg with superior stability
- Bucket digging force: 278 kN for tough materials
- Main pump flow: 690 L/min for responsive operation
- Fuel capacity: 650 L for extended runtime
- 70% climbing ability on challenging terrain
Komatsu's joint venture manufacturing ensures genuine parts accessibility and strong resale value retention. This PC460LC-8 represents a smart investment for contractors seeking dependable performance with manageable long
| Specifications | Value |
|---|---|
| No. | 1019203 |
| Tonnage (tons) | 46 |
| Working weight (kg) | 46000 |
| Bucket capacity (m³) | 2.1 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | SAA6D125E-5 |
| Rated power (kw/rpm) | 257/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125*150 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11.04 |
| Ground specific pressure (Kpa) | 79.3 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 278 |
| Rod digging force (kN) | 233 |
| Maximum tractive force (kN) | 330 |
| Travel speed (km/h) | 5.5/4.2/3.0 |
| Maximum flow of main pump (l/min) | 690 |
| Traveling Hydraulic Circuit (Mpa) | 37.8 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |

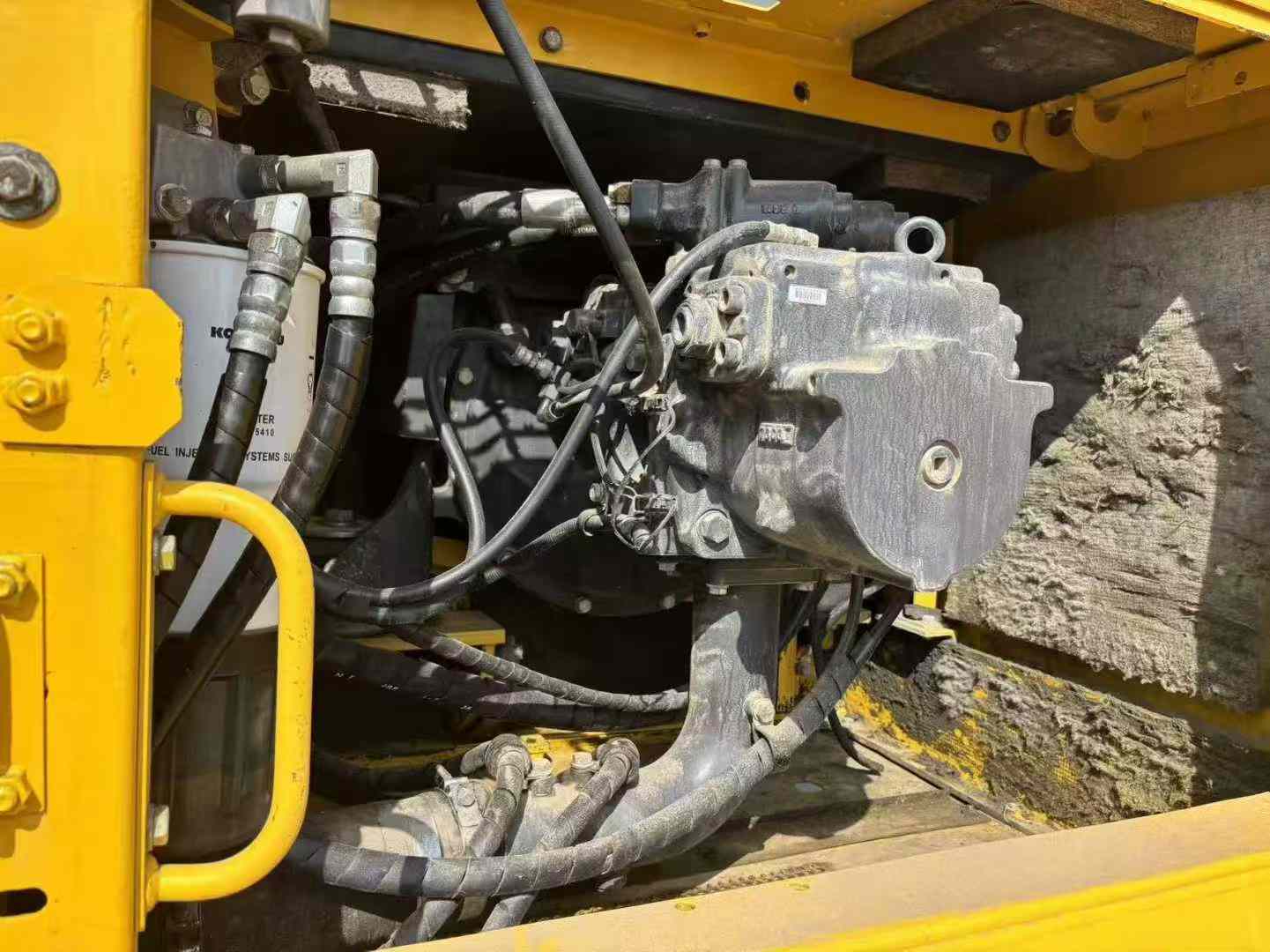

| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.8 |
| Pilot Oil Circuit (MPa) | 3.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-160*1270 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-185*1985 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160*1570 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 248 |
| Engine Oil changes (L) | 37 |
| Total transport length (mm) | 12040 |
| Total transport width (mm) | 3570 |
| Total transport height (mm) | 3660 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 567 |
| Minimum turning radius of front working device (mm) | 4805 |
| Back end turning radius (mm) | 3645 |
| Total track length (mm) | 5385 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4350 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 12005 |
| Maximum digging depth (mm) | 7790 |
| Maximum excavation height (mm) | 10925 |
| Maximum unloading height (mm) | 7625 |
| Maximum vertical digging depth (mm) | 6600 |
| Maximum excavation radius of stop surface (mm) | 11800 |
