Product Description

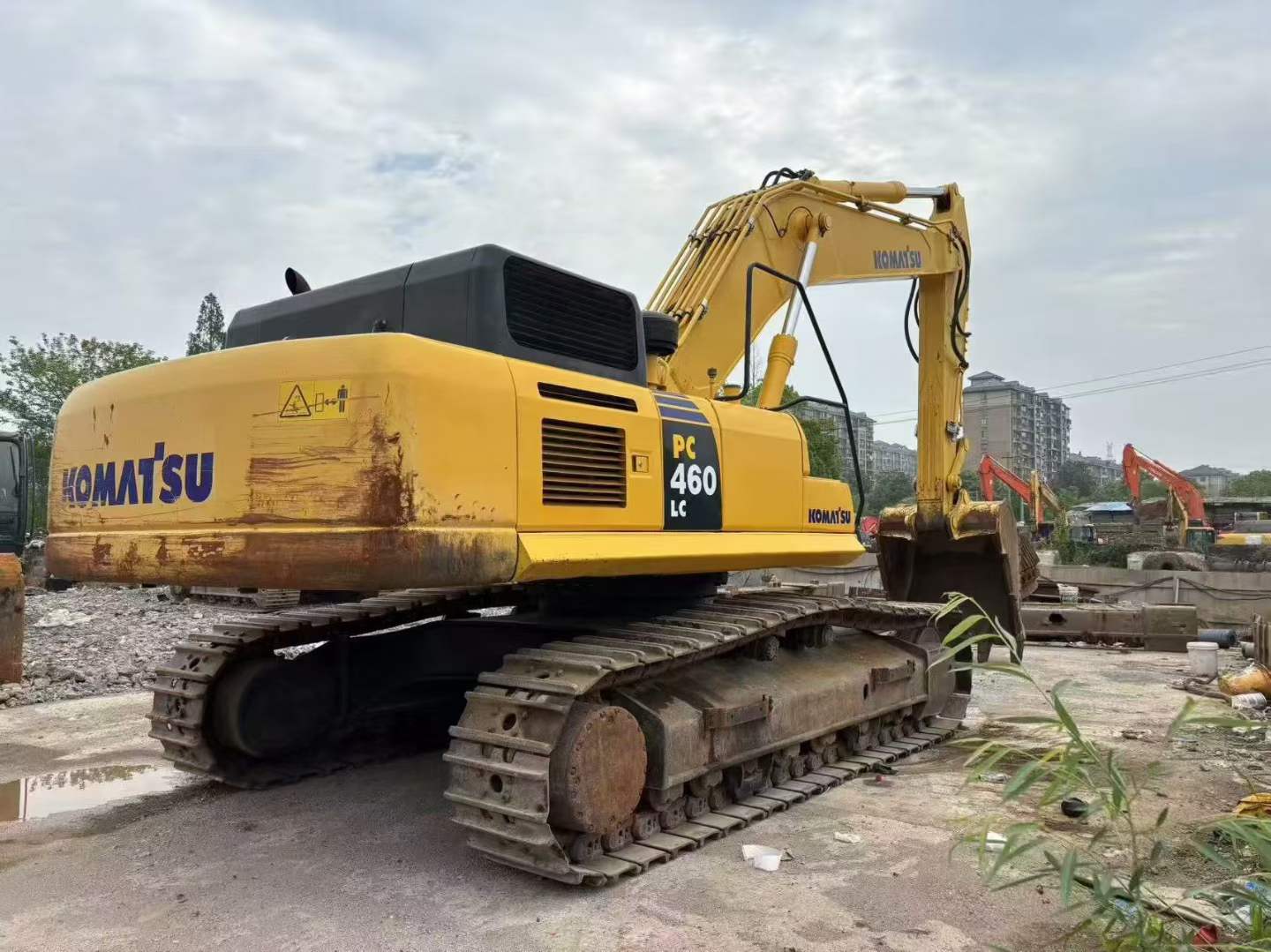

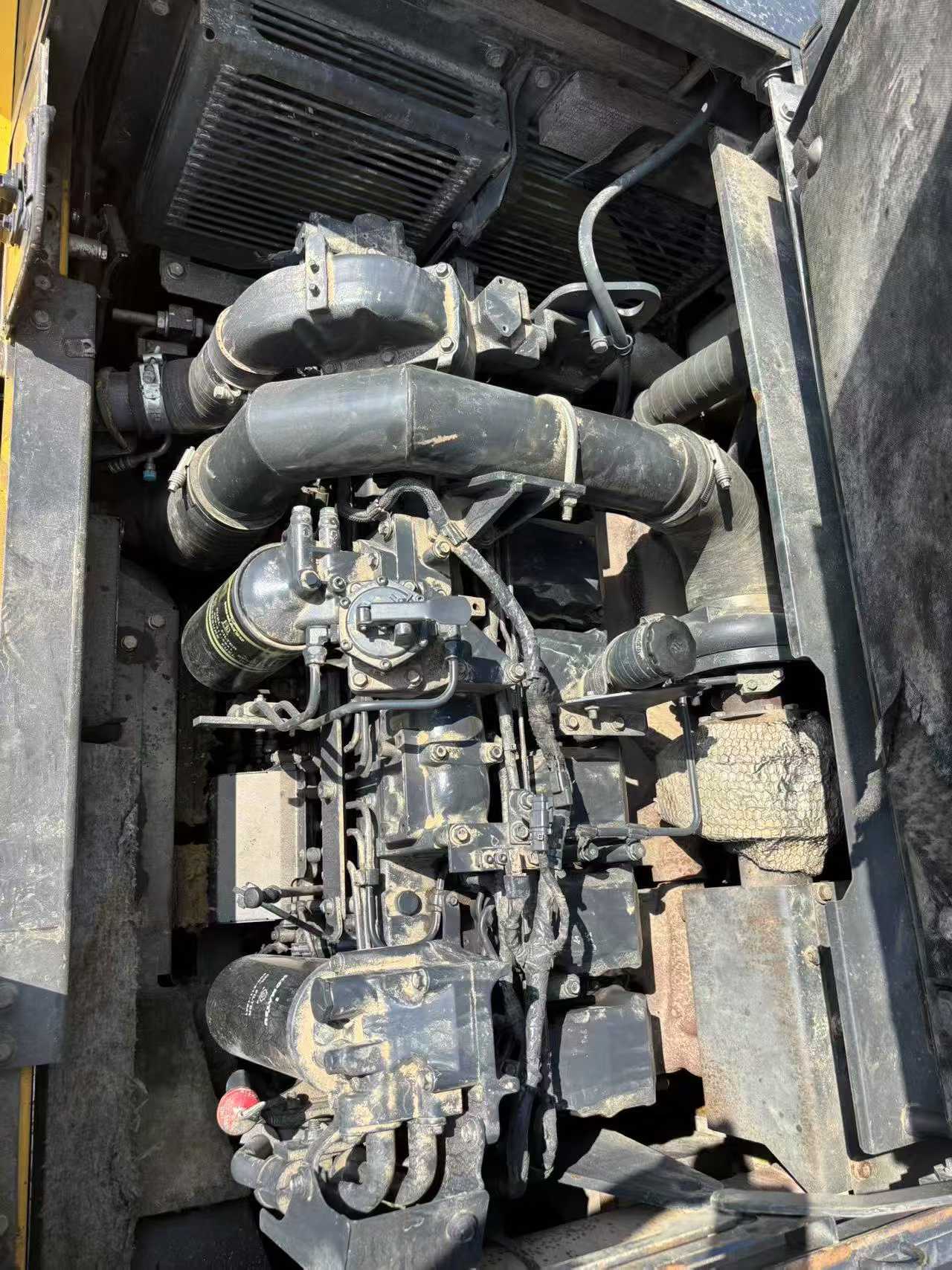

Engineered for operator precision and all-day productivity, this 2016 Komatsu PC460LC-8 excavator combines robust 46-ton performance with intelligent cabin design. Powered by a SAA6D125E-5 engine delivering 257 kW at 1900 rpm, this machine offers reliable water-cooled performance across demanding job sites. Located in Guangdong Maoming, this joint venture model features a spacious operator station with enhanced visibility angles, reducing blind spots during complex excavation tasks.
- 46,000 kg working weight with 2.1 m³ backhoe bucket capacity
- Maximum digging reach of 12,005 mm and depth of 7,790 mm
- 278 kN bucket digging force for tough material penetration

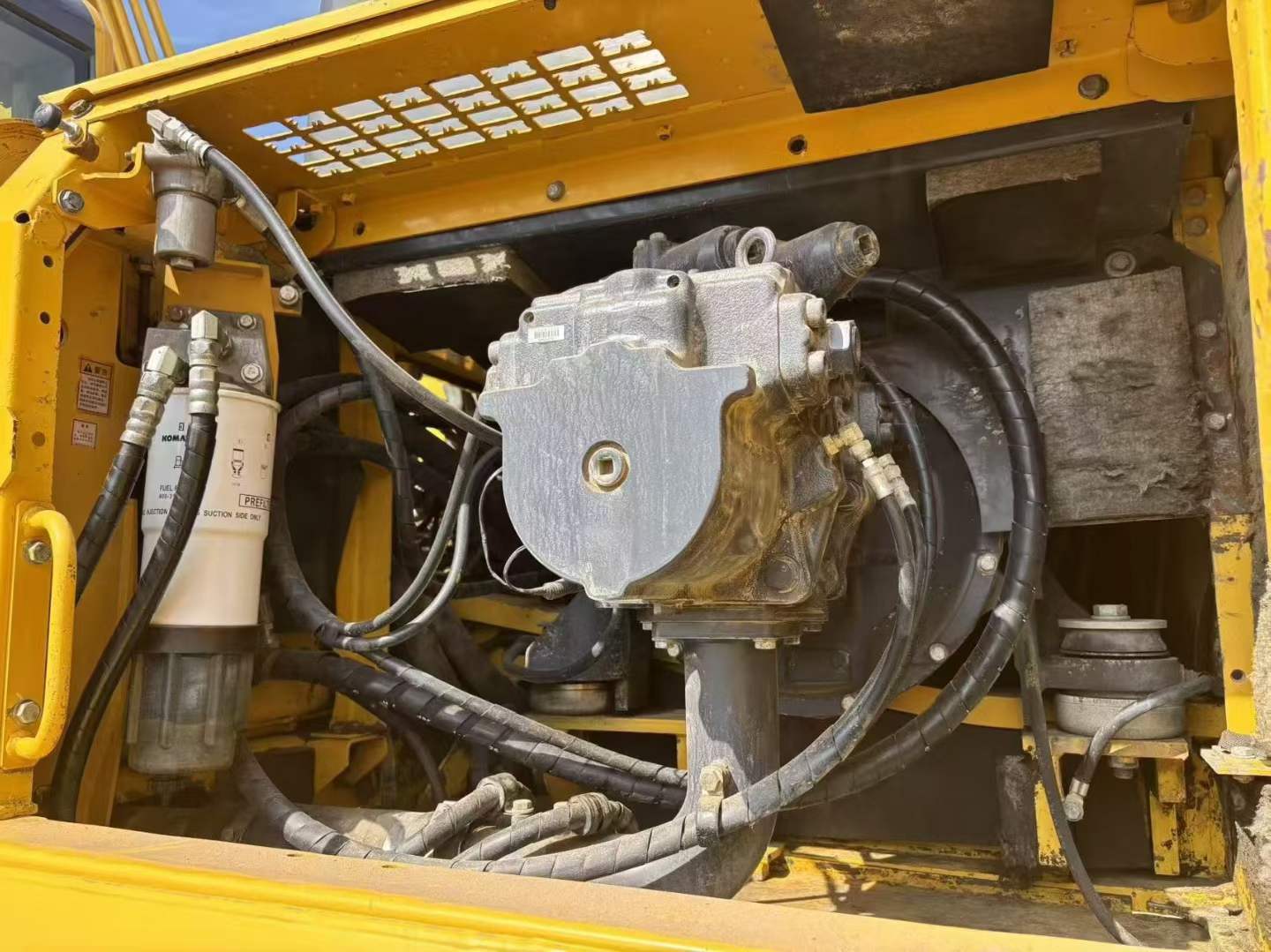

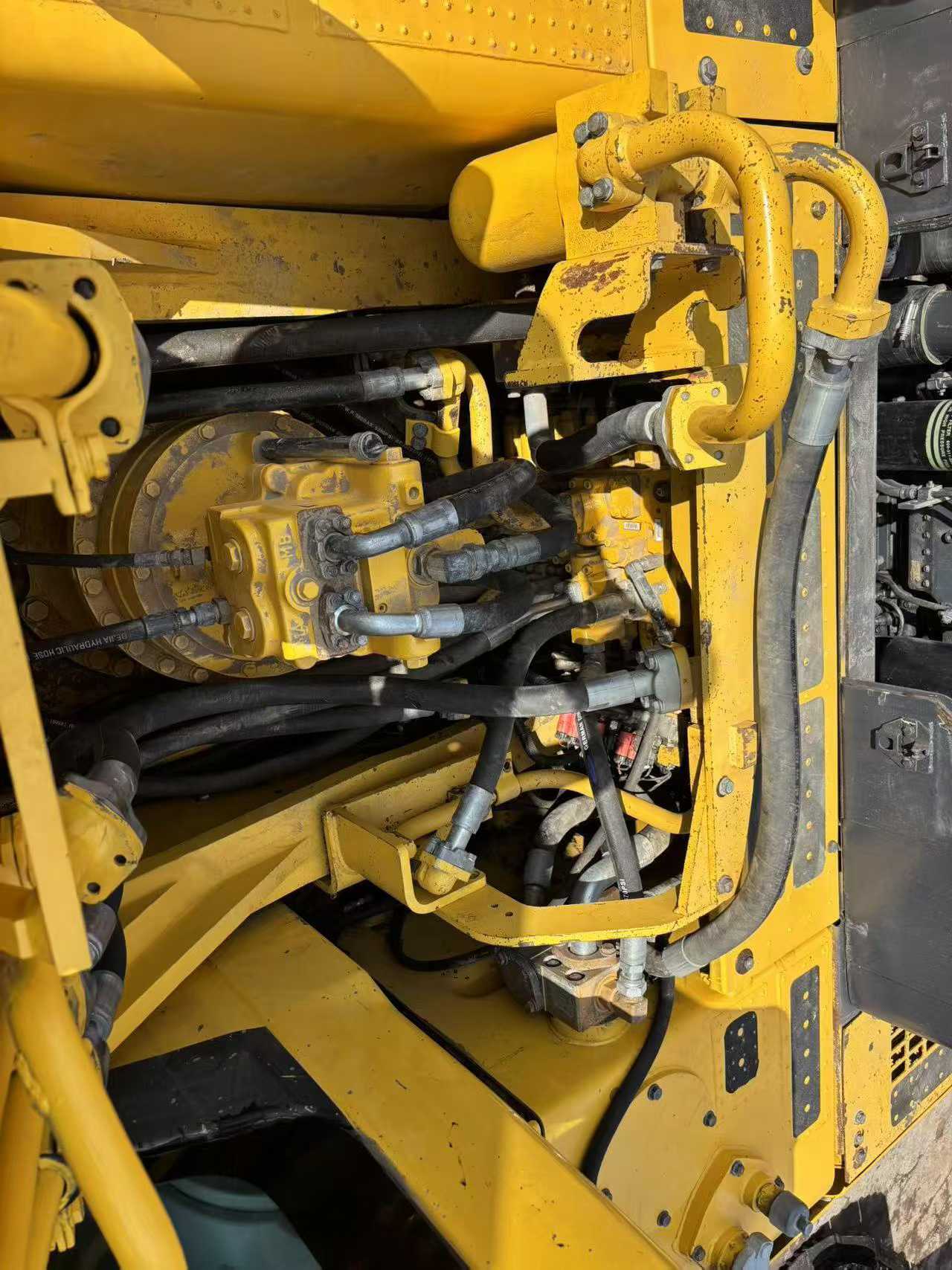

- Variable piston pump system with 690 l/min flow for responsive hydraulics

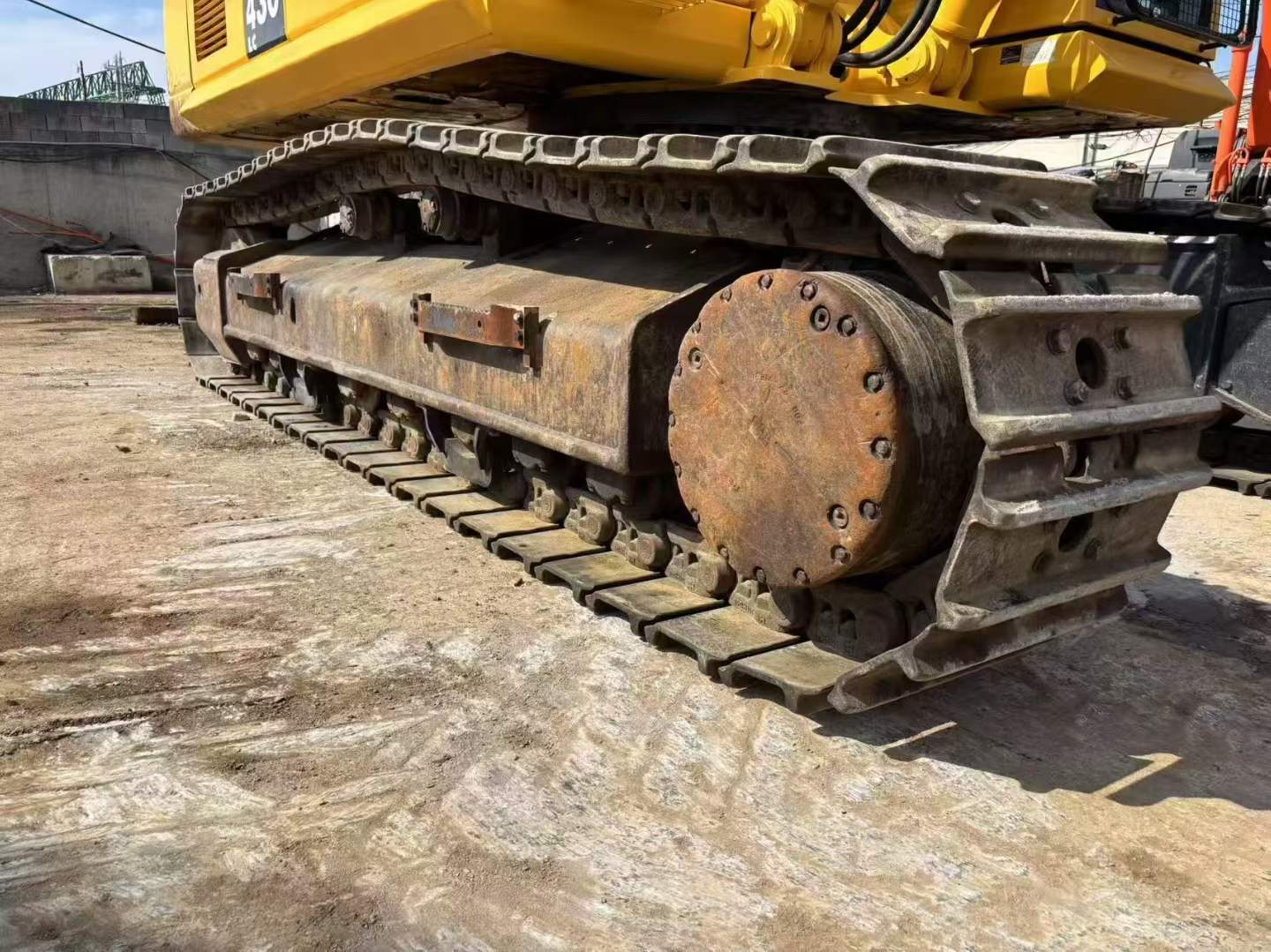

- Stable 2,740 mm track gauge with 600 mm-wide track plates
- Ergonomic controls with 3.3 MPa pilot oil circuit for smooth operation
- 70% climbing ability and 79.3 kPa ground pressure for versatile terrain handling
Proven reliability meets operator comfort in this purpose-built excavator, ready for heavy-duty earthmoving, mining, and infrastructure projects worldwide.
| Specifications | Value |
|---|---|
| No. | 1020148 |
| Tonnage (tons) | 46 |
| Working weight (kg) | 46000 |
| Bucket capacity (m³) | 2.1 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | SAA6D125E-5 |
| Rated power (kw/rpm) | 257/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125*150 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11.04 |
| Ground specific pressure (Kpa) | 79.3 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 278 |
| Rod digging force (kN) | 233 |
| Maximum tractive force (kN) | 330 |
| Travel speed (km/h) | 5.5/4.2/3.0 |
| Maximum flow of main pump (l/min) | 690 |
| Traveling Hydraulic Circuit (Mpa) | 37.8 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.8 |
| Pilot Oil Circuit (MPa) | 3.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-160*1270 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-185*1985 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160*1570 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 248 |
| Engine Oil changes (L) | 37 |
| Total transport length (mm) | 12040 |
| Total transport width (mm) | 3570 |
| Total transport height (mm) | 3660 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 567 |
| Minimum turning radius of front working device (mm) | 4805 |
| Back end turning radius (mm) | 3645 |
| Total track length (mm) | 5385 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4350 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 12005 |
| Maximum digging depth (mm) | 7790 |
| Maximum excavation height (mm) | 10925 |
| Maximum unloading height (mm) | 7625 |
| Maximum vertical digging depth (mm) | 6600 |
| Maximum excavation radius of stop surface (mm) | 11800 |
