Product Description
Engineered with a powerful SAA6D125E-5 engine delivering 257 kW at 1900 rpm, this 2016 Komatsu PC460LC-8 excavator combines proven hydraulic performance with robust operational capacity. The 46-ton machine features a variable piston pump system supplying 690 L/min maximum flow, supported by a 37.8 MPa working hydraulic circuit that drives exceptional digging forces—278 kN bucket force and 233 kN arm force—for demanding excavation projects.
- Reach & Depth: 12,005 mm maximum digging radius, 7,790 mm digging depth
- Hydraulic System: 690 L/min main pump flow with 37.8 MPa operating pressure
- Engine: 11.04L 6-cylinder water-cooled diesel, 257 kW rated output
- Bucket Capacity: 2.1 m³ standard configuration

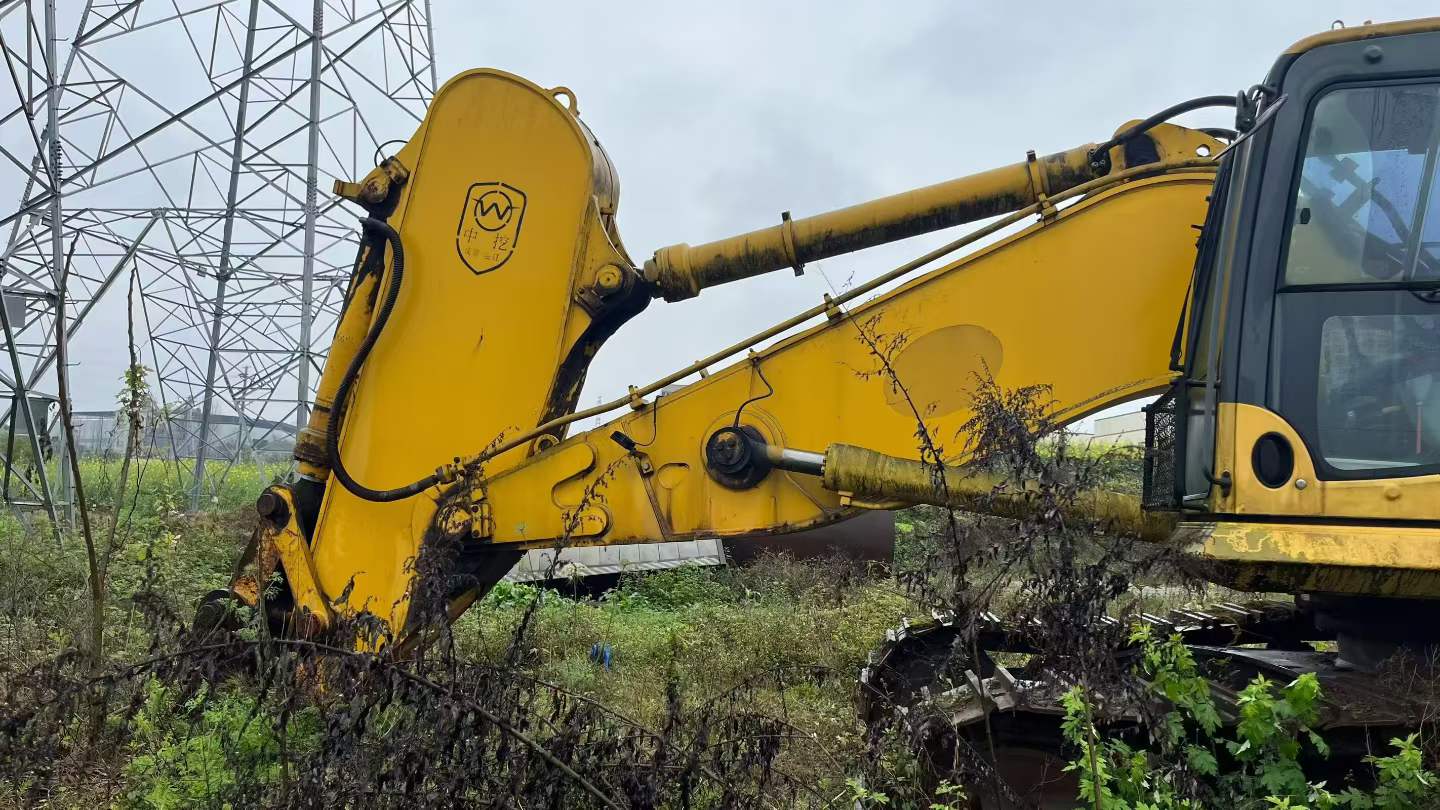

- Boom/Arm: 7,060 mm boom, 3,380 mm arm for versatile positioning
- Mobility: 5.5 km/h travel speed with 70% gradeability
Currently located in Zhongshan, Guangdong, this PC460LC-8 represents Komatsu's joint-venture manufacturing excellence with comprehensive technical specifications suited for large-scale earthmoving, mining support, and infrastructure development applica
| Specifications | Value |
|---|---|
| No. | 1027052 |
| Tonnage (tons) | 46 |
| Working weight (kg) | 46000 |
| Bucket capacity (m³) | 2.1 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | SAA6D125E-5 |
| Rated power (kw/rpm) | 257/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125*150 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11.04 |
| Ground specific pressure (Kpa) | 79.3 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 278 |
| Rod digging force (kN) | 233 |
| Maximum tractive force (kN) | 330 |
| Travel speed (km/h) | 5.5/4.2/3.0 |
| Maximum flow of main pump (l/min) | 690 |
| Traveling Hydraulic Circuit (Mpa) | 37.8 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.8 |
| Pilot Oil Circuit (MPa) | 3.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-160*1270 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-185*1985 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160*1570 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 248 |
| Engine Oil changes (L) | 37 |
| Total transport length (mm) | 12040 |
| Total transport width (mm) | 3570 |
| Total transport height (mm) | 3660 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 567 |
| Minimum turning radius of front working device (mm) | 4805 |
| Back end turning radius (mm) | 3645 |
| Total track length (mm) | 5385 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4350 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 12005 |
| Maximum digging depth (mm) | 7790 |
| Maximum excavation height (mm) | 10925 |
| Maximum unloading height (mm) | 7625 |
| Maximum vertical digging depth (mm) | 6600 |
| Maximum excavation radius of stop surface (mm) | 11800 |
