Product Description

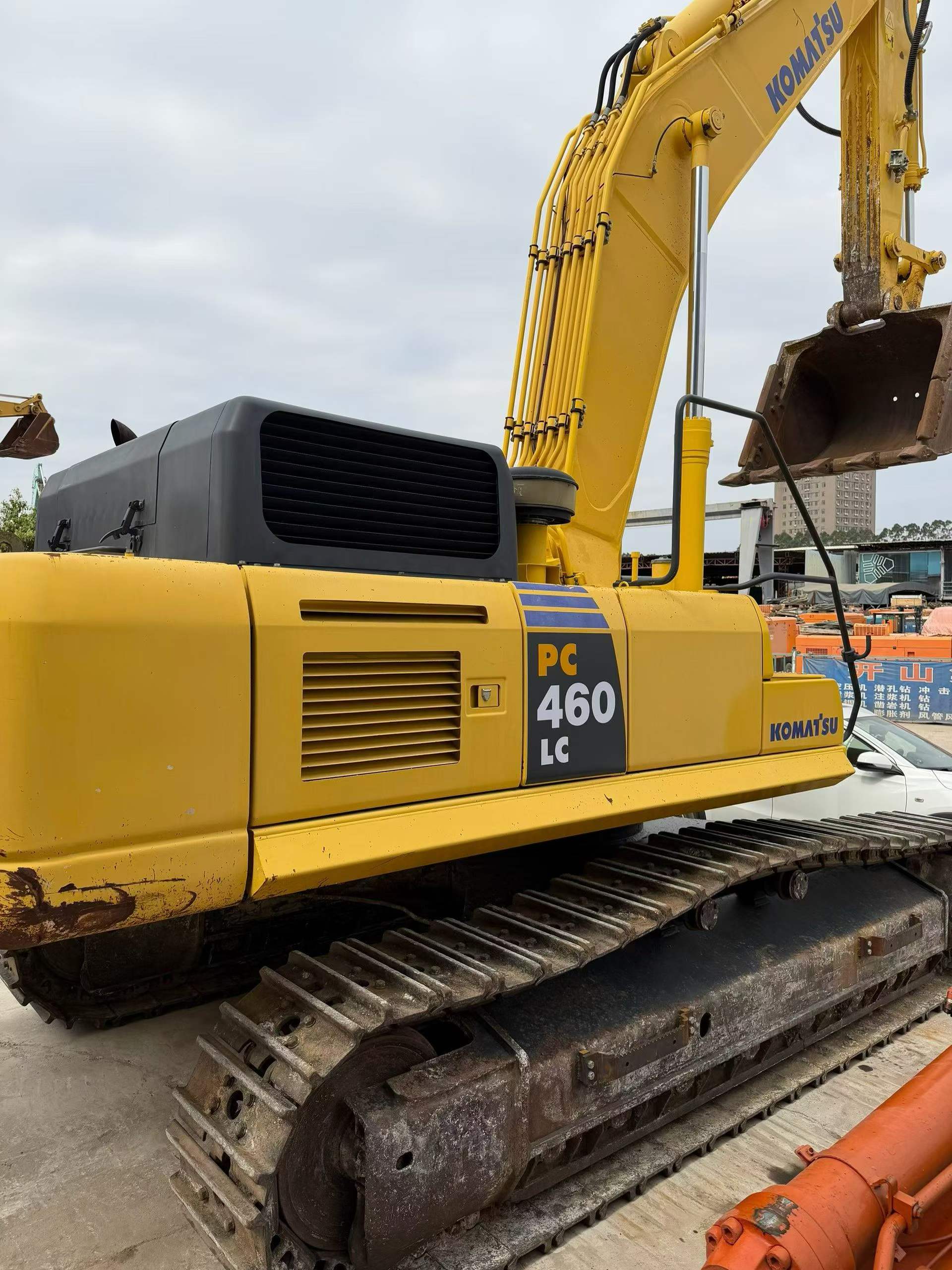

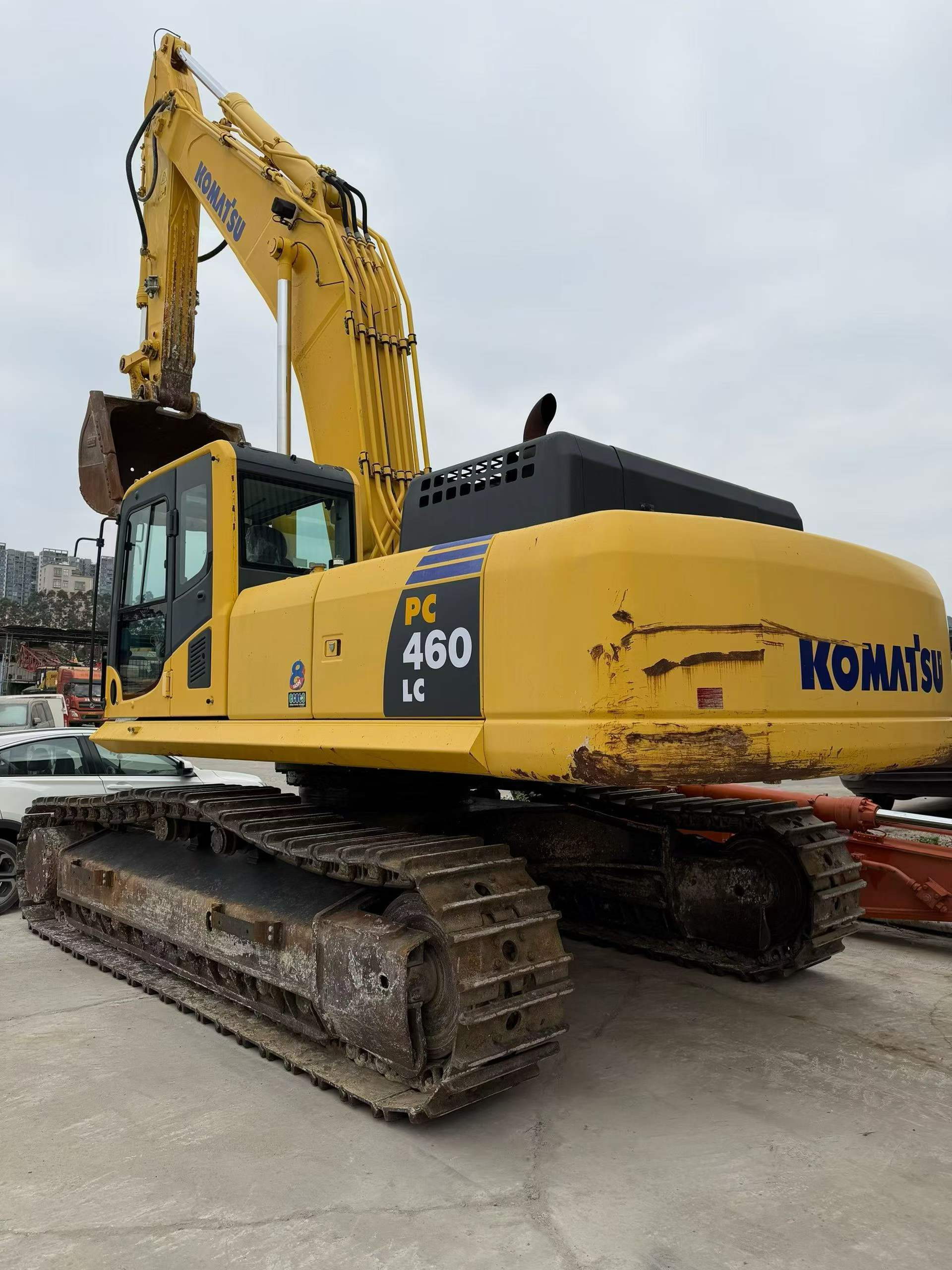

Expand your fleet capacity with this 2018 Komatsu PC460LC-8 excavator, currently positioned in Dezhou, Shandong. Built for high-volume earthmoving operations, this 46-ton machine delivers 257 kW of proven SAA6D125E-5 power through a water-cooled, 6-cylinder configuration. Contractors managing multiple job sites will appreciate the 2.1 m³ bucket capacity paired with 278 kN bucket digging force and 12-meter maximum reach—specifications that maintain productivity during peak demand periods.
- Power & Performance: 257 kW @ 1900 rpm, 11.04L displacement, variable piston pump delivering 690 l/min
- Working Range: 12,005 mm max digging radius, 7,790 mm max depth, 10,925 mm max height
- Hydraulic System: 37.8 MPa working circuit, dual 160 mm boom cylinders, 185 mm rod cylinder
- Mobility: 5.5 km/h travel speed, 70% grading ability, 600 mm track plates for 79.3 kPa ground pressure
- Capacity: 650L fuel tank, 248L hydraulic reservoir for extended shift operation
Ready to supplement existing equipment or cover scheduled maintenance downtime without disrupting project timelines. Complete technical documenta
| Specifications | Value |
|---|---|
| No. | 1028043 |
| Tonnage (tons) | 46 |
| Working weight (kg) | 46000 |
| Bucket capacity (m³) | 2.1 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 3380 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | SAA6D125E-5 |
| Rated power (kw/rpm) | 257/1900 |
| Cooling mode | water-cooling |
| Cylinder diameter × stroke (mm) | 125*150 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11.04 |
| Ground specific pressure (Kpa) | 79.3 |
| Rotation speed (rpm) | 9.1 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 278 |
| Rod digging force (kN) | 233 |
| Maximum tractive force (kN) | 330 |
| Travel speed (km/h) | 5.5/4.2/3.0 |
| Maximum flow of main pump (l/min) | 690 |
| Traveling Hydraulic Circuit (Mpa) | 37.8 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |

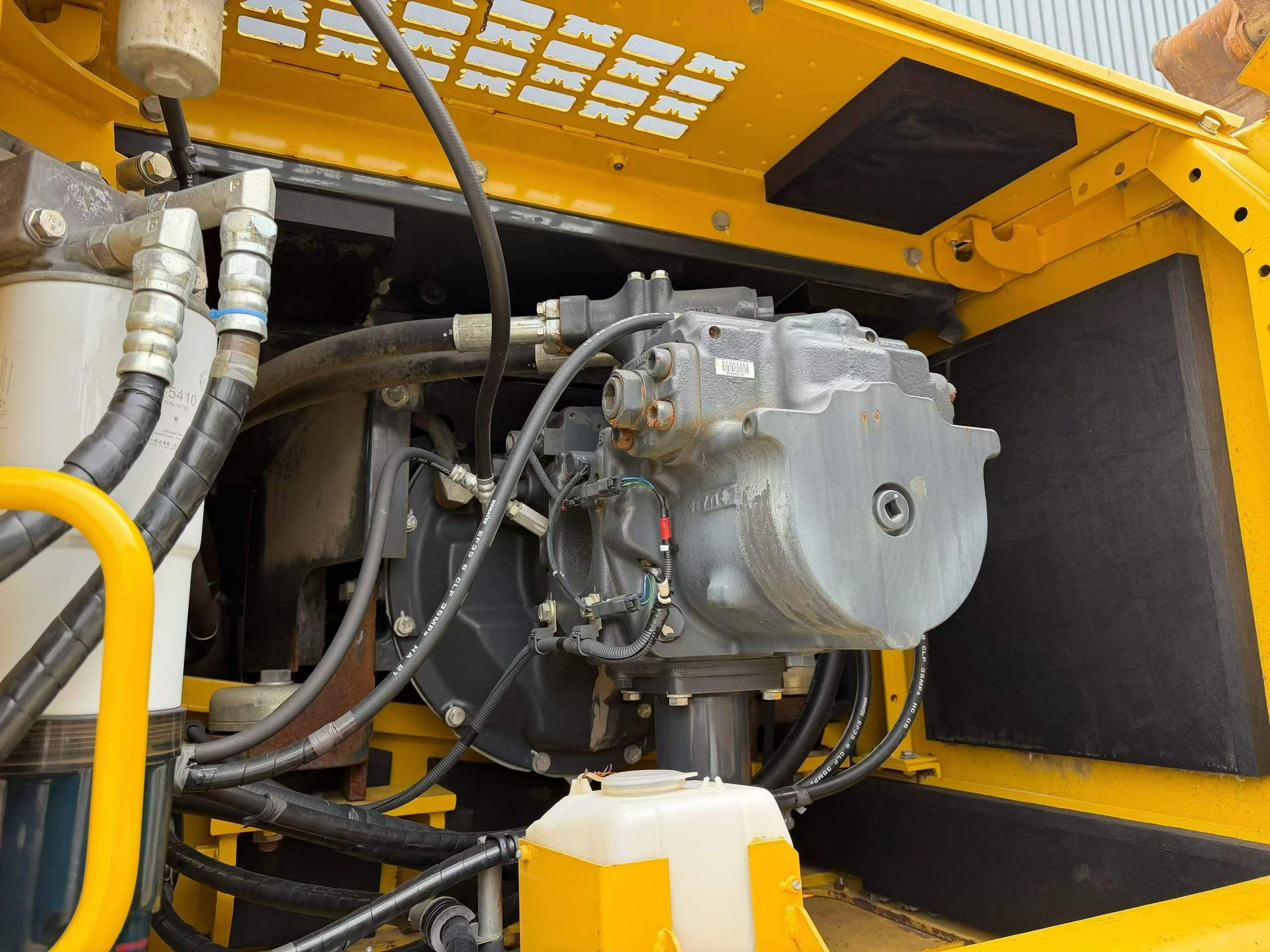

| Main pump type | Variable piston pump |
| Working Hydraulic Circuit (Mpa) | 37.8 |
| Pilot Oil Circuit (MPa) | 3.3 |
| Bucket cylinders - Number × diameter × stroke (mm) | 1-160*1270 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1-185*1985 |
| Boom cylinders - Number × diameter × stroke (mm) | 2-160*1570 |
| Fuel Tank (L) | 650 |
| Hydraulic Tank (L) | 248 |
| Engine Oil changes (L) | 37 |
| Total transport length (mm) | 12040 |
| Total transport width (mm) | 3570 |
| Total transport height (mm) | 3660 |
| Counterweight ground clearance (mm) | 1320 |
| Minimum ground clearance (mm) | 567 |
| Minimum turning radius of front working device (mm) | 4805 |
| Back end turning radius (mm) | 3645 |
| Total track length (mm) | 5385 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 3340 |
| Track ground length (mm) | 4350 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 8 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 12005 |
| Maximum digging depth (mm) | 7790 |
| Maximum excavation height (mm) | 10925 |
| Maximum unloading height (mm) | 7625 |
| Maximum vertical digging depth (mm) | 6600 |
| Maximum excavation radius of stop surface (mm) | 11800 |
