2018 Komatsu PC460LC-8

1/9

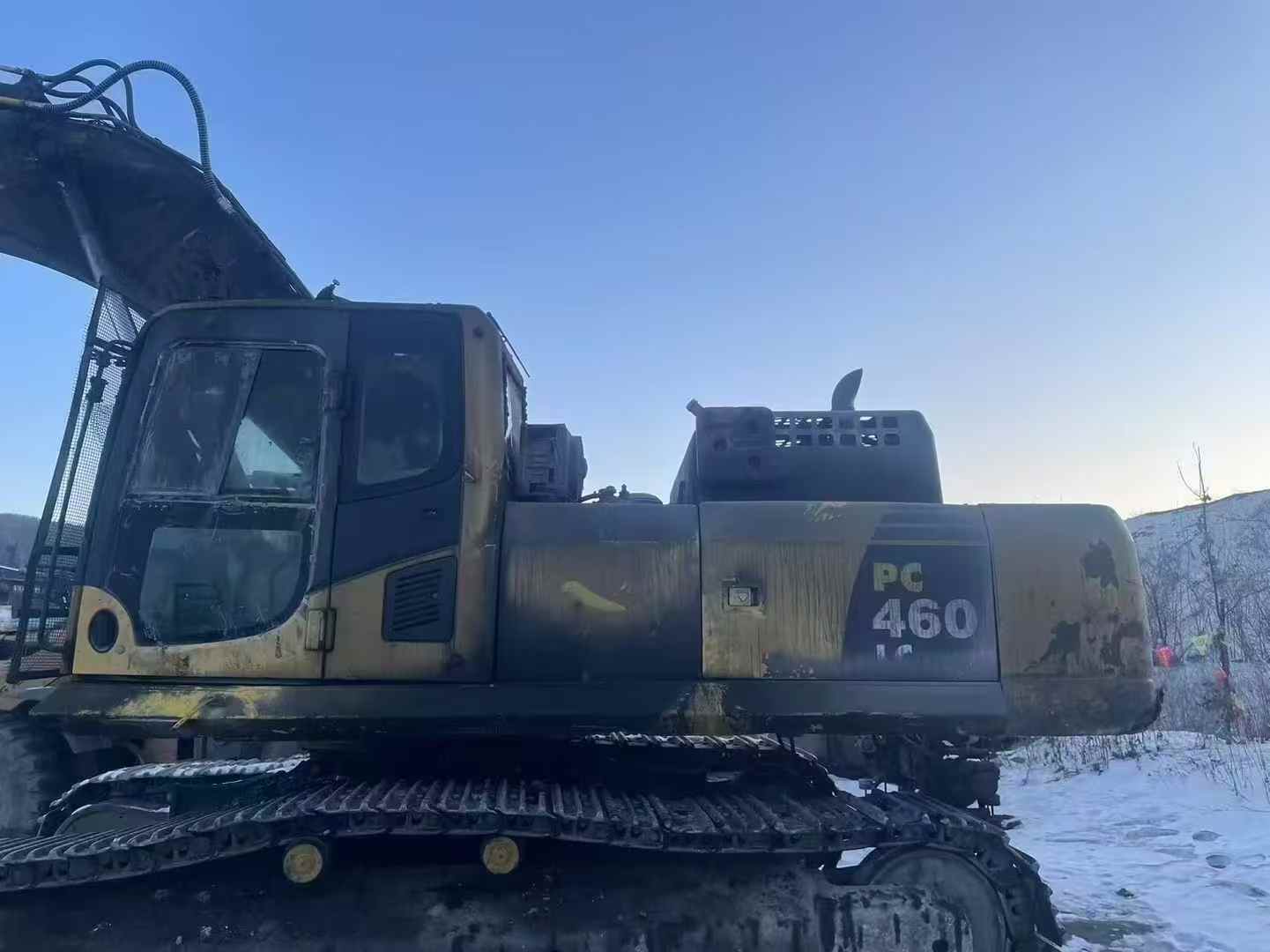

Buy Komatsu PC460LC-8 Used Excavator / 1

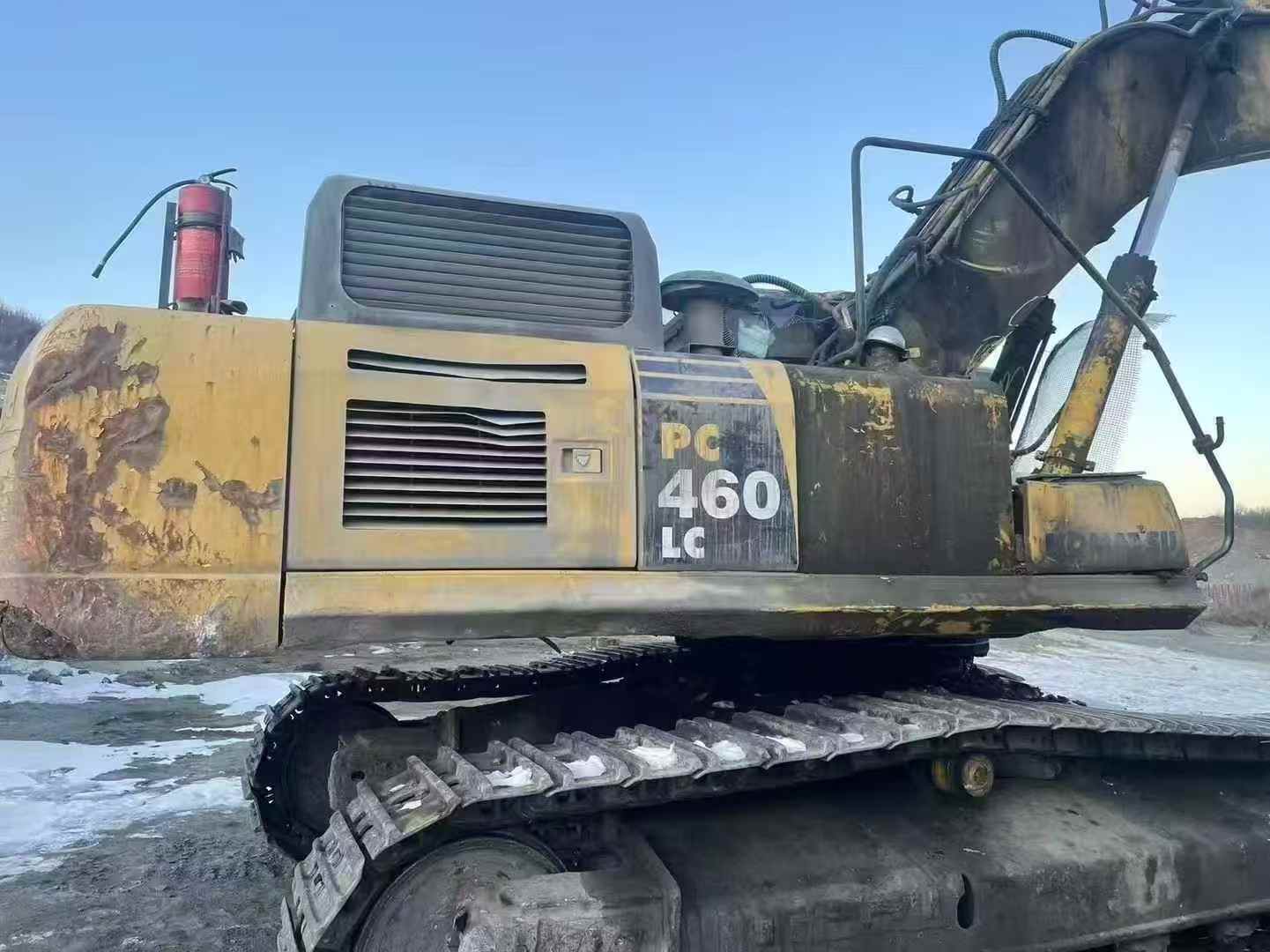

Buy Komatsu PC460LC-8 Used Excavator / 2

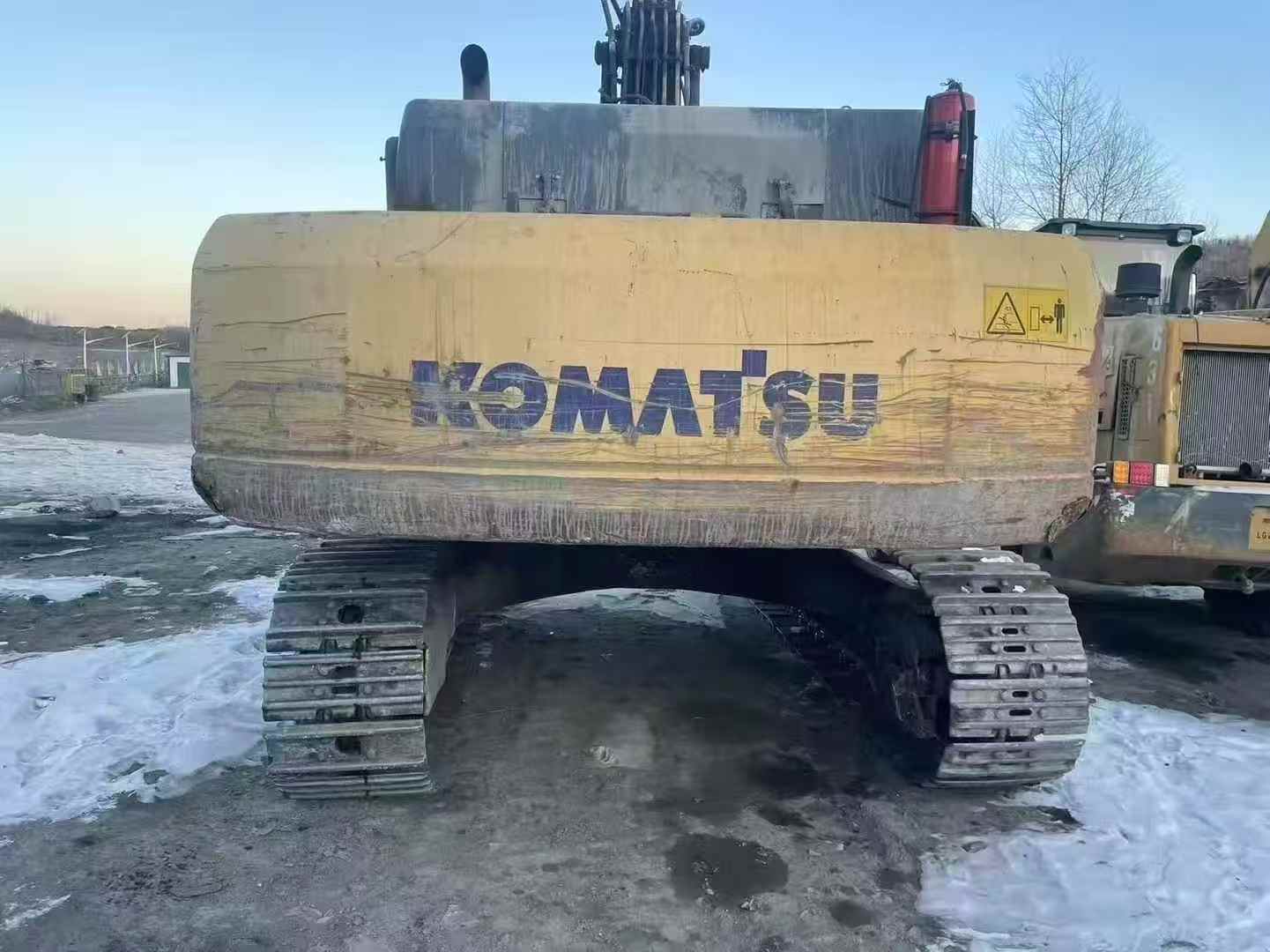

Buy Komatsu PC460LC-8 Used Excavator / 3

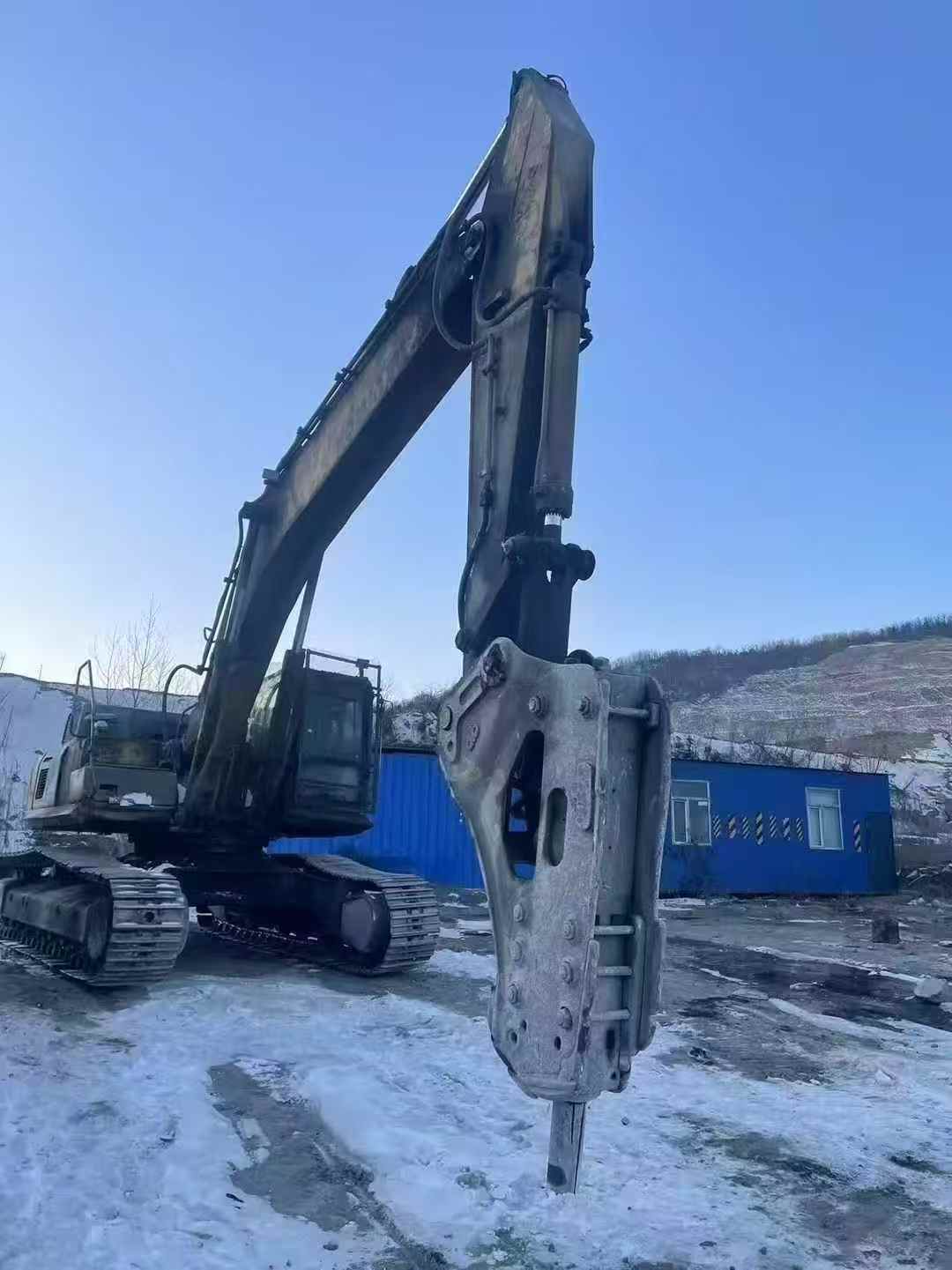

Buy Komatsu PC460LC-8 Used Excavator / 4

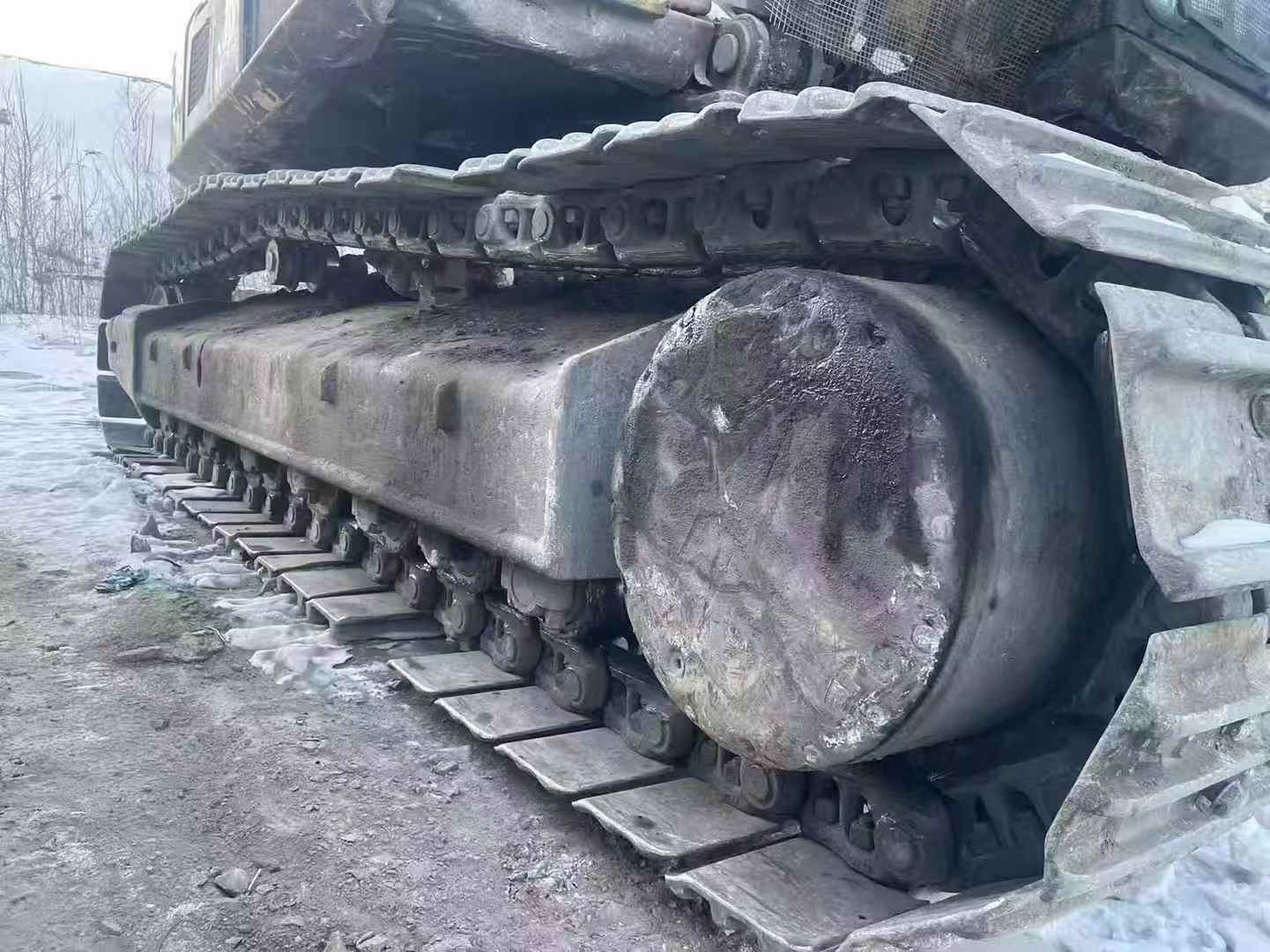

Buy Komatsu PC460LC-8 Used Excavator / 5

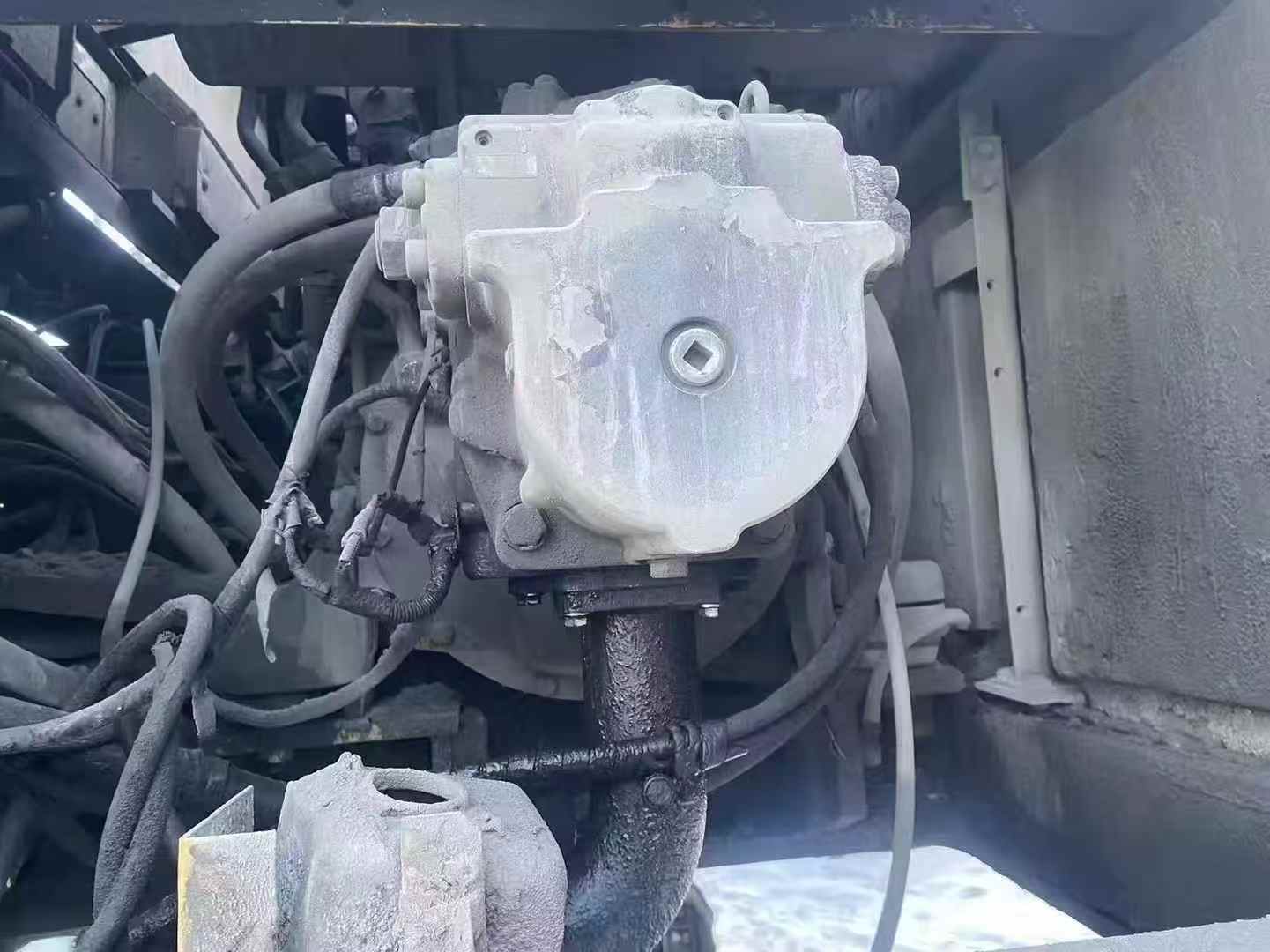

Buy Komatsu PC460LC-8 Used Excavator / 6

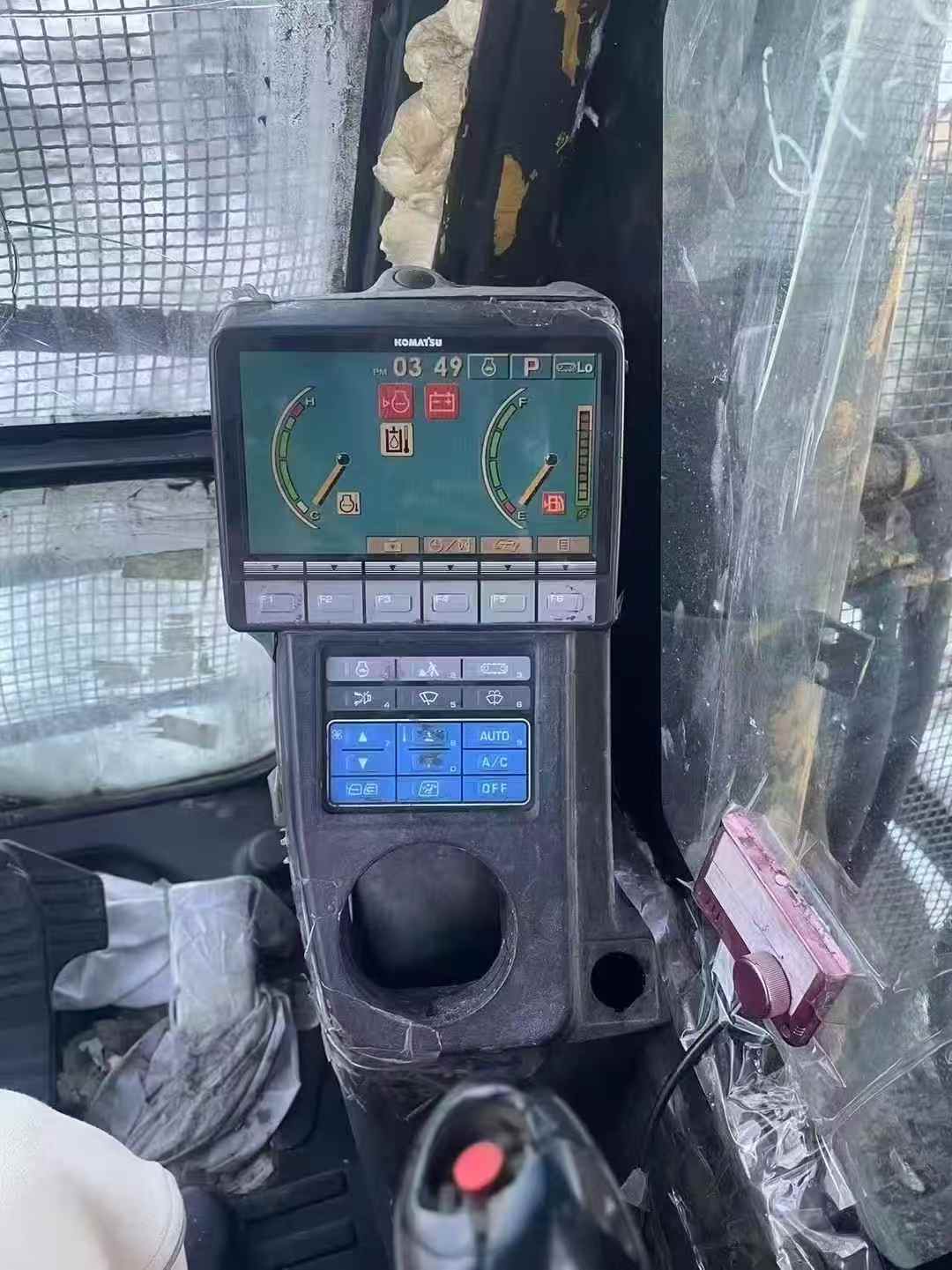

Buy Komatsu PC460LC-8 Used Excavator / 7

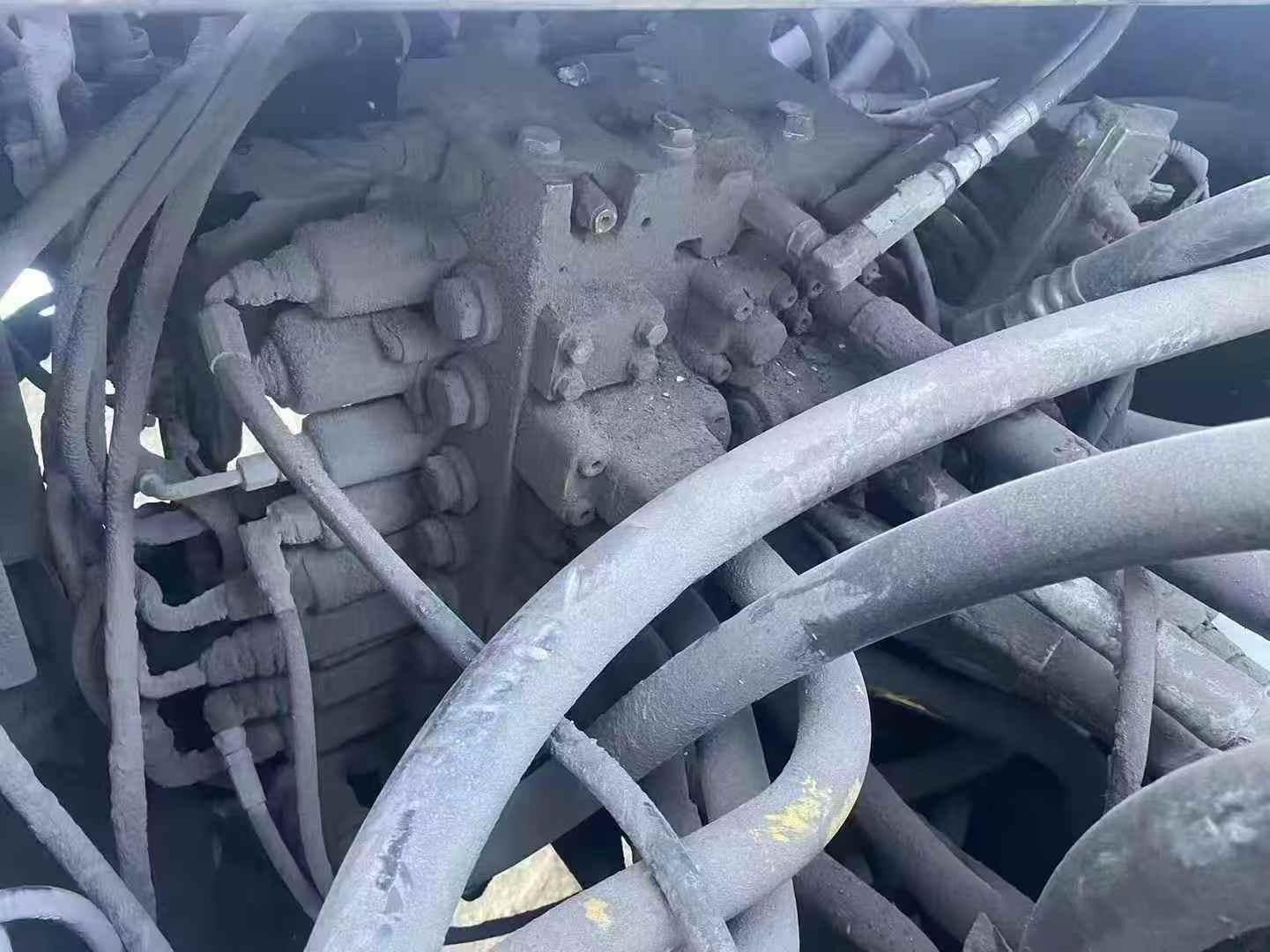

Buy Komatsu PC460LC-8 Used Excavator / 8

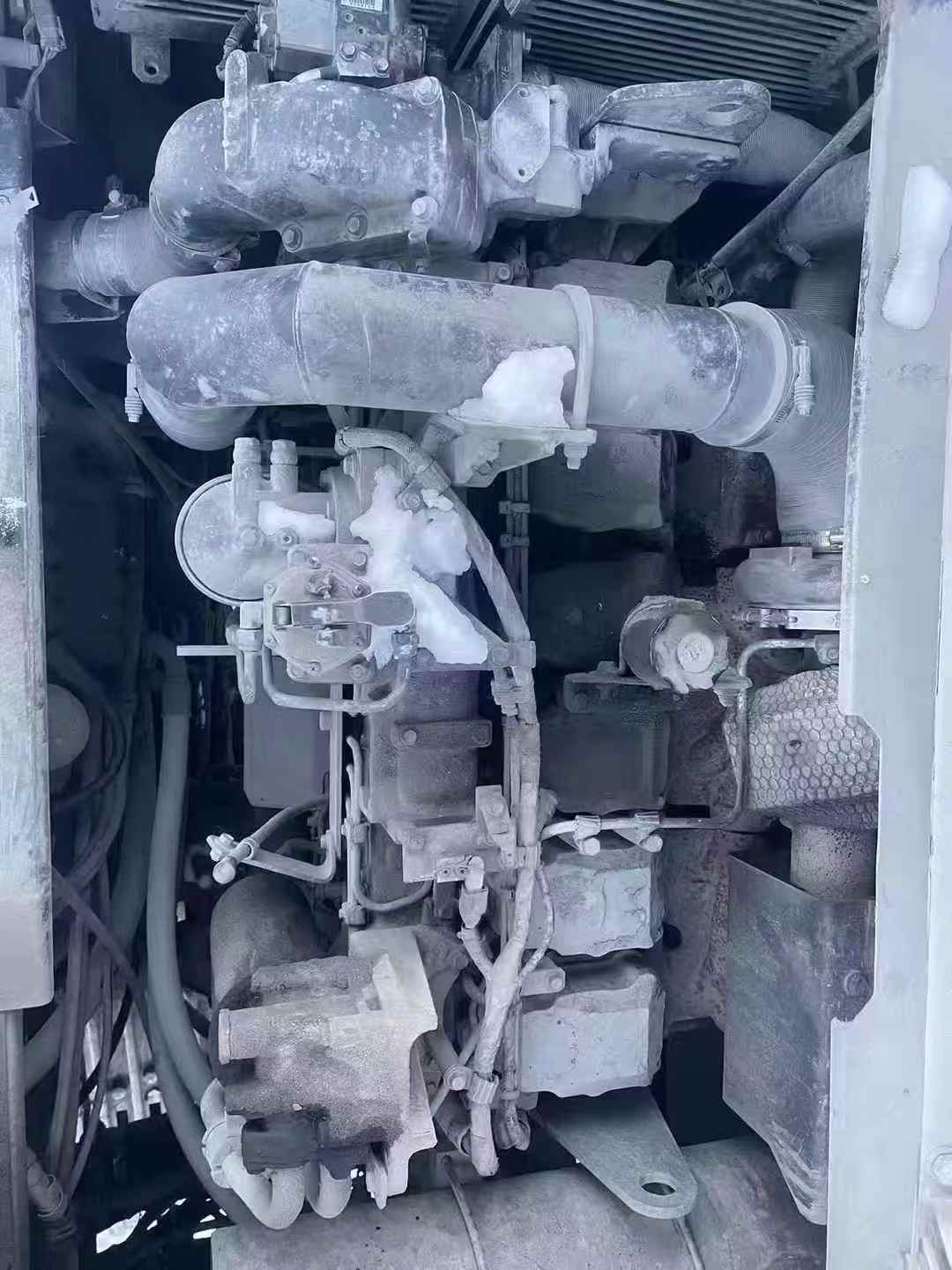

Buy Komatsu PC460LC-8 Used Excavator / 9

Product Description

Proven on job sites worldwide, this 2018 Komatsu PC460LC-8 excavator delivers the reliability contractors demand from Japan's most trusted heavy equipment brand. Operating at 46 tons with a robust 2.1m³ bucket capacity, this machine combines a powerful SAA6D125E-5 engine (257 kW at 1900 rpm) with Komatsu's legendary hydraulic efficiency—690 L/min main pump flow ensures consistent performance in demanding applications.

Komatsu's global parts network and proven resale value make this PC460LC-8 a smart investment. Key specifications include:

  • Maximum digging reach: 12,005mm with 7,790mm depth capability
  • Bucket digging force: 278 kN for tough material penetration
  • 7,060mm boom and 3,380mm arm for versatile working range
  • Efficient water-cooled 6-cylinder engine (11.04L displacement)
  • Currently located in Sanming, Fujian

With readily available OEM parts and comprehensive service documentation, this PC460LC-8 minimizes downtime and protects your investment. Komatsu's engineering excellence translates to lower operating costs and stronger resale values compared to lesser-known brands.

SpecificationsValue
No.1039349
Tonnage (tons)46
Working weight (kg)46000
Bucket capacity (m³)2.1
Boom length (mm)7060
Rod length (mm)3380
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeSAA6D125E-5
Rated power (kw/rpm)257/1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)125*150
Number of cylinders (PCS)6
Displacement (L)11.04
Ground specific pressure (Kpa)79.3
Rotation speed (rpm)9.1
Climbing ability (%)70
Bucket digging force (kN)278
Rod digging force (kN)233
Maximum tractive force (kN)330
Travel speed (km/h)5.5/4.2/3.0
Maximum flow of main pump (l/min)690
Traveling Hydraulic Circuit (Mpa)37.8
Rotary Hydraulic Circuit (Mpa)27.9
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)37.8
Pilot Oil Circuit (MPa)3.3
Bucket cylinders - Number × diameter × stroke (mm)1-160*1270
Bucket rod cylinders - Number × diameter × stroke (mm)1-185*1985
Boom cylinders - Number × diameter × stroke (mm)2-160*1570
Fuel Tank (L)650
Hydraulic Tank (L)248
Engine Oil changes (L)37
Total transport length (mm)12040
Total transport width (mm)3570
Total transport height (mm)3660
Counterweight ground clearance (mm)1320
Minimum ground clearance (mm)567
Minimum turning radius of front working device (mm)4805
Back end turning radius (mm)3645
Total track length (mm)5385
Track gauge (mm)2740
Track plate width (mm)600
Total track width (mm)3340
Track ground length (mm)4350
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)12005
Maximum digging depth (mm)7790
Maximum excavation height (mm)10925
Maximum unloading height (mm)7625
Maximum vertical digging depth (mm)6600
Maximum excavation radius of stop surface (mm)11800
see more

Overview

No.1039349

Brand Name:

Komatsu

Model Number:

PC460LC-8

Year:

2018

Location:

Fujian China

Pub Date
