2018 Komatsu PC460LC-8

1/5
Buy Komatsu PC460LC-8 Used Excavator / 1

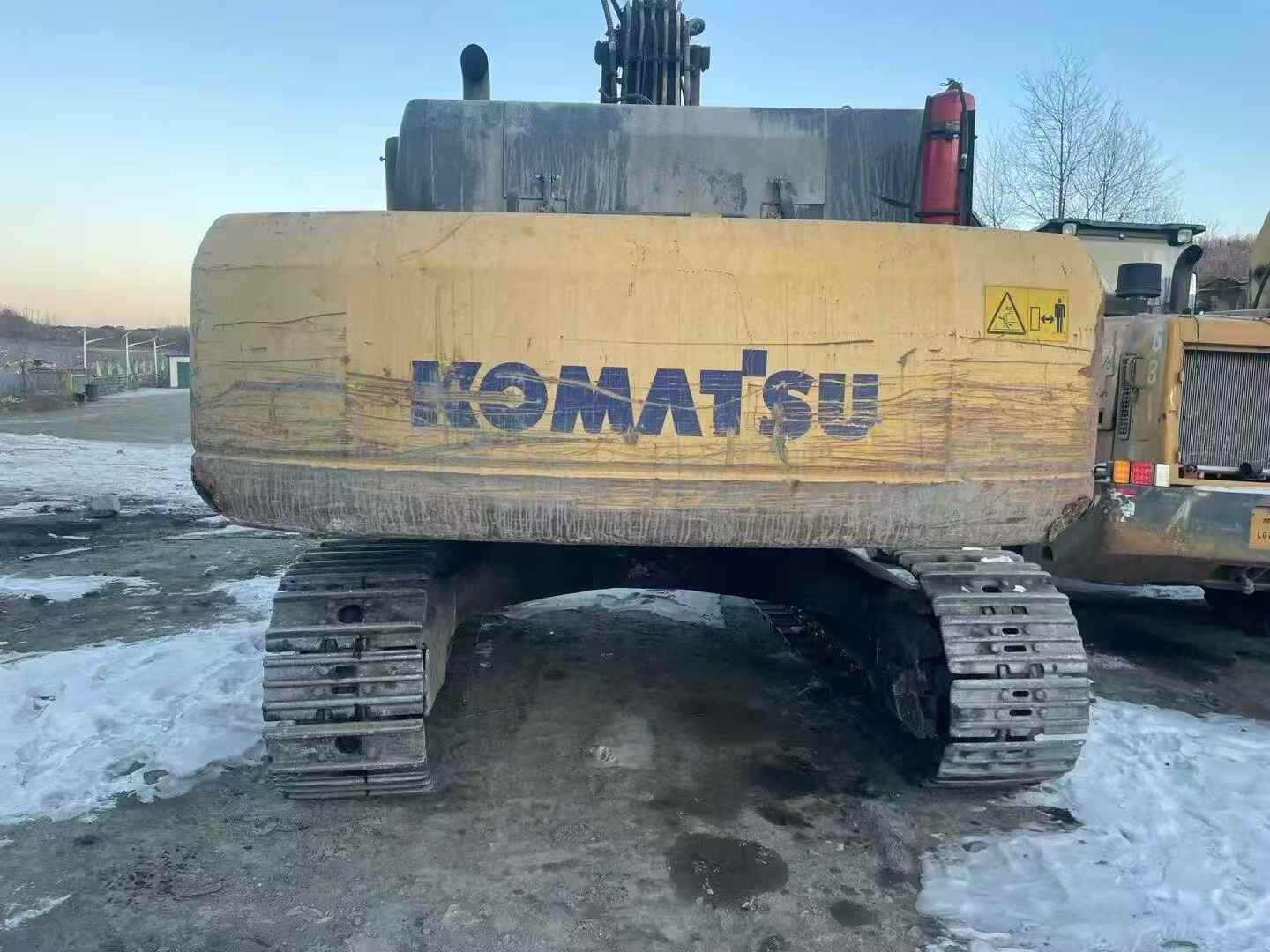

Buy Komatsu PC460LC-8 Used Excavator / 2

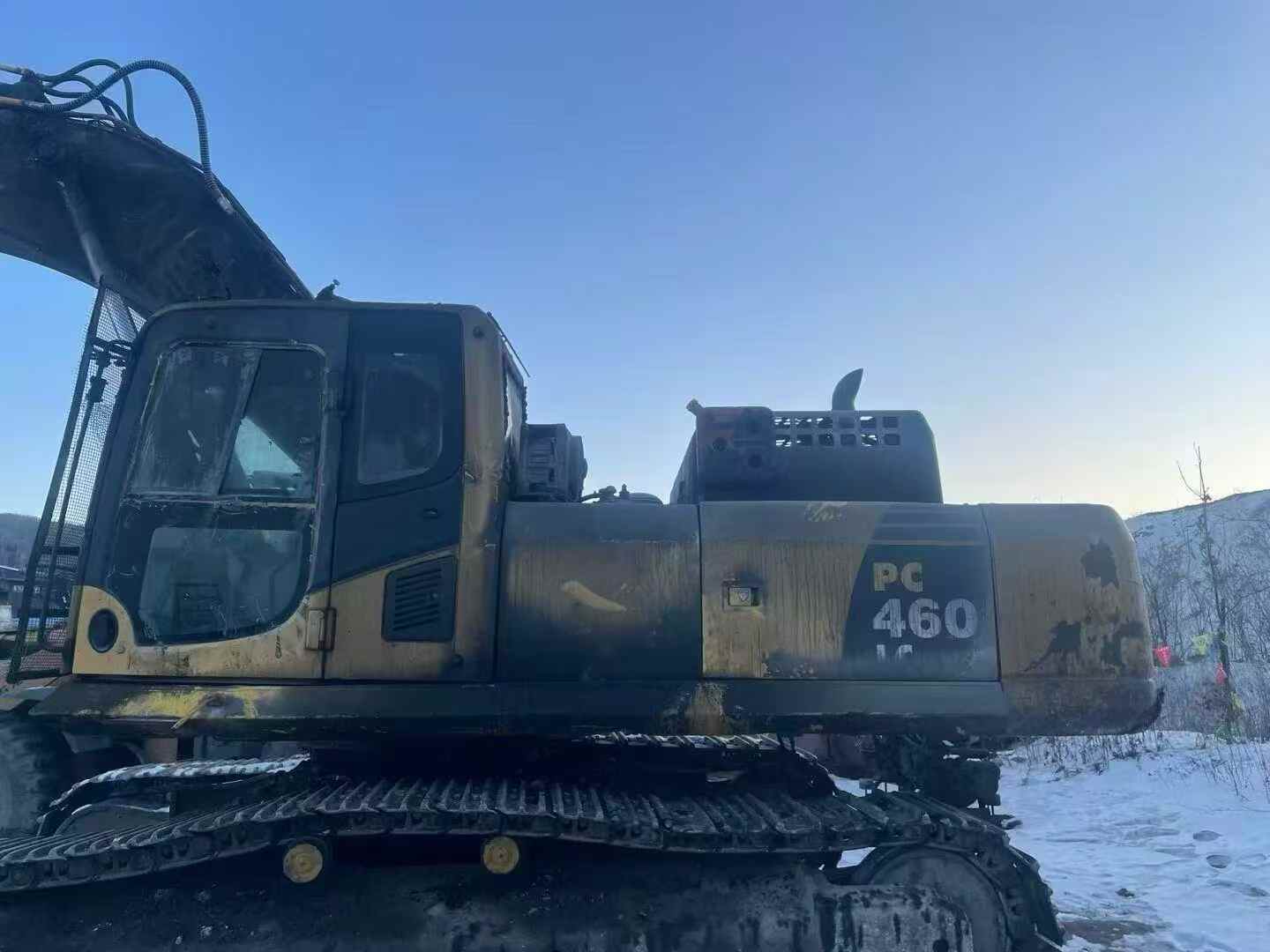

Buy Komatsu PC460LC-8 Used Excavator / 3

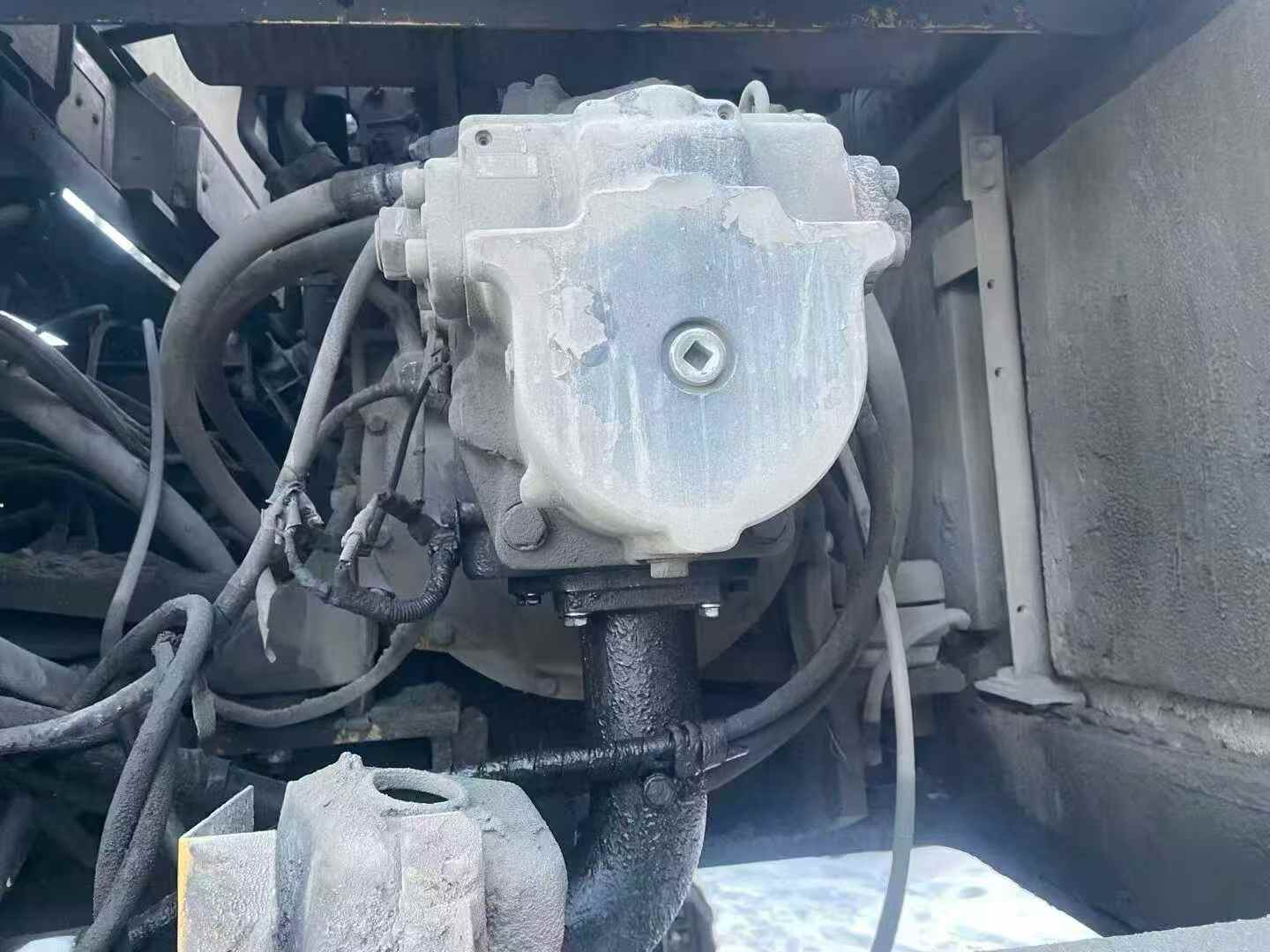

Buy Komatsu PC460LC-8 Used Excavator / 4
Buy Komatsu PC460LC-8 Used Excavator / 5

Product Description

Expand your fleet capacity with this 2018 Komatsu PC460LC-8 excavator, sourced from Fujian and ready for immediate deployment. Built around a proven SAA6D125E-5 engine delivering 257kW at 1900rpm, this 46-ton workhorse provides the hydraulic muscle and reach your high-volume projects demand without disrupting existing operations.

  • 12-meter digging radius and 7.79m depth handle deep foundation and utility work
  • 278kN bucket force and 2.1m³ capacity move material efficiently across shifts
  • 690 L/min main pump flow maintains cycle times under heavy loads
  • Water-cooled 6-cylinder design ensures thermal stability during extended operation
  • Variable piston hydraulics deliver precise control for skilled operators

When your primary machines are committed or downtime isn't an option, this PC460LC-8 slots seamlessly into multi-machine workflows. Standardized Komatsu controls reduce operator transition time, while the 650L fuel tank supports full-day autonomy on remote sites.

SpecificationsValue
No.1042471
Tonnage (tons)46
Working weight (kg)46000
Bucket capacity (m³)2.1
Boom length (mm)7060
Rod length (mm)3380
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeSAA6D125E-5
Rated power (kw/rpm)257/1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)125*150
Number of cylinders (PCS)6
Displacement (L)11.04
Ground specific pressure (Kpa)79.3
Rotation speed (rpm)9.1
Climbing ability (%)70
Bucket digging force (kN)278
Rod digging force (kN)233
Maximum tractive force (kN)330
Travel speed (km/h)5.5/4.2/3.0
Maximum flow of main pump (l/min)690
Traveling Hydraulic Circuit (Mpa)37.8
Rotary Hydraulic Circuit (Mpa)27.9
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)37.8
Pilot Oil Circuit (MPa)3.3
Bucket cylinders - Number × diameter × stroke (mm)1-160*1270
Bucket rod cylinders - Number × diameter × stroke (mm)1-185*1985
Boom cylinders - Number × diameter × stroke (mm)2-160*1570
Fuel Tank (L)650
Hydraulic Tank (L)248
Engine Oil changes (L)37
Total transport length (mm)12040
Total transport width (mm)3570
Total transport height (mm)3660
Counterweight ground clearance (mm)1320
Minimum ground clearance (mm)567
Minimum turning radius of front working device (mm)4805
Back end turning radius (mm)3645
Total track length (mm)5385
Track gauge (mm)2740
Track plate width (mm)600
Total track width (mm)3340
Track ground length (mm)4350
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)12005
Maximum digging depth (mm)7790
Maximum excavation height (mm)10925
Maximum unloading height (mm)7625
Maximum vertical digging depth (mm)6600
Maximum excavation radius of stop surface (mm)11800
see more

Overview

No.1042471

Brand Name:

Komatsu

Model Number:

PC460LC-8

Year:

2018

Location:

Fujian China

Pub Date
