2018 Komatsu PC460LC-8

1/7

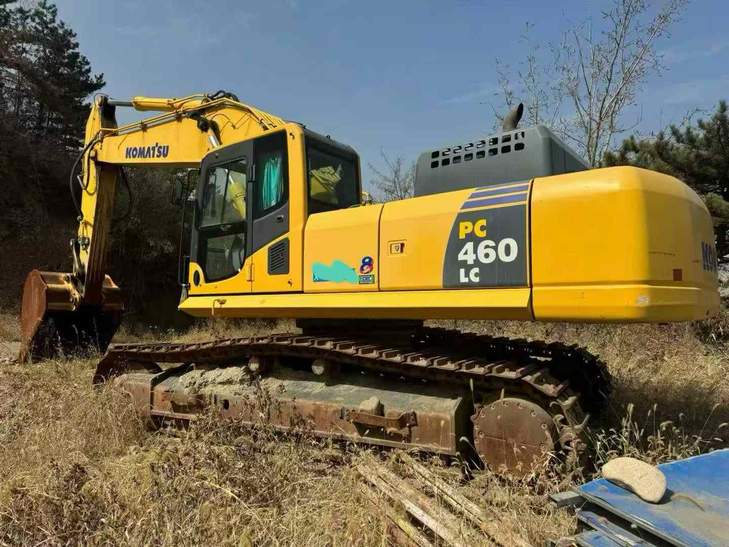

Buy Komatsu PC460LC-8 Used Excavator / 1
Buy Komatsu PC460LC-8 Used Excavator / 2
Buy Komatsu PC460LC-8 Used Excavator / 3
Buy Komatsu PC460LC-8 Used Excavator / 4
Buy Komatsu PC460LC-8 Used Excavator / 5
Buy Komatsu PC460LC-8 Used Excavator / 6
Buy Komatsu PC460LC-8 Used Excavator / 7

Product Description

Engineered with a powerful SAA6D125E-5 engine delivering 257 kW at 1900 rpm, this 2018 Komatsu PC460LC-8 hydraulic excavator combines robust performance with precision control. The 46-ton machine features an 11.04L displacement water-cooled six-cylinder engine, paired with variable piston pumps generating 690 l/min maximum flow for responsive hydraulic operation across demanding jobsites.

Built for heavy-duty excavation, the PC460LC-8 offers exceptional digging capabilities with 278 kN bucket force and 233 kN arm force. Its 7060mm boom and 3380mm arm configuration provide a maximum digging reach of 12,005mm and depth of 7,790mm, while the 2.1 m³ bucket capacity ensures high productivity in earthmoving operations.

Key technical specifications include:

  • Working hydraulic circuit: 37.8 MPa with 3.3 MPa pilot pressure
  • Ground pressure: 79.3 kPa for superior stability
  • Travel speed: 5.5 km/h maximum with 70% gradeability
  • Fuel capacity: 650L for extended operation
  • Currently located in Huizhou, Guangdong
SpecificationsValue
No.1045211
Tonnage (tons)46
Working weight (kg)46000
Bucket capacity (m³)2.1
Boom length (mm)7060
Rod length (mm)3380
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeSAA6D125E-5
Rated power (kw/rpm)257/1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)125*150
Number of cylinders (PCS)6
Displacement (L)11.04
Ground specific pressure (Kpa)79.3
Rotation speed (rpm)9.1
Climbing ability (%)70
Bucket digging force (kN)278
Rod digging force (kN)233
Maximum tractive force (kN)330
Travel speed (km/h)5.5/4.2/3.0
Maximum flow of main pump (l/min)690
Traveling Hydraulic Circuit (Mpa)37.8
Rotary Hydraulic Circuit (Mpa)27.9
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)37.8
Pilot Oil Circuit (MPa)3.3
Bucket cylinders - Number × diameter × stroke (mm)1-160*1270
Bucket rod cylinders - Number × diameter × stroke (mm)1-185*1985
Boom cylinders - Number × diameter × stroke (mm)2-160*1570
Fuel Tank (L)650
Hydraulic Tank (L)248
Engine Oil changes (L)37
Total transport length (mm)12040
Total transport width (mm)3570
Total transport height (mm)3660
Counterweight ground clearance (mm)1320
Minimum ground clearance (mm)567
Minimum turning radius of front working device (mm)4805
Back end turning radius (mm)3645
Total track length (mm)5385
Track gauge (mm)2740
Track plate width (mm)600
Total track width (mm)3340
Track ground length (mm)4350
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)12005
Maximum digging depth (mm)7790
Maximum excavation height (mm)10925
Maximum unloading height (mm)7625
Maximum vertical digging depth (mm)6600
Maximum excavation radius of stop surface (mm)11800
