2020 Komatsu PC460LC-8

1/9
Buy Komatsu PC460LC-8 Used Excavator / 1

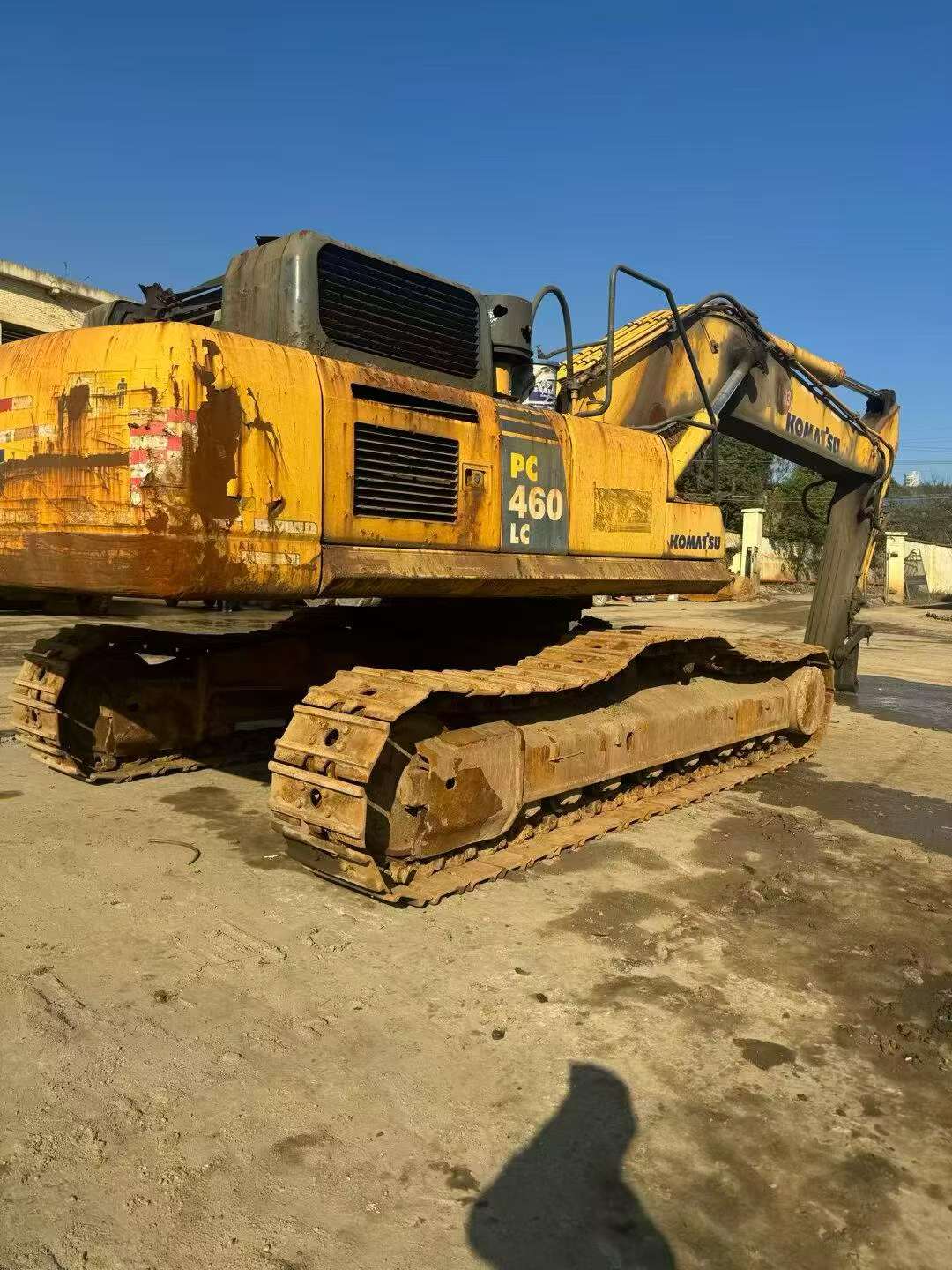

Buy Komatsu PC460LC-8 Used Excavator / 2

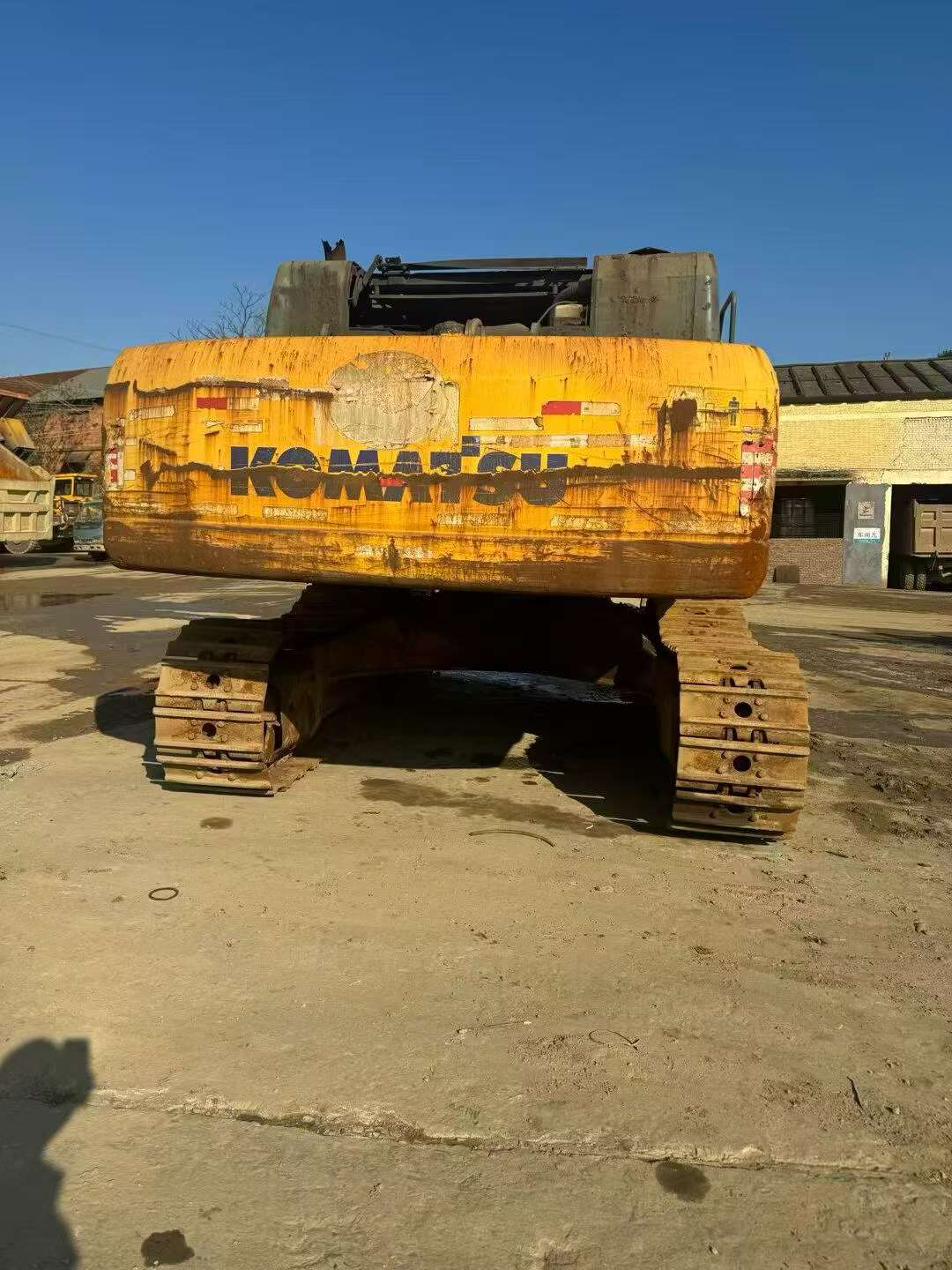

Buy Komatsu PC460LC-8 Used Excavator / 3

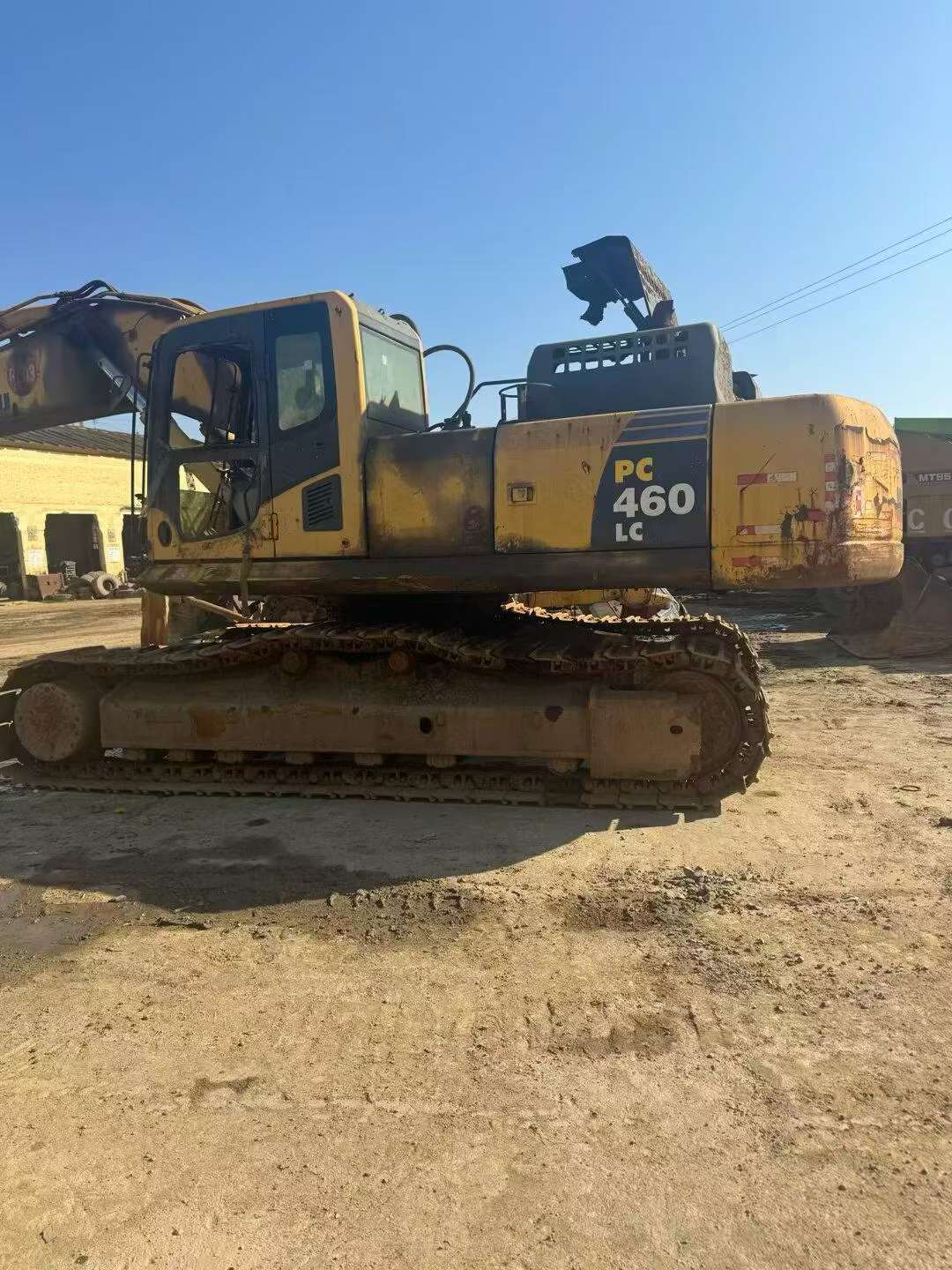

Buy Komatsu PC460LC-8 Used Excavator / 4

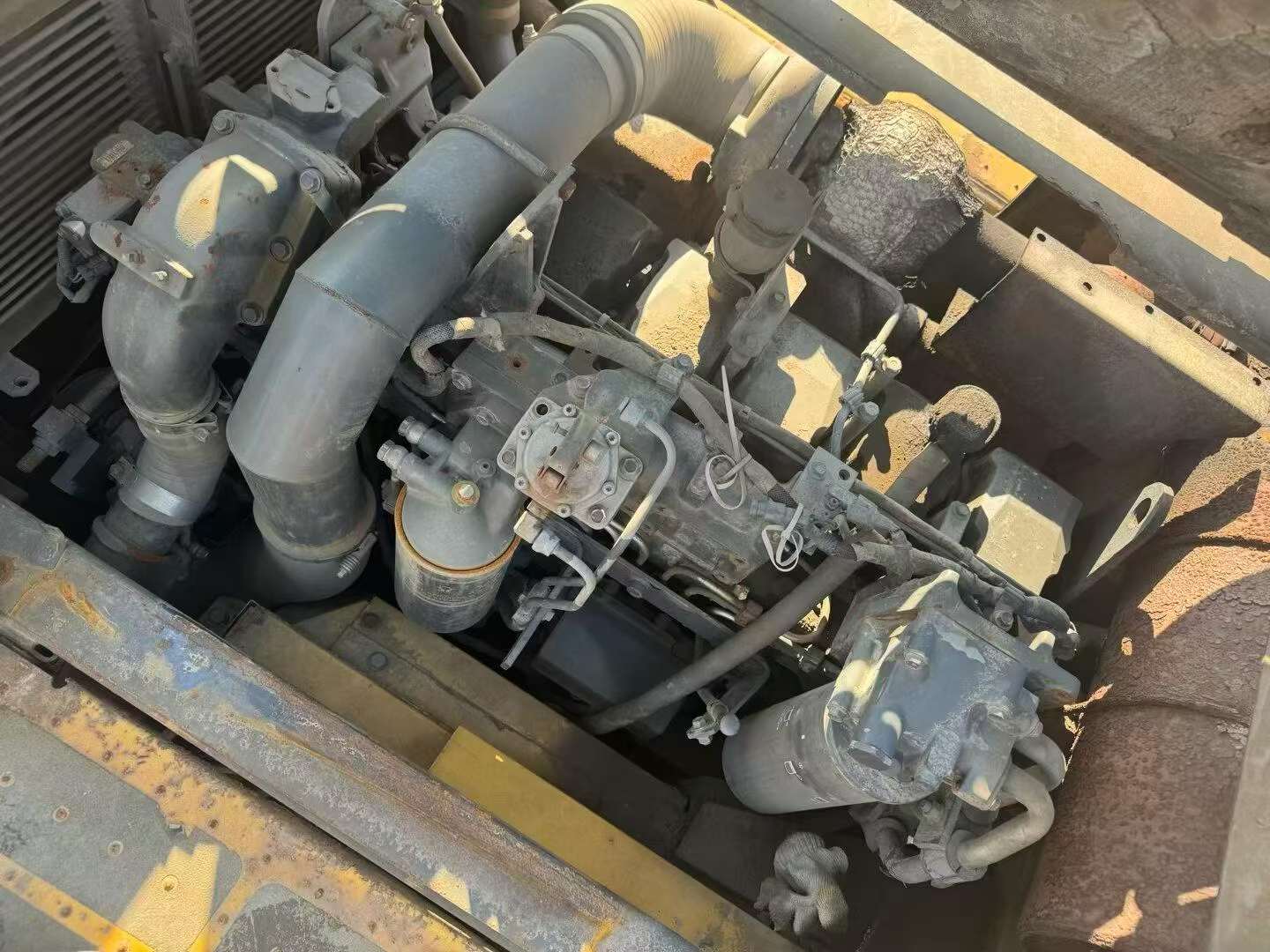

Buy Komatsu PC460LC-8 Used Excavator / 5

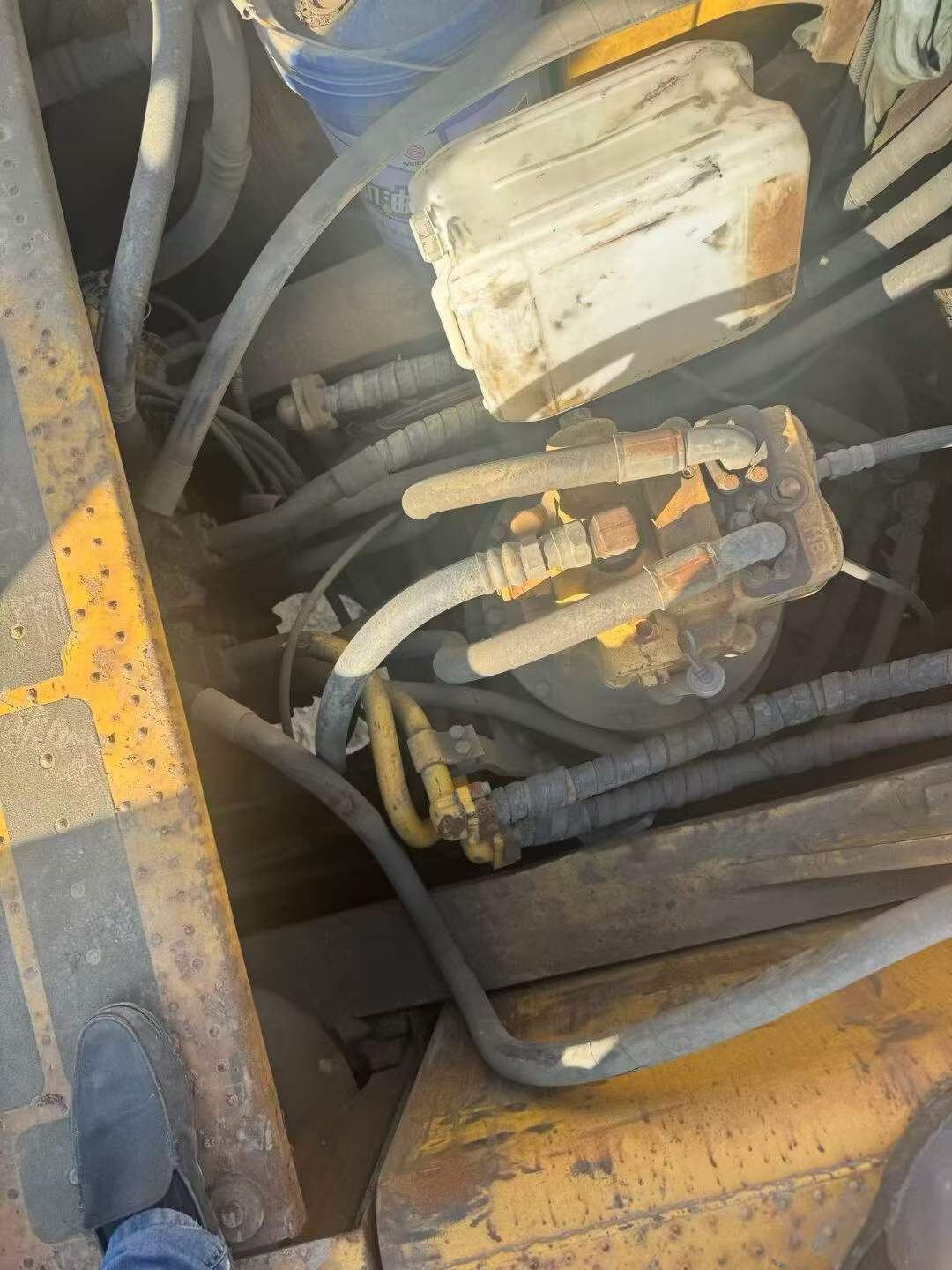

Buy Komatsu PC460LC-8 Used Excavator / 6
Buy Komatsu PC460LC-8 Used Excavator / 7

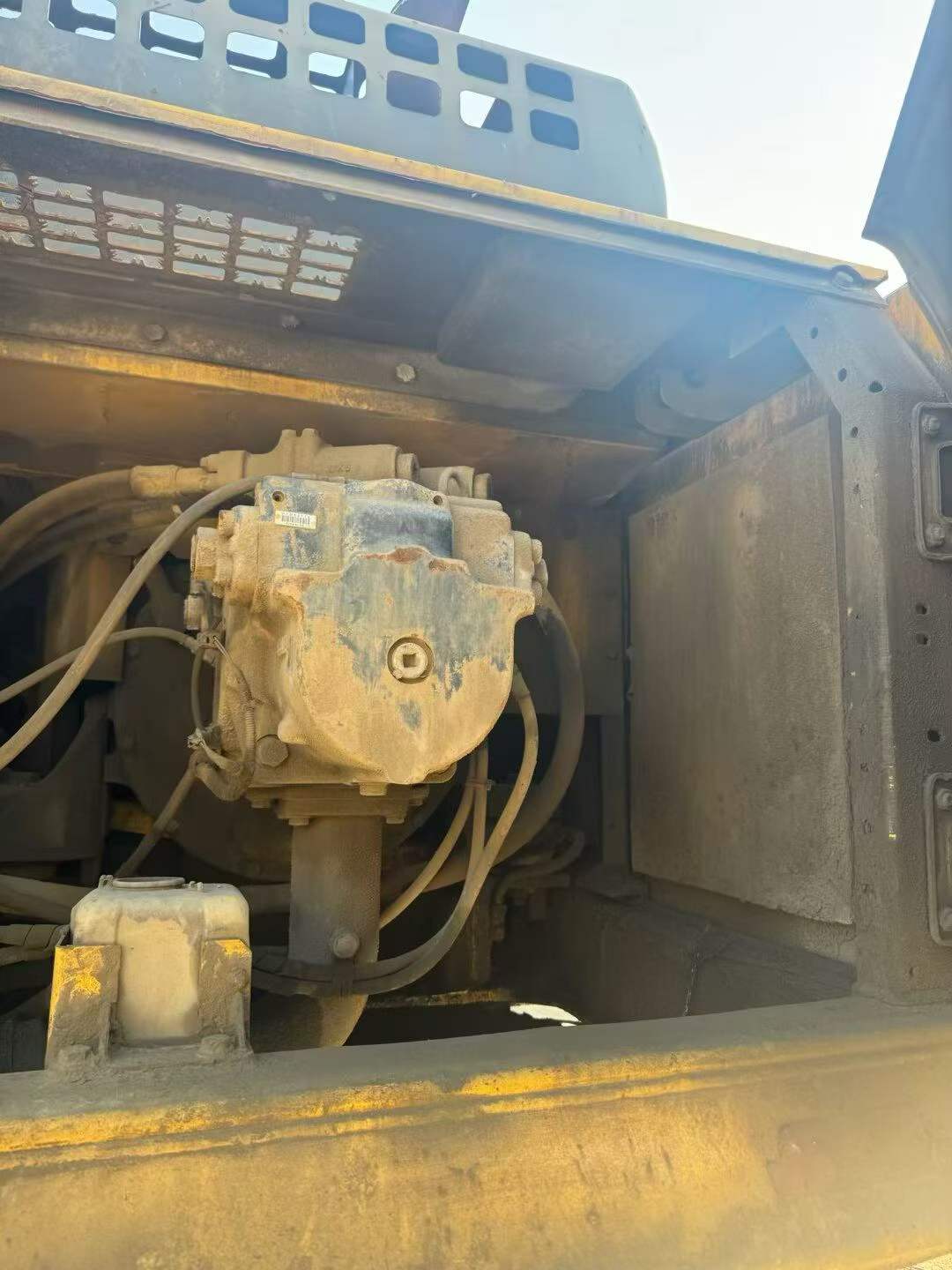

Buy Komatsu PC460LC-8 Used Excavator / 8

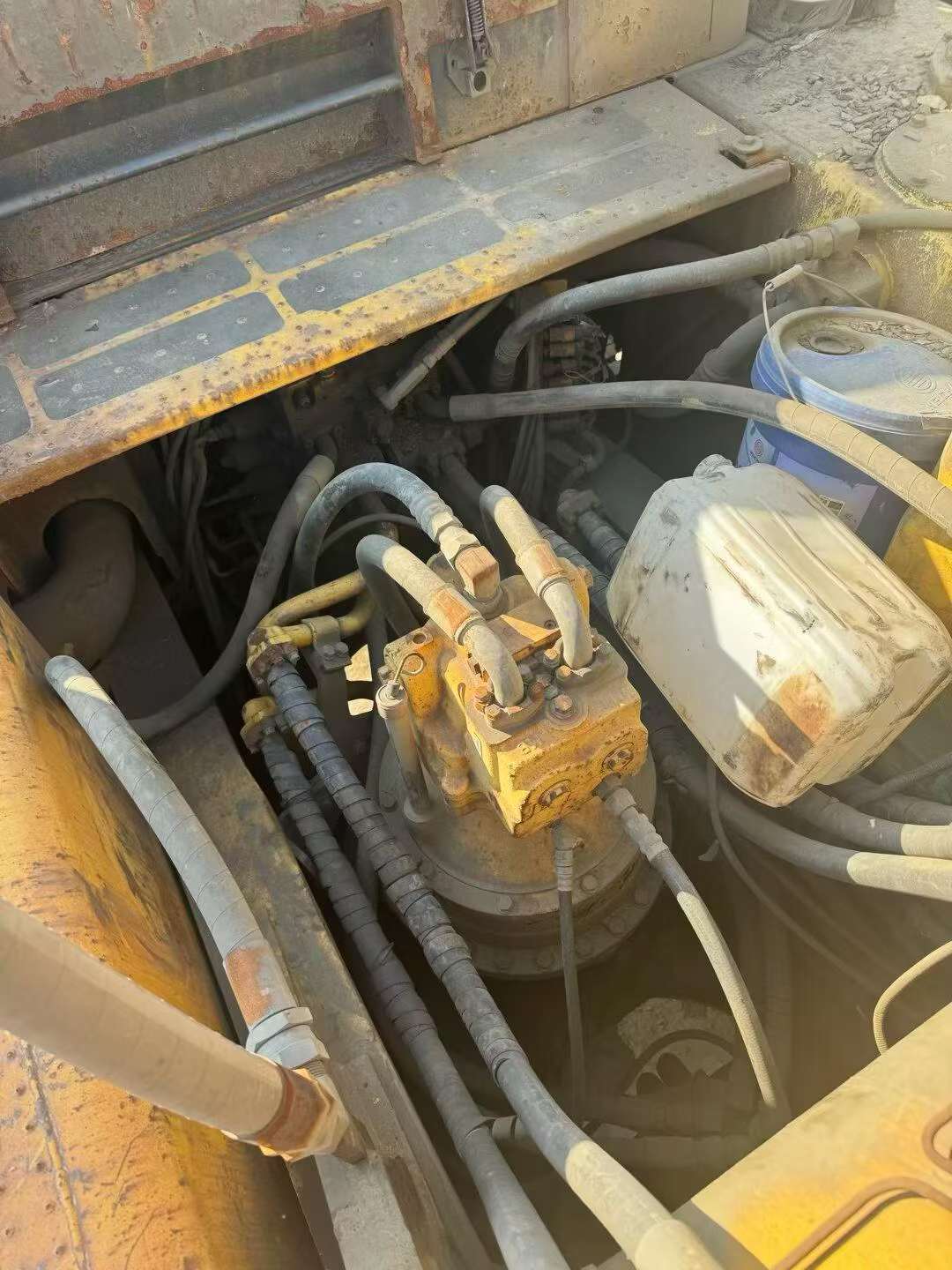

Buy Komatsu PC460LC-8 Used Excavator / 9

Product Description

FairTradeMachinery presents a 2020 Komatsu PC460LC-8 hydraulic excavator, currently available in Hunan, China. This mid-life machine represents proven Dash-8 series engineering with approximately four years of operational history. The PC460LC-8 delivers robust performance in its 45-ton class, suitable for heavy earthmoving, quarrying, and large-scale construction applications.

Key specifications include:

  • Operating weight: Approximately 46,000 kg
  • Engine: Komatsu SAA6D125E-5 turbocharged diesel
  • Bucket capacity range: 1.9 - 2.4 m³
  • Hydraulic system with enhanced fuel efficiency
  • KOMTRAX monitoring system for fleet management

This unit is available for immediate inspection as local inventory in Hunan Province. Competitively priced for the regional market, this excavator offers value for contractors seeking reliable heavy equipment. Contact our team to arrange viewing, discuss pricing, and coordinate logistics for your operation.

SpecificationsValue
No.1089433
Tonnage (tons)46
Working weight (kg)46000
Bucket capacity (m³)2.1
Boom length (mm)7060
Rod length (mm)3380
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeSAA6D125E-5
Rated power (kw/rpm)257/1900
Cooling modewater-cooling
Cylinder diameter × stroke (mm)125*150
Number of cylinders (PCS)6
Displacement (L)11.04
Ground specific pressure (Kpa)79.3
Rotation speed (rpm)9.1
Climbing ability (%)70
Bucket digging force (kN)278
Rod digging force (kN)233
Maximum tractive force (kN)330
Travel speed (km/h)5.5/4.2/3.0
Maximum flow of main pump (l/min)690
Traveling Hydraulic Circuit (Mpa)37.8
Rotary Hydraulic Circuit (Mpa)27.9
Main pump typeVariable piston pump
Working Hydraulic Circuit (Mpa)37.8
Pilot Oil Circuit (MPa)3.3
Bucket cylinders - Number × diameter × stroke (mm)1-160*1270
Bucket rod cylinders - Number × diameter × stroke (mm)1-185*1985
Boom cylinders - Number × diameter × stroke (mm)2-160*1570
Fuel Tank (L)650
Hydraulic Tank (L)248
Engine Oil changes (L)37
Total transport length (mm)12040
Total transport width (mm)3570
Total transport height (mm)3660
Counterweight ground clearance (mm)1320
Minimum ground clearance (mm)567
Minimum turning radius of front working device (mm)4805
Back end turning radius (mm)3645
Total track length (mm)5385
Track gauge (mm)2740
Track plate width (mm)600
Total track width (mm)3340
Track ground length (mm)4350
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)8
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)12005
Maximum digging depth (mm)7790
Maximum excavation height (mm)10925
Maximum unloading height (mm)7625
Maximum vertical digging depth (mm)6600
Maximum excavation radius of stop surface (mm)11800
see more

Overview

No.1089433

Brand Name:

Komatsu

Model Number:

PC460LC-8

Year:

2020

Location:

Hunan China

Pub Date
