Product Description

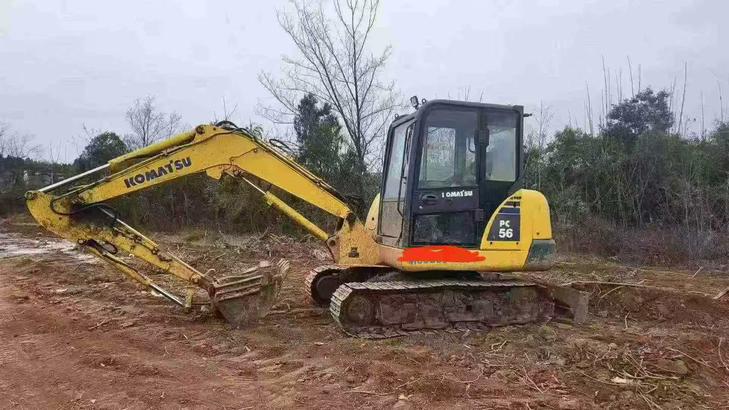

Powered by the proven Komatsu S4D87E-1 engine delivering 34.5kW at 2300rpm, this 2016 PC56-7 mini excavator from Sichuan offers the brand reliability that construction professionals demand. Operating at 5.3 tons with a maximum digging depth of 3,810mm and reach of 6,130mm, this compact machine handles diverse jobsite requirements while maintaining Komatsu's reputation for durability and consistent parts availability across global markets.
- Engine: Komatsu S4D87E-1, water-cooled, 2.434L displacement
- Operating Weight: 5,300kg with 0.055-0.22m³ bucket capacity
- Hydraulic Performance: 26.5MPa working circuit, fixed plunger swing motor
- Dimensions: 5,935mm transport length, 1,960mm width, compact footprint
- Fuel Efficiency: 120L fuel tank for extended operation
Manufactured in Jining, Shandong Province as a joint venture model, this PC56-7 benefits from Komatsu's extensive dealer network and readily available OEM components—critical factors that protect your investment and minimize downtime. Strong resale values make Komatsu equipment a smart financial choice for fleet expansion or turnover.
| Specifications | Value |
|---|---|
| No. | 1019881 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5300 |
| Bucket capacity (m³) | 0.055-0.22 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu S4D87E-1 |
| Rated power (kw/rpm) | 34.5/2300 |
| Cooling mode | water-cooling |
| Displacement (L) | 2.434 |
| Working form | 4-stroke, water-cooled in-line, direct injection motor, stroke :102.4mm, cylinder diameter :87mm. |
| Ground specific pressure (Kpa) | 30.7 |
| Rotation speed (rpm) | 9 |
| Travel speed (km/h) | 2.6/4.1 |
| Rotary hydraulic motor type | Fixed plunger type x 1 |
| Type of walking hydraulic motor | Variable plunger type x 2 |
| Traveling Hydraulic Circuit (Mpa) | 26.5 |
| Rotary Hydraulic Circuit (Mpa) | 19.6 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 26.5 |
| Bucket cylinders - Number × diameter × stroke (mm) | 75 x 580 x 50 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 85 * 709.5 * 55 |
| Boom cylinders - Number × diameter × stroke (mm) | 90 * 689.5 * 55 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 55 |
| Engine Oil changes (L) | 9.7 |
| Coolant (L) | 8 |
| Total transport length (mm) | 5935 |
| Total transport width (mm) | 1960 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 320 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2500 |
| Track gauge (mm) | 1560 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1960 |
| Track ground length (mm) | 1980 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3810 |
| Maximum excavation height (mm) | 5860 |
| Maximum unloading height (mm) | 4130 |
| Maximum vertical digging depth (mm) | 3060 |
| Bulldozer lift or depth (mm) | 355 |
| Maximum excavation radius of stop surface (mm) | 5980 |
