Product Description

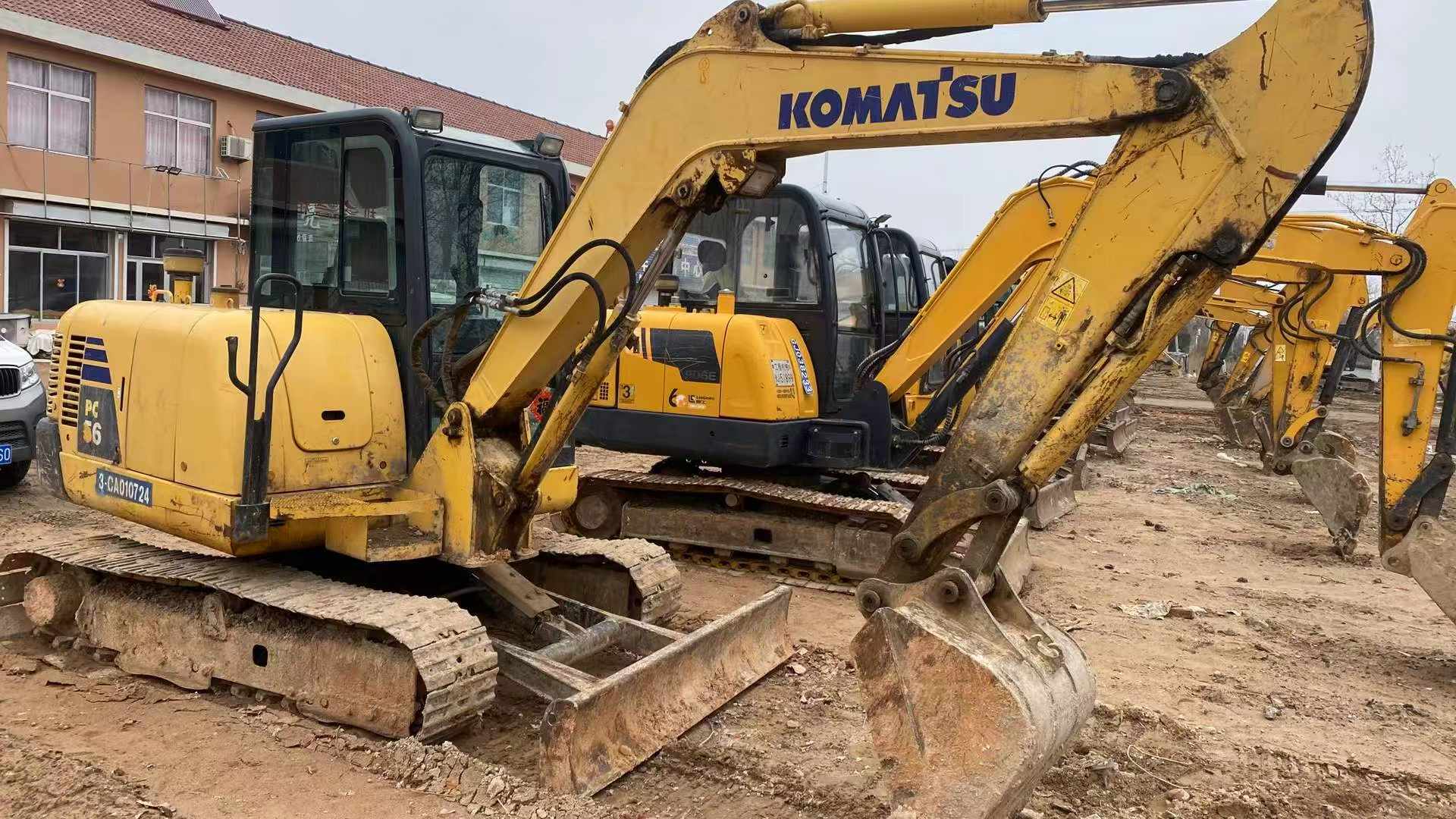

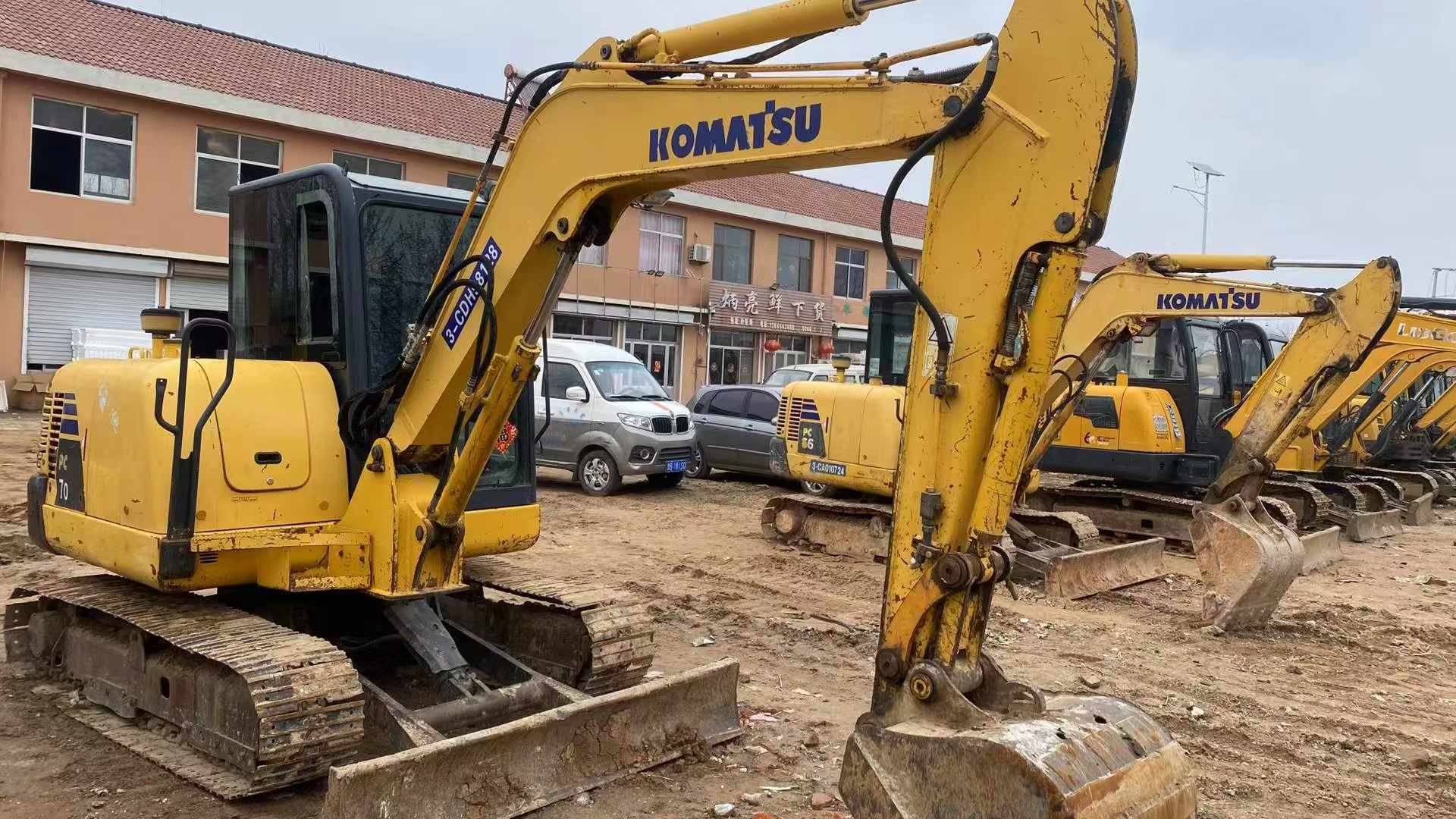

Proven in demanding conditions since 2016, this Komatsu PC56-7 mini excavator demonstrates the durability that defines Komatsu's engineering excellence. Powered by the robust S4D87E-1 water-cooled engine delivering 34.5kW at 2300rpm, this 5.3-ton workhorse combines reliability with efficient performance across diverse jobsites. Built in Jining, Shandong Province, it features versatile bucket capacity ranging from 0.055 to 0.22m³, making it adaptable for trenching, landscaping, and light demolition work.
Operational capabilities include:
- Maximum digging depth of 3,810mm with 6,130mm reach radius
- Compact transport dimensions: 5,935mm length × 1,960mm width × 2,550mm height
- Dual-speed travel system: 2.6/4.1 km/h for efficient site mobility
- 26.5MPa working hydraulic circuit ensuring consistent performance
- 400mm track plates providing 30.7kPa ground pressure for stability
Currently located in Qingdao, Shandong, this machine represents years of proven service with Komatsu's legendary build quality intact. A reliable investment for contractors seeking dependable performance without compromise.
| Specifications | Value |
|---|---|
| No. | 1021975 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5300 |
| Bucket capacity (m³) | 0.055-0.22 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

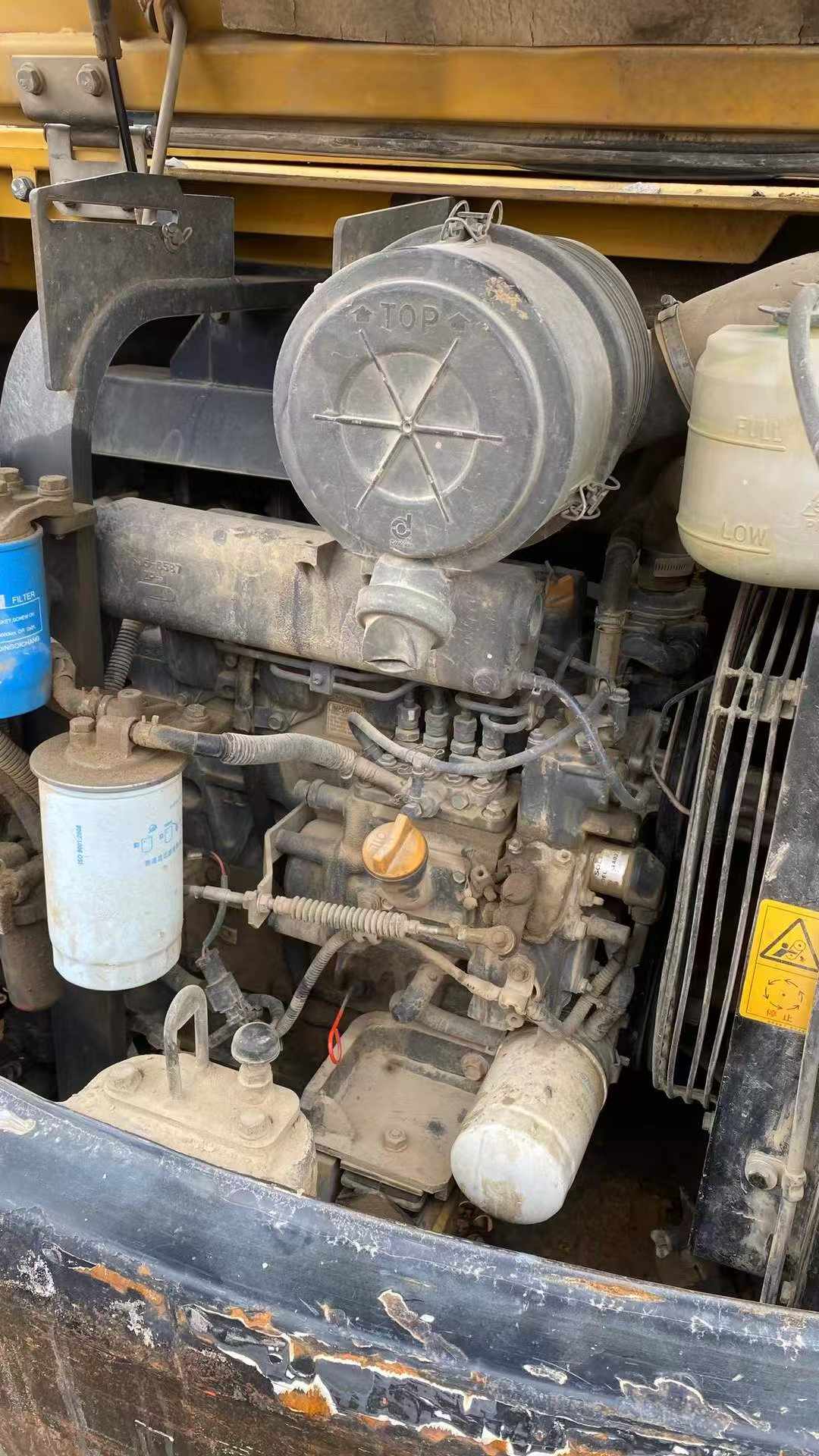

| Engine type | Komatsu S4D87E-1 |
| Rated power (kw/rpm) | 34.5/2300 |
| Cooling mode | water-cooling |
| Displacement (L) | 2.434 |
| Working form | 4-stroke, water-cooled in-line, direct injection motor, stroke :102.4mm, cylinder diameter :87mm. |
| Ground specific pressure (Kpa) | 30.7 |
| Rotation speed (rpm) | 9 |
| Travel speed (km/h) | 2.6/4.1 |
| Rotary hydraulic motor type | Fixed plunger type x 1 |
| Type of walking hydraulic motor | Variable plunger type x 2 |
| Traveling Hydraulic Circuit (Mpa) | 26.5 |
| Rotary Hydraulic Circuit (Mpa) | 19.6 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 26.5 |
| Bucket cylinders - Number × diameter × stroke (mm) | 75 x 580 x 50 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 85 * 709.5 * 55 |
| Boom cylinders - Number × diameter × stroke (mm) | 90 * 689.5 * 55 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 55 |
| Engine Oil changes (L) | 9.7 |
| Coolant (L) | 8 |
| Total transport length (mm) | 5935 |
| Total transport width (mm) | 1960 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 320 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2500 |
| Track gauge (mm) | 1560 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1960 |
| Track ground length (mm) | 1980 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3810 |
| Maximum excavation height (mm) | 5860 |
| Maximum unloading height (mm) | 4130 |
| Maximum vertical digging depth (mm) | 3060 |
| Bulldozer lift or depth (mm) | 355 |
| Maximum excavation radius of stop surface (mm) | 5980 |
