Product Description

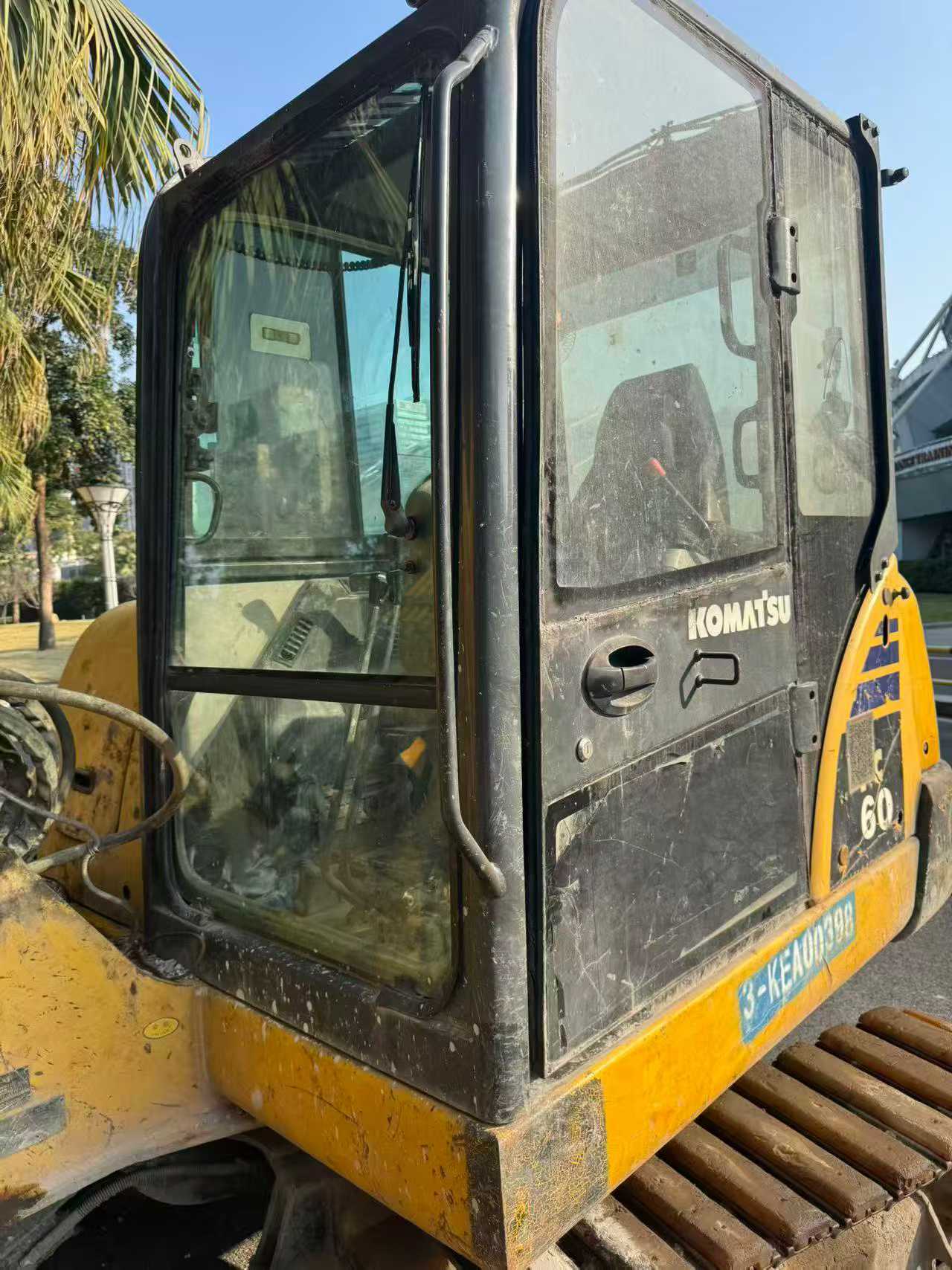

Maximize your equipment budget with this 2016 Komatsu PC56-7 mini excavator, currently available in Shenzhen, Guangdong. Delivering professional-grade performance at a fraction of new equipment costs, this 5-ton machine combines proven reliability with impressive operational capabilities. Powered by a robust Komatsu S4D87E-1 engine generating 34.5kW at 2300rpm, this compact excavator handles demanding tasks with efficiency and precision.
Key specifications include:
- Working weight: 5,300kg with bucket capacity ranging from 0.055-0.22m³
- Maximum digging depth of 3,810mm and reach of 6,130mm
- Water-cooled 4-stroke engine with 2.434L displacement
- Compact transport dimensions: 5,935mm × 1,960mm × 2,550mm
- Dual variable plunger travel motors and fixed plunger rotation system
- 26.5MPa working hydraulic circuit for consistent power delivery
Built by a joint venture manufacturer in Jining, Shandong Province, this backhoe-configured excavator offers exceptional value for contractors seeking reliable performance without the premium price tag of new equipment. Smart operators recognize that strategic used equipment purchases extend capital while maintaining productivit
| Specifications | Value |
|---|---|
| No. | 994481 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5300 |
| Bucket capacity (m³) | 0.055-0.22 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Komatsu S4D87E-1 |
| Rated power (kw/rpm) | 34.5/2300 |
| Cooling mode | water-cooling |
| Displacement (L) | 2.434 |
| Working form | 4-stroke, water-cooled in-line, direct injection motor, stroke :102.4mm, cylinder diameter :87mm. |
| Ground specific pressure (Kpa) | 30.7 |
| Rotation speed (rpm) | 9 |
| Travel speed (km/h) | 2.6/4.1 |
| Rotary hydraulic motor type | Fixed plunger type x 1 |
| Type of walking hydraulic motor | Variable plunger type x 2 |
| Traveling Hydraulic Circuit (Mpa) | 26.5 |
| Rotary Hydraulic Circuit (Mpa) | 19.6 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 26.5 |
| Bucket cylinders - Number × diameter × stroke (mm) | 75 x 580 x 50 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 85 * 709.5 * 55 |
| Boom cylinders - Number × diameter × stroke (mm) | 90 * 689.5 * 55 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 55 |
| Engine Oil changes (L) | 9.7 |
| Coolant (L) | 8 |
| Total transport length (mm) | 5935 |
| Total transport width (mm) | 1960 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 320 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2500 |
| Track gauge (mm) | 1560 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1960 |
| Track ground length (mm) | 1980 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3810 |
| Maximum excavation height (mm) | 5860 |
| Maximum unloading height (mm) | 4130 |
| Maximum vertical digging depth (mm) | 3060 |
| Bulldozer lift or depth (mm) | 355 |
| Maximum excavation radius of stop surface (mm) | 5980 |
