Product Description

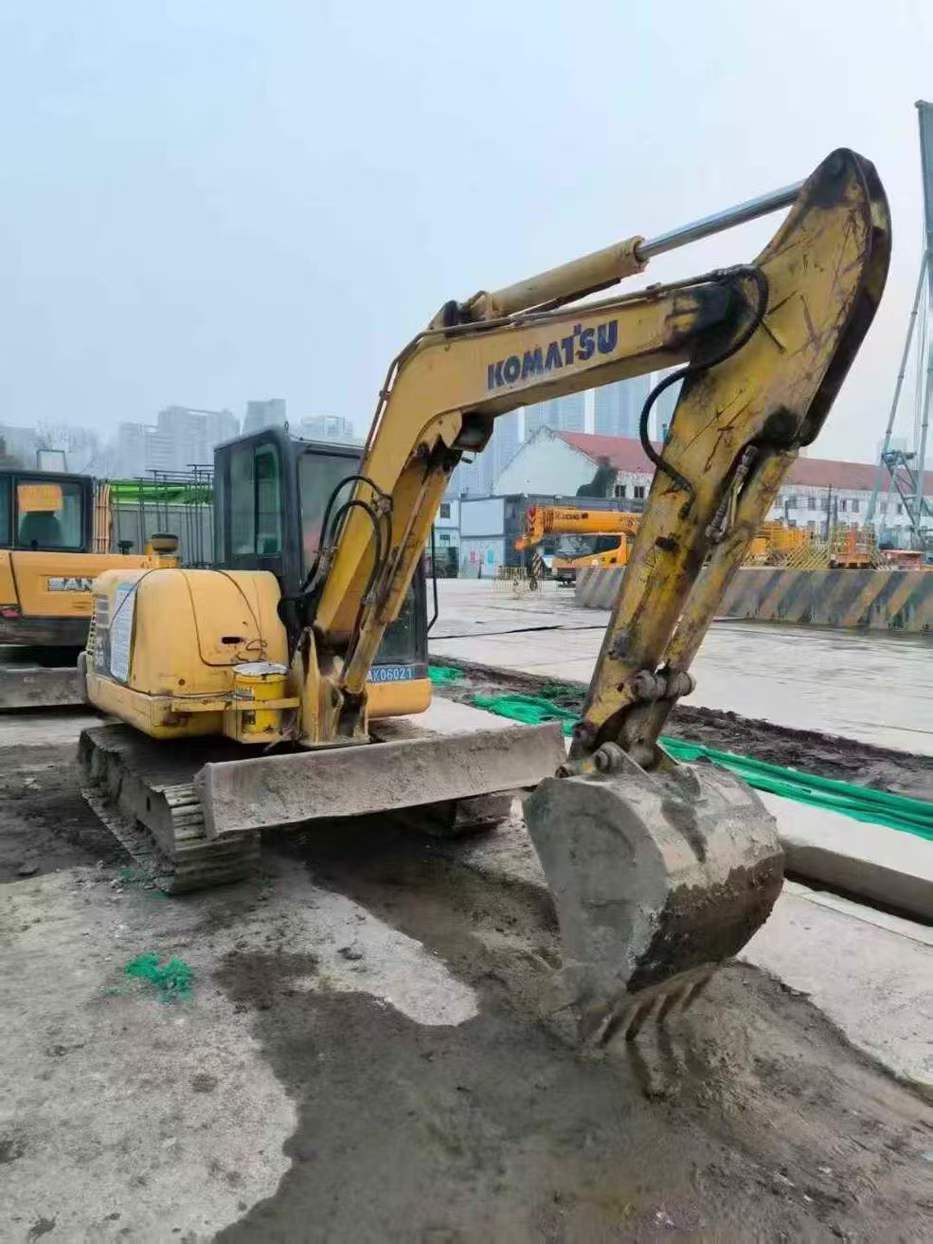

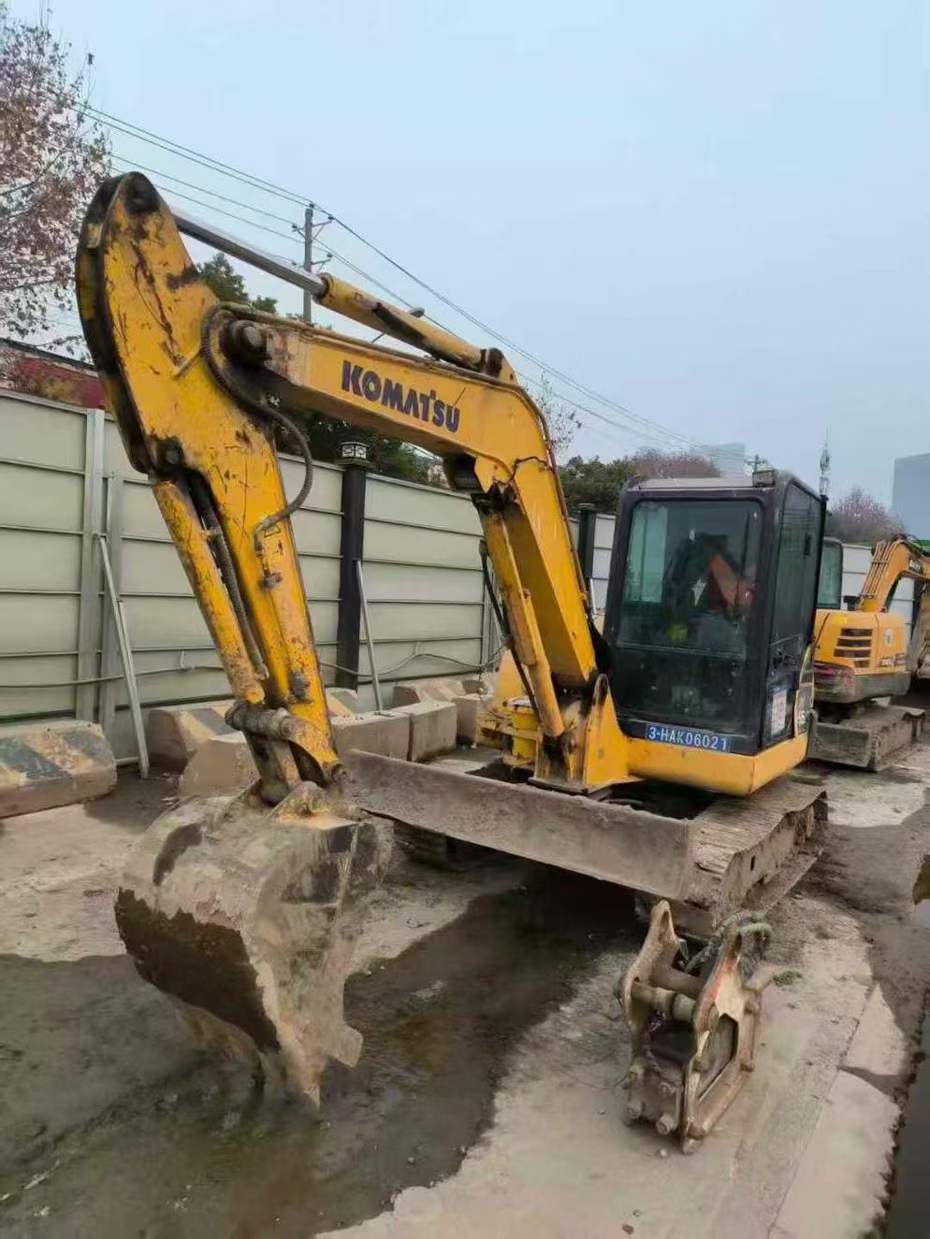

Proven reliability meets compact versatility in this 2017 Komatsu PC56-7 mini excavator, currently located in Hefei, Anhui. Powered by the robust Komatsu S4D87E-1 engine delivering 34.5kW at 2300rpm, this 5.3-ton machine combines Japanese engineering precision with practical performance for confined jobsites. The water-cooled, 4-stroke direct injection motor ensures consistent operation across demanding applications.
Komatsu's reputation in the used equipment market stands unmatched. Parts availability remains exceptional even for older models, minimizing downtime and maintenance costs. Resale values consistently outperform competitors, protecting your investment long-term. This PC56-7 features impressive working parameters: 6,130mm maximum digging radius, 3,810mm digging depth, and bucket capacity ranging from 0.055 to 0.22m³. The fixed plunger rotary motor and dual variable plunger travel motors deliver precise control through hydraulic circuits operating at 26.5Mpa.
Compact dimensions (5,935mm length × 1,960mm width × 2,550mm height) facilitate easy transport, while the 1,650mm rear turning radius enables operation in restricted spaces. With 120L fuel capacity and comprehensive hydraulic systems, this Komatsu repr
| Specifications | Value |
|---|---|
| No. | 998352 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5300 |
| Bucket capacity (m³) | 0.055-0.22 |
| Country of origin | Jining, Shandong Province |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

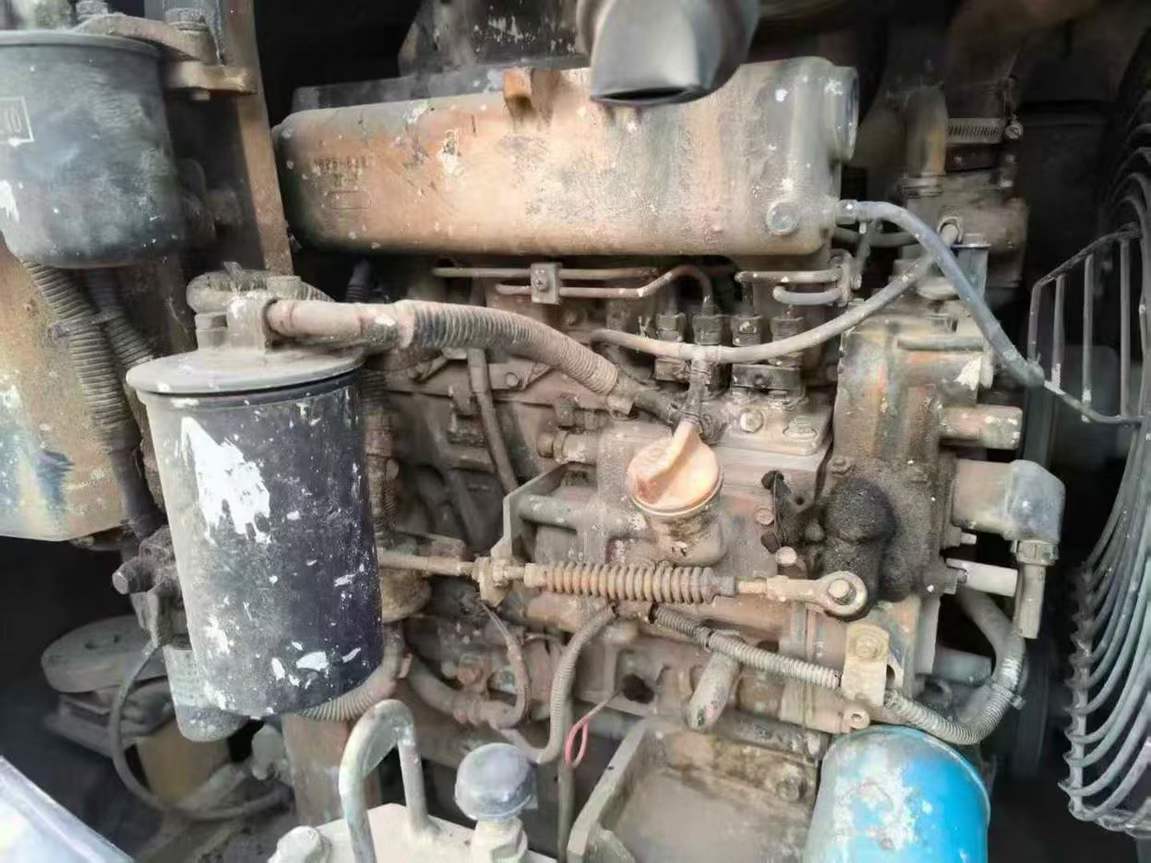

| Engine type | Komatsu S4D87E-1 |
| Rated power (kw/rpm) | 34.5/2300 |
| Cooling mode | water-cooling |
| Displacement (L) | 2.434 |
| Working form | 4-stroke, water-cooled in-line, direct injection motor, stroke :102.4mm, cylinder diameter :87mm. |
| Ground specific pressure (Kpa) | 30.7 |
| Rotation speed (rpm) | 9 |
| Travel speed (km/h) | 2.6/4.1 |
| Rotary hydraulic motor type | Fixed plunger type x 1 |
| Type of walking hydraulic motor | Variable plunger type x 2 |
| Traveling Hydraulic Circuit (Mpa) | 26.5 |
| Rotary Hydraulic Circuit (Mpa) | 19.6 |
| Hydraulic crushing pipeline is standard | no |
| Working Hydraulic Circuit (Mpa) | 26.5 |
| Bucket cylinders - Number × diameter × stroke (mm) | 75 x 580 x 50 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 85 * 709.5 * 55 |
| Boom cylinders - Number × diameter × stroke (mm) | 90 * 689.5 * 55 |
| Fuel Tank (L) | 120 |
| Hydraulic Tank (L) | 55 |
| Engine Oil changes (L) | 9.7 |
| Coolant (L) | 8 |
| Total transport length (mm) | 5935 |
| Total transport width (mm) | 1960 |
| Total transport height (mm) | 2550 |
| Full cab height (mm) | 2550 |
| Minimum ground clearance (mm) | 320 |
| Back end turning radius (mm) | 1650 |
| Total track length (mm) | 2500 |
| Track gauge (mm) | 1560 |
| Track plate width (mm) | 400 |
| Total track width (mm) | 1960 |
| Track ground length (mm) | 1980 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3810 |
| Maximum excavation height (mm) | 5860 |
| Maximum unloading height (mm) | 4130 |
| Maximum vertical digging depth (mm) | 3060 |
| Bulldozer lift or depth (mm) | 355 |
| Maximum excavation radius of stop surface (mm) | 5980 |
